Eastern Jungle Gym Classic Bench Owner's Instruction Manual

Hide thumbs Also See for Classic Bench:

Advertisement

Quick Links

Download this manual
Owners & Instruction Manual
2021

Advertisement

loading

Related Manuals for Eastern Jungle Gym Classic Bench

Summary of Contents for Eastern Jungle Gym Classic Bench

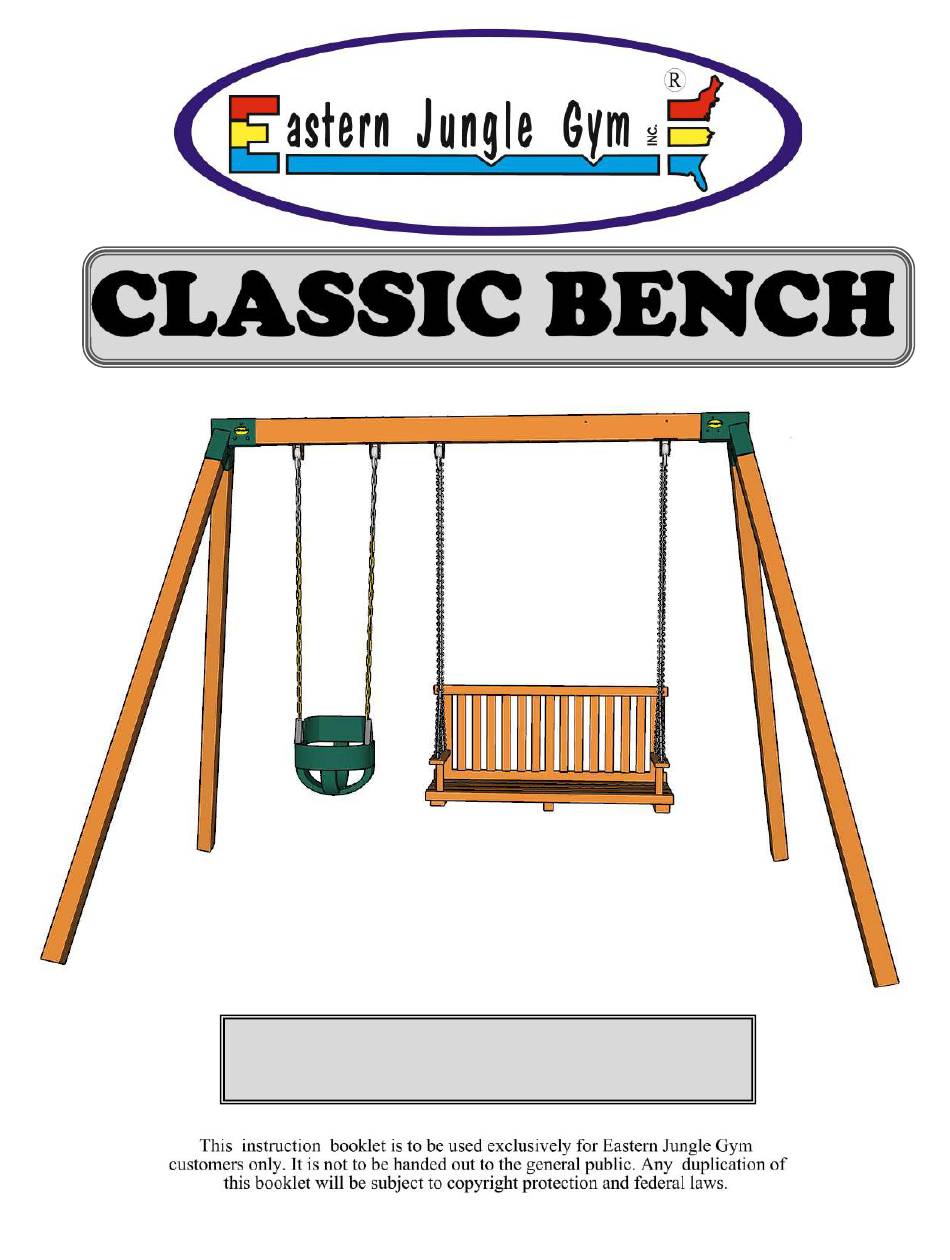

  • Page 1 Owners & Instruction Manual 2021...
  • Page 2 1-800-752-9787 Customer Service available 9-5pm EST Mon-Fri call 1-800-752-9787 or Email-Info@easternjunglegym.com...

  • Page 4: Site Location

    Site Location Our exclusive leveling system was developed through more then 26 years of installation experience. This unique leveling system ensures safe installation on un-level properties. While your jungle gym will be level and safe some of the activities will be affected by the sloping property (Diagram A ).
  • Page 6 Accessories Identification (2) Easy 1-2-3 Bracket (1) Bench Swing (1) Full Bucket (4) Snap Hooks Swing Wood Identification Wood Swing 1 @ SWING BEAM SBHG46120 4 @ Side Support Part # SSP4496...
  • Page 7 Note: If you have purchased only the Eastern Jungle Gym hardware kit, EJG recommends that the beam size should be 4x6x120”. The side supports should be 4x4x96”. Please prepare the swing beam using the dimensions shown in the diagram below.

  • Page 8: Hardware Identification

    Hardware Identification H6- 3/8” x 6 ½” Hex Bolt B3- 5/16” x 3” Lag Bolt N- Nut W 3/8” Washer W 5/16” Washer W3/8 W5/16...
  • Page 10 Step #1 Swing Beam Assembly Wood Swing Place swing hangers on beam as shown using hardware provided. (8)-3/8 Hex Bolt (6½”) (16)-3/8 Washer (8)-3/8 Nut (4)-Swing Hangers Note: Please note swing hanger location on beam. 3/8” Nut 3/8” washer Step #2 Easy 1-2-3 Bracket Install Wood Swing Layout SBHG46120 on the ground with swing brackets facing up.

  • Page 11: Step #3-Post Install

    Step #3-Post Install Wood Swing Install (4)-SS4496 Posts into Easy 1-2-3 Bracket. Predrill (4)-1/4” pilot holes. Install posts to bracket using B3 bolts.
  • Page 12 Step #4- Swing Set Leveling Wood Swing With the help of another person turn swing beam assembly upright. Level swing beam as needed by digging the side support legs into the ground. Check with level Two metal stakes are provided for added stability. After swing beam is installed insert stakes into the ground flush with support legs.

  • Page 13: Step #4- Install Accessories

    Step #4- Install Accessories Wood Swing Assemble wooden swing using hardware provided with swing. Hang baby swing and wooden swing. Make sure chains are the same length on each piece to ensure the swing is level. 10’ 8’-6” Add black and white drawing...
  • Page 15 Customer Service available 9-5pm EST Mon-Fri call 1-800-752-9787...
