EnOcean PTM 210 User Manual

Pushbutton transmitter device
Hide thumbs Also See for PTM 210:
Table of Contents

Advertisement

Quick Links

Download this manual

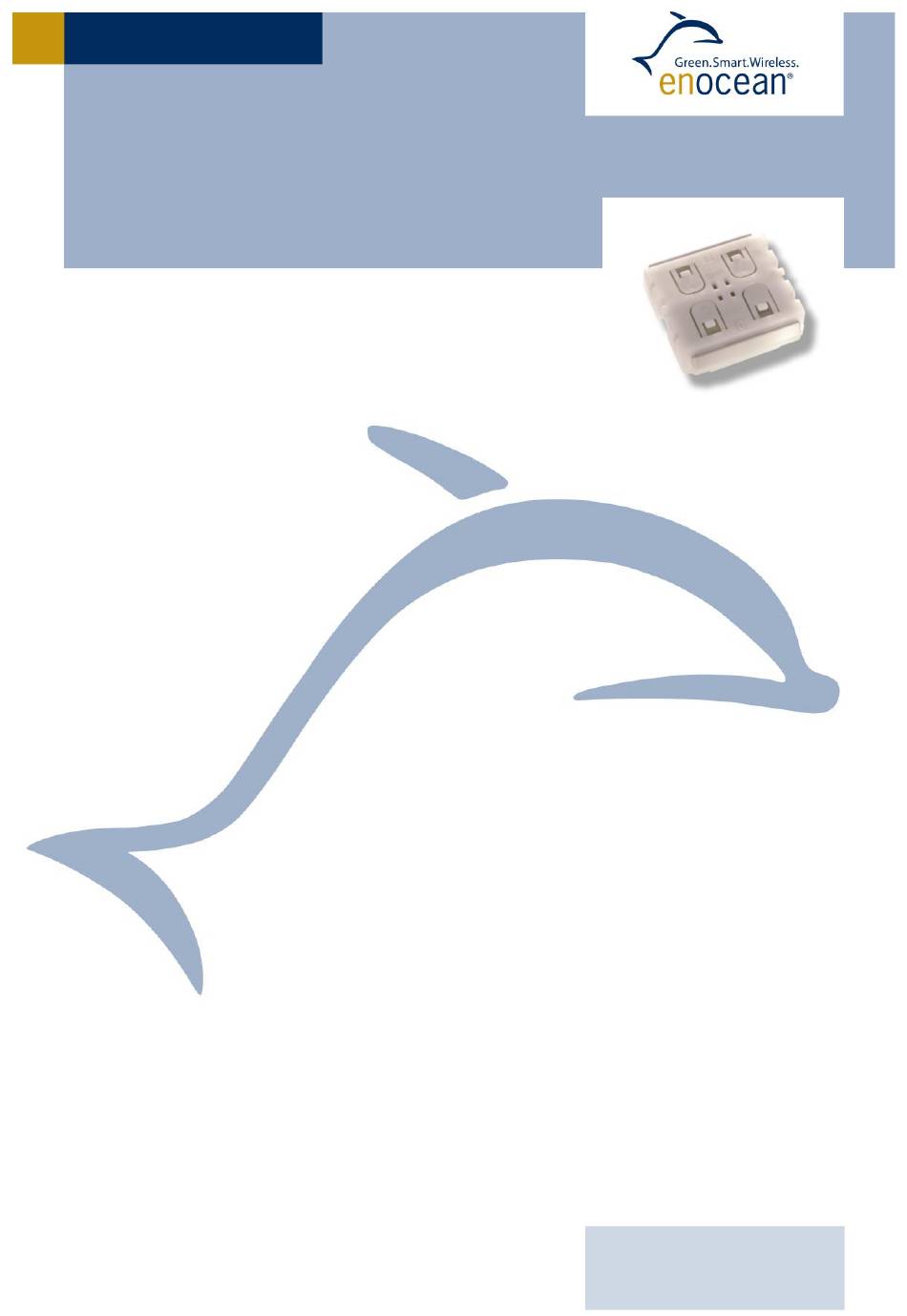

USER MANUAL V1.5
Pushbutton Transmitter Device
PTM 210 / PTM 215 / PTM 210U / PTM 210J
July 2014
Patent protected:
US 6,747,573
US 7,019,241
Further patents pending
EnOcean GmbH
Phone +49.89.67 34 689-0
Kolpingring 18a
Fax
82041 Oberhaching
info@enocean.com
Germany
www.enocean.com
+49.89.67 34 689-50
Subject to modifications
PTM 210 / PTM 215 / PTM 210U / PTM 210J
User Manual | v1.5 | July 2014
Page 1/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTM 210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EnOcean PTM 210

Summary of Contents for EnOcean PTM 210

  • Page 1 USER MANUAL V1.5 Pushbutton Transmitter Device PTM 210 / PTM 215 / PTM 210U / PTM 210J July 2014 Patent protected: US 6,747,573 US 7,019,241 Further patents pending EnOcean GmbH Phone +49.89.67 34 689-0 Subject to modifications Kolpingring 18a +49.89.67 34 689-50...

  • Page 2: Revision History

    As far as patents or other rights of third parties are concerned, liability is only assumed for devices, not for the described applications, processes and circuits. EnOcean does not assume responsibility for use of devices described and limits its liability to the replacement of devices determined to be defective due to workmanship. Devices or systems containing RF components must meet the essential requirements of the local legal authorities.

  • Page 3: Table Of Contents

    Block Diagram ....................13 Contact Nipples Designation ................14 Operating modes ................... 14 2.3.1 Normal mode operation (PTM 210, PTM 210U, PTM 210J, PTM 215) ....14 2.3.2 Secure mode operation (PTM 215 only)............15 2.3.3 Switching between modes (PTM 215 only) ............16 APPLICATIONS INFORMATION .................

  • Page 4: General Description

    USER MANUAL V1.5 PTM 210 / PTM 215 / PTM 210U / PTM 210J GENERAL DESCRIPTION The pushbutton transmitter family PTM 21x from EnOcean enables the implementation of wireless remote controls without batteries. Power is provided by a built-in electro-dynamic power generator.

  • Page 5: Typical Applications

    This enables the implementation of up to two switch rockers or up to four pushbuttons. PTM 215 devices support two operating modes - a normal mode and a secure mode with rolling code encryption to enable secure applications. PTM 210 / PTM 210U and PTM 210J devices support only normal mode. Typical Applications...

  • Page 6: Technical Data

    Security mode Rolling code with AES128 (PTM 215 only) Transmission range PTM 210 / PTM 215 / PTM 210U: typ. 300 m free field, typ. 30 m indoor PTM 210J: typ. 200m free field, typ. 30m indoor Device identifier Individual 32-bit ID (factory programmed)
  • Page 7 USER MANUAL V1.5 PTM 210 / PTM 215 / PTM 210U / PTM 210J PTM 21x without antenna, tilted view (including rocker catwalks) 1) these catwalks are not needed when using one single rocker only 2) dimensions of rocker part...
  • Page 8 USER MANUAL V1.5 PTM 210 / PTM 215 / PTM 210U / PTM 210J PTM 21x, cut A 2) dimensions of rocker part PTM 21x, cut B and C EnOcean GmbH Phone +49.89.67 34 689-0 Subject to modifications Kolpingring 18a +49.89.67 34 689-50...
  • Page 9 USER MANUAL V1.5 PTM 210 / PTM 215 / PTM 210U / PTM 210J Hatched areas: support planes PTM 21x rear view EnOcean GmbH Phone +49.89.67 34 689-0 Subject to modifications Kolpingring 18a +49.89.67 34 689-50 PTM 210 / PTM 215 / PTM 210U / PTM 210J 82041 Oberhaching info@enocean.com...
  • Page 10 USER MANUAL V1.5 PTM 210 / PTM 215 / PTM 210U / PTM 210J 2) dimensions of rocker part PTM 21x, side view EnOcean GmbH Phone +49.89.67 34 689-0 Subject to modifications Kolpingring 18a +49.89.67 34 689-50 PTM 210 / PTM 215 / PTM 210U / PTM 210J 82041 Oberhaching info@enocean.com...
  • Page 11 USER MANUAL V1.5 PTM 210 / PTM 215 / PTM 210U / PTM 210J If the rocker is not mounted on the rotation axis of PTM 21x several tolerances have to be considered! The measure from support plane to top of the energy bow is 7.70 mm +/- 0.3 mm!

  • Page 12: Environmental Conditions

    USER MANUAL V1.5 PTM 210 / PTM 215 / PTM 210U / PTM 210J Environmental Conditions Operating temperature -25 °C up to +65 °C Storage temperature -25 °C up to +65 °C Humidity 0% to 95% r.h. Ordering Information Type...

  • Page 13: Functional Description

    (PTM 215 only), generates the proper radio telegram structure and sends it to the radio transmitter. Radio transmitter Transmits the data in the form of a series of short EnOcean radio telegrams. EnOcean GmbH Phone +49.89.67 34 689-0...

  • Page 14: Contact Nipples Designation

    Operating modes Two operating modes exist for pushbutton transmitter devices:  Normal mode: Supported on PTM 210, PTM 210U, PTM 210J and PTM 215  Secure mode: Supported on PTM 215 only After production, PTM 215 is set to “normal mode”.

  • Page 15: Secure Mode Operation (Ptm 215 Only)

    USER MANUAL V1.5 PTM 210 / PTM 215 / PTM 210U / PTM 210J 2.3.2 Secure mode operation (PTM 215 only) While operating in secure mode, PTM 215 sends secure telegrams in accordance to EEP D2-03-00 as specified in the EnOcean Equipment Profiles specification.

  • Page 16: Switching Between Modes (Ptm 215 Only)

    USER MANUAL V1.5 PTM 210 / PTM 215 / PTM 210U / PTM 210J 2.3.3 Switching between modes (PTM 215 only) PTM 215 can be switched from normal mode to secure mode by simultaneously pressing both contact nipples of either rocker A or rocker B and actuating, releasing and actuating again the energy bow.

  • Page 17: Applications Information

    APPLICATIONS INFORMATION Construction of application specific Switch Rockers For CAD system development support, 3D construction data is available from EnOcean (IGS data). Using this data, the mechanical interface is fixed, and the shape and surface of the rocker(s) can be changed according to requirements.

  • Page 18: Transmission Range

    USER MANUAL V1.5 PTM 210 / PTM 215 / PTM 210U / PTM 210J Transmission Range The main factors that influence the system transmission range are: Type and location of the antennas of receiver and transmitter Type of terrain and degree of obstruction of the link path Sources of interference affecting the receiver “Dead spots”...

  • Page 19: Agency Approvals

    For conventional applications, it must be ensured that the PTM 215 or PTM 210 radio device is not operated more than 6000 times within one hour (one operation: energy bow is pressed and released). Within this calcula- tion, the extraordinary short telegram length is considered including three subtelegrams.

  • Page 20: Ptm 210U: Fcc And Industry Canada Regulatory Statements

    USER MANUAL V1.5 PTM 210 / PTM 215 / PTM 210U / PTM 210J PTM 210U: FCC and Industry Canada Regulatory Statements This device complies with part 15 of the FCC rules and Industry Canada ICES- 003. Opera- tion is subject to the following two conditions: (1) This device may not cause harmful inter- ference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 21: Ptm 210J: Japanese Type Approval

    USER MANUAL V1.5 PTM 210 / PTM 215 / PTM 210U / PTM 210J PTM 210J: Japanese Type Approval PTM 210J complies with the Japanese radio law and is certified according to ARIB STD-T108 V1.0 (2012-02). There is a certification marking on the back side of the module.

This manual is also suitable for:

Ptm 215Ptm 210uPtm 210j
