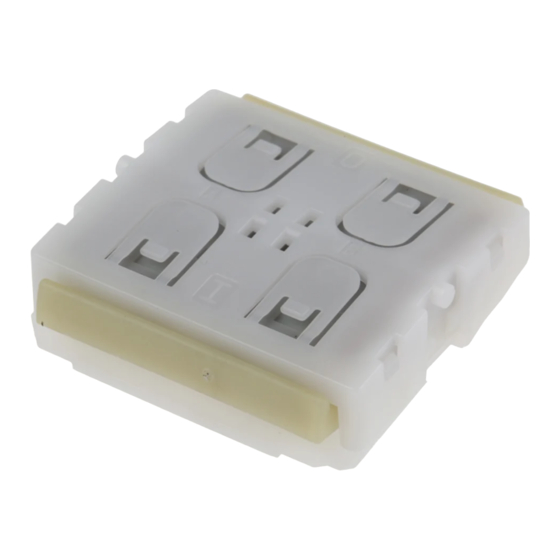

EnOcean DOLPHIN PTM 210 User Manual
Pushbutton transmitter modules
Hide thumbs
Also See for DOLPHIN PTM 210:
- User manual (48 pages) ,
- User manual (17 pages) ,
- User manual (21 pages)
Table of Contents
Advertisement
Quick Links
USER MANUAL
PTM 210 / PTM 215 / PTM 215U / PTM 215J
DC Step code and later
PTM 210 / PTM 215
PTM 215U
PTM 215J
Pushbutton transmitter modules
DC Step code and later
The product is protected by the following granted Patents:
US7710227, DE10315765B4
US9614553, EP1312171B1, CN100508406C
EP1389358B1, JP4225792B2
US7019241, EP1550202B1, DE50303733D1, CN1689218B
US7391135, EP1611663B1, DE10315764B4,
US8502470, JP5617103B2
EP2524572B1
And also by pending or not yet published Patents and Designs.
© 2020 EnOcean | www.enocean.com
PTM 210 / PTM 215 / PTM 210U / PTM 215U / PTM 210J / PTM 215J / User Manual Page 1/37
Advertisement
Table of Contents
Related Manuals for EnOcean DOLPHIN PTM 210
Summary of Contents for EnOcean DOLPHIN PTM 210
- Page 1 US8502470, JP5617103B2 EP2524572B1 And also by pending or not yet published Patents and Designs. © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 210U / PTM 215U / PTM 210J / PTM 215J / User Manual Page 1/37...
- Page 2 As far as patents or other rights of third parties are concerned, liability is only assumed for devices, not for the described applications, processes and circuits. EnOcean does not assume responsibility for use of devices described and limits its liability to the replacement of devices determined to be defective due to workmanship. Devices or sys- tems containing RF components must meet the essential requirements of the local legal au- thorities.
-
Page 3: Table Of Contents
Environmental Conditions .................. 9 References ....................10 FUNCTIONAL DESCRIPTION ................11 Block Diagram ....................11 Contact Nipples assignment ................12 Available EnOcean Equipment Profiles ............... 12 OPERATING MODES ..................14 Normal mode operation .................. 14 Secure mode operation ................... 14 3.2.1 Implicit RLC –... - Page 4 PTM 210U: FCC and Industry Canada Regulatory Statements ......36 PTM 210J: Japanese Type Approval ..............36 © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 4/37...
-
Page 5: General Description
For PTM 21x Products with earlier step codes (DA, DB) please do not use this document as reference and refer to EnOcean support (support@enocean.com) for more details. This document describes PTM modules with the EnOcean Radio Standard. To refer to other radio standards PTM Modules (e.g. Bluetooth, Zigbee) please visit the correct EnOcean Website Product page https://www.enocean.com/en/products/... -
Page 6: Basic Functionality
“Long” and “Short” push button presses. This © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 6/37... -
Page 7: Typical Applications
PTM 215 modules possible even when the PTM is not powered. With a Smartphone and an App e.g. EnOcean Tool or with an NFC Reader and a PC tool e.g. EnOcean NFC Configurator it is possible to read information about the PTM module... - Page 8 PTM Module inside. Explosion drawing of complete wall switch with highlighted PTM Module © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 8/37...
-
Page 9: Technical Data
0% to 95% r.h. According the international standard for energy harvesting wireless radio protocol for self-powered applications: ISO/IEC 14543-3-10 © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 9/37... -
Page 10: References
5) Enocean radio standards a. ERP1 b. ERP2 c. Security d. EEP e. NFC 6) White papers 7) Support © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 10/37... -
Page 11: Functional Description
RF transmitter Transmits the data in the form of a series of short EnOcean radio telegrams. Contact Nipples Via the 4 nibbles rockers or other custom plastics can code specific information into the ra- dio telegram triggering different functions at the receiver. -
Page 12: Contact Nipples Assignment
The state of all four contact nipples is transmitted together with a unique device identification whenever the energy bow is pushed or released in an EnOcean Telegram. The exact coding is defined the EEP Profile. Which EEP is used is selected based on the Radio Standard (ERP1 or ERP2) and operating mode (normal or secure). - Page 13 SBC and actuating the energy bow. This button combination is reserved for mode change. Please see chapter 3.3 for details. © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 13/37...
-
Page 14: Operating Modes
In normal mode, PTM 21x does transmit the telegrams in the EEP profile defined by the ERP1 or ERP2. Please refer to Chapter 2.3. for details. In Normal mode the secure concept includes unique transmitter IDs. This means EnOcean products cannot be configured to transmit with identical transmitter ID, excluding Base ids. -
Page 15: 3.2.1 Implicit Rlc - Legacy, Not Recommended
DC Step code and later For details on the secure mechanisms please refer to the security specification of the EnOcean radio Protocol http://www.enocean.com/en/security-specification/. Or for practical explanation with examples please see APP note. Secure telegrams include a rolling code based on an incrementing counter which guaran- tees that identical message content will be encrypted differently. -
Page 16: 3.2.2 Explicit Rlc - Recommended
RLC – legacy, not recommended. Pic- ture below shows both variants 2 nibbles SBC - channel A left, channel B right © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 16/37... - Page 17 Energy bow with implicit RLC & with explicit RLC & press/release/press transmit secure teach-in. transmit secure teach-in. © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 17/37...
-
Page 18: Factory Reset
The Factory reset is executed with the 4 nibble SBC and simultaneously the sequence of 7x times pressing & releasing the energy bow. © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 18/37... -
Page 19: Nfc Interface Configuration And Interaction
PTM 210 / PTM 215 / PTM 215U / PTM 215J DC Step code and later Radio Communication U2S T2S – RPS, security ULP, security normal power © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 19/37... -
Page 20: Nfc Interface Overview
This can be done by unlocking the NFC interface with the old PIN code and then writing the new PIN code. For details please refer to chapter 5.4. © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 20/37... -
Page 21: Nfc Parameters - Memory Map
0x55 … 0xCF INTERNAL DATA Internal data (Do not use) Table 1 – STM 550 NFC memory areas © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 21/37... - Page 22 0x20 and ending at page 0x2F. The remaining pages in this area (0x1E, 0x1F, 0x30) pro- vide the required NDEF formatting information and cannot be changed by the user. © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 22/37...
- Page 23 The 16 bit OEM field identifies the manufacturer of the device so that manufacturer- specific layout implementations can be determined. For EnOcean GmbH this field is set to 0x000B DEVICE_IDENTIFIER The 24 bit DEVICE_IDENTIFIER field identifies an individual device from the range of devices manufactured by the manufacturer specified in the OEM field.
- Page 24 PTM 210 / PTM 215 / PTM 215U / PTM 215J DC Step code and later is invalid. © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 24/37...
- Page 25 LIGHT_THRESHOLD LIGHT_ TX_INTERVAL 0x4F ACCELERATION_THRESHOLD ACCELERATION _TX_INTERVAL 0x50 TEMPERATURE_THRESHOLD TEMPERATURE _TX_INTERVAL 0x51 HUMIDITY_THRESHOLD HUMIDITY _TX_INTERVAL 0x52 MAGNET_CONTACT_TX_INTERVAL © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 25/37...
- Page 26 PTM 210 / PTM 215 / PTM 215U / PTM 215J DC Step code and later 0x53 0x54 LIGHT_TEST_RESULT Figure 2 – CONFIGURATION area structure © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 26/37...
- Page 27 The EnOcean Alliance Product ID uniquely identifies each product within the EnOcean Alli- ance ecosystem. The Product ID consists of a 2 byte manufacturer identification code (as- signed by EnOcean Alliance) and a 4 byte product identification code (assigned by the man- ufacturer.
- Page 28 USER_KEY is used 0b01 Reserved, do not use 0b10, 0b11 Table 3 – KEY SELECTION bit field encoding © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 28/37...
- Page 29 32 bit RLC and 32 bit CMAC 0b00 (Default) 24 bit RLC and 24 bit CMAC 0b01 Reserved, do not use 0b10, 0b11 © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 29/37...
-
Page 30: Enocean Tool
These options are described in more detail below. PC with dedicated NFC reader For PC-based applications, EnOcean recommends the TWN4 Multitech 2 HF NFC Reader (or- der code T4BT-FB2BEL2-SIMPL) from Elatec RFID Systems (sales-rfid@elatec.com). This reader is shown in Figure 6 below. - Page 31 PTM 210 / PTM 215 / PTM 215U / PTM 215J DC Step code and later EnOcean provides the configuration app “EnOcean Tool” for these devices which can be downloaded directly from the respective app store. At the time of writing, the tool was available from the Google Play Store using this link: https://play.google.com/store/apps/details?id=de.enocean.easytool&hl=en...
-
Page 32: Applications Information
LABELS Construction of application specific Switch Rockers For CAD system development support, 3D construction data is available from EnOcean (IGS data). Using this data, the mechanical interface is fixed, and the shape and surface of the rocker(s) can be changed according to requirements. -
Page 33: Transmission Range
These figures should be treated as a rough guide only: Line-of-sight connections Typically 30 m range in corridors, up to 100 m in halls © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 33/37... - Page 34 False ceilings with panels of metal or carbon fibre Lead glass or glass with metal coating, steel furniture The distance between EnOcean receivers and other transmitting devices such as computers, audio and video equipment that also emit high-frequency signals should be at least 0.5 m.
-
Page 35: Agency Approvals
The assembly conforms to the European and national requirements of electromagnetic com- patibility. The conformity has been proven and the corresponding documentation has been deposited at EnOcean. The PTM devices can be operated without notification and free of charge in the area of the European Union, and in Switzerland. - Page 36 When the product is placed on the Japanese market, it must carry the Specified Radio Equipment marking as shown below: © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 36/37...
- Page 37 Using the key combination A0+A1+B1 (see contact nipples designation), PTM 210J trans- mits a telegram with 48-bit ID as required by Japanese radio law. © 2020 EnOcean | www.enocean.com PTM 210 / PTM 215 / PTM 215U / PTM 215J User Manual May 2020 | Page 37/37...
