- Page 1 USER MANUAL V1.31 Push button Transmitter Device PTM 200 October 6, 2011 EnOcean GmbH Phone +49.89.67 34 689-0 Subject to modifications Kolpingring 18a +49.89.67 34 689-50 PTM200 User Manual V1.31 82041 Oberhaching info@enocean.com October 6, 2011 11:05 AM Germany www.enocean.com...
- Page 2 As far as patents or other rights of third parties are concerned, liability is only assumed for modules, not for the described applications, processes and circuits. EnOcean does not assume responsibility for use of modules described and limits its liability to the replacement of modules determined to be defective due to workmanship. Devices or systems containing RF components must meet the essential requirements of the local legal authorities.
-
Page 3: Table Of Contents
2.3.4 Reliable radio transmission within systems operating many sensors ....13 PTM 200 Serial Data Communication via Receiver Device RCM 120 ....... 13 Basic Switching Features via Receiver Devices RCM 110 and RCM 120 ....14 Learning of PTM 200 to RCM 110/120 Receivers ..........14 APPLICATIONS INFORMATION ................ -
Page 4: General Description

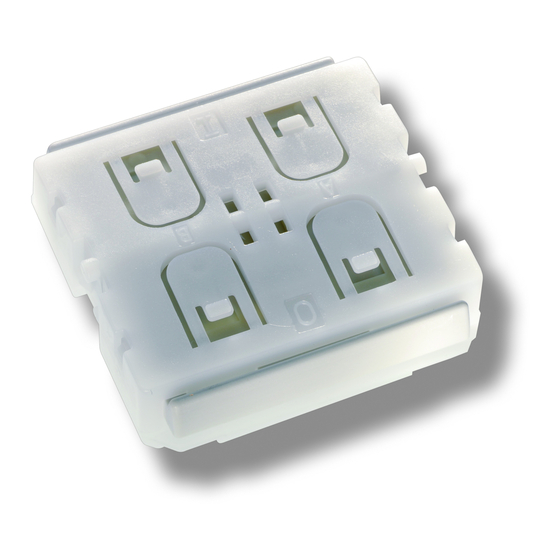

Power is provided by a built-in elec- tro-dynamic power generator. The PTM 200 device serves the 868 MHz air interface protocol of EnOcean. Together with the receiver devices RCM 110 or RCM 120, this device can be easily integrated in operation and control units for the implementation of different application-specific system solutions. -
Page 5: Typical Applications
4 single pushbuttons. The PTM 200 device is part of a powerful RF system solution from EnOcean for operation and control applications. Because the RF transmitters are self-powered (no batteries), maintenance-free RF systems are possible. - Page 6 Figure 2: PTM 200, tilted view (including rocker catwalks) 1) this catwalks are not needed when using one single rocker only 2) dimensions of rocker part Figure 3: PTM 200, top view (note cut A, B and C marking) EnOcean GmbH Phone +49.89.67 34 689-0...
- Page 7 USER MANUAL V1.31 PTM200 Figure 4: PTM 200, cut A 2) dimensions of rocker part Figure 5: PTM 200, cut B and C EnOcean GmbH Phone +49.89.67 34 689-0 Subject to modifications Kolpingring 18a +49.89.67 34 689-50 PTM200 User Manual V1.31 82041 Oberhaching info@enocean.com...
- Page 8 USER MANUAL V1.31 PTM200 labeling area Hatched areas: support planes Figure 6: PTM 200, rear view catwalks of switch rocker rotary EnOcean GmbH Phone +49.89.67 34 689-0 Subject to modifications Kolpingring 18a +49.89.67 34 689-50 PTM200 User Manual V1.31 82041 Oberhaching info@enocean.com...
-
Page 9: Environmental Conditions
2) dimensions of rocker part Figure 7 and 8: PTM 200, side view If the rocker is not mounted on the rotation axis of PTM 200 several tolerances have to be considered! The measure from support plane to top of the energy bow is 7.70 mm +/- 0.3 mm! -
Page 10: Functional Description
Energy Energy Power Power Converter Converter Figure 9: Block diagram of PTM 200 Energy Bow / Power Generator Converts pressure on the energy bow into electrical energy. Power Converter Electronic converter unit for generating the device DC power supply Processor Converts the contact nipples’... -
Page 11: Contact Nipple Designation
USER MANUAL V1.31 PTM200 Contact Nipple Designation With 4 contact nipples, the PTM 200 offers 2 channels with 4 action states each (up- per/lower nipple is pressed/released when activating the energy bow). The nipples’ desig- nation is as follows: STATE... -
Page 12: Ptm 200 Radio Telegram
Pehl, Digitale und analoge Nachrichtenübertragung, Hüthig 2001). 2.3.3 Transmission timing The transmission timing of the radio device PTM 200 has been developed to avoid possible collisions with data packages of other EnOcean transmitters as well as disturbances from the environment. -
Page 13: Reliable Radio Transmission Within Systems Operating Many Sensors
Figure 11: PTM 200 radio timing 2.3.4 Reliable radio transmission within systems operating many sensors The very short telegrams of EnOcean transmitters enable the operating of a large number of senders within the same radio cell; the error rate caused by telegram collisions remains extremely low. -
Page 14: Basic Switching Features Via Receiver Devices Rcm 110 And Rcm 120
Learning of PTM 200 to RCM 110/120 Receivers The PTM 200 can be easily made known to the receiver RCM 110 or RCM 120 that has been set into learn mode through triggering a PTM 200 radio signal by operating the energy bow when pressing either the O-rod or the I-rod of the desired channel A or B. -
Page 15: Applications Information
EnOcean easyfit PTM 250 is a multi-purpose, very flat installation switch insert based on the PTM 200 radio module. A base plate of format 71x71mm is adhered or screwed straight to the mounting surface. The insert is compatible to numerous frame systems of 55 x 55... - Page 16 USER MANUAL V1.31 PTM200 Figure 15: PTM 250 combines EnOcean functionality with multiple switch designs Type Color Ordering No. 2-channel light White H5001-A210 Anthracite H5001-A211 Aluminum varnished H5001-A212 4-channel light White H5001-A230 Anthracite H5001-A231 Aluminum varnished H5001-A232 2-channel roller blinds...
-
Page 17: Construction Of Application Specific Switch Rockers
For mounting the PTM 200 device into an application-specific case, the package outline drawings of the device are roughly dimensioned in 1.4. If more detailed dimensioning data of the PTM 200 device case is necessary, 3D construction data is available from EnOcean (IGS data). -
Page 18: Ce Approval Requirements
For conventional applications, it must be ensured that the PTM 200 radio device is not operated more than 6000 times within one hour (one operation: energy bow is pressed and released). Within this calculation, the extraordinary short telegram length is considered including three subtelegrams (see Chap- ter 2.3.3). -
Page 19: Fcc/Ic Approval Requirements
Changes or modifications made to this equipment not expressly approved by EnOcean may void the FCC authorization to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 20: Srrc Approval
Total duration of transmissions must not exceed more than two seconds per hour PTM 200 packet length is 0.7 ms, max. 5 redundant packets, tolerance of 5% in packet length, 50% on average packet Ton/Toff ratio Please be aware of the possibility of reduced transmission range when using... -
Page 21: Development Tools
EVA 100 is an evaluation kit to support a simple setting-up operation of the receiver side when the EnOcean transmit- ter device PTM 200 is evaluated. EVA 100 supports a quick evaluation of all RCM 110 and RCM 120 receiver operation modes and supports the fast development of applications. -
Page 22: Declaration Of Conformity
USER MANUAL V1.31 PTM200 DECLARATION OF CONFORMITY Please find the latest version of the declaration of conformity on our web site: http://www.enocean.com/en/enocean_modules/ptm-200/ EnOcean GmbH Phone +49.89.67 34 689-0 Subject to modifications Kolpingring 18a +49.89.67 34 689-50 PTM200 User Manual V1.31 82041 Oberhaching info@enocean.com...
