Summary of Contents for EnOcean PTM 230
-
Page 1: Transmitter Module

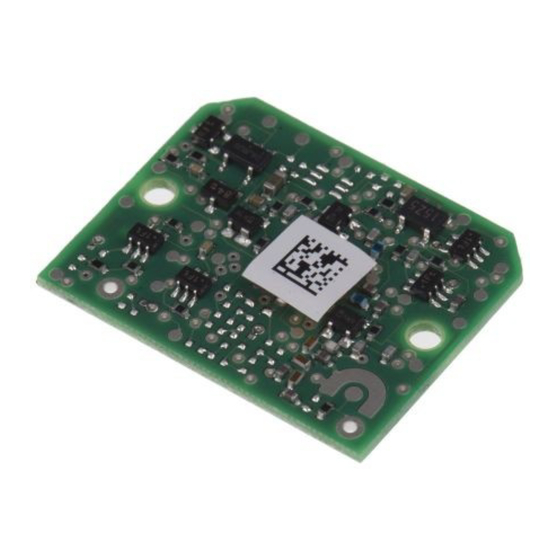

USER MANUAL V1.12 Transmitter Module PTM 230 June 4, 2008 EnOcean GmbH Phone +49.89.67 34 689-0 Subject to modifications Kolpingring 18a +49.89.67 34 689-50 PTM 230 User Manual V1.12 82041 Oberhaching info@enocean.com June 4, 2008 2:02 PM Germany www.enocean.com Page 1/12... -
Page 2: Revision History
As far as patents or other rights of third parties are concerned, liability is only assumed for modules, not for the described applications, processes and circuits. EnOcean does not assume responsibility for use of modules described and limits its liability to the replacement of modules determined to be defective due to workmanship. Devices or systems containing RF components must meet the essential requirements of the local legal authorities. -
Page 3: Table Of Contents
Environmental Conditions ................5 Ordering Information ..................5 FUNCTIONAL DESCRIPTION................. 6 Block Diagram ....................6 Pin Description and operational characteristics ..........6 PTM 230 Radio Telegram ................7 2.3.1 Frequency range and transmission cycle allowed ..........7 2.3.2 Modulation process ..................7 2.3.3... -
Page 4: General Description
Functional Principle When a short energy pulse is supplied to the PTM 230 module an RF telegram is transmit- ted including a 32-bit module ID and the polarity of the supply voltage. In addition the in- formation of 2 inputs is transmitted. With the 2 inputs one rocker of a PTM 200 can be simulated. -
Page 5: Mechanical Interface
0 % to 93 % r.h., non-condensing, no IP-class Ordering Information Type Ordering Code PTM 230 S3011-A230 EnOcean GmbH Phone +49.89.67 34 689-0 Subject to modifications Kolpingring 18a +49.89.67 34 689-50 PTM 230 User Manual V1.12 82041 Oberhaching info@enocean.com June 4, 2008 2:02 PM Germany www.enocean.com Page 5/12... -
Page 6: Functional Description
PWR 2 Power Power Power Power Converter Converter Converter Converter Figure: Block diagram of PTM 230 Pin Description and operational characteristics Symbol Function Operational Characteristics PWR1, Inputs for EnOcean energy Maximum wire length to energy converter: PWR2 converter ECO 50 or ECO 100... -
Page 7: Ptm 230 Radio Telegram
1% within one hour. Permanent transmitters such as radio earphones are not allowed. For conventional applications, it must be ensured that the PTM 230 radio module is not operated more than 15000 times within one hour (one operation: button is pressed and released). - Page 8 V1.12 PTM 230 2.3.4 Telegram Data The PTM 230 transmits an EnOcean radio telegram which is provided at the serial output of a RCM 120 or TCM 120 module with the following parameters: Unique factory programmed 32bit ID Data2, Data1, Data0=0...
-
Page 9: Application Information
Positioning and choice of receiver and transmitter antennas are the most important factors in determining system transmission range. The PTM 230 modules are supplied without an- tenna. For standard applications the use of a whip antenna is recommended (87 mm/ 0.14 Cu-wire). -
Page 10: Transmission Range
The conformity has been proven and the corresponding do- cumentation has been deposited at EnOcean. The modules can be operated without notifi- cation and free of charge in the area of the European Union, in Switzerland, in Cyprus, in Czech, in Estonia, in Hungary, in Latvia, in Lithuania, in Malta, in Poland, in Romania and in Slovenia. -
Page 11: Applications Information
EVA 100 is an evaluation kit to support a simple setting-up operation of the receiver side when the EnOcean transmit- ter module PTM 230 is evaluated. EVA 100 supports a quick evaluation of all RCM 110 and RCM 120 receiver operation modes and supports the fast development of applications. -
Page 12: Declaration Of Conformity
USER MANUAL V1.12 PTM 230 DECLARATION OF CONFORMITY EnOcean GmbH Phone +49.89.67 34 689-0 Subject to modifications Kolpingring 18a +49.89.67 34 689-50 PTM 230 User Manual V1.12 82041 Oberhaching info@enocean.com June 4, 2008 2:02 PM Germany www.enocean.com Page 12/12...
