USER MANUAL

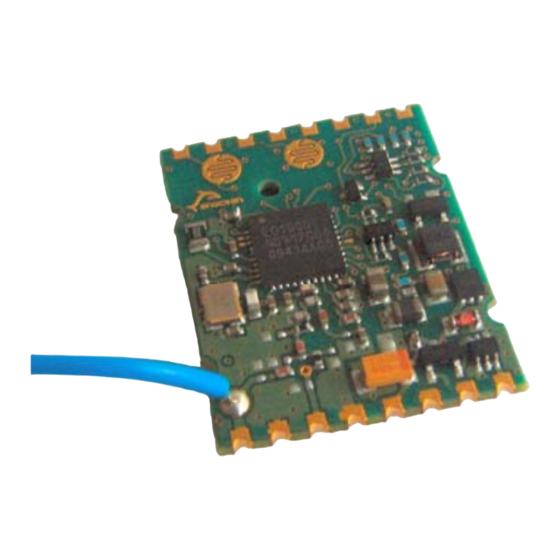

Transmitter Module
PTM 33x / 33xC
May 4, 2010
Observe precautions! Electrostatic sensitive devices!
Patent protected:
WO98/36395, DE 100 25 561, DE 101 50 128,
WO 2004/051591, DE 103 01 678 A1, DE 10309334,
WO 04/109236, WO 05/096482, WO 02/095707,
US 6,747,573, US 7,019,241
EnOcean GmbH
Phone +49.89.67 34 689-0
Kolpingring 18a
Fax
82041 Oberhaching
info@enocean.com
Germany
www.enocean.com
V0.8
+49.89.67 34 689-50
Subject to modifications
PTM 33x / 33xC User Manual V0.8
May 10, 2010 10:54 AM
Page 1/20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EnOcean PTM 33x
Summary of Contents for EnOcean PTM 33x
-
Page 1: Transmitter Module
WO 04/109236, WO 05/096482, WO 02/095707, US 6,747,573, US 7,019,241 EnOcean GmbH Phone +49.89.67 34 689-0 Subject to modifications Kolpingring 18a +49.89.67 34 689-50 PTM 33x / 33xC User Manual V0.8 82041 Oberhaching info@enocean.com May 10, 2010 10:54 AM Germany www.enocean.com Page 1/20... -
Page 2: Revision History
As far as patents or other rights of third parties are concerned, liability is only assumed for modules, not for the described applications, processes and circuits. EnOcean does not assume responsibility for use of modules described and limits its liability to the replacement of modules determined to be defective due to workmanship. Devices or systems containing RF components must meet the essential requirements of the local legal authorities. -
Page 3: Table Of Contents
3.5 Soldering information PTM 332/332C ............15 3.6 Transmission range ..................16 AGENCY CERTIFICATIONS (in preparation) ............17 4.1 CE approval ....................17 4.2 FCC (United States) Certification ..............18 4.3 IC (Industry Canada) Certification..............20 © 2009 EnOcean | www.enocean.com PTM 33x / 33xC User Manual V0.8 | Page 3/20... -
Page 4: General Description
RPS of type 2 (allows interpretation of operating two buttons simultaneously) Digital inputs Transmission range up to 200 m free field, up to 30 m indoor © 2009 EnOcean | www.enocean.com PTM 33x / 33xC User Manual V0.8 | Page 4/20... -
Page 5: Physical Dimensions
USER MANUAL V0.8 PTM 33X / 33XC Physical Dimensions PCB dimensions 26.2 x 21.15 x 3.5 mm © 2009 EnOcean | www.enocean.com PTM 33x / 33xC User Manual V0.8 | Page 5/20... -
Page 6: Environmental Conditions
A0, A1, B0, B1. After that 3 identical radio telegrams calculated from the status of these inputs are transmitted. PTM33x RF_WHIP µC RF_50 Polarity Detection Power Converter © 2009 EnOcean | www.enocean.com PTM 33x / 33xC User Manual V0.8 | Page 6/20... -
Page 7: Pin Out
ECO 200 or equivalent energy pulse RF_WHIP RF output Output for whip antenna RF_50 RF output 50 Ohm output for external antenna T1-9 Configuration Interface See 2.4 © 2009 EnOcean | www.enocean.com PTM 33x / 33xC User Manual V0.8 | Page 7/20... -
Page 8: Configuration Interface
WSDADIO2 RSDADIO3 Dolphin Studio, or EOPx EnOcean provides EOPx (EnOcean Programmer, a command line program) and Dolphin Stu- dio (Windows application for chip configuration, programming, and testing) and the USB/SPI programmer device as part of the EDK 300 developer’s kit. -
Page 9: Absolute Maximum Ratings (Non Operating)
Symbol Parameter Units Supply voltage Ground connection Voltage digital input pins Maximum Ratings (operating) Symbol Parameter Units Supply voltage Ground connection Voltage digital input pins © 2009 EnOcean | www.enocean.com PTM 33x / 33xC User Manual V0.8 | Page 9/20... -
Page 10: Radio Telegram
Radio telegram 2.7.1 Normal operation In default configuration PTM 33x transmits the same telegrams as a PTM 200 radio switch: Telegram type RPS: There are two message types depending on how many buttons (A0, A1, B0, B1) have been pressed (connected to GND) N-message: Only one or two buttons have been pressed. -
Page 11: 2.7.2 User Defined Operation
Transmit timing The setup of the transmission timing allows avoiding possible collisions with data packages of other EnOcean transmitters as well as disturbances from the environment. With each transmission cycle, 3 identical subtelegrams are transmitted within 40 ms. The transmis- sion of a subtelegram lasts approximately 0.7 ms. -
Page 12: Applications Information
PCB are shown below (left). A second orientation where PTM 330 is rotated 180° with respect to ECO 200 is also possible as shown with dashed lines. How to generate an equivalent energy pulse © 2009 EnOcean | www.enocean.com PTM 33x / 33xC User Manual V0.8 | Page 12/20... -
Page 13: Antenna
Option 2: A 50 Ω antenna can be connected to RF_50 Specification of the whip antenna; L=150 mm @ 315 MHz, L=87 mm @ 868 MHz © 2009 EnOcean | www.enocean.com PTM 33x / 33xC User Manual V0.8 | Page 13/20... -
Page 14: Layout Recommendations
V0.8 PTM 33X / 33XC Layout recommendations Proposal for foot print on host PCB Keep out area on host PCB. No copper surface area allowed! © 2009 EnOcean | www.enocean.com PTM 33x / 33xC User Manual V0.8 | Page 14/20... -
Page 15: Soldering Information Ptm 332/332C
Devices packaged in moisture-proof packaging should be stored in ambient conditions not exceeding temperatures of 40 °C or humidity levels of 90% r.h.. PTM 332 modules have to be soldered within 6 months after delivery! © 2009 EnOcean | www.enocean.com PTM 33x / 33xC User Manual V0.8 | Page 15/20... -
Page 16: Transmission Range
False ceilings with panels of metal or carbon fiber Lead glass or glass with metal coating, steel furniture The distance between EnOcean receivers and other transmitting devices such as com- puters, audio and video equipment that also emit high-frequency signals should be at least 0.5 m... -
Page 17: Agency Certifications (In Preparation)
V0.8 PTM 33X / 33XC AGENCY CERTIFICATIONS (in preparation) The modules have been tested to fulfil the approval requirements for CE (PTM 33x) and FCC/IC (PTM 33xC) based on the built-in firmware. CE approval The modules bear the EC conformity marking CE and conforms to the R&TTE EU-directive on radio equipment. -
Page 18: Fcc (United States) Certification
OEM Requirements In order to use EnOcean’s FCC ID number, the OEM must ensure that the following condi- tions are met: End users of products, which contain the module, must not have the ability to alter the firmware that governs the operation of the module. - Page 19 The user manual for the end product must also contain the text given above. Changes or modifications not expressly approved by EnOcean could void the user's au- thority to operate the equipment. The module must be used with only the following approved antenna(s).
-
Page 20: Ic (Industry Canada) Certification
V0.8 PTM 33X / 33XC IC (Industry Canada) Certification In order to use EnOcean’s IC number, the OEM must ensure that the following conditions are met: Labeling requirements for Industry Canada are similar to those required by the FCC. The Original Equipment Manufacturer (OEM) must ensure that IC labeling requirements are met.
