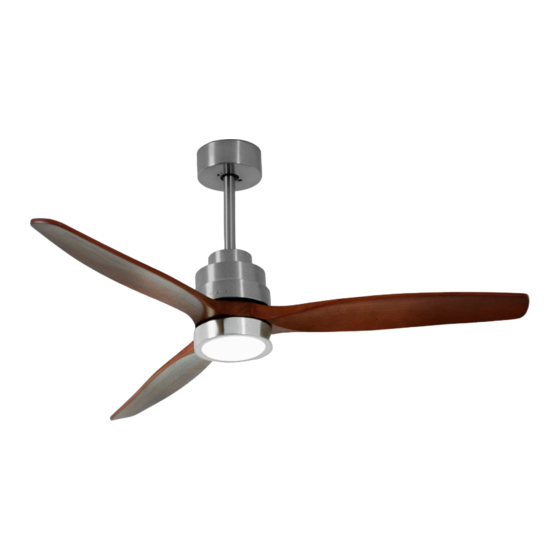

- Page 1 Wind Stylance Assembly manual...
- Page 4 To download this user guide in your language, visit our website: www.create-store.com/uk/ Para descargar el manual en su idioma, visite nuestra web: www.create-store.com/es/ Para baixar o manual no seu idiomas, visite nosso site: www.create-store.com/pt/ Pour télécharger le manuel dans votre langue, visitez notre site Web: www.create-store.com/fr/...
- Page 5 TH I S MANUAL I S F O R ALL W IN D ST YL AN C E M O DELS INDE X Box c o n te n t Step 1. Woo d cei li ng Step 1. C on c re te ce il ing Step 1.
- Page 6 BOX CONTENT CANOPY DRIVER REMOTE CONTROL LED PLATE DECORATIVE ELEMENT MOTOR (x3) BLADES LAMP COVER SMALL DOWNROD EXTENSION BAR MOUNTING BRACKET SCREWS FOR BLADES (1) EXPANSION SCREWS COVER COVER COUPLING SCREW BALANCING (2) WOOD SCREWS WIRE CONNECTORS SCREWS + DECORATIVE ELEMENT COVER ATTENTION! Remove the three plastic security tabs from the bottom of the motor before beginning assembly.
- Page 7 STEP 1. WOOD CEILING PARTS AND TOOLS NOT INCLUDED (2) WOOD SCREWS OPTIONAL ACCORDING TO CEILING TYPE Mark on the ceiling with a pencil the 4 If necessary, depending on the type of holes of piece K. ceiling, you will need to use a drill to make the hole in the wood.
- Page 8 STEP 1. CONCRETE CEILING PARTS AND TOOLS NOT INCLUDED (1) EXPANSION SCREWS Disassemble part M separating it into pieces. Ø8 mm Mark on the ceiling with a pencil the 2 cen- With the help of a drill, make the two cor- tral holes of piece K, using the same piece responding holes with an Ø8 mm drill bit.
- Page 9 Place part K matching its holes with the Insert pieces M2, M3 and subsequently screws M1. Make sure the ceiling wires are the nut M4. placed on one side of piece K. Tighten piece M4 with a # 10 wrench, until Make sure that piece K is perfectly hooked you feel that it is well fixed.
- Page 10 STEP 1. FALSE CEILING PARTS AND TOOLS NOT INCLUDED FIXING SCREWS WITH SPRING LEVER Mark on the ceiling with a pencil the 2 cen- With the help of a drill, make the two cor- tral holes using piece K as a guide. responding holes.
- Page 11 CHOICE OF HEIGHT Before you start, choose the desired height. (10cm +/-) You will have to choose between the height of piece I or piece J. · If you choose the height of piece J, you should fol- low the instructions below. ·...
- Page 12 Fit the tilt support onto the Tighten the two screws on Put the pin back into part J. pin. the tilt support with the screwdriver. Secure the pin with the Piece J will be ready to be locking piece so that it does used.
- Page 13 Insert part G as shown in Once the pieces A and G are inserted, you must insert the the picture. wires of part H inside the bar. If you want, you can tape the wires down to make it easier to run them inside the bar. With the help of a screwdriv- Insert the bar at the top of Make sure no wires are...
- Page 14 Once the bar is well anchored to piece H, slide piece G down. The main frame of the fan mo- tor will remain assembled. STEP 3. DRIVER CONNECTION DRIVER WIRE CONNECTORS Place the tilt support in the Remember to put the notch Before continuing, check slot of piece K.
- Page 15 Join the connections in piece B to those in the motor, each Once the wires are connec- with its corresponding color. ted, insert piece B inside piece K, as shown in the image. Select and connect all the Once connected, place Then, you have to join the grounding wires together, piece O screwing it until it...
- Page 16 Slide part A up to fit the screws protruding from piece K. Once fitted, turn piece A to the right. Finally, with the help of a screwdriver, tighten the screws so that the piece is well fixed. STEP 4. ASSEMBLING THE BLADES Includes a replace- ment screw With the motor well posi-...
- Page 17 Follow the same step with the second and third blades E. Once all the blades E are in Remember not to screw in the screws completely. place, screw all the screws L tightly so that the blades are well attached. STEP 5.
- Page 18 Place piece N aligning its Firmly tighten the screws removed in step 1 so that piece N holes with the holes in the is properly attached. motor. OPTION WITH LED KIT STEP 6. LED PLATE CONNECTION LED PLATE Connect the wires in piece D to those of the fan joining the connections, each wire with the same colour.
- Page 19 STEP 7. LAMP COVER PLACEMENT LAMP COVER Place piece F on the fan by fitting it into the motor and fix it by turning clockwise. Do not for- get to check that piece F fits well. Once checked, you can connect the electricity and enjoy your new fan with light.
- Page 20 OPTION WITHOUT LED KIT STEP 6. FITTING THE COVER COVER COVER COUPLING SCREW COVER Carefully insert the fan wires inside piece S and take them out through the large side hole of this piece. Then screw piece S and check that it remains securely attached to the fan. Take piece Q and tighten the screw R into the hole so that it is securely attached.
- Page 21 Then take the piece Q and tighten the screw R on the nut S previously placed on the fan. Once the piece is in place, you can connect the electricity and enjoy your new fan. ENGLISH...
- Page 22 BLADE BALANCING KIT Your ceiling fan may have blade swing problems when in operation due to irregularities in the blades or brackets. Also, incorrect system mounting or crooked bearings could cause additional problems. The following procedure is recommended to remedy these problems: 1.
