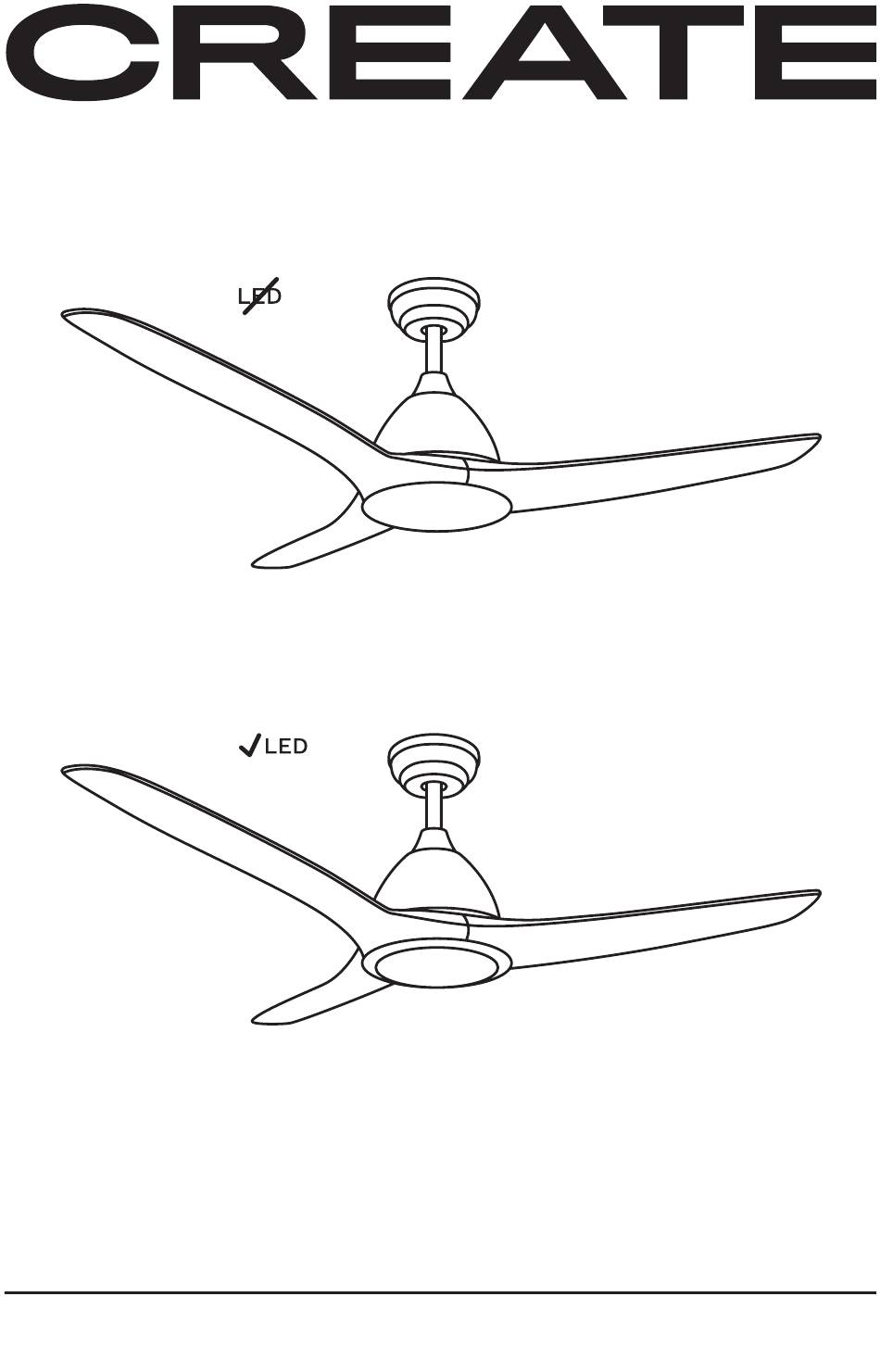

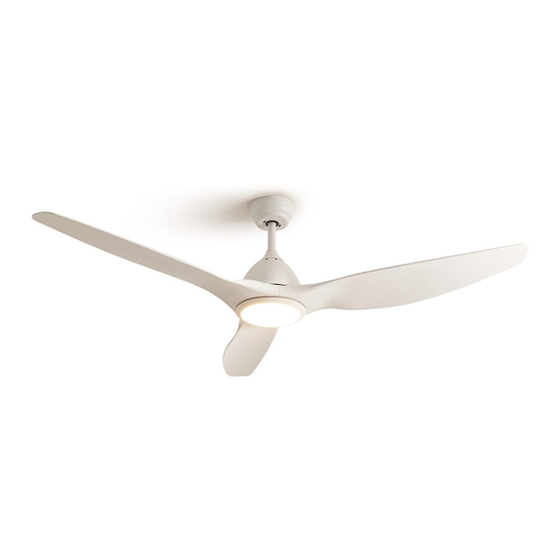

- Page 1 Wind Sail Assembly manual...
- Page 3 To download this user guide in your language, visit our website: www.create-store.com/uk Para descargar el manual en su idioma, visite nuestra web: www.create-store.com/es Para baixar o manual no seu idiomas, visite nosso site: www.create-store.com/pt Pour télécharger le manuel dans votre langue, visitez notre site Web: www.create-store.com/fr...
- Page 4 INDE X Box c o n te n t s Step 1. Woo d cei li ng Step 1. C on c re te ce il ing Step 1. Fals e ce il ing C h oi c e o f he ig ht Step 2.
- Page 5 B OX C ONT EN T S CANOPY DRIVER REMOTE CONTROL DECORATIVE ELEMENT (1) EXPANSION SCREWS (2) WOOD SCREWS MOTOR DECORATIVE ELEMENT (x3) BLADES EXTENSION BAR MOUNTING BRACKET BLADE SUPPORT + SCREWS BLADE SCREWS SCREWS FOR COVER COVER LED PLATE DECORATIVE ELEMENT + SCREW COUPLING...
- Page 6 STEP 1. WO O D C EI LI NG PARTS AND TOOLS MATERIAL NOT INCLUDED (2) WOOD SCREWS OPTIONAL ACCORDING TO TYPE OF CEILING Mark with a pencil the 4 holes of the piece If necessary, depending on the type of K in the ceiling.
- Page 7 STEP 1. C O NC RE TE C E I L I NG PARTS AND TOOLS MATERIAL NOT INCLUDED (1) EXPANSION SCREWS Disassemble the piece F separating it into pieces. Ø8 mm Mark with a pencil the 2 central holes of With the help of a drill, make the two cor- the piece K on the ceiling using the same responding holes with a Ø8 mm drill bit.
- Page 8 Place the part K matching its holes with Enter pieces F2, F3 and then the nut F4 in the screws F1. Make sure the ceiling ca- order. bles are to one side of the piece K. Tighten the piece F4 with a # 10 wrench, Make sure the piece K is perfectly hooked until you feel it is tight.
- Page 9 STEP 1. FALS E C EI L I NG PARTS AND TOOLS MATERIAL NOT INCLUDED FIXING SCREWS WITH SPRING LEVER Mark the 2 central holes on the ceiling With the help of a drill, make the two cor- with a pencil using the piece K as a guide. responding holes.
- Page 10 C H OICE O F H EI G HT Before you start, choose the desired height. (10cm +/-) You will have to choose between the height of piec- es H or I. · If you choose the height of piece I, you should fol- low the instructions below.
- Page 11 Fit the tilt bracket onto the Tighten the two screws on Put the pin back in the piece J. pin. the tilt bracket with the screwdriver. Secure the pin with the The piece J is ready to use. locking piece so that it does not come out.
- Page 12 Insert the piece D as shown Once the pieces A and D are inserted you must insert the in the picture. cables of the piece G inside the bar. If you want, you can tape the wires down to make it easier to route them inside the bar. With the help of a screw- Insert the bar at the top of Make sure no wires are...
- Page 13 Once the bar is well anchored to the piece G, slide piece D down. The main frame of the fan motor will remain assembled. STEP 3. GROUND C O NNECT I O N Place the tilt bracket into the slot on the piece K so that it is attached to the ceiling. Re- member to put the notch on the black top back so that the piece fits well.
- Page 14 STEP 4. DRIVER C ONN ECTI ON Insert the piece B in the groove of piece K. Check that all cables are correctly routed without getting caught. Connect the PHASE (L) cable of your installation to the Connect the NEUTRAL wire PHASE cable of the piece B.
- Page 15 Once the cables are connected, slide the piece A up to fit the screws protruding from the piece K. Once they are fitted, turn the piece A to the right. Finally, with the help of a screwdriver, tighten the screws so that the piece A is securely attached to the ceiling.
- Page 16 Repeat steps 2 and 3 with Tighten the screws until Make sure the blades are the two remaining blades. you feel that the blades are properly attached. properly attached. With the help of a screwdriver, remove the 5 screws from the Carefully position lower part of the main body that is mounted on the ceiling,...
- Page 17 STEP 6. DEC OR ATIVE EL EME NT PL ACEM ENT DECORATIVE SCREWS FOR ELEMENT DECORATIVE ELEMENT + MOTOR With the help of a screwdriver, remove the 3 central screws Pass the cables through the O from the lower part of the motor. center hole of the piece H.
- Page 18 OPTIO N WITH L ED KI T STEP 7. L ED P L AT E C O NNECT I O N LED PLATE Connect the wires on piece M to those of the fan joining the connections, each wire with the same color.
- Page 19 STEP 8. L AMP C OV ER P L AC EMENT LAMP COVER Place the piece N on the fan by fitting it into the motor and fix it by turning clockwise. Do not forget to check that the piece N fits well. Once verified, you will be able to connect the electricity and enjoy your new fan with light.
- Page 20 OPTIO N WITHOU T L ED K I T STEP 7. ATTACHING THE DECORATIVE COVER DECORATIVE COVER COVER SCREW COVER COUPLING Carefully insert the fan cables inside the piece S and take them out through the large side hole of the piece. Then screw the piece S and check that it remains securely attached to the fan.
- Page 21 Place the piece Q inserting the screw into the hole in the fan body. Screw the piece Q until it is securely attached. Later, you can connect the electricity and enjoy your new fan. E NGLI SH...
- Page 22 BL ADE BA L A NC I NG K I T Your ceiling fan may have blade swing problems when in operation due to irregularities in the blades or brackets. Also, incorrect system mounting or crooked bearings could cause additional problems. The following procedure is recommended to remedy these problems: 1.
