FORWODE DB-HBS22G Instructions Manual

2-bike hitch bicycle rack
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual

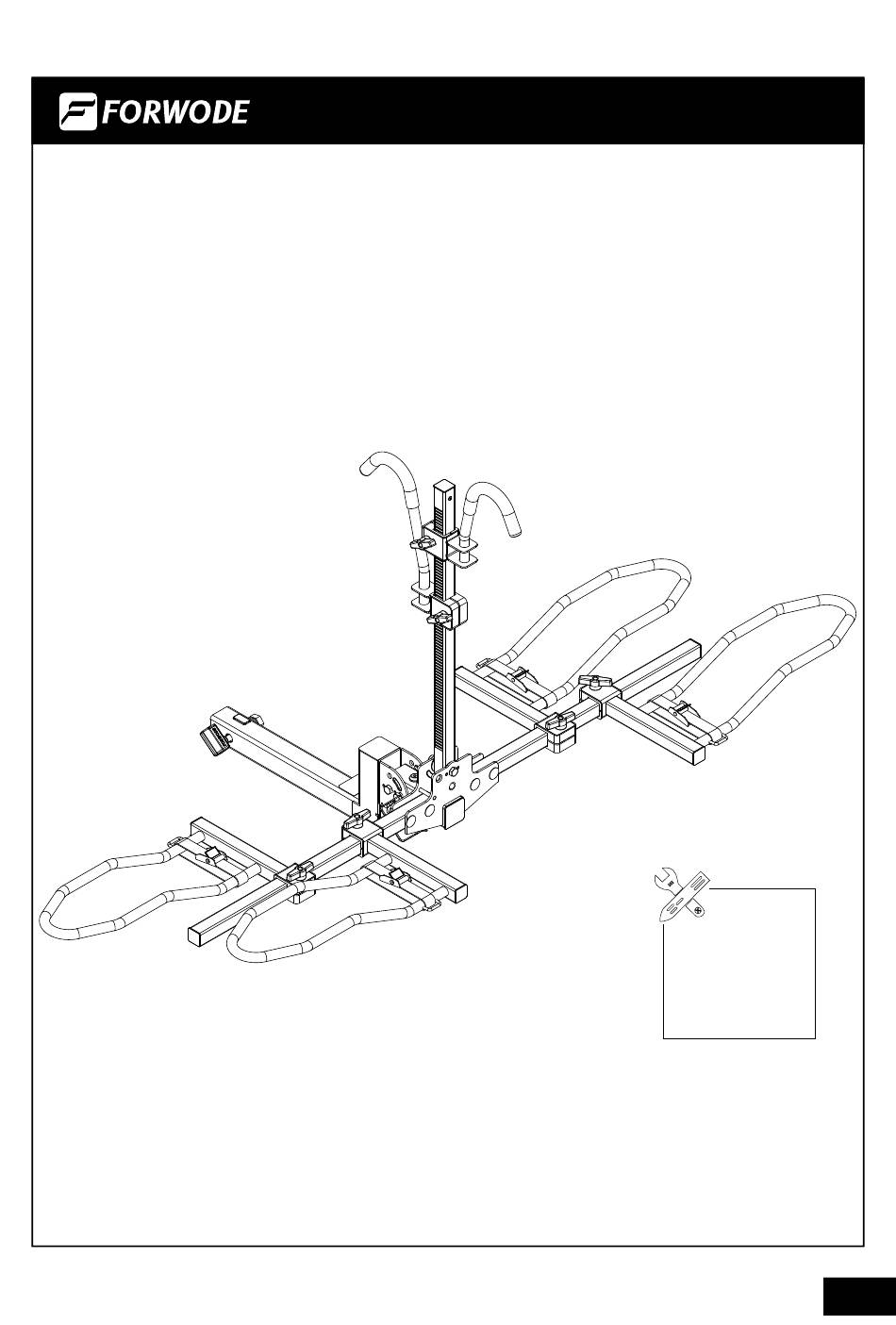

INSTRUCTIONS
2-BIKE HITCH
BICYCLE RACK
Model:DB-HBS22G
TOOLS
REQUIRED
•
Adjustable Wrenches
Or 5/8" & 11/16"
Wrenches
INSTRUCTION
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DB-HBS22G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FORWODE DB-HBS22G

Summary of Contents for FORWODE DB-HBS22G

  • Page 1 INSTRUCTIONS 2-BIKE HITCH BICYCLE RACK Model:DB-HBS22G TOOLS REQUIRED • Adjustable Wrenches Or 5/8" & 11/16" Wrenches INSTRUCTION...
  • Page 2 PRODUCT PARTS CATALOG O3 P2 P3 N3 N2 ITEM NO. HARDWARE LIST QTY. ITEM NO. HARDWARE LIST QTY. Accessories number Accessories number Base tube assembly Thread pin M16 Horizontal tube assembly Spring lock washer M16 Fixed base assembly Flat washer M16 Fixed bend tube assembly 1 Hitch lock head Fixed bend tube assembly 2...

  • Page 3: Installation Steps

    INSTALLATION STEPS STEP 1: Attention: N3 N2 Car Receiver Bolt N1 penetrates from here N1 N2 N3 N4 Insert A into the car receiver, align with the hole position, and install N3, N2, and N1 in sequence. After tightening N1, install the hitch lock head N4 on the other end. STEP 2: P1 P2 P3 As shown in the figure, insert the fixed base assembly C into the tail end of base tube A, align it with the...
  • Page 4 STEP 3: Attention: The ball head popping out of the hole here ensures that the vertical tube is locked vertically. Press down on the tube in base assembly C at position 1 in the diagram, and at the same time, press the ball button at position 2 to make the tube vertical.
  • Page 5 STEP 5: Install two sets (4) of plastic assembly J on each horizontal tube B, align the grooves of the J with D1 and D2, and then K1 K2 pass in bolts K1 from the bottom upwards. Tighten knob K2 by hand at the top.
  • Page 6 Tilt Function: Remove the square pin L, tilt the bike rack downwards, slowly open the trunk, and ensure that there is enough gap between the bike frame and the trunk to avoid damage to the car or bike. Attention: When starting the vehicle, make sure to restore the bike rack to a horizontal position and ensure that the square pin L is fully...

  • Page 7: General Considerations

    1. When the vehicle is equipped with an introduced to the market. electric rear fender, the power must be turned 2. While the FORWODE bike carrier design team off when installing the rear carrier. If this option strives to make most products universal to the cars is not available, do not use the rear bike on the market.
