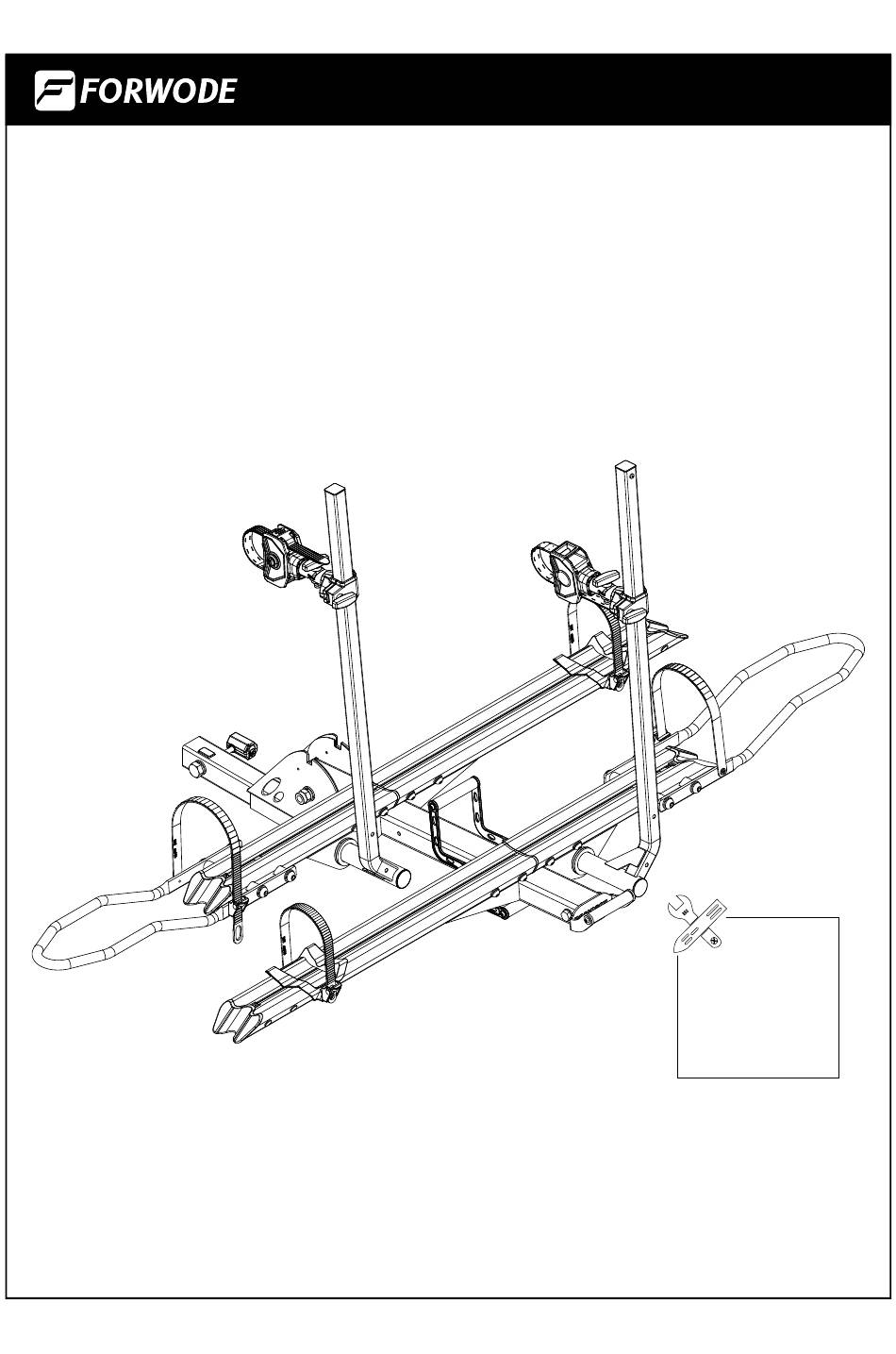

- Page 1 INSTRUCTIONS 2-BIKE PLATFORM BICYCLE RACK Model：DB-PBS32 TOOLS REQUIRED • Adjustable Wrenches or 5/8" & 11/16" Wrenches INSTRUCTION...
- Page 2 PRODUCT PARTS CATALOG L1 L3 N2 N4 ITEM NO. PART NAME QTY. Accessories number ITEM NO. PART NAME QTY. Accessories number Spring Washer ∅16 Main Frame Bottom Tube Assembly Short Platform Carriage Bolts M8*20 Flat Gasket ∅8 Long Platform Front Vertical Tube Nylon Self-locking Nuts M8 Rear Vertical Tube Socket Screw M10*25...
-
Page 3: Installation Steps
INSTALLATION STEPS STEP 1: Hitch Receiver of Trailer Put B into the hitch receiver of the trailer. After the holes are aligned, insert I1-I3-I2 in sequence and tighten them, and finally lock I4. Put A into B, after the holes are aligned, use J1-J5-J3 and J3-J4-J2 STEP 2: in sequence and tighten them, after installing, following the drawning to insert J5. - Page 4 STEP 3: ①: Sparately insert 2 pieces of K1 into the T-shaped slots of C and 2 pieces of K1 into the T-shaped slots of D respectivel (repeat twice). ②: Then insert the two ends of Z into C and D respectively, use 8 sets of L1-L2-L3 to fit into the holes and connect C-Z-D, and finally tighten them in sequence (repeat twice) .
- Page 5 STEP 5: ①: Firstly, place 2 pieces of G on top of 2 pieces of D. M1 M2 M3 M4 ②: Then install 2 pieces of F on top of 2 pieces of C, M1-M2-M3 in sequence, and tighten them in sequence. ③: Finally, install 8 pieces M4 separately at the D round holes.
-
Page 6: Tilt Function
STEP 7: Insert the two H pieces into E1 and E2 sparately, then tighten the flat knob of H to secure it in place. Tilt Function: Pull J5 out. Rotate the handle in the direction of the arrow, and then flip the bicycle frame upwards. Rotate the handle in the direction of the arrow to restore the bicycle rack to its original state (also make sure the square key is stuck in the groove). - Page 7 Rotate the handle in the direction of the arrow, and then flip the bicycle frame down as a whole. Rotate E1 and E2 in the direction of the arrow to the other side as shown in the figure and install the bicycle.
- Page 8 1. When the vehicle is equipped with an introduced to the market. electric rear fender, the power must be turned 2. While the FORWODE bike carrier design team off when installing the rear carrier. If this option strives to make most products universal to the cars is not available, do not use the rear bike on the market.
