Summary of Contents for FORWODE CB-FHB6024

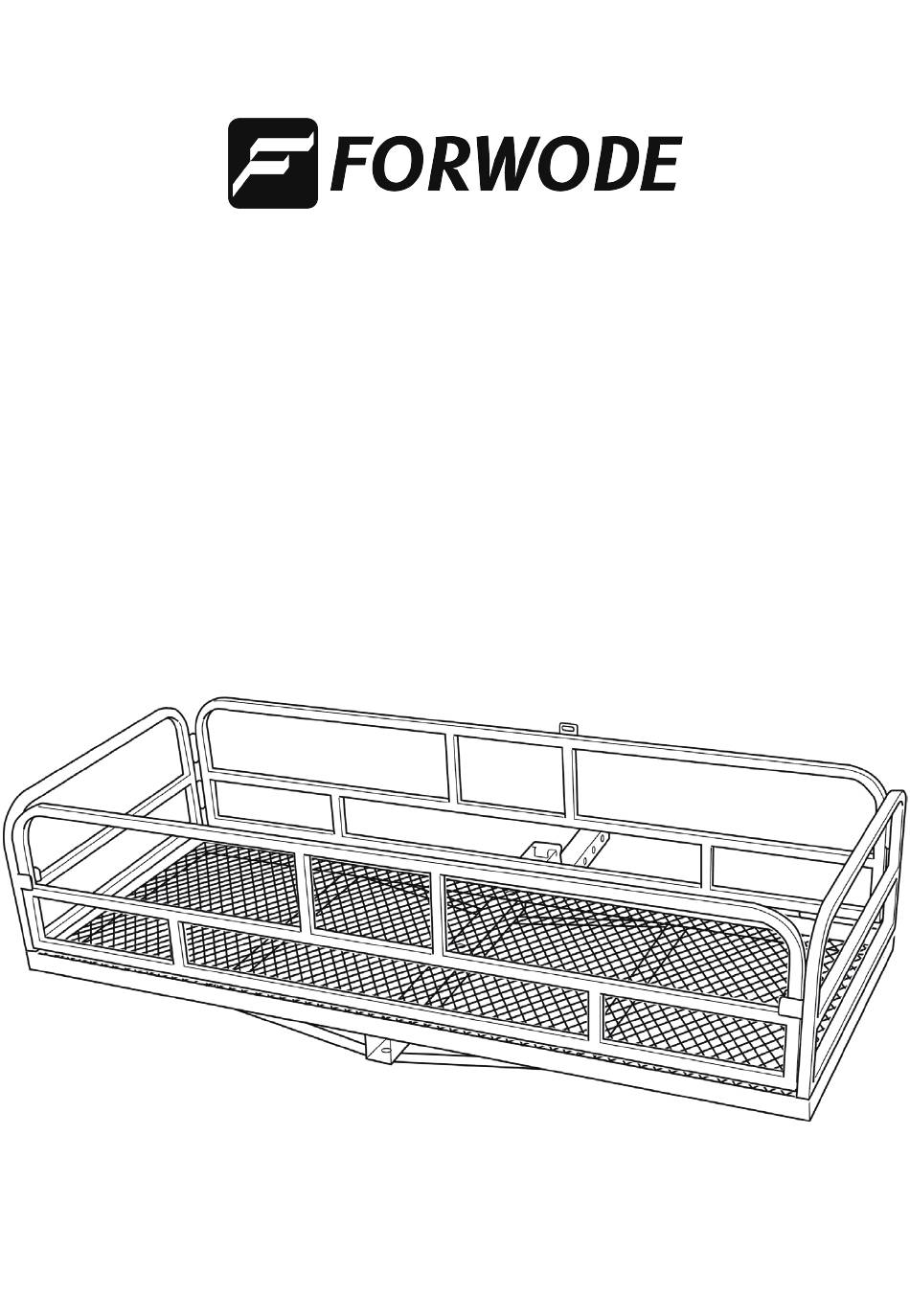

- Page 1 HIGN RAIL HITCH MOUNTED CARGO CARRIER CB-FHB6024...
- Page 2 PACKAGE PACKAGE ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION NUMBER NUMBER 2in Square Hitch Receiver Ø10 Pin M12 Flat Washer Anti-wobble Assembly M12 Self-locking Nut Frame M8x75 Hex Bolt Hitch Arm Supporting Plate M8 large Flat Washer Center fixing bolt M8 Self-locking Nut M16 Spring Washer M8x25 Hex Bolt M16 Flat Washer...
- Page 3 Step 1: Align A1 with the hole and insert it into the front end of A, then insert it into the square trailer hitch receiver, align the hole and insert E1, E2, and E3 to lock them, then install E4 at the other end. Car Trailer Square Port E2 E3 Step 2:...
- Page 4 Step 3: 1. Open the 3-piece L safety buckle and remove it from the fixing hole. 2.Open the frames in the order shown in the figure, and fix the side frame and the rear frame as shown in the figure 3.Insert the two L pieces into the holes on both sides of the frames and close the safety buckle When the frame is...
- Page 5 Folding the frames: Open G2 safety buckle and remove it from the hole, flip it up at the tail to align it with the other hole of A, insert G2, and close the safety buckle. Note: Before operation, the frames needs to be folded flat and the L safety buckle must be closed.
-
Page 6: Warranty
Contact us: service@forwodebike.com WARRANTY : The warranty remains in effect for 90 days from the purchase date. The warranty covers defects in workmanship and material. The warranty does not apply to units, which have been damaged or abused intentionally or unintentionally. Any unauthorized service will void warranty.
