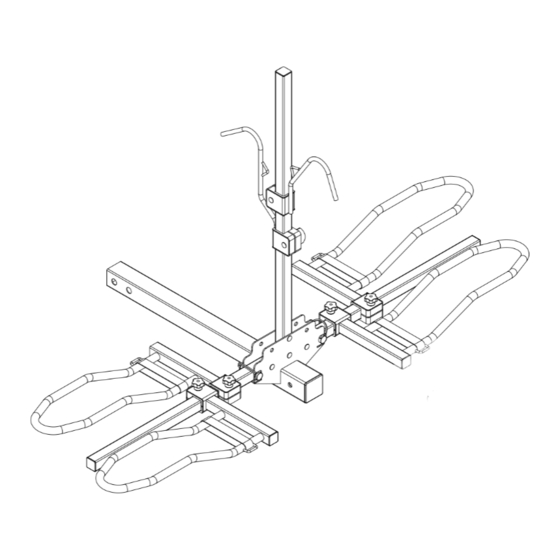

- Page 1 Model:DB-HBS12 INSTRUCTIONS 2-BIKE HITCH BICYCLE RACK Model:DB-HBS12 TOOLS REQUIRED • Adjustable Wrenches Or 5/8" & 11/16" Wrenches INSTRUCTION...
- Page 2 PRODUCT PARTS CATALOG ITEM NO. DESCRIPTION QTY. Base tube assembly Fixed base assembly Vertical tube assembly Horizontal tube assembly Fixed bend tube assembly 1 Fixed bend tube assembly 2 Wheel fixing straps Fixed hook 1 assembly Fixed hook 2 assembly External hexagonal bolt M8 Spring pad8 Flat pad8...
-
Page 3: Installation Steps
INSTALLATION STEPS STEP 1: H,I,J Insert H I J through A from the bottom of B1 square tube and tighten with wrench. Insert K into the corresponding hole, through A-B1 and fasten. STEP 2: STEP 3: S-T-U components Insert C into B1 and connect with S-T-U Insert D1 and D2 into the diagram, respectively, locking. -
Page 4: Disassembly Steps
STEP 4: STEP 5: Car rear trailer bar connector Insert R into the trailer bar and frame, and insert V Insert the G1 and G2 components , and lock the connection with its own hand screw nut. to fix it. DISASSEMBLY STEPS STEP 6: Car rear trailer... -
Page 5: General Considerations
1. When the vehicle is equipped with an electric to the market. rear fender, the power must be turned off when 2.While the FORWODE bike carrier design team strives installing the rear carrier. If this option is not to make most products universal to the cars on the available, do not use the rear bike carrier. -
Page 6: Warranty And Liability
WARNING WHEN MOUNTING THE BICYCLE WARRANTY AND LIABILITY 1. When you ride your bicycle, make sure that it does not 1.FORWODE does not bother to assume touch the vehicle, especially the pedals. Using protective any liability for any damages (to the vehicle, foam pads may be helpful.
