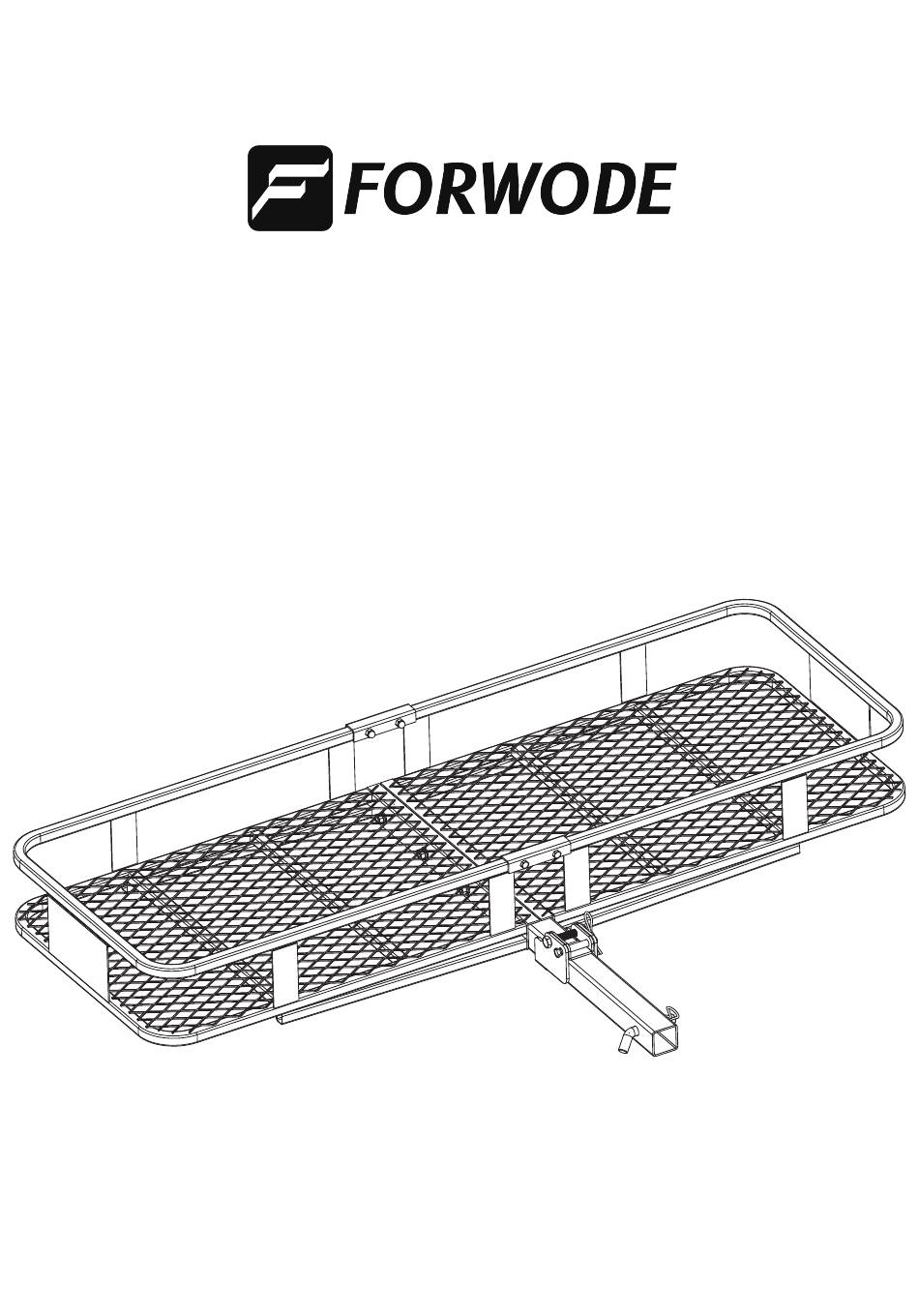

- Page 1 HITCH- MOUNTED CARGO CARRIER CB-HB6020 & CB-HB6024...
- Page 2 Parts Basket X2 Body Assembly Tube X1 Parts Foldable Tube X1 Hitch Plate X2 Parts M10 Hex Bolt X4 M10 Flat Washer X4 Parts M10 Spring Washer X4 M10 Hex Nut X4 Parts M8 Hex Bolt X8 M8 Locking Nut X8 Parts M12 Hex Bolt X1 M12 Locking Nut X1...
- Page 3 INSTALLATION STEPS Connect the Basket（A）to the Body Assembly Tube（B）with the M10 Hex Bolt（E）and Flat Washer（F) then place the Spring Washer（G）and M10 Hex Nut（H）and tighten them. Connect the Basket（A）and the Hitch Plate（D）with the M8 Hex Bolt（I）and the M8 Locking Nut （J） Connect the Foldable Tube（C）...
- Page 4 When not in use, fold the Baskets, place the Hitch Pin（M）into the Foldable Tube （C）and the Body Assembly Tube（B）.Fix them with the R-Pin（P）. Contact us: service@forwodebike.com WARRANTY : The warranty remains in effect for 90 days from the purchase date. The warranty covers defects in workmanship and material.
