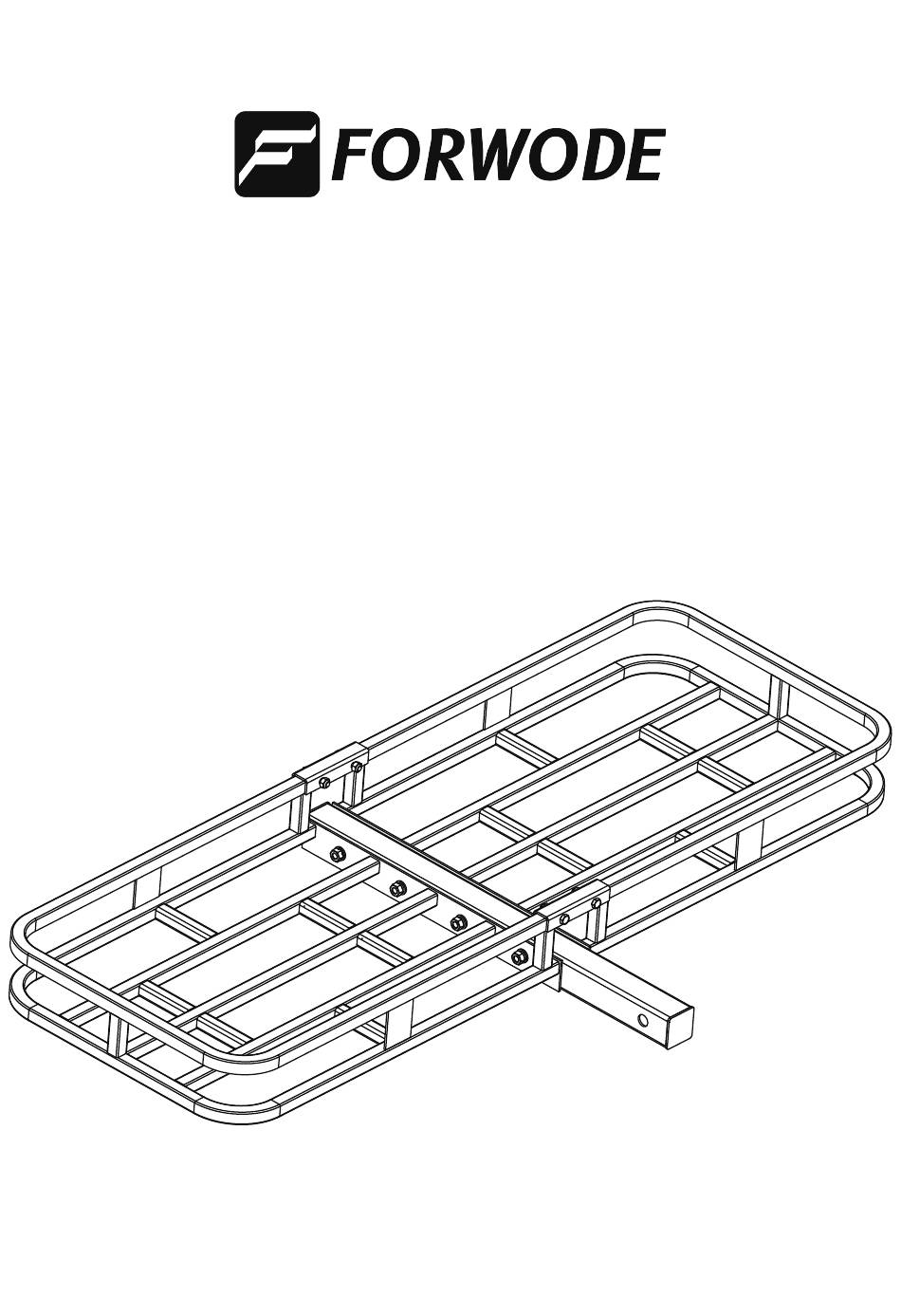

- Page 1 HITCH- MOUNTED CARGO CARRIER CB-HC5319...
- Page 2 ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION Left Basket M10 Flat Washer Right Basket M10 Spring Washer M8 Lock Nut Body Assembly Tube Connection Bracket Pipe Plug M10*70 Hex Bolt Dog-led Cam M8*35 Hex Bolt R-pin M10 Hex Nut Step 1: Place component Body Assembly Tube(C) in the center and components Left Basket(A) and Right Basket(B) on either side, pre-assemble without locking with M10*70 Hex Bolt(E) and M10 Hex Nut(G), M10 Flat Washer(H), M10 Spring Washer(I).
- Page 3 Step 2: Pre-assemble the 2-Connection Bracket(D) as shown with M8*35 Hex Bolt(F) and M8 Lock Nut(J) as shown, without locking. Step 3: Lock the pre-assembled bolt assembly from step 1, then lock the step 2 , and plug the Pipe Plug(K) into Body Assembly Tube(C) as shown.
