FORWODE DB-HBS12G Instructions Manual

2-bike hitch bicycle rack
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
INSTRUCTIONS
2-BIKE HITCH
BICYCLE RACK
Model:DB-HBS12G
TOOLS
REQUIRED
•
Adjustable Wrenches
Or 5/8" & 11/16"
Wrenches
INSTRUCTION
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DB-HBS12G and is the answer not in the manual?

Questions and answers

Related Manuals for FORWODE DB-HBS12G

Summary of Contents for FORWODE DB-HBS12G

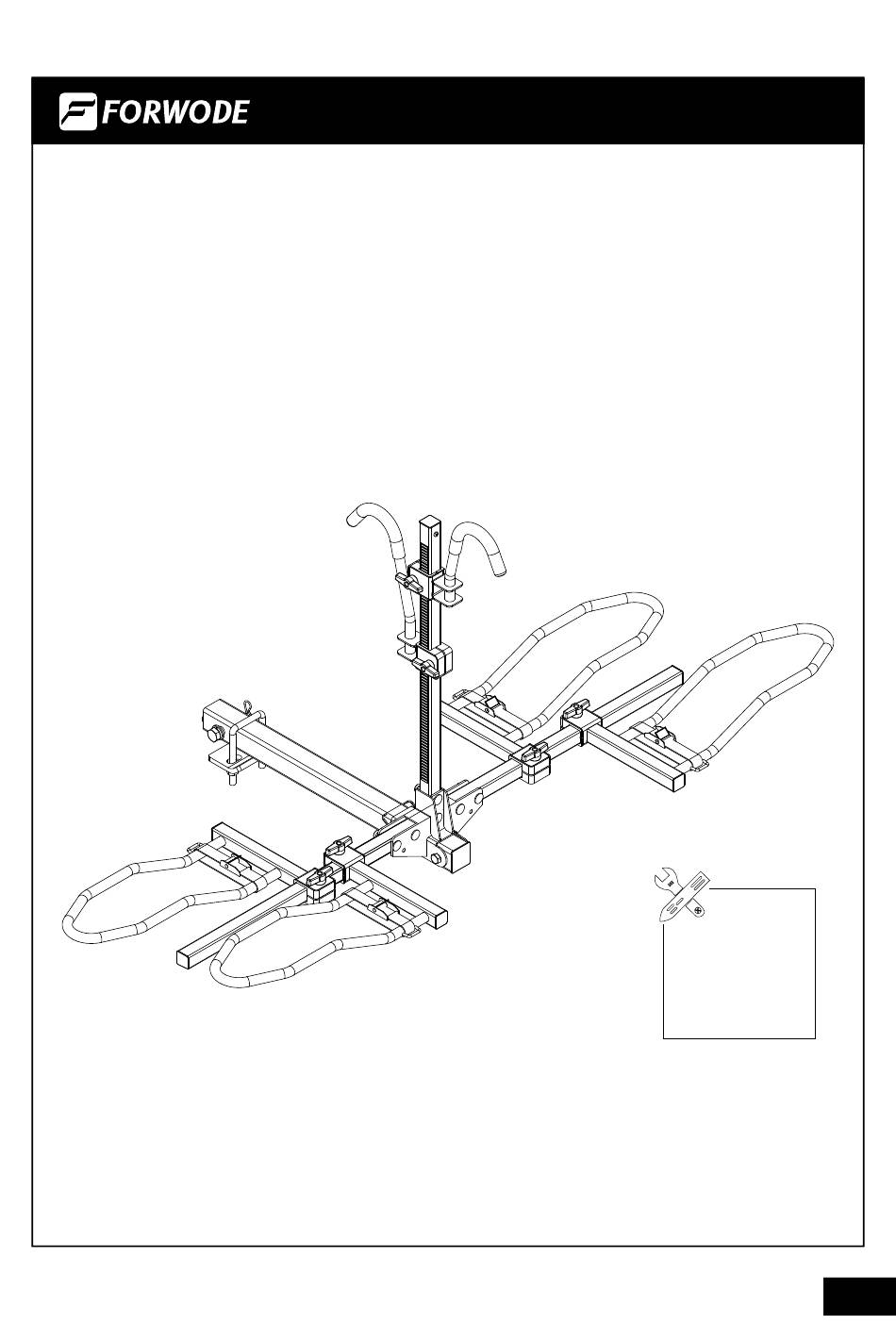

  • Page 1 INSTRUCTIONS 2-BIKE HITCH BICYCLE RACK Model:DB-HBS12G TOOLS REQUIRED • Adjustable Wrenches Or 5/8" & 11/16" Wrenches INSTRUCTION...
  • Page 2 PRODUCT PARTS CATALOG ITEM NO. HARDWARE LIST QTY. Accessories number ITEM NO. HARDWARE LIST QTY. Accessories number Base tube assembly Self-locking nut M12 Horizontal tube assembly Carriage bolt M10 Vertical tube assembly Self-locking nut M10 Fixed bend tube assembly 1 Flat washer M10 Fixed bend tube assembly 2 U-connectors...

  • Page 3: Installation Steps

    INSTALLATION STEPS STEP 1: Install the F on tube A as shown in the figure, align it with the rear hole position, and use M1 to thread it through. Install M2 at the other end of the bolt and use M3 to lock it. Install the L at the front hole position to control the tilt of the fixed base F.
  • Page 4 STEP 3: Install two sets (4) of plastic assembly J on each horizontal tube B, align the grooves of the J with D1 and D2, and then pass in bolts K1 from the bottom upwards. Tighten knob K2 by hand at the top. Attention: D1 and D2 need to be installed at the positions shown in the diagram, otherwise it may cause difficulty in adjusting the distance between tire brackets and prevent...
  • Page 5 STEP 4: E1 E2 Attention: E1 and E2 need to be installed up and down according to the position shown in the diagram, otherwise the bicycle frame cannot be fixed Install two sets (4) of J on vertical tube C, align the grooves of the J with E1 and E2, then thread bolt K1 through the hole position and tighten K2 by hand on the other side.
  • Page 6 STEP 5: N3N4 N1 N2 car receiver Insert H into base tube A, then insert A into the car receiver, align with the hole position, and install N1, N2, and N3 in sequence. After tightening N1, insert the R-shaped pin N4 into the other end hole position.
  • Page 7 1. When the vehicle is equipped with an introduced to the market. electric rear fender, the power must be turned 2. While the FORWODE bike carrier design team off when installing the rear carrier. If this option strives to make most products universal to the cars is not available, do not use the rear bike on the market.
