Manufactured by:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS 66762
800-856-4445
Backyard Discovery Australia Pty Ltd 2/7 Hood Street, Hampton VIC 3188, Phone: 1800-087-941

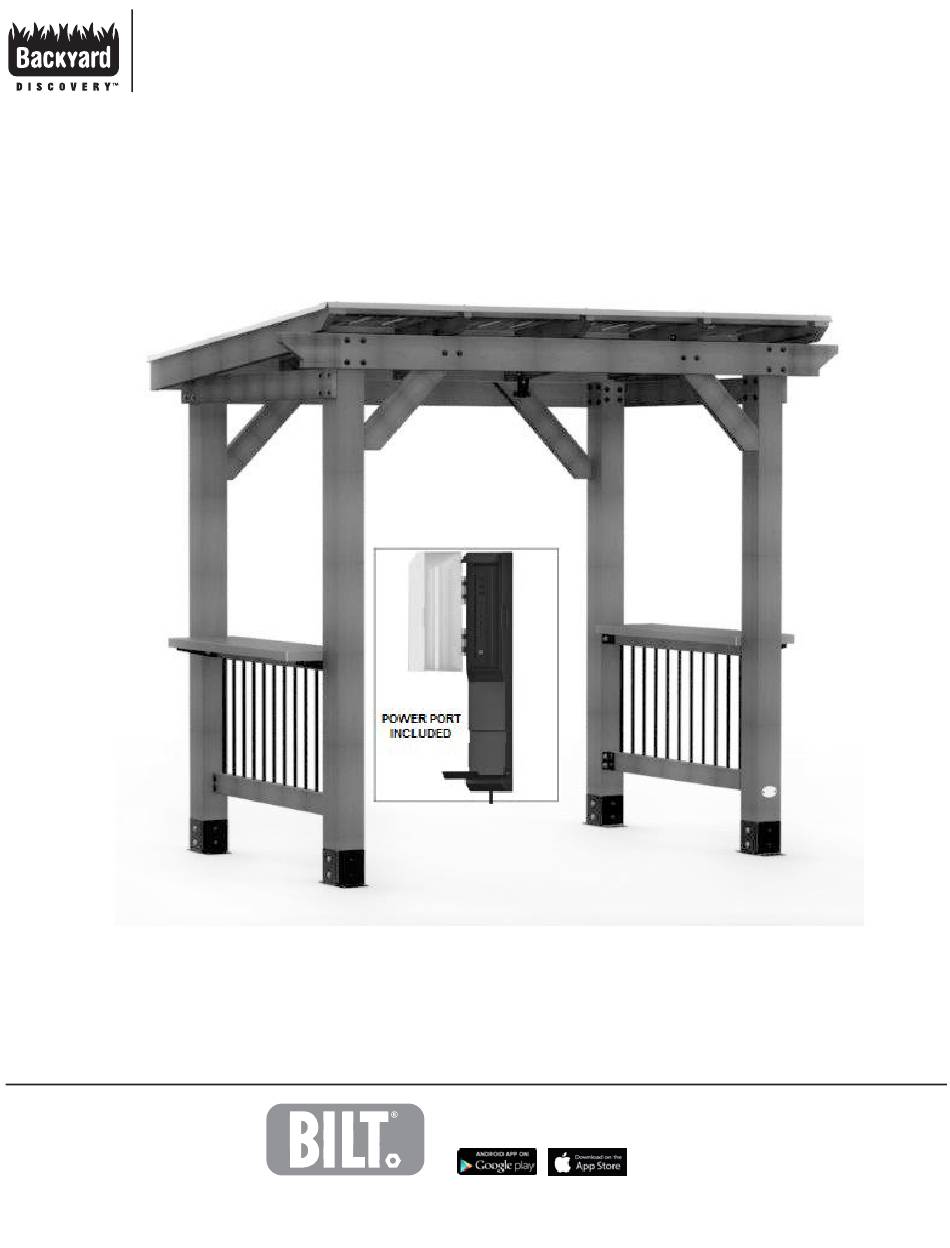

SAXONY GRILL GAZEBO AUS
MODEL # : 2104631D
Please visit www.backyarddiscovery.com
For the most up to date assembly manual, to register your product, or to order
replacement parts Para obtener instrucciones en español, visite
www.backyarddiscovery.com
EASY STEP-BY-STEP
3D INTERACTIVE INSTRUCTIONS
DOWNLOAD THE FREE APP
INS-2104631D-A-SAXONY GRILL GAZEBO AUS-ENG 8-13-2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2104631D and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard Discovery 2104631D

Summary of Contents for Backyard Discovery 2104631D

  • Page 1 Manufactured by: Backyard Discovery 3305 Airport Drive, Pittsburg, KS 66762 800-856-4445 Backyard Discovery Australia Pty Ltd 2/7 Hood Street, Hampton VIC 3188, Phone: 1800-087-941 SAXONY GRILL GAZEBO AUS MODEL # : 2104631D Please visit www.backyarddiscovery.com For the most up to date assembly manual, to register your product, or to order replacement parts Para obtener instrucciones en español, visite...
  • Page 2 OWNER'S MANUAL - BASIC SETUP DIMENSIONS & ASSEMBLY NOTES It is critically important that you start with square and level footings, concrete pad or deck to attach your structure Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step. •...
  • Page 3 OWNER'S MANUAL - ANCHORING LAYOUT 4'-4" 1320 3'-11 5/16" 1202mm 3'-6 5/8" 1082mm 6 3/4" 171mm...
  • Page 4 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) | JOIST END-W4L16248 | JOIST END-W4L16247 | 1 7/16"x5 1/4"x15" (36x134x381) | 1 7/16"x5 1/4"x15" (36x134x381) | JOIST-W4L16249 | 1 7/16"x5 1/4"x83" (36x134x2108) | CORBEL-W4L16250 | CORBEL-W4L16251 | 1 7/16"x4 7/16"x26 1/2" (36x112x673) | 1 7/16"x4 7/16"x25 7/8"...
  • Page 5 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) | RAFTER-W4L16258 | 1 7/16"x2 3/8"x62 1/4" (36x60x1582) | PURLIN-W4L16259 | 15/16"x3 3/8"x89 7/16" (24x86x2272) | RAIL-W4L16260 | 15/16"x4 7/16"x52 1/16" (24x112x1322) | RAIL-W4L16261 | 15/16"x4 7/16"x84 7/8" (24x112x2156) | POST-W2A03385 | 4 3/4"x4 3/4"x78 1/4"...
  • Page 6 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components (Not to Scale) H100653 | NUT LOCK BLK H100201 | SCREW PFH BLK | BOLT WH BLK H100964 | 1/4 | 8 x 2-1/2 | 5/16 x 5-1/2 H100382 | SCREW PFH BLK | 8 x 1-3/4 (16) | BOLT WH BLK...
  • Page 7 OWNER'S MANUAL - PARTS IDENTIFICATION Accessory Components (Not to Scale) A4M02688 | ROOF EDGE TRIM A4M02686 | ROOF EDGE TRIM SPLICE A4M02687 | ROOF EDGE TRIM A4M01225 | METAL TUBE (22) A4M02667 | 29 GA STEEL SHEETING A4M01223 A4M01224 | L BRACKET | L BRACKET A4M01210 | TABLE...
  • Page 8 PRE-ASSEMBLY STEP 1 - TOOLS REQUIRED Drill Attachments: Phillips Head Open End Wrenches 1/2" & 7/16" 1/8", 3/16", 3/8" & 7/16" Drill Bits Cordless Drill or Electric Drill 3/8" Drive Ratchet, 1/2" & 7/16" STD Sockets, 1/2" & 7/16" Deep Sockets Phillips Screw Driver Claw Hammer Tape Measure...

  • Page 9: Hardware Parts

    PRE-ASSEMBLY STEP 2 - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the wood and hardware. WOOD PARTS: • Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01). •...
  • Page 10 PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
  • Page 11 STEP 4 - GAZEBO FRAME ASSEMBLY | POST-W2A03385 | 4 3/4"x4 3/4"x78 1/4" (120x120x1987) A6P00500 | PLASTIC POST FOOT | POST-W2A03386 | 4 3/4"x4 3/4"x83 1/2" (120x120x2121) | POST-W2A03387 | 4 3/4"x4 3/4"x78 1/4" (120x120x1987) | POST-W2A03388 | 4 3/4"x4 3/4"x83 1/2" (120x120x2121)
  • Page 12 STEP 5 - GAZEBO FRAME ASSEMBLY | RAIL-W4L16260 | 15/16"x4 7/16"x52 1/16" (24x112x1322)
  • Page 13 STEP 6 - GAZEBO FRAME ASSEMBLY A4M00855 | L BRACKET 51x32x82x3.175 | RAIL-W4L16256 | 1 7/16"x3 3/8"x42 3/8" (36x86x1076)
  • Page 14 STEP 7 - GAZEBO FRAME ASSEMBLY | RAIL-W4L16260 | 15/16"x4 7/16"x52 1/16" (24x112x1322)
  • Page 15 STEP 8 - GAZEBO FRAME ASSEMBLY A4M00855 | L BRACKET 51x32x82x3.175 | RAIL-W4L16256 | 1 7/16"x3 3/8"x42 3/8" (36x86x1076)
  • Page 16 STEP 9 - GAZEBO FRAME ASSEMBLY | JOIST END-W4L16247 | JOIST END-W4L16248 | 1 7/16"x5 1/4"x15" (36x134x381) | 1 7/16"x5 1/4"x15" (36x134x381) | JOIST-W4L16249 | 1 7/16"x5 1/4"x83" (36x134x2108)
  • Page 17 STEP 10 - GAZEBO FRAME ASSEMBLY | CORBEL-W4L16250 | 1 7/16"x4 7/16"x26 1/2" (36x112x673)
  • Page 18 STEP 11 - GAZEBO FRAME ASSEMBLY | RAIL-W4L16261 | 15/16"x4 7/16"x84 7/8" (24x112x2156)
  • Page 19 STEP 12 - GAZEBO FRAME ASSEMBLY | CORBEL-W4L16251 | 1 7/16"x4 7/16"x25 7/8" (36x112x657) | CORBEL W/ ID TAG-W2A03389 | 1 7/16"x4 7/16"x25 7/8" (36x112x657)

  • Page 20: Step 13 - Rail Assembly

    STEP 13 - RAIL ASSEMBLY A4M01223 A4M01224 | L BRACKET | RAIL-W4L16256 | L BRACKET | 1 7/16"x3 3/8"x42 3/8" (36x86x1076) A4M00855 | L BRACKET 51x32x82x3.175...
  • Page 21 STEP 14 - RAIL ASSEMBLY A4M01225 | METAL TUBE (2) RAIL ASSEMBLY (22)

  • Page 22: Step 15- Shelf Assembly

    STEP 15- SHELF ASSEMBLY...
  • Page 23 STEP 16 - SHELF ASSEMBLY A4M01210 | TABLE...
  • Page 24 STEP 17 - GAZEBO ROOF ASSEMBLY | RAFTER-W4L16258 | 1 7/16"x2 3/8"x62 1/4" (36x60x1582) | BEAM-W4L16252 | 1 7/16"x5 1/4"x64" (36x134x1626) | BEAM-W4L16254 | 1 7/16"x5 1/4"x64" (36x134x1626)
  • Page 25 STEP 18 - GAZEBO ROOF ASSEMBLY | BEAM-W4L16253 | 1 7/16"x5 1/4"x89 7/16" (36x134x2272)
  • Page 26 STEP 19 - GAZEBO ROOF ASSEMBLY | RAFTER-W4L16255 | 1 7/16"x3 3/8"x62 3/8" (36x86x1585) | RAFTER-W4L16257 | 1 7/16"x3 3/8"x62 3/8" (36x86x1585)
  • Page 27 STEP 20 - GAZEBO ROOF ASSEMBLY | PURLIN-W4L16259 | 15/16"x3 3/8"x89 7/16" (24x86x2272)
  • Page 28 STEP 21 - GAZEBO ROOF ASSEMBLY | PURLIN-W4L16259 | 15/16"x3 3/8"x89 7/16" (24x86x2272)

  • Page 29: Part Number Description

    STEP 22 - GAZEBO ROOF ASSEMBLY A4M01227 | 29 GA STEEL SHEETING...
  • Page 30 STEP 23 - GAZEBO ROOF ASSEMBLY A4M02688 A4M02686 | ROOF EDGE TRIM (2) | ROOF EDGE TRIM SPLICE A4M02687 | ROOF EDGE TRIM...
  • Page 31 STEP 24 - GAZEBO ROOF ASSEMBLY A4M01228 | RAFTER BRACKET...
  • Page 32 STEP 25 - GAZEBO ASSEMBLY A4M01477 A4M01478 | POST ANCHORING | POST PLATE (8) PLATE...
  • Page 33 STEP 26 - GAZEBO ASSEMBLY A100241 | BYD ID TAG...
  • Page 34 STEP 27 - GAZEBO ASSEMBLY...

  • Page 35: Power Port

    PowerPort™ 9220409 ELECTRICAL ENCLOSURE (x1) FOR POWERPORT INSTALLATION REFER TO ASSEMBLY INSTRUCTIONS THAT COME PACKAGED WITH THE POWERPORT KIT. INSTALL ON ANY POST THAT IS DESIRED. FOLLOW DIRECTIONS FOR PROPER INSTALLATION.
