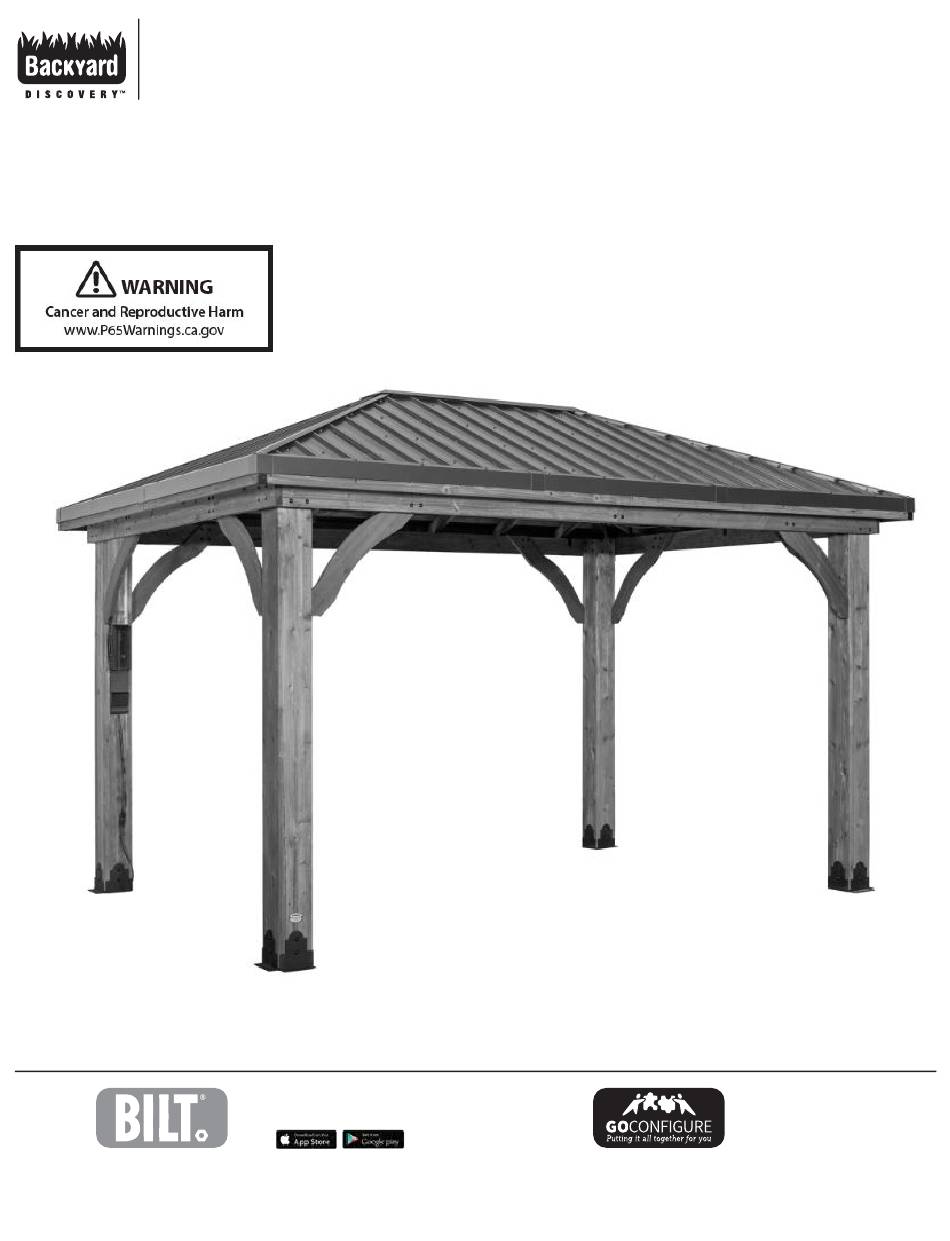

14x10 Cordova Gazebo
MODEL # : 2106536B
Please visit www.backyarddiscovery.com
For the most up to date assembly manual, to register your product, or to order
replacement parts Para obtener instrucciones en español, visite
www.backyarddiscovery.com
EASY STEP-BY-STEP
3D INTERACTIVE INSTRUCTIONS
DOWNLOAD THE FREE APP
INSTALLATION
SERVICES
AVAILABLE!
See inside for details
See inside for details
INS-2106536B-A-14x10 CORDOVA GAZEBO ENG 08-18-2021
*
Made in China

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cordova 2106536B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Backyard Discovery Cordova 2106536B

Summary of Contents for Backyard Discovery Cordova 2106536B

  • Page 1 Manufactured by: Backyard Discovery 3305 Airport Drive, Pittsburg, KS 66762 800-856-4445 Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476 J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990 14x10 Cordova Gazebo MODEL # : 2106536B Please visit www.backyarddiscovery.com...
  • Page 2 OWNER'S MANUAL - BASIC SETUP DIMENSIONS & ASSEMBLY NOTES It is critically important that you start with square and level footings, concrete pad or deck to attach your structure Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step. •...
  • Page 3 OWNER'S MANUAL - ANCHORING LAYOUT...
  • Page 4 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) ROOF JOIST-W4L16213 1" x3 3/8"x"88 3/16" (24x86x2240) ROOF JOIST- W4L14430 1"x3 3/8"x46 3/4" (24x86x1188) PURLIN - W4L14420 1"x3 3/8"x68 3/8" (24x86x1736) PURLIN - W4L14422 1"x3 3/8"x98 3/16" (24x86x2494) PURLIN-W4L16207 ( 4 ) 1"...
  • Page 5 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) ROOF JOIST-W4L16216 1" x3 3/8"x76 7/8" (24x86x1952) ROOF JOIST- W4L14438 PURLIN - W4L14446 1"x3 3/8"x15 15/16" (24x86x404) 1"x3 3/8"x20 1/4" (24x86x514) ROOF JOIST-W4L16215 1" X3 3/8"X76 3/4" (24x86x195 2) PURLIN - W4L14447 1"x3 3/8"x50 1/16"...
  • Page 6 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) RAFTER- W4L14431 1 3/8"x3 3/8"x44" (36x86x1117) RAFTER- W4L14434 1 3/8"x3 3/8"x63 7/8" (36x86x1622) RAFTER- W4L14432 RAFTER - W4L14524 1 3/8"x3 3/8"x20 7/16" (36x86x519) 1 3/8"x3 3/8"x20 7/16" (36x86x519) RAFTER- W4L14523 1 3/8"x3 3/8"x44"...
  • Page 7 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) CORBEL W/TAG-W2A03371 CORBEL-W2A03370 1 3/8"x6 7/16"x36 1/4" (36x163x921) 1 3/8"x6 7/16"x36 1/4" (36x163x921) BEAM - W4L14450 1"x5 1/4"x28 1/8" (24x134x714) MID BRACE BEAM - W4L14451 1"x5 1/4"x97 13/16" (24x134x2484) BEAM - W4L14452 1"x5 1/4"x77"...
  • Page 8 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components H100792 LAG SCREW WH BLK H100460 LAG SCREW H100171 BOLT WH BLK (13) 1/4x3 WH BLK (18) 1/4x1 (34) 1/4x1 H100488 BOLT WH BLK (15) 1/4x2 T-NUT BLK H100398 H100379 T-NUT BLK (34) 5/16 H100407 BOLT WH BLK...
  • Page 9 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components H100385 SCREW PFH BLK (39) H100536 SCREW PWH BLK H100759 SCREW H100392 SCREW PWH BLK TAPPING 8x1 1/4 (30) (52) 8x3/4 (17) 1/4x3/4 H100200 SCREW PFH BLK (28) 8x1 1/2 H101030 SCREW CONFIRMAT BLK H100833 SCREW (98)
  • Page 10 OWNER'S MANUAL - PARTS IDENTIFICATION Accessory Components (Not to Scale) A4M01192 A4M01191 PANEL BRACKET PANEL BRACKET A4M01193 PANEL BRACKET 01194 PANEL BRACKET ( 2) A4M01228 RAFTER CLIP (14) A4M01184 PANEL SUPPORT BRACKET A6P00296 7x7 POST FOOT STEEL POST A4M00950 STEEL POST PLATE A4M00949 ANCHOR PLATE BYD ID TAG...
  • Page 11 OWNER'S MANUAL - PARTS IDENTIFICATION Accessory Components (Not to Scale) A4M01200 EDGE TRIM LONG A4M01203 EDGE TRIM SHORT A4M01205 METAL SPACER A4M01201 EDGE TRIM SPLICE A4M01202 EDGE TRIM CORNER SPLICE A4M01204 RIDGE PEAK CAP...
  • Page 12 OWNER'S MANUAL - PARTS IDENTIFICATION Accessory Components (Not to Scale) A4M01179 A4M01175 29 GA STEEL SHEETING 29 GA STEEL SHEETING A4M01176-2 29 GA STEEL SHEETING A4M01176-1 29 GA STEEL SHEETING A4M01177-1 29 GA STEEL SHEETING 9205413 ELECTRICAL ENCLOSURE (x1) A4M01177-2 29 GA STEEL SHEETING...
  • Page 13 OWNER'S MANUAL - PARTS IDENTIFICATION Accessory Components (Not to Scale) A4M01180-2 29 GA STEEL SHEETING A4M01180-1 29 GA STEEL SHEETING A4M01181-1 29 GA STEEL SHEETING A4M01181-2 29 GA STEEL SHEETING A4M01199 CORNER RIDGE CAP A4M01198 RIDGE CAP CHANNEL...
  • Page 14 PRE-ASSEMBLY STEP 1 - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the wood and hardware. WOOD PARTS: • Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01). •...
  • Page 15 PRE-ASSEMBLY STEP 2 - TOOLS REQUIRED Drill Attachments: Phillips Head Open End Wrenches 1/2" & 7/16" 1/8", 3/16", 3/8" & 7/16" Drill Bits Cordless Drill or Electric Drill 3/8" Drive Ratchet, 1/2" & 7/16" STD Sockets, 1/2" & 7/16" Deep Sockets Phillips Screw Driver 3/8 &...
  • Page 16 PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
  • Page 17 STEP 1 - 10FT POST ASSEMBLY A6P00296 POST - W2A03124 7x7 POST FOOT 7"x7"x89 1/2" (178x178x2274) POST - W2A03125 7"x7"x89 1/2" (178x178x2274) TIP: • FOR EASE OF ASSEMBLY, SAW HORSES ARE RECOMMENDED FOR STEPS 1 THROUGH 3...
  • Page 18 STEP 2 - 10FT POST ASSEMBLY BEAM- W4L14521 1 3/8"x5 1/4"x109 13/16" (36x134x2789) TIP: • SAW DUST CAN BE LEFT BEHIND IN BOLT HOLES. IF YOU HAVE TROUBLE WITH BOLTS ENGAGING, USE A LONG SCREWDRIVER TO REMOVE THE DEBRIS.
  • Page 19 STEP 3 - 10FT POST ASSEMBLY CORBEL- W2A03123 1 3/8"x6 7/16"x36 1/4" (36x163x921) TIPS: • INSERT BOLTS FIRST FOLLOW BY LAG SCREWS • TO AVOID WOOD SPLITTING, MAKE SURE LAG SCREWS GO INTO PILOT HOLES...
  • Page 21 STEP 4 - 14FT BEAM ASSEMBLY MID BRACE BEAM - W4L14451 1"x5 1/4"x97 13/16" (24x134x2484) BEAM - W4L14452 1"x5 1/4"x77" (24x134x1956)
  • Page 22 STEP 5 - 14FT BEAM ASSEMBLY BEAM - W4L14450 CORBEL- W2A03370 1"x5 1/4"x28 1/8" (24x134x714) 1 3/8"x6 7/16"x36 1/4" (36x163x921) CORBEL W/TAG- W2A03371 1 3/8"x6 7/16"x36 1/4" (36x163x921) HAND TIGHTEN ONLY...
  • Page 23 STEP 6 - 14FT BEAM ASSEMBLY (x2) 10FT POST ASSEMBLY (x2) 14FT BEAM ASSEMBLY TIPS: • THREE PEOPLE ARE HELPFUL FOR THIS STEP. • MOVE THE 10FT POST ASSEMBLIES TO THEIR FINAL LOCATION WITH SOMEONE HOLDING EACH ASSEMBLY UPRIGHT. • USING A THIRD PERSON, CONNECT THE 14FT BEAM ASSEMBLY TO THE POSTS TO MAKE THE GAZEBO FRAME. HAND TIGHTEN ONLY...
  • Page 25 STEP 7 CRITICAL: SQUARE UNIT BEFORE PROCEEDING TO NEXT STEPS. ONCE SQUARE, TIGHTEN ALL HARDWARE.
  • Page 26 STEP 8 - ROOF SUPPORT ASSEMBLY A4M01178 POST CLIP DO NOT OVERTIGHTEN...
  • Page 27 STEP 9 - ROOF SUPPORT ASSEMBLY ROOF SUPPORT- W4L14526 1"x3 3/8"x48" (24x86x1220) A4M01184 PANEL SUPPORT BRACKET INSERT T-NUTS FIRST...
  • Page 28 STEP 10 - ROOF SUPPORT ASSEMBLY ROOF SUPPORT-W4L16212 ( 4 ) 1"x 3 3/8"x74 7/8" (24x86x1902) REPEAT ON ON OPPOSITE END OF ROOF SUPPORT BOARD INSERT T-NUTS FIRST...
  • Page 29 STEP 11 - ROOF SUPPORT ASSEMBLY A4M01205 METAL SPACER A4M01204 RIDGE PEAK CAP TIPS: • REMOVE PROTECTIVE BLUE FILM BEFORE ASSEMBLY WARNING: GLOVES ARE RECOMMENDED WHEN HANDLING STEEL ROOF PIECES...

  • Page 30: Step 12 Support Assembly

    STEP 12 SUPPORT ASSEMBLY • THREE PEOPLE ARE HELPFUL FOR THIS STEP. • POSITION A PERSON ON A LADDER IN THE CENTER OF THE BASE. • LIFT ROOF SUPPORT UP AND OVER THE 14FT SIDE AND INSERT INTO CORNER POST CLIPS.
  • Page 31 STEP 13 ROOF SUPPORT ASSEMBLY REPEAT ON ALL POSTS...
  • Page 32 STEP 14 - 14FT ROOF PANEL ASSEMBLY ROOF JOIST- W4L14430 1"x3 3/8"x46 3/4" (24x86x1188) 01191 A4M01193 PANEL BRACKET PANEL BRACKET ( 1 ) INSERT T-NUTS FIRST HAND TIGHTEN ONLY...
  • Page 33 STEP 15 - 14FT ROOF PANEL ASSEMBLY ROOF JOIST-W4L16213 ( 1 ) 1" x3 3/8"x"88 3/16" (24x86x2240) ROOF JOIST-W4L16214 ( 1 ) 1"X3 3/8"X88 1/8" (24x86x22 40)
  • Page 34 STEP 16 - 14FT ROOF PANEL ASSEMBLY RAFTER- W4L14434 RAFTER- W4L14431 1 3/8"x3 3/8"x63 7/8" (36x86x1622) 1 3/8"x3 3/8"x44" (36x86x1117) RAFTER- W4L14528 1 3/8"x3 3/8"x63 7/8" (36x86x1622) RAFTER- W4L14523 1 3/8"x3 3/8"x44" (36x86x1117) RAFTER- W4L14432 RAFTER - W4L14524 1 3/8"x3 3/8"x20 7/16" (36x86x519) 1 3/8"x3 3/8"x20 7/16"...
  • Page 35 STEP 17A - 14FT ROOF PANEL ASSEMBLY ROOF JOIST-W4L16210 1"x 4 7/16"x84 9/16" (24x112x2148) ( 2) TIP: • RAFTERS MAY NEED TO BE LOOSENED TO ATTACH Q01 TO H01/H09...
  • Page 36 STEP 17B - 14FT ROOF PANEL ASSEMBLY TIPS: • USING THE Q01 BOARD AS A GUIDE AND A 1/8" DRILL BIT, DRILL PILOT HOLES INTO THE H01 BOARD USING THE DIMENSION BELOW. • REPEAT ON OPPOSITE END WITH H09 BOARD. THIS DIMENSION IS CRITICAL TO THE PANEL ASSEMBLY...
  • Page 37 STEP 17C - 14FT ROOF PANEL ASSEMBLY TIP: • LOOSEN HARDWARE TO ADJUST FOR SQUARING IF NEEDED CRITICAL: • SQUARE UNIT BEFORE PROCEEDING TO NEXT STEPS. • THE BELOW DIMENSIONS ARE CRITICAL TO THE FINAL ROOF ASSEMBLY. • MEASUREMENTS SHOULD BE WITHIN +/- 1/4". •...
  • Page 38 STEP 18 - 14FT ROOF PANEL ASSEMBLY PURLIN-W4L16207 PURLIN-W4L16208 ( 2 ) 1" x3 3/8"x59 7/16 " (24x86x15 09 ) 1" x3 3/8"x65 1/2" (24x86x1664) PURLIN-W4L16209 PURLIN - W4L14422 ( 1 ) 1"x 3 3/8"x 43 11/16 " (24x86x1 110 ) 1"x3 3/8"x98 3/16"...
  • Page 39 STEP 19 - 14FT ROOF PANEL ASSEMBLY A4M01180-1 29 GA STEEL SHEETING A4M01179 A4M01176-1 A4M01175 29 GA STEEL SHEETING 29 GA STEEL SHEETING 29 GA STEEL SHEETING A4M0118 1-1 29 GA STEEL SHEETING A4M01177-1 A4M01177-1 29 GA STEEL SHEETING 29 GA STEEL SHEETING TIPS: •...
  • Page 40 STEP 20 - 14FT ROOF PANEL ASSEMBLY A4M01198 RIDGE CAP CHANNEL TIPS: • POSITION THE RIDGE CAP CHANNEL OVER THE EDGE OF THE ROOF PANELS WITH THE WIDER SIDE OF THE CHANNEL ON THE BOTTOM. • MAKE SURE THE PANELS ARE FULLY SEATED INTO THE CHANNEL. •...
  • Page 41 STEP 21 - 14FT ROOF PANEL ASSEMBLY...
  • Page 43 STEP 22 - 10FT ROOF PANEL ASSEMBLY 01194 PANEL BRACKET A4M01192 PANEL BRACKET ( 1) ROOF JOIST- W4L14438 1"x3 3/8"x15 15/16" (24x86x404) INSERT T-NUTS FIRST HAND TIGHTEN ONLY...
  • Page 44 STEP 23 - 10FT ROOF PANEL ASSEMBLY ROOF JOIST-W4L16215 ( 1 ) 1"X3 3/8"X76 3/4" (24x86x195 2) ROOF JOIST-W4L16216 ( 1 ) 1" x3 3/8"x76 7/8" (24x86x1952)
  • Page 45 STEP 24 - 10FT ROOF PANEL ASSEMBLY RAFTER - W4L16217 RAFTER- W4L14439 RAFTER- W4L14444 1 3/8"x3 3/8"x21 3/4" (36x86x553) 1 3/8"x3 3/8"x55 13/16" (36x86x1417) 1 3/8"x3 3/8"x42 7/8" (36x86x1087) RAFTER - W4L14442 RAFTER- W4L14443 1 3/8"x3 3/8"x42 3/4" (36x86x1087) 1 3/8"x3 3/8"x21 3/4" (36x86x553)
  • Page 46 STEP 25A - 10FT ROOF PANEL ASSEMBLY ROOF JOIST-W4L16211 ( 2) 1 "x4 7/16" x6 1 1/2" (24x112x1562) TIP: • RAFTERS MAY NEED TO BE LOOSENED TO ATTACH Q02 TO H12/H10...
  • Page 47 STEP 25B - 10FT ROOF PANEL ASSEMBLY • USING THE Q02 BOARD AS A GUIDE AND A 1/8" DRILL BIT, DRILL PILOT HOLES INTO THE H12 BOARD USING THE DIMENSION BELOW. • REPEAT ON OPPOSITE END WITH H10 BOARD. THIS DIMENSION IS CRITICAL TO THE PANEL ASSEMBLY...
  • Page 48 STEP 25C - 10FT ROOF PANEL ASSEMBLY TIP: • LOOSEN HARDWARE TO ADJUST FOR SQUARING IF NEEDED CRITICAL: • SQUARE UNIT BEFORE PROCEEDING TO NEXT STEPS. • THE BELOW DIMENSIONS ARE CRITICAL TO THE FINAL ROOF ASSEMBLY. • MEASUREMENTS SHOULD BE WITHIN +/- 1/4". •...
  • Page 49 STEP 26 - 10FT ROOF PANEL ASSEMBLY PURLIN - W4L14448 PURLIN - W4L14447 ROOF JOIST - W4L14446 1"x3 3/8"x79 7/8" (24x86x2030) 1"x3 3/8"x50 1/16" (24x86x1272) 1"x3 3/8"x20 1/4" (24x86x514) PURLIN - W4L14449 1"x3 3/8"x109 3/4" (24x86x2788) TIPS: • ALIGN PURLIN PILOT HOLES WITH RAFTER PILOT HOLES •...
  • Page 50 STEP 27 - 10FT ROOF PANEL ASSEMBLY A4M01180-2 29 GA STEEL A4M01176-2 29 GA STEEL SHEETING SHEETING A4M01177-2 29 GA STEEL A4M01181-2 29 GA STEEL SHEETING SHEETING TIPS: • REMOVE PROTECTIVE BLUE FILM • STARTING IN THE CENTER, PLACE PANELS AS SHOWN BELOW. •...
  • Page 51 STEP 28 - 10FT ROOF PANEL ASSEMBLY A4M01198 RIDGE CAP CHANNEL TIPS: • POSITION THE RIDGE CAP CHANNEL OVER THE EDGE OF THE ROOF PANELS WITH THE WIDER SIDE OF THE CHANNEL ON THE BOTTOM. • MAKE SURE THE PANELS ARE FULLY SEATED INTO THE CHANNEL. •...
  • Page 52 STEP 29 - 10FT ROOF PANEL ASSEMBLY...
  • Page 54 STEP 30 - 10FT ROOF PANEL ATTACHMENT TIPS: • THREE PEOPLE ARE HELPFUL FOR THIS STEP. • POSITION A PERSON ON A LADDER IN THE CENTER OF THE GAZEBO TO HELP SUPPORT THE ROOF PANEL. • WITH TWO PEOPLE, WORK THE PANEL UP WITHOUT SLIDING OR DRAGGING, UNTIL IT MEETS THE ROOF SUPPORT FRAME.
  • Page 55 STEP 31 - 10FT ROOF PANEL ATTACHMENT TIPS: • IF NECESSARY, USE A LONG SCREWDRIVER OR CLAMPS TO HOLD PANELS IN PLACE. • INSERT BOLTS INTO THE SECOND HOLE FROM THE TOP OF THE H10 & H12 BOARDS. HAND TIGHTEN ONLY...
  • Page 57 STEP 32 - 14FT ROOF PANEL ATTACHMENT TIPS: THREE PEOPLE ARE HELPFUL FOR THIS STEP. • POSITION A PERSON ON A LADDER IN THE CENTER OF THE GAZEBO TO HELP SUPPORT • THE ROOF PANEL. • WITH TWO PEOPLE, WORK THE PANEL UP, WITHOUT SLIDING OR DRAGGING, UNTIL IT MEETS THE ROOF SUPPORT FRAME.
  • Page 58 STEP 33 - 14FT ROOF PANEL ATTACHMENT TIPS: • IF NECESSARY, USE A LONG SCREWDRIVER OR CLAMPS TO HOLD PANELS IN PLACE. HAND TIGHTEN ONLY...
  • Page 59 STEP 34A - ROOF PANEL ATTACHMENT TIPS: • REPEAT STEPS 32 FOR SECOND 14FT ROOF PANEL. • IF NECESSARY USE A LONG SCREWDRIVER OR CLAMPS TO HOLD PANEL IN PLACE. HAND TIGHTEN ONLY...
  • Page 60 STEP 34B - ROOF PANEL ATTACHMENT HAND TIGHTEN ONLY...
  • Page 61 STEP 35 - ROOF PANEL ATTACHMENT TIGHTEN ALL THE HARDWARE IN THE ORDER SHOWN BELOW. START AT THE TOP AND WORK YOUR WAY DOWN.

  • Page 62: Step 36 - Roof Assembly

    STEP 36 - ROOF ASSEMBLY A4M01228 RAFTER CLIP (14) TIPS: • ATTACH RAFTER CLIPS FIRST WITH 2" BOLTS. • USING THE BRACKET AS A TEMPLATE AND A 1/8" DRILL BIT, DRILL PILOT HOLES FOR THE H100536 SCREWS. • DRILL PILOT HOLES APPROXIMATELY 1/2" DEEP. •...
  • Page 63 STEP 37 - ROOF ASSEMBLY A4M01185 CORNER BRACKET...
  • Page 64 STEP 38 - 14FT ROOF TRIM A4M01202 EDGE TRIM CORNER SPLICE A4M01200 A4M01201 EDGE TRIM LONG EDGE TRIM SPLICE A4M01203 EDGE TRIM SHORT TIPS: • START ON THE LEFT SIDE OF A 14FT PANEL. START ON THE LEFT SIDE OF A 14FT PANEL. •...
  • Page 65 STEP 39 - 10FT ROOF TRIM A4M01201 EDGE TRIM SPLICE A4M01200 EDGE TRIM LONG TIPS: • START ON THE LEFT SIDE OF A 10FT PANEL. • SLIDE EDGE TRIM PIECES TOGETHER AS SHOWN BELOW. • MAKE SURE ALL PANELS ARE COVERED BEFORE INSTALLING SCREWS. •...
  • Page 66 STEP 40 - ROOF ASSEMBLY A4M01199 CORNER RIDGE CAP TIPS: • SLIDE CORNER RIDGE CAP ONTO ROOF RIDGE CAP CHANNEL AS SHOWN. • DO NOT PUSH ALL THE WAY TO THE TOP. FLUSH WITH CORNER OF GAZEBO AS SHOWN. • REPEAT ON ALL CORNERS.
  • Page 67 STEP 41 - GAZEBO ASSEMBLY A4M00950 STEEL POST STEEL POST PLATE ANCHORING A4M00949 PLATE TIPS: • ALL 950 STEEL POST PLATES GO ON THE INSIDES OF THE POSTS AS SHOWN. • ALL 949 STEEL POST ANCHORING PLATES GO ON THE OUTSIDES OF THE POSTS AS SHOWN.
  • Page 68 STEP 42 - GAZEBO ASSEMBLY BYD ID TAG A100241 (SMALL) WITHOUT AGES...
  • Page 69 STEP 43 - GAZEBO ASSEMBLY...

  • Page 70: Electrical Enclosure

    ELECTRICAL ENCLOSURE • FOR ELECTRICAL ENCLOSURE ATTACHMENT, REFER TO THE INSTRUCTIONS INCLUDED WITH THE ELECTRICAL ENCLOSURE KIT. • ELECTRIC ENCLOSURE CAN BE ATTACHED TO ANY POST. • FOLLOW INSTRUCTIONS FOR PROPER ATTACHMENT.
  • Page 71 PowerPort™ MANUFACTURED BY: Backyard Discovery 3305 Airport Drive Model # 9205413 Pittsburg, KS 66762 800-856-4445 Wood Post Mounting Instructions H100966 SCREW RAISED HEAD 9205413 (x4) ELECTRICAL ENCLOSURE 8x1 1/2 (x1) 2 3/8 in [60 mm] 2 3/8 in [60mm] (x4) SCREW - 1 1/2"...
  • Page 72 PowerPort MANUFACTURED BY: Backyard Discovery 3305 Airport Drive Model # 9205413 Pittsburg, KS 66762 Metal Post Mounting Instructions 800-856-4445 A4M01292 9205413 SCREW TAPPING H100746 MOUNTING BRACKET ELECTRICAL ENCLOSURE (x1) 10x1 1/4 (x2) (x4)

  • Page 73: Fcc Marking

    FCC MARKING: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
