Backyard Discovery SAXONY 2104617B Owner's Manual

Grill gazebo
Hide thumbs

Advertisement

Quick Links

Download this manual
Manufactured by:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS 66762
800-856-4445
Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476
J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990

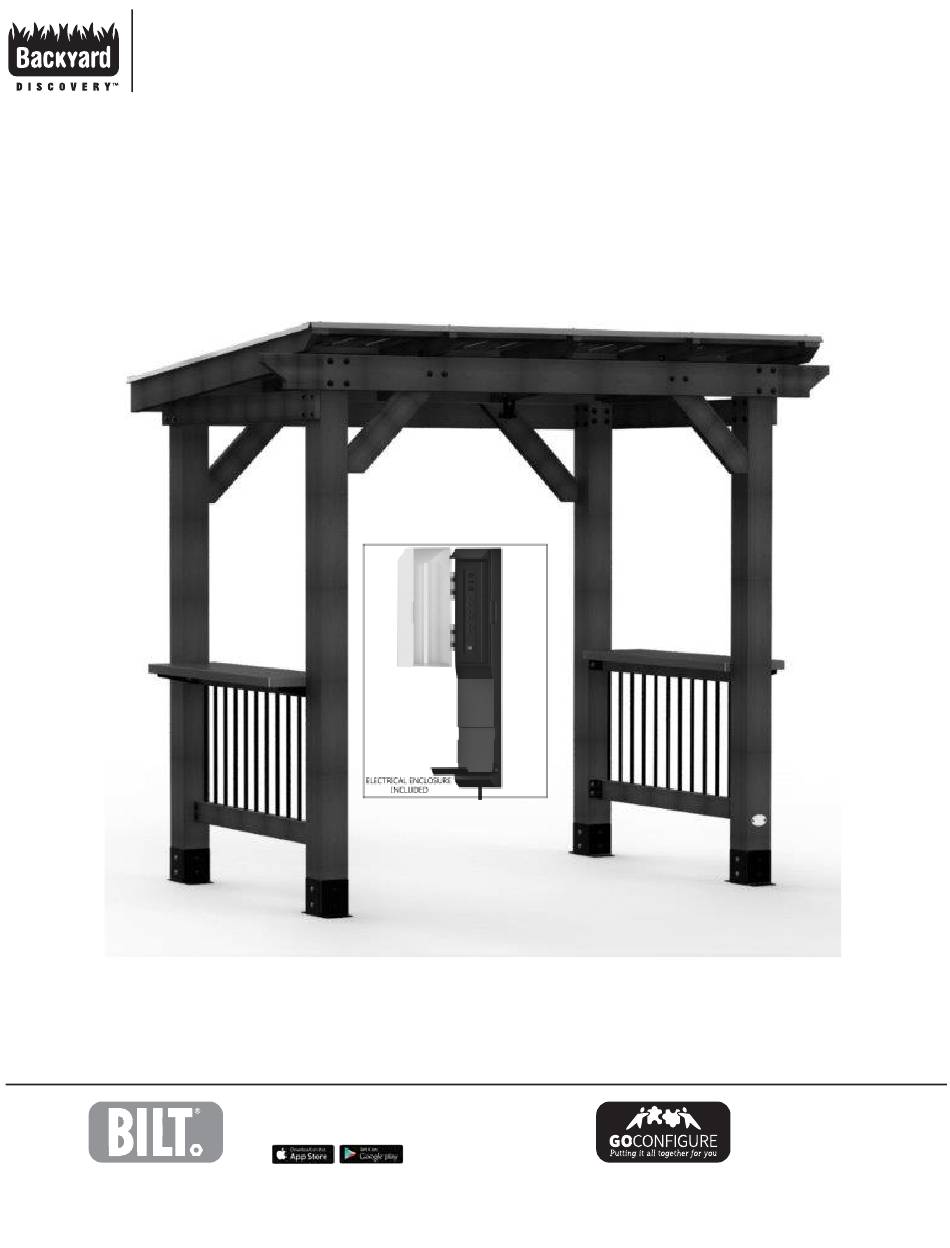

SAXONY GRILL GAZEBO
MODEL # : 2104617B
Please visit www.backyarddiscovery.com
For the most up to date assembly manual, to register your product, or to order
replacement parts Para obtener instrucciones en español, visite
www.backyarddiscovery.com
EASY STEP-BY-STEP
3D INTERACTIVE INSTRUCTIONS
DOWNLOAD THE FREE APP
INSTALLATION
SERVICES
AVAILABLE!
See inside for details
INS-2104617B-A-SAXONY GAZEBO-ENG 12-14-2021
*
Made in China

Advertisement

loading

Related Manuals for Backyard Discovery SAXONY 2104617B

Summary of Contents for Backyard Discovery SAXONY 2104617B

  • Page 1 Manufactured by: Backyard Discovery 3305 Airport Drive, Pittsburg, KS 66762 800-856-4445 Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476 J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990 SAXONY GRILL GAZEBO MODEL # : 2104617B Please visit www.backyarddiscovery.com...
  • Page 2 OWNER'S MANUAL - BASIC SETUP DIMENSIONS & ASSEMBLY NOTES It is critically important that you start with square and level footings, concrete pad or deck to attach your structure Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step. •...
  • Page 3 OWNER'S MANUAL - ANCHORING LAYOUT...
  • Page 4 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) | JOIST END-W4L14098 | JOIST END-W4L14097 | 1 7/16"x5 1/4"x15" (36x134x381) | 1 7/16"x5 1/4"x15" (36x134x381) | JOIST-W4L14099 | 1 7/16"x5 1/4"x83" (36x134x2108) | CORBEL-W4L16376 | CORBEL-W4L16377 | 1 7/16"x4 7/16"x26 1/2" (36x112x673) | 1 7/16"x4 7/16"x25 7/8"...
  • Page 5 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) | RAFTER-W4L14108 | 1 7/16"x2 3/8"x62 1/4" (36x60x1582) | PURLIN-W4L14109 | 15/16"x3 3/8"x89 7/16" (24x86x2272) | RAIL-W4L14101 | 15/16"x4 7/16"x52 1/16" (24x112x1322) | RAIL-W4L14102 | 15/16"x4 7/16"x84 7/8" (24x112x2156) | POST-W2A03401 | 4 3/4"x4 3/4"x78 1/4"...
  • Page 6 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components (Not to Scale) H100653 | NUT LOCK BLK H100201 | SCREW PFH BLK | BOLT WH BLK H100964 | 1/4 | 8 x 2-1/2 | 5/16 x 5-1/2 H100382 | SCREW PFH BLK | 8 x 1-3/4 (16) | BOLT WH BLK...
  • Page 7 OWNER'S MANUAL - PARTS IDENTIFICATION Accessory Components (Not to Scale) A4M01162 | ROOF EDGE TRIM A4M00983 (2) | ROOF EDGE TRIM SPLICE A4M01160 | ROOF EDGE TRIM A4M01225 | METAL TUBE (22) A4M01227 | 29 GA STEEL SHEETING A4M01224 | L BRACKET A4M01210 | TABLE 9205413...
  • Page 8 PRE-ASSEMBLY STEP 1 - TOOLS REQUIRED Drill Attachments: Phillips Head Open End Wrenches 1/2" & 7/16" Cordless Drill or 1/8", 3/16", 3/8" & Electric Drill 3/8" Drive Ratchet, 1/2" & 7/16" Drill Bits 7/16" STD Sockets, 1/2" & 7/16" Deep Sockets Phillips Screw Driver Claw Hammer Tape Measure...
  • Page 9 PRE-ASSEMBLY STEP 2 - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the wood and hardware. WOOD PARTS: • Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01). •...
  • Page 10 PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
  • Page 11 STEP 4 - GAZEBO FRAME ASSEMBLY | POST-W2A03401 | 4 3/4"x4 3/4"x78 1/4" (120x120x1987) A6P00500 | PLASTIC POST FOOT | POST-W2A03402 | 4 3/4"x4 3/4"x83 1/2" (120x120x2121) | POST-W2A03403 | 4 3/4"x4 3/4"x78 1/4" (120x120x1987) | POST-W2A03404 | 4 3/4"x4 3/4"x83 1/2" (120x120x2121)
  • Page 12 STEP 5 - GAZEBO FRAME ASSEMBLY | RAIL-W4L14101 | 15/16"x4 7/16"x52 1/16" (24x112x1322)
  • Page 13 STEP 6 - GAZEBO FRAME ASSEMBLY A4M00855 | L BRACKET 51x32x82x3.175 | RAIL-W4L14317 | 1 7/16"x3 3/8"x42 3/8" (36x86x1076)
  • Page 14 STEP 7 - GAZEBO FRAME ASSEMBLY | RAIL-W4L14101 | 15/16"x4 7/16"x52 1/16" (24x112x1322)
  • Page 15 STEP 8 - GAZEBO FRAME ASSEMBLY A4M00855 | L BRACKET 51x32x82x3.175 | RAIL-W4L14317 | 1 7/16"x3 3/8"x42 3/8" (36x86x1076)
  • Page 16 STEP 9 - GAZEBO FRAME ASSEMBLY | JOIST END-W4L14097 | JOIST END-W4L14098 | 1 7/16"x5 1/4"x15" (36x134x381) | 1 7/16"x5 1/4"x15" (36x134x381) | JOIST-W4L14099 | 1 7/16"x5 1/4"x83" (36x134x2108)
  • Page 17 STEP 10 - GAZEBO FRAME ASSEMBLY | CORBEL-W4L16376 | 1 7/16"x4 7/16"x26 1/2" (36x112x673)
  • Page 18 STEP 11 - GAZEBO FRAME ASSEMBLY | RAIL-W4L14102 | 15/16"x4 7/16"x84 7/8" (24x112x2156)
  • Page 19 STEP 12 - GAZEBO FRAME ASSEMBLY | CORBEL-W4L16377 | 1 7/16"x4 7/16"x25 7/8" (36x112x657) | CORBEL W/ ID TAG-W2A03462 | 1 7/16"x4 7/16"x25 7/8" (36x112x657)

  • Page 20: Step 13 - Rail Assembly

    STEP 13 - RAIL ASSEMBLY A4M01223 A4M01224 | L BRACKET | RAIL-W4L14317 | L BRACKET | 1 7/16"x3 3/8"x42 3/8" (36x86x1076) A4M00855 | L BRACKET 51x32x82x3.175...
  • Page 21 STEP 14 - RAIL ASSEMBLY A4M01225 | METAL TUBE (2) RAIL ASSEMBLY (22)

  • Page 22: Step 15- Shelf Assembly

    STEP 15- SHELF ASSEMBLY...
  • Page 23 STEP 16 - SHELF ASSEMBLY A4M01210 | TABLE...
  • Page 24 STEP 17 - GAZEBO ROOF ASSEMBLY | RAFTER-W4L14108 | 1 7/16"x2 3/8"x62 1/4" (36x60x1582) | BEAM-W4L14107 | 1 7/16"x5 1/4"x64" (36x134x1626) | BEAM-W4L14345 | 1 7/16"x5 1/4"x64" (36x134x1626)
  • Page 25 STEP 18 - GAZEBO ROOF ASSEMBLY | BEAM-W4L14110 | 1 7/16"x5 1/4"x89 7/16" (36x134x2272)
  • Page 26 STEP 19 - GAZEBO ROOF ASSEMBLY | RAFTER-W4L14111 | 1 7/16"x3 3/8"x62 3/8" (36x86x1585) | RAFTER-W4L14971 | 1 7/16"x3 3/8"x62 3/8" (36x86x1585)
  • Page 27 STEP 20 - GAZEBO ROOF ASSEMBLY | PURLIN-W4L14109 | 15/16"x3 3/8"x89 7/16" (24x86x2272)
  • Page 28 STEP 21 - GAZEBO ROOF ASSEMBLY | PURLIN-W4L14109 | 15/16"x3 3/8"x89 7/16" (24x86x2272)
  • Page 29 STEP 22 - GAZEBO ROOF ASSEMBLY A4M01227 | 29 GA STEEL SHEETING...
  • Page 30 STEP 23 - GAZEBO ROOF ASSEMBLY A4M01162 A4M00983 | ROOF EDGE TRIM (2) | ROOF EDGE TRIM SPLICE A4M01160 | ROOF EDGE TRIM...
  • Page 31 STEP 24 - GAZEBO ROOF ASSEMBLY A4M01228 | RAFTER BRACKET...
  • Page 32 STEP 25 - GAZEBO ASSEMBLY A4M01477 A4M01478 | POST ANCHORING | POST PLATE (8) PLATE...
  • Page 33 STEP 26 - GAZEBO ASSEMBLY A100241 | BYD ID TAG...
  • Page 34 STEP 27 - GAZEBO ASSEMBLY...

  • Page 35: Electrical Enclosure

    ELECTRICAL ENCLOSURE FOR ELECTRICAL ENCLOSURE INSTALLATION REFER TO ASSEMBLY INSTRUCTIONS THAT COMES PACKAGED WITH THE ELECTRICAL ENCLOSURE KIT. INSTALL ON ANY POST THAT IS DESIRED. FOLLOW DIRECTIONS FOR PROPER INSTALLATION.
  • Page 36 PowerPort™ MANUFACTURED BY: Backyard Discovery 3305 Airport Drive Model # 9205413 Pittsburg, KS 66762 800-856-4445 Wood Post Mounting Instructions H100966 SCREW RAISED HEAD 9205413 (x4) ELECTRICAL ENCLOSURE 8x1 1/2 (x1) 2 3/8 in [60 mm] 2 3/8 in [60mm] (x4) SCREW - 1 1/2"...
  • Page 37 PowerPort MANUFACTURED BY: Backyard Discovery 3305 Airport Drive Model # 9205413 Pittsburg, KS 66762 Metal Post Mounting Instructions 800-856-4445 A4M01292 9205413 SCREW TAPPING H100746 MOUNTING BRACKET ELECTRICAL ENCLOSURE (x1) 10x1 1/4 (x2) (x4)

  • Page 38: Fcc Marking

    FCC MARKING: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
