Sunell SN-TPC EV Series User Manual

Bi-spectrum network speed dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Bi-spectrum Network
Speed Dome Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SN-TPC EV Series and is the answer not in the manual?

Questions and answers

Related Manuals for Sunell SN-TPC EV Series

Summary of Contents for Sunell SN-TPC EV Series

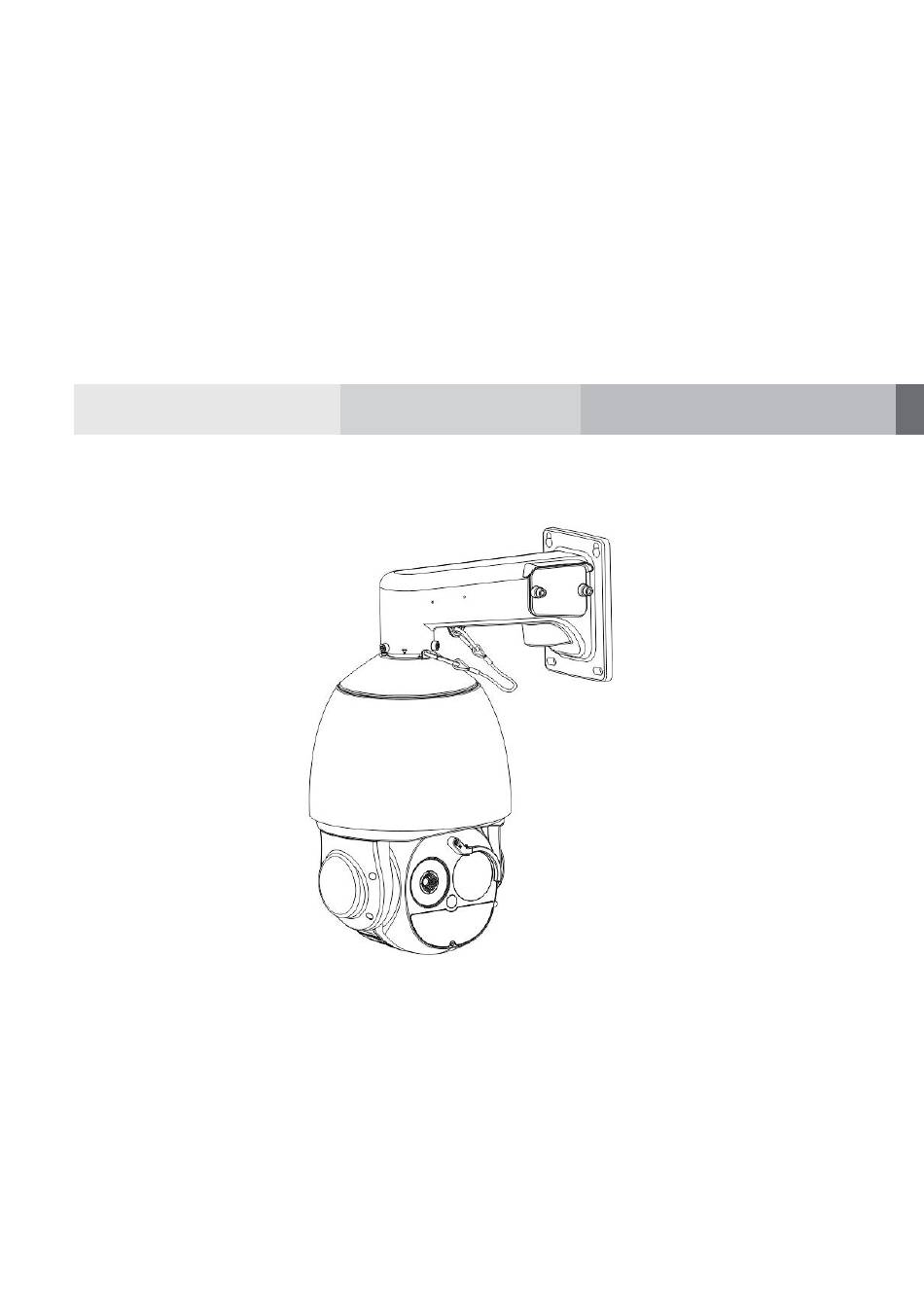

  • Page 1 Bi-spectrum Network Speed Dome Camera User Manual...

  • Page 2: Precautions

    Camera Bi-spectrum Network Speed Dome Precautions User Manual Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance"...
  • Page 3 Bi-spectrum Network Speed Dome Camera User Manual Precautions ➢ If this device is installed in places with unsteady voltage, ground this device to discharge high energy such as electrical surges in order to prevent the power supply from burning out. ➢...

  • Page 4: Special Announcement

    Camera Bi-spectrum Network Speed Dome Precautions User Manual ➢ Remove the power plug if the device is idle for a long time. ➢ Before unpacking, check whether the fragile sticker is damaged. If the fragile sticker is damaged, contact customer services or sales personnel. The manufacturer shall not be held responsible for any artificial damage of the fragile sticker.

  • Page 5: Table Of Contents

    Bi-spectrum Network Speed Dome Camera User Manual Contents Contents Precautions ........................ii Symbols ..........................ii Special Announcement ......................iv Contents ........................v Overview ......................1 1.1 Principle of Thermal Imaging and Advantages .............. 1 1.2 Product Introduction ....................... 1 1.2.1 Product Features ....................2 1.2.2 Camera interface definition ................
  • Page 6 Camera Bi-spectrum Network Speed Dome Contents User Manual 3.3.6 White Balance Setting ..................36 3.3.7 Day/Night ......................37 3.3.8 Noise Reduction ....................41 3.3.9 Image Enhancement ..................43 3.4 Thermal Channel Display ..................... 44 3.4.2 Mode ........................ 45 3.4.3 Image ....................... 45 3.4.4 Scene ........................
  • Page 7 Bi-spectrum Network Speed Dome Camera User Manual Contents 5.2.8 Leave Area ....................... 89 5.3 Environmental Safety Analysis ..................90 5.3.1 Smoking Detection ................... 90 5.3.2 Smoke and Flame Detection ................91 5.3.3 Fire Spot Detection ..................92 5.4 People Counting ......................94 5.4.1 Set ........................

  • Page 8: Overview

    Bi-spectrum Network Speed Dome Camera User Manual Overview 1 Overview 1.1 Principle of Thermal Imaging and Advantages Any object with temperature higher than the absolute zero (-273.15°F) will emit infrared (IR) ray, even though it does not emit light. The IR ray is also called thermal radiation. IR rays emitted by objects with different temperatures can be absorbed by the detector to reflect temperature change and thus generate an electric effect.

  • Page 9: Product Features

    Camera Bi-spectrum Network Speed Dome Overview User Manual Support network signal and analog signal double output, cloud platform control classification operation. Support proportion variable times function, rotation speed adjusted automatically according to the lens change multiple times. Support watch features preset point/figure/cruise can stay idle scan specified Automatic call after time (including the idle state entered after power).

  • Page 10: Multi-Core Cable

    Bi-spectrum Network Speed Dome Camera User Manual Overview Table 1-1 Camera interface description Port name Description Remark SD card slot Insert SD card Reset button Long press button for 5 sceconds to restore the factory settings. Thermal imaging lens Optical lens Wiper Clean rainwater on glass panel of lens...
  • Page 11 Camera Bi-spectrum Network Speed Dome Overview User Manual Figure 1-2 Multi-head cable Table 1-2 shows definition of installation wiring harness. Table 1-2 Definition of installation wiring harness Core Description Remark Green RS 485 Yellow Brown ALARM_OUT1 Outputs alarm signals to alarm device, such as Brown &...

  • Page 12: Packing List

    Bi-spectrum Network Speed Dome Camera User Manual Overview Core Description Remark Alarm_ OUT 1. Orange ALARM_IN1 Receives the switch signals of external alarm Orange & black ALARM_IN2 source, such as triggering Yellow ALARM_IN3 devices, which need to be powered by themselves. Yellow&...
  • Page 13 Camera Bi-spectrum Network Speed Dome Overview User Manual Hex knurled stainless-steel screws S5 Allen key S2.5 Allen wrench Rubber strip of wiper Spare Ethernet port waterproof cover Power adapter Power cable Wall-mounted bracket ----End Issue V1.1 (2024-11-12)

  • Page 14: Device Dimensions

    Bi-spectrum Network Speed Dome Camera User Manual Overview 1.4 Device Dimensions Figure 1-3 shows the dimensions of the Bi-spectrum Network Speed Dome. Figure 1-3 Dimensions (unit: mm) Issue V1.1 (2024-11-12)
  • Page 15 Bi-spectrum Network Speed Dome Overview User Manual Issue V1.1 (2024-11-12)

  • Page 16: Device Installation

    Bi-spectrum Network Speed Dome Camera User Manual Overview 1.5 Device Installation 1.5.1 Installation Method There are two mounting methods for the high-speed ball camera: side mounting with wall mounting bracket and top mounting with lifting bracket. See Figure 1-4. You can select an installation mode based on the actual scenario.
  • Page 17 Bi-spectrum Network Speed Dome Camera Overview User Manual Figure 1-5 Installation procedure Issue V1.1（2024-11-12）...
  • Page 18 Bi-spectrum Network Speed Dome Camera User Manual Overview Issue V1.1 (2024-11-12)

  • Page 19: Installation Of Basic Requirements

    Bi-spectrum Network Speed Dome Camera Overview User Manual 1.6 Installation of Basic Requirements 1.6.1 Basic Installation Requirements Installation site and environment meet the technical parameters mentioned in the requirements, the installation staff should have been fully read and read the contents of this manual, with the appropriate system installation qualification and maintenance work qualification certificate.

  • Page 20: Installation Space And Installation Strength

    Bi-spectrum Network Speed Dome Camera User Manual Overview Name Quantity Remarks Terminals Hexagon socket knurled stainless steel screws S5 hexagonal wrench S2.5 Allen wrench Network interface protective cover 1.6.3 Installation Space and Installation Strength Under normal circumstances, this device needs to be equipped with a protective cover or other overhead items, please confirm the installation location can accommodate this product and the equipment and installation of the structure of the space.

  • Page 21: Device Login

    Bi-spectrum Network Speed Dome Camera Device Login User Manual 2 Device Login 2.1 Login and Logout To access the web interface through Microsoft Edge, Chrome or Firefox browser; Otherwise some functions may be unavailable. Login Step 1 Open Chrome browser, enter the IP address of the IP camera (default value: 192.168.0.121) in the address box, and click on the Enter button.
  • Page 22 Bi-spectrum Network Speed Dome Camera User Manual Device Login Figure 2-1 Create password Step 3 Enter the user name and password. The login page is displayed, as shown in Figure 2-2. Issue V1.1 (2024-11-12)
  • Page 23 Bi-spectrum Network Speed Dome Camera Device Login User Manual Figure 2-2 Login page The default username is admin. Users should create the password for the first time login. DHCP is on by default. Please use tool to search IP, the default IP address is 192.168.0.121. After modifying password, you need to wait at least three minutes then power off to make sure modify it successfully.

  • Page 24: Change Password

    Bi-spectrum Network Speed Dome Camera User Manual Device Login 2.2 Change Password Description Step 1 Click the username on the upper right, choose Change Password to enter the change password is as shown in Figure 2-3. Or choose Setting > System > Change Password. Figure 2-3 Change the default password page ...
  • Page 25 Bi-spectrum Network Speed Dome Camera Device Login User Manual Figure 2-4 Homepage layout Table 2-1 Elements on the homepage Element Description Live View Real-time videos are played in this page. Playback You can query the playback videos in this area. NOTE Only when the micro SD card or NAS has videos can you query the playback videos.
  • Page 26 Bi-spectrum Network Speed Dome Camera User Manual Device Login Element Description When the device accepts an alarm signal, the alarm icon will display . You can click to view the alarm information. SD card video backup and download status. Current user, sign out or change password. The status of playing real-time video.
  • Page 27 Bi-spectrum Network Speed Dome Camera Device Login User Manual Element Description Click the icon to snapshot the video and save the images to the specified location. Record the video and save the file to the specified location. Target frame: when detect the target, it will show frame on target.

  • Page 28: Playback

    Bi-spectrum Network Speed Dome Camera User Manual Device Login 2.4 Playback Click “Playback”at web interface. If users install SD card, and there are videos in SD card. Click “Playback”and the playback video will show as in Figure 2-6. Figure 2-6 Playback page Table 2-2 Playback function Element Description...
  • Page 29 Bi-spectrum Network Speed Dome Camera Device Login User Manual The green timeline represents scheduled recording and the red timeline is alarm recording. The types of alarm recording vary according to model performance. One screen plays recording. Choose one day has recording, click to play.

  • Page 30: Ivs Setting

    Bi-spectrum Network Speed Dome Camera User Manual Device Login Audio. Open or close audio. Click the icon to snapshot the video and save the images to the specified location. Fast Forward, 1/16X, 1/8 X, 1/4 X, 1/2 X, 1 X, 2 X, 4 X, 8 X click the icon to start backup, drag the bar to download recording quickly, click the icon again to end up.
  • Page 31 Bi-spectrum Network Speed Dome Camera Device Login User Manual Figure 2-8 IVS setting page The different models have different IVS functions, please refer to actual product. ----End Issue V1.1（2024-11-12）...

  • Page 32: Quick Start Settings

    Bi-spectrum Network Speed Dome Camera User Manual Quick Start Settings 3 Quick Start Settings 3.1 Local Network Description Local network parameters include: IP protocol IP address Subnet mask Default gateway Dynamic Host Configuration Protocol (DHCP) Preferred Domain Name System (DNS) server Alternate DNS server Procedure Step 1 Choose Setting >...
  • Page 33 Bi-spectrum Network Speed Dome Camera Quick Start Settings User Manual Step 2 Set the parameters according to Table 3-1. Table 3-1 Local network parameters Parameter Description Setting Network Card ID [Default value] IP Protocol IPv4 is the IP protocol that [Setting method] uses an address length of 32 Select a value from the drop-...

  • Page 34: Video

    Bi-spectrum Network Speed Dome Camera User Manual Quick Start Settings Parameter Description Setting Set the maximum value of [Setting method] network transmission data Enter a value manually. packets. NOTE The MTU value is range from 1280 to 1500, the default value is 1500, Please do not change it arbitrarily.

  • Page 35: Parameter Description

    Bi-spectrum Network Speed Dome Camera Quick Start Settings User Manual Table 3-2 Parameters of stream configuration Parameter Description Setting Channel Channel 1 is optical channel, channel 2 is thermal [Setting method] channel, which is applied to all settings. Select a value from the drop-down list Stream ID The device supports two streams.
  • Page 36 Bi-spectrum Network Speed Dome Camera User Manual Quick Start Settings Parameter Description Setting The video encode determines the image quality and [Setting method] Video network bandwidth required by a video. Currently, Encode Type Select a value from the following encode standards are supported: the drop-down list box.
  • Page 37 Bi-spectrum Network Speed Dome Camera Quick Start Settings User Manual Parameter Description Setting Resolution A higher resolution means better image quality. [Setting method] Select a value from NOTE the drop-down list IP cameras support different resolutions based on the box. model.

  • Page 38: Optical Channel Display

    Bi-spectrum Network Speed Dome Camera User Manual Quick Start Settings Parameter Description Setting Smart Smart Encode. [Setting method] Encode Click the button on Smart encode includes H.264 & H.265. to enable Smart The storage space will be reduced fifty percent Encode.

  • Page 39: Mode

    Bi-spectrum Network Speed Dome Camera Quick Start Settings User Manual All image settings can be modified at edit mode. Factory Reset: All parameters will be restored to the factory settings. Reset: the settings will be recovered to the last settings. ----End 3.3.2 Mode Operation procedure:...

  • Page 40: Scene Mode

    Bi-spectrum Network Speed Dome Camera User Manual Quick Start Settings Figure 3-5 Image setting page Step 2 Set the parameters according to Table 3-3. Table 3-3 Parameters of image settings Parameter Description Configuration Method Brightness It indicates the total brightness of an image. As the [Setting method] value increases, the image becomes brighter.

  • Page 41: Configuration Method

    Bi-spectrum Network Speed Dome Camera Quick Start Settings User Manual Figure 3-6 Scene mode page Step 2 Set the parameters according to Table 3-4. Table 3-4 Parameters of FFC Parameter Description Configuration Method [Configuration method] It indicates the working mode of camera. Select from the Outdoor: It applies to outdoor scenarios.
  • Page 42 Bi-spectrum Network Speed Dome Camera User Manual Quick Start Settings Figure 3-7 Exposure interface for IP camera Step 2 Set the parameters according to Table 3-5. Table 3-5 Parameters of exposure Parameter Meaning Configuration Method It is used to select the metering area. [Setting method] Select a value from Fulling Metering: During metering, all areas...

  • Page 43: White Balance Setting

    Bi-spectrum Network Speed Dome Camera Quick Start Settings User Manual Parameter Meaning Configuration Method automatically adjusted by the system. Gain Setting: auto and manually to adjust. The device automatically adjusts the shutter time [Setting method] based on the ambient brightness. The shutter time is Select a value from less than or equal to the value of this parameter.

  • Page 44: Day/Night

    Bi-spectrum Network Speed Dome Camera User Manual Quick Start Settings Table 3-6 Parameters of WB setting Parameter Meaning Configuration Method Mode Select WB mode according to [Setting method] different scenes for better image color Select a value from the reproduction. drop-down list.
  • Page 45 Bi-spectrum Network Speed Dome Camera Quick Start Settings User Manual Figure 3-9 Day/Night page (timer) Figure 3-10 Day/Night mode page (auto) Step 2 Set the parameters according to Table 3-7. Issue V1.1（2024-11-12）...
  • Page 46 Bi-spectrum Network Speed Dome Camera User Manual Quick Start Settings Table 3-7 Parameters of Day/Night Parameter Meaning Configuration Method D/N Setting Mode It can be set to Auto, Day, Night or Timer. [Setting method] Select a value from Auto mode the drop-down list.
  • Page 47 Bi-spectrum Network Speed Dome Camera Quick Start Settings User Manual Parameter Meaning Configuration Method Auto: The infrared lamp is enabled or disabled based on the external environment identified by the light dependent resistor (LDR). [Setting method] Select a value from Manual: adjust manually strength of Near/ the drop-down list.

  • Page 48: Noise Reduction

    Bi-spectrum Network Speed Dome Camera User Manual Quick Start Settings Day mode: It can be used in the scene with sufficient ambient light for 24 hours, , where the image will be colorful without enabling the fill light. Night mode: It can be used in a scene where there is insufficient ambient light for 24 hours, and turn on the fill light (it can be selected according to the four modes of the fill light).
  • Page 49 Bi-spectrum Network Speed Dome Camera Quick Start Settings User Manual Figure 3-11 Noise reduction page (auto) Figure 3-12 Noise reduction page (manual) Step 2 Set the parameters according to Table 3-8. Table 3-8 Parameters of Nosie reduction Parameter Meaning Configuration Method [Configuration method] Select from the drop- down list...

  • Page 50: Image Enhancement

    Bi-spectrum Network Speed Dome Camera User Manual Quick Start Settings Parameter Meaning Configuration Method It is valid in auto noise filter mode. [Setting method] When the parameter value is 0, the Drag the slider. noise filter is disabled. When the [Default value] parameter value is greater than 0, the Max Strength...

  • Page 51: Thermal Channel Display

    Bi-spectrum Network Speed Dome Camera Quick Start Settings User Manual Table 3-9 Parameters of enhance image Parameter Meaning Configuration Method [Setting method] It is used to display the foreground and background at Tick the WDR the same time in the environment with a large mode and drag the brightness difference.

  • Page 52: Mode

    Bi-spectrum Network Speed Dome Camera User Manual Quick Start Settings Figure 3-14 Display settings of thermal channel page 3.4.2 Mode Step 1 choose Edit Settings Click Mode tag on Display Settings interface, the Mode page is displayed, as shown in Figure 3-15. Figure 3-15 Mode page Step 2 Set the Mode parameters.

  • Page 53: Scene

    Bi-spectrum Network Speed Dome Camera Quick Start Settings User Manual Table 3-10 Image setting parameter description Parameter Description Setting Brightness It indicates the total brightness of an image. As [Setting method] the value increases, the image becomes brighter. Drag the slider. [Default value] Detail Adjust the details and edges of higher...

  • Page 54: Set Pseudocolor

    Bi-spectrum Network Speed Dome Camera User Manual Quick Start Settings 3.4.5 Set Pseudocolor Figure 3-18 shows the Set Pseudocolor interface. Figure 3-18 Set Pseudocolor interface Table 3-11 Pseudocolor parameter Parameter Description Setting Polarity/LUT: the temperatures of the temperature fields detected by the thermal imaging camera are separately mapped to values ranging from 0 to 255 by the algorithm.

  • Page 55: Ffc Control

    Bi-spectrum Network Speed Dome Camera Quick Start Settings User Manual [How to set] It is on, the live video will show, otherwise there Select from the Legend of is no legend. drop-down list box. Temperature Value [Default value] Close [How to set] For some models, the optical lens is can be zoomed, click “Sync FOV”...
  • Page 56 Bi-spectrum Network Speed Dome Camera User Manual Quick Start Settings Figure 3-19 FFC interface Table 3-12 describes the FFC mode parameters. Table 3-12 FFC control parameter description Parameter Description Setting The internal of the thermal imaging camera may comprise the mechanical action correction mechanism that can periodically improve the image quality.

  • Page 57: Noise Reduction

    Bi-spectrum Network Speed Dome Camera Quick Start Settings User Manual Parameter Description Setting temperature of the camera sharply changes when the camera is powered on. The FFC is relatively frequent, which is normal. Manual: In the manual FFC mode, the camera does not automatically perform the FFC based on the temperature change or the specified period.

  • Page 58: Lens Control

    Bi-spectrum Network Speed Dome Camera User Manual Quick Start Settings Figure 3-20 Noise reduction interface Table 3-13 describes noise reduction parameters. Table 3-13 DNR parameter description Parameter Description Setting [How to set] Select from the drop-down list box. Drag the slider to adjust max Decrease the image 2 DNR strength.

  • Page 59: Image Enhancement

    Bi-spectrum Network Speed Dome Camera Quick Start Settings User Manual Figure 3-21 Lens control Table 3-14 Lens control parameter description Parameter Description Setting Near focus/ far focus. [How to set] Focus mode Semi-Automatic or Manual Click the button [How to set] Auto focus once Click to focus once automatically.

  • Page 60: Osd

    Bi-spectrum Network Speed Dome Camera User Manual Quick Start Settings 3.5 OSD Description The on-screen display (OSD) function allows you to display the device name, channel ID and name, time, and other customized contents on videos. You can drag the OSD frames to anywhere you want to put.
  • Page 61 Bi-spectrum Network Speed Dome Camera Quick Start Settings User Manual Table 3-15 Parameters of OSD Parameter Description Setting Channel Channel 1 is optical channel, channel 2 [Setting method] is thermal channel. Select a value from the drop- down list box. [Default value] Time Indicates whether to display the time.

  • Page 62: Date And Time

    Bi-spectrum Network Speed Dome Camera User Manual Quick Start Settings Parameter Description Setting Device Name Indicates whether to display the device [Setting method] name. Click the button on to enable Device Name PTZ Action The action of PTZ will be showing on [Setting method] live video.
  • Page 63 Bi-spectrum Network Speed Dome Camera Quick Start Settings User Manual Figure 3-24 Date and time page Table 3-16 Parameters of date and time Parameter Description Setting Time Zone [Setting method] Select a value from the drop-down list box. [Default value] Greenwich mean time Device Time Device display time.
  • Page 64 Bi-spectrum Network Speed Dome Camera User Manual Quick Start Settings Parameter Description Setting Port NTP is enabled. [Setting method] Port number of the NTP server. Enter a value manually. [Default value] Interval NTP is enabled. [Setting method] Set time interval to check if the device time Enter a value manually.

  • Page 65: Configuring Thermal

    Bi-spectrum Network Speed Dome Camera Configuring Thermal User Manual 4 Configuring Thermal 4.1 Settings 4.1.1 Temperature Parameters Temperature parameters include temperature unit, ambient type, ambient temperature, cavity temperature, correctional coefficient, area temperature display mode, area temperature type, measure mode, area alarm interval and so on. Operation Procedure Step 1 Choose Thermal >...
  • Page 66 Bi-spectrum Network Speed Dome Camera User Manual Configuring Thermal Table 4-1 Temperature Parameters Parameter Description Setting Temperature It is default enabling. If it is [Default value] Measurement disable, the thermal channel Enable cannot be working. Temperature Celsius and Fahrenheit [Setting method] Units temperature units are available.
  • Page 67 Bi-spectrum Network Speed Dome Camera Configuring Thermal User Manual Parameter Description Setting Area ID display There two mode to display, area [Setting method] mode ID and area name Select a value from the drop-down list box. [Default value] Area ID Temperature Transfer temperature values or [Setting method]...
  • Page 68 Bi-spectrum Network Speed Dome Camera User Manual Configuring Thermal Parameter Description Setting Area Alarm During the interval, the same [Setting method] Interval (1-1800s) alarm will only be sent once. Enter a value manually ranges from 1 to 1800. [Default value] Area Alarm delay The area alarm information will [Setting method]...
  • Page 69 Bi-spectrum Network Speed Dome Camera Configuring Thermal User Manual Figure 4-2 Advanced Interface Table 4-2 Advance Parameters Parameter Description Setting Dimming Mode There are auto and manual modes. [Setting method] Auto: It will show on temperature Select a value from item depending on the full screen the drop-down list temperature.

  • Page 70: Ambient Temperature

    Bi-spectrum Network Speed Dome Camera User Manual Configuring Thermal Parameter Description Setting Raw Data Upload Interval of uploading the raw data. [Setting method] Interval(F/S) Select a value from the drop-down list box. [Default value] Mix Stream Mode This function is used for mixing [Default value] thermal and visible imaging, if you Close...

  • Page 71: Privacy Zone Masking

    Bi-spectrum Network Speed Dome Camera Configuring Thermal User Manual ----End 4.1.3 Privacy Zone Masking Privacy zone masking is meaning that the camera will do not detect the temperature of that area. The shield areas can be set up to eight areas. Operation Procedure Step 1 Choose Thermal >...
  • Page 72 Bi-spectrum Network Speed Dome Camera User Manual Configuring Thermal The images have been calibrated before leaving the factory and can be used directly. If the highest temperature detection points are deviating on the visible light image, it needs to be re- calibrated.

  • Page 73: Defect Pixel Correction

    Bi-spectrum Network Speed Dome Camera Configuring Thermal User Manual Parameter Description Setting Vertical shift(%) Adjust vertical position of area which is [Setting method] on visual image. Input value Fine turning Click the icon to adjust the position [Setting method] trifle. Click Mapping point You need map three points at two...
  • Page 74 Bi-spectrum Network Speed Dome Camera User Manual Configuring Thermal Figure 4-6 Defect pixel correction Step 2 Click the white point at image, click Refresh to recover the defect pixel, as shown in Figure 4-7. Figure 4-7 Recover Defect Pixel Step 3 Click Apply. The message "Apply success" is displayed, the system will save the settings. ----End Issue V1.1 (2024-11-12)

  • Page 75: Version Information

    Bi-spectrum Network Speed Dome Camera Configuring Thermal User Manual 4.1.6 Version Information Check the MCU version and MCU sequence number for easy traceability. 4.1.7 Low Power Low power mode is meaning the device enters sleep mode, pausing real-time video is paused, so that to reduce power consumption.

  • Page 76: Wiper

    Bi-spectrum Network Speed Dome Camera User Manual Configuring Thermal 4.1.8 Wiper There are three mode to operate the wiper, auto, manual, and timer. Auto: set time of duration (1-60min), sensitivity (low, medium, high), the high means the device is easy to detect the rain, then to open the wiper. Timer: the wiper will be opened once at the setting time.
  • Page 77 Bi-spectrum Network Speed Dome Camera Configuring Thermal User Manual Figure 4-12 Temperature Area and Alarm Configuration Step 2 Set the parameters according to Table 4-5. Table 4-5 Alarm configuration Parameter Description Setting Measure Mode Set at temperature parameter interface. Preset mode: choose one preset to set.
  • Page 78 Bi-spectrum Network Speed Dome Camera User Manual Configuring Thermal Parameter Description Setting Enable Tick the ID to enable the area [Setting method] measuring. Tick Name Area name of temperature area. [Setting method] Enter a value manually. Type Type of temperature area. [Setting method] ID 0 is default rectangle area, Select a value from the...
  • Page 79 Bi-spectrum Network Speed Dome Camera Configuring Thermal User Manual Parameter Description Setting Emission Rate The emission rate is the [Setting method] capability of an object to emit Enter a value manually. or absorb energy. [Default value] The emission rate should be set 0.95 only when the target is special material.
  • Page 80 Bi-spectrum Network Speed Dome Camera User Manual Configuring Thermal Parameter Description Setting Group ID The ID can be chosen into one [Setting method] of six groups, or no group. The Select a value from the group will be alarm following drop-down list box.

  • Page 81: Schedule Linkage

    Bi-spectrum Network Speed Dome Camera Configuring Thermal User Manual Figure 4-13 Temperature Area Setting Interface Step 4 Click Apply, the message “Apply success” is displayed, the temperature area is set successfully. ID 0 is the full screen; The area cannot be changed. : the lowest temperature of the full screen.
  • Page 82 Bi-spectrum Network Speed Dome Camera User Manual Configuring Thermal There are seven type alarm linkage, threshold alarm, threshold warning, temperature difference alarm, temperature difference warning, temperature section alarm, temperature rise alarm, temperature rise warning. The Schedule Linkage page is displayed, as shown in Figure 4-14. Figure 4-14 Schedule Linkage Step 2 Tick the output channel.
  • Page 83 Bi-spectrum Network Speed Dome Camera Configuring Thermal User Manual Figure 4-15 Copy Delete schedule time: click Clear All to delete all time. Click the set time, click Delete to delete this time. Step 5 The message "Apply success" is displayed, the system will save the settings. Issue V1.1 (2024-11-12)
  • Page 84 Bi-spectrum Network Speed Dome Camera User Manual Configuring Thermal Figure 4-16 Audio file User can set the audio file manually. Click to upload the audio file(The type should be WAV, size must be less than 250 Kb, the bit rate should be 128 kbps.), as shown in Figure 4-17. Figure 4-17 Upload audio file ----End Issue V1.1 (2024-11-12)

  • Page 85: Ivs Settings

    Bi-spectrum Network Speed Dome Camera IVS Settings User Manual 5 IVS Settings At IVS (intelligent video system) page, users can set deep learning (AI multi-target), intelligent analysis (intrusion, smart motion, single line crossing, double line crossing, multi-loitering, wrong-way, enter area, leave area), environmental safety analysis ( smoking, smoke and flame detection, fire spot detection), behavior analysis (people counting).

  • Page 86: Intelligent Analysis

    Bi-spectrum Network Speed Dome Camera User Manual IVS Settings detection someone appear in live video. The detection frame is light blue. The range of snapshots, there are three type, such Confidence as high, mid and low. The higher the confidence, Choose from Coefficient the better the snap quality and the fewer...
  • Page 87 Bi-spectrum Network Speed Dome Camera IVS Settings User Manual Figure 5-2 Intrusion Setting Interface Step 2 Set all parameters for Intrusion. Table 5-2 describes the specific parameters. Table 5-2 Intrusion Parameter Description Parameter Description Setting Channel Channel 1: optical channel. Choose one channel to set.
  • Page 88 Bi-spectrum Network Speed Dome Camera User Manual IVS Settings Parameter Description Setting Video Stream Enable the button, the draw frame of [How to set] Draw Line detection will show at live video. Click to enable FTP Upload. [Default value] Alarm Interval During the interval, the same alarm will [How to set] only be sent once.

  • Page 89: Smart Motion

    Bi-spectrum Network Speed Dome Camera IVS Settings User Manual Parameter Description Setting Alarm Record Enable, it will be recording when the [How to set] alarm is triggered. Choose the linkage Click to enable alarm record channel to record. the SD card should be [Default value] installed advanced.

  • Page 90: Single Line Crossing

    Bi-spectrum Network Speed Dome Camera User Manual IVS Settings Figure 5-3 Smart Motion Set all parameters for smart motion, please refer to chapter 5.2.1 5.2.3 Single Line Crossing A Single Line Crossing is a line that is set at a concerned position within the monitored field of view and specifies the forbidden travel direction;...
  • Page 91 Bi-spectrum Network Speed Dome Camera IVS Settings User Manual Figure 5-4 Single Line Crossing Interface Step 2 Set all parameters for the Single Line Crossing, please refer to Table 5-2. Step 3 Set a deployment area. Draw a line: Move the cursor to the drawing interface, hold down the left mouse button, and move the cursor to draw a line.

  • Page 92: Double Line Crossing

    Bi-spectrum Network Speed Dome Camera User Manual IVS Settings Figure 5-5 Set Single Line Crossing line Try to draw the Single Line Crossing in the middle, because the recognition of a target takes time after target appearance on the screen and an alarm is generated only when the object is recognized to have crossed the Single Line Crossing.
  • Page 93 Bi-spectrum Network Speed Dome Camera IVS Settings User Manual Figure 5-6 Double Line Crossing Interface Step 2 Set all parameters for the Double Line Crossing. please refer to chapter 5.2.1 Step 3 Set a deployment area. Draw a line: Move the cursor to the drawing interface, hold down the left mouse button, and move the cursor to draw two lines.

  • Page 94: Multi-Loitering

    Bi-spectrum Network Speed Dome Camera User Manual IVS Settings ----End 5.2.5 Multi-Loitering Multi-Loitering allows setting the shortest loitering time for multiple targets of specified type (such as person or car) within the deployment area in the field of view. When the loitering time of the multiple targets within this area meets the set shortest loitering time, an alarm is generated.

  • Page 95: Enter Area

    Bi-spectrum Network Speed Dome Camera IVS Settings User Manual Select IVS > Intelligent Analysis > Wrong-Way to access the Wrong-Way setting interface, as shown in Figure 5-8. Figure 5-8 Wrong-Way Set all parameters for wrong-way please refer to chapter 5.2.1 5.2.7 Enter Area The enter area refers to that an alarm is generated when a target enters the deployment area at the valid time.

  • Page 96: Leave Area

    Bi-spectrum Network Speed Dome Camera User Manual IVS Settings Figure 5-9 Enter Area Set all parameters for enter area, please refer to chapter 5.2.1 5.2.8 Leave Area The leave area refers to that an alarm is generated when a target leaves the deployment area at the valid time.

  • Page 97: Environmental Safety Analysis

    Bi-spectrum Network Speed Dome Camera IVS Settings User Manual Figure 5-10 Leave Area Set all parameters for leaving area, please refer to chapter 5.2.1 5.3 Environmental Safety Analysis At the advanced environmental Safety Analysis interface, users can set the parameters of smoking detection, smoke and flame detection, and fire spot detection.

  • Page 98: Smoke And Flame Detection

    Bi-spectrum Network Speed Dome Camera User Manual IVS Settings Figure 5-11 Smoking detection interface Set all parameters for smoking detection, please refer to chapter 5.2.1 ----End 5.3.2 Smoke and Flame Detection The smoke flame detection function refers to that an alarm is generated when something is smoking or generating flame at the deployment area.

  • Page 99: Fire Spot Detection

    Bi-spectrum Network Speed Dome Camera IVS Settings User Manual Figure 5-12 Smoke and flame detection interface Set all parameters for smoke and flame detection, please refer to chapter 5.2.1 ----End 5.3.3 Fire Spot Detection Description The fire spot detection function refers to that an alarm is generated when something is on fire at the deployment area.
  • Page 100 Bi-spectrum Network Speed Dome Camera User Manual IVS Settings Figure 5-13 Fire spot detection interface Step 2 Set all parameters for Fire Spot Detection, please refer to chapter 5.2.1. Step 3 Set a deployment area. Use mouse to draw rectangular area, you can set several area to deploy, as shown in Figure 5-14. Figure 5-14 Set deployment area Step 4 Set deployment time, please refer to chapter 4.3Step 4.

  • Page 101: People Counting

    Bi-spectrum Network Speed Dome Camera IVS Settings User Manual Step 5 Click Apply to save the settings. ---End 5.4 People Counting Users can draw line to count the number of people in the special area. 5.4.1 Set Procedure Step 1 Select IVS > People Counting > Set to access the People Counting setting interface, as shown in Figure 5-15.
  • Page 102 Bi-spectrum Network Speed Dome Camera User Manual IVS Settings Parameter Description Setting Status Enable the button to enable the alarm. [How to set] Click Enable to enable. [Default value] OSD Enable Enable the OSD, the count data will show [How to set] on live video screen.

  • Page 103: Report

    Bi-spectrum Network Speed Dome Camera IVS Settings User Manual Parameter Description Setting Audible alarm Enable, when an alarm occurs, it will [How to set] play audio to alarm. Click to enable Choose the audible alarm file (set at the Audible alarm “Setting >...
  • Page 104 Bi-spectrum Network Speed Dome Camera User Manual IVS Settings Figure 5-16 Report of people counting Click “Download” to download the query result. Choose the mode of showing result, such as line chart, histogram and list. Click “Query” to query the data of people counting. The data result can be saved to local folder.

  • Page 105: Ptz Function Settings

    Bi-spectrum Network Speed Dome Camera PTZ Function Settings User Manual 6 PTZ Function Settings 6.1 PTZ Control function Operation Description PTZ Control function is only available to a camera with an external PTZ and High-Speed Dome with PTZ function. PTZ Control When browsing Live videos shot by a dome camera or a camera connected to an external PTZ, you can control the PTZ to view Video shot in different directions.

  • Page 106: Ptz Configuration

    Bi-spectrum Network Speed Dome Camera User Manual PTZ Function Settings Home Click to go home position. Zoom Click to adjust the surveillance range of the front-end lens. Iris Click to adjust the size of the front-end iris. Focus Click to adjust the focus of the front-end lens. Speed Drag the slider on to adjust the...
  • Page 107 Bi-spectrum Network Speed Dome Camera PTZ Function Settings User Manual Figure 6-2 PTZ configuration Issue V1.1 (2024-11-12)

  • Page 108: Configure And Apply Home

    Bi-spectrum Network Speed Dome Camera User Manual PTZ Function Settings Through this interface, you can perform the following operations: ➢ Add, Delete and Apply a Preset, Track, Scan, Tour, Bow Scan. ➢ Set and enable Idle. ➢ Set the direction to due north. ➢...

  • Page 109: Configure And Apply Preset

    Bi-spectrum Network Speed Dome Camera PTZ Function Settings User Manual 6.2.3 Configure and Apply Preset You can configure preset positions and quickly rotate the camera to preset position by applying the preset. Operation procedure Step 1 Click Preset in the PTZ configuration area, the add preset list is displayed, as shown in Figure 6-4.

  • Page 110: Configure And Apply Tracks

    Bi-spectrum Network Speed Dome Camera User Manual PTZ Function Settings Step 4 If you want to delete a preset, move your mouse to the preset you want to delete, and click delete icon , the preset be deleted. There are no tips for your delete operation, so be careful to do this.

  • Page 111: Configure And Apply Scan

    Bi-spectrum Network Speed Dome Camera PTZ Function Settings User Manual Figure 6-5 Add track Step 2 Select a track ID from the Add Track box, enter the track name. Step 3 Click Start, then use eight arrow keys in the PTZ control area to configure a track. Step 4 Click End to finish the track setting.

  • Page 112: Configure And Apply Tour

    Bi-spectrum Network Speed Dome Camera User Manual PTZ Function Settings Operation procedure Step 1 Click Scan in the PTZ configuration area, the add Scan page is displayed, as shown in Figure 6-6. Figure 6-6 Add scan Step 2 Select Scan ID (such as 1) from Add Scan box and enter the name of scan. Step 3 Click Start, then use eight arrow keys in the PTZ control area to configure two positions, setup the stop time and then click End to complete adding a scan.
  • Page 113 Bi-spectrum Network Speed Dome Camera PTZ Function Settings User Manual Figure 6-7 Add tour Step 2 Select Tour ID (such as 2) from the Add Tour box, enter the tour name. Step 3 Select first required position preset from the preset drop-down list box. Step 4 Input the values from Wait Time area box to set the time to stay in this position preset.(0 sec~ 255 sec).

  • Page 114: Configure And Apply Idle

    Bi-spectrum Network Speed Dome Camera User Manual PTZ Function Settings 6.2.7 Configure and Apply Idle You can configure an idle to apply preset. Scan, Track, or Tour regularly. Operation procedure Step 1 Click Idle in the PTZ configuration area, the idle page is displayed, as shown in Figure 6- Figure 6-8 Idle configuration Step 2 Click the Enable button to let the function going working first, select a monitor type from the Type drop-down list box.

  • Page 115: Configure Power Up Action

    Bi-spectrum Network Speed Dome Camera PTZ Function Settings User Manual Figure 6-9 Set timer Step 2 Select the timer mode. Step 3 Select the required begin time at the Begin Time drop-down list box, and then select the required end time at the End Time drop-down list box. Step 4 Select the required monitor type at the PTZ type drop-down list box, you can select preset, Scan, Track, Tour, Cancel in the box, and then select a specific from the Name drop- down list box.(for example preset, 1).

  • Page 116: Configure Intelligent Tracking

    Bi-spectrum Network Speed Dome Camera User Manual PTZ Function Settings Figure 6-10 Power up action ----End 6.2.10 Configure Intelligent Tracking Description This function is only used for high speed dome. Intelligent tracking is able to recognize the basic features such as the position, shape, contour and color of the target with a special algorithm.
  • Page 117 Bi-spectrum Network Speed Dome Camera PTZ Function Settings User Manual Table 6-2 Parameters of intelligent tracking Parameter Description Setting Intelligent Click the button on to enable the intelligent [How to set] Tracking tracking Click the button on. [Default value] Calibration It is equivalent to a control coefficient, and [Setting method] Coefficient...

  • Page 118: Dome Ptz

    Bi-spectrum Network Speed Dome Camera User Manual PTZ Function Settings 6.2.11 Dome PTZ Description When the bi-spectrum speed dome cameras are connected to 485 keyboards, users can use the keyboard to control the cameras’ PTZ menu. Procedure Step 1 Choose Setting > PTZ > Dome PTZ. The Dome PTZ page is displayed, as shown in Figure 5-13.

  • Page 119: A Troubleshooting

    Bi-spectrum Network Speed Dome Camera A Troubleshooting User Manual A Troubleshooting Common Possible Cause Solution Trouble Unable to Network is not Connect the network cable of the camera to access the connected. the PC to check whether the network cable is in good contact.
  • Page 120 Bi-spectrum Network Speed Dome Camera User Manual A Troubleshooting Common Possible Cause Solution Trouble An error The data in the Delete the cache of browser. The steps are as occurs in cache of browser is follow: accessing the not updated in time. Press Ctrl + Shift + Delete, the pop-up web of the window shows the Clear browsing data dialog...
  • Page 121 Bi-spectrum Network Speed Dome Camera A Troubleshooting User Manual Common Possible Cause Solution Trouble Self-test Wrong wiring Rewiring normal, Set the baud rate, Screen configuration according to device cannot protocol, address parameters. control and device mismatch Repeated Insufficient supply To ensure that the input device voltage stability. restart voltage or voltage instability...

  • Page 122: B Common Emission Rate

    Bi-spectrum Network Speed Dome Camera User Manual B Common Emission Rate B Common Emission Rate Emission Rate The emission rate is the capability of an object to emit or absorb energy. An ideal transmitter provides an emission rate of emitting 100% of intake energy. An object with an emission rate of 0.8 can absorb 80% of intake energy, and reflect the remaining 20%.
  • Page 123 Bi-spectrum Network Speed Dome Camera B Common Emission Rate User Manual Cobalt 599/1110 0.19 199/390 0.52 Steel 599/1110 0.57 Tinned iron sheet (Light) 28/82 0.23 Brass(High-polish) 247/476 0.03 Brass (Tough rolled, polished 21/70 0.04 metal wire) Tinned Iron (Light) 0.13 Iron plate (Rust eaten) 20/68 0.69...
  • Page 124 Bi-spectrum Network Speed Dome Camera User Manual B Common Emission Rate Concrete 0.94 Glass (Glossy) 22/72 0.94 Granite (Surfaced) 21/70 0.85 0/32 0.97 Marble (I Polished, grey) 22/72 0.93 Asbestos board 23/74 0.96 38/100 0.93 Asbestos paper 371/700 0.95 Asphalt ( Paving the road) 4/39 0.97 Paper ( Black tar)

This manual is also suitable for:

Sn-tpc et series

Table of Contents
