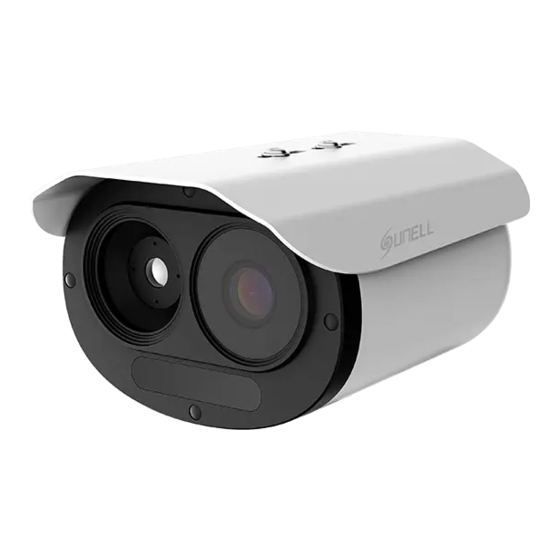

Sunell SN-TPC4233DJT-F User Manual

Bi-spectrum network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Bi-spectrum
Network Camera
User Manual
Issue V1.0
Data 2022-12-09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SN-TPC4233DJT-F and is the answer not in the manual?

Questions and answers

Related Manuals for Sunell SN-TPC4233DJT-F

Summary of Contents for Sunell SN-TPC4233DJT-F

  • Page 1 Bi-spectrum Network Camera User Manual Issue V1.0 Data 2022-12-09...

  • Page 3: Precautions

    Bi-spectrum network camera User Manual Precautions Precautions Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance" in an eye-catching place. Failure to correctly use electrical products may cause fire and severe injuries.
  • Page 4 Bi-spectrum network camera Precautions User Manual ⚫ Strictly conform to local electrical safety standards and use power adapters which are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged. ⚫ Use accessories delivered with this device. The voltage must meet input voltage requirements for this device.
  • Page 5 Bi-spectrum network camera User Manual Precautions front window needs further cleaning, use a soft cloth dampened with isopropyl alcohol or detergent. Improper cleaning can cause damage to the device. ⚫ The lens window of the thermal imaging camera is designed to be applicable to an outdoor environment.

  • Page 6: Table Of Contents

    Bi-spectrum network camera Contents User Manual Contents Precautions ........................I Contents ........................IV 1 Product Overview ....................1 1.1 About Product ......................... 1 1.2 Cable Connection ......................1 1.3 Dimensions of Device ....................3 1.4 Installation ........................5 1.4.1 Wall Installation ....................5 1.4.2 Ceiling Installation .....................
  • Page 7 Bi-spectrum network camera User Manual Contents 4.4 Scene ..........................51 4.5 Exposure ........................52 4.6 WB ..........................54 4.7 DayNight ........................56 4.8 Noise Reduction ......................58 4.9 Enhance Image ......................59 4.10 Zoom Focus ........................ 61 5 Thermal Image Settings ..................63 5.1 Accessing the Image Interface ..................
  • Page 8 Bi-spectrum network camera Contents User Manual 8.9 Device Log ......................... 104 8.10 Maintenance ......................105 8.11 Local Config ......................105 8.12 QOS .......................... 106 A Troubleshooting....................108 Issue V1.0（2022-12-09）...

  • Page 9: Product Overview

    Bi-spectrum network camera User Manual Product Overview 1 Product Overview 1.1 About Product ⚫ The Bi-spectrum network camera is integrated with the thermal imaging and temperature measuring, visible fusion, core image intelligent analysis, etc. ⚫ Unique double registration mechanism, visible light and thermal imaging is reflecting the same scene.
  • Page 10 Bi-spectrum network camera Product Overview User Manual Figure 1-1 Multi-connector combination cable Table 1-1 Multi-connector combination cable Core of Cable Functions RS485 RS485 interface connects to the external pan & tilt. ALARM IN2 Connects to the alarm device. ALARM OUT2 ALARM IN1 ALARM OUT1 Audio Input...

  • Page 11: Dimensions Of Device

    Bi-spectrum network camera User Manual Product Overview 1.3 Dimensions of Device The different models may have different dimensions, please refer to the actual product. Figure 1-2 Dimensions of device（Unit: mm） Issue V1.0（2022-12-09）...
  • Page 12 Bi-spectrum network camera Product Overview User Manual Figure 1-3 F 8mm Figure 1-4 F 15 / 25 mm Figure 1-5 F 35 mm Figure 1-6 F 50 mm Issue V1.0（2021-11-19）...

  • Page 13: Installation

    Bi-spectrum network camera User Manual Product Overview 1.4 Installation The figures of installation are only for sketch map, these are not for actual product, please refer to actual product. 1.4.1 Wall Installation Step 1 Take out the bracket and screw-wrench, loose the hexagon socket screw on bracket, fix the basement on camera use four M3 screws, as shown in Figure 1-7.

  • Page 14: Ceiling Installation

    Bi-spectrum network camera Product Overview User Manual Figure 1-8 Fix bracket Step 3 Fix the camera to bracket, adjust the position so that the camera face the monitored area, then tighten the screw to fix camera, as shown in Figure 1-10. Figure 1-9 Fix camera 1.4.2 Ceiling Installation Step 1 Take out the bracket and screwdriver, loosen the two screws on side of bracket...
  • Page 15 Bi-spectrum network camera User Manual Product Overview Figure 1-10 Assemble Step 2 Stick the installation location sticker on ceiling, drill four holes based on the marks on the sticker. Drive the plastic anchors into holes. Install the bracket on the ceiling and fix the screws as shown in Figure 1-11.
  • Page 16 Bi-spectrum network camera Product Overview User Manual Figure 1-11 Fix bracket Step 3 Fix the camera to bracket, adjust the position so that the camera face the monitored area, then tighten the screw as shown in Figure 1-12. Figure 1-12 Fix camera Issue V1.0（2021-11-19）...

  • Page 17: Quick Configuration

    Bi-spectrum network camera User Manual Quick Configuration 2 Quick Configuration 2.1 Login and Logout To access the web interface through Microsoft Edge browser (IE Mode); Otherwise, some functions may be unavailable. Login system Step 1 Open Microsoft Edge, enter the IP address of camera (default value is 192.168.0.121) in the address box, and press Enter.

  • Page 18: Homepage Layout

    Bi-spectrum network camera Quick Configuration User Manual Figure 2-2 Internet Explorer Compatibility  The default name and password are both admin. Modify the password when you login the system for first time to ensure system security.  After modifying password, you need to wait at least three minutes then power off to make sure modifying successfully.
  • Page 19 Bi-spectrum network camera User Manual Quick Configuration Figure 2-3 Homepage layout Table 2-1 Elements on the homepage Element Description Real-time Real-time videos are played in this area. You can also set video area sensor parameters. Playback You can query the playback videos in this area if you plug in SD card and open the recording.

  • Page 20: Change The Password

    Bi-spectrum network camera Quick Configuration User Manual Element Description : Play/pause : Switch the mode : Audio : Interphone : Senor, or click right mouse button, more details please refer to chapter Sensor Configuration . : Snapshot : Record video to local storage. : Intelligent analysis, Choose the stream to stream 2, click to open the intelligent analysis, it will show target information and video stream draw line after you have...

  • Page 21: Browse Video

    Bi-spectrum network camera User Manual Quick Configuration Procedure Step 1 Click in the upper right corner of the main page. The Change Password dialog box is displayed, as shown in Figure 2-4. Figure 2-4 Change password dialog box ⚫ The change password page will be displayed if you don’t change the default password when you login the system for the first time.
  • Page 22 Bi-spectrum network camera Quick Configuration User Manual Preparation To ensure the real-time video can be played properly, you must perform the following operations when you log in to the web for the first time: Step 1 Open Microsoft Edge. Choose Control panel > Internet options > Security > Trusted sites >...

  • Page 23: Install Plugins

    Bi-spectrum network camera User Manual Quick Configuration Figure 2-6 Configuring ActiveX control and plug-ins Step 3 Download and install the player control as prompted. ⚫ The login page is displayed when the control is loaded. 2.4.1 Install Plugins You will be prompted with a message “Download and install the new plugin” as shown in Figure 2-7 when you log in to the web management system for the first time.

  • Page 24: People Counting

    Bi-spectrum network camera Quick Configuration User Manual Figure 2-7 Download the plugin page Procedure Step 1 Click the message, download and install the plugin follow the prompts. Step 2 Reopen the browser after installation. Step 3 On live video page, you can operate these buttons as shown in live video. ⚫...

  • Page 25: Setting Local Network Parameters

    Bi-spectrum network camera User Manual Quick Configuration Figure 2-8 People counting interface Click “Download” to download the query result. Choose the mode of showing result, such as line chart, histogram, list. Click “Query” to query the data of People counting. User can download the result to local folder.
  • Page 26 Bi-spectrum network camera Quick Configuration User Manual ⚫ Alternate DNS server ⚫ Procedure Step 1 Choose Configuration > Device > Local Network. The Local Network page is displayed, as shown in Figure 2-9. Figure 2-9 Local Network Step 2 Set the parameters according to Table 2-2. Table 2-2 Local network parameters Parameter Description...
  • Page 27 Bi-spectrum network camera User Manual Quick Configuration Parameter Description Setting DHCP The device automatically [Setting method] obtains the IP address from the Click the option button. DHCP server. NOTE To query the current IP address of the device, you must query it on the platform based on the device name.
  • Page 28 Bi-spectrum network camera Quick Configuration User Manual Step 3 Click OK. ⚫ If the message "Apply success" is displayed, click OK. The system saves the settings. The message "Set network pram’s success, please login system again" is displayed. Use the new IP address to log in to the web management system.

  • Page 29: Configuring Thermal

    Bi-spectrum network camera User Manual Configuring Thermal 3 Configuring Thermal 3.1 Temperature Parameters Temperature parameters include temperature unit, ambient type, ambient temperature, cavity temperature, correctional coefficient, area temperature display mode, area temperature type, measure mode, area alarm interval and so on. Operation Procedure Step 1 Choose Configuration >...
  • Page 30 Bi-spectrum network camera Configuring Thermal User Manual Figure 3-1 Temperature Parameters interface Step 2 Set the parameters according to Table 3-1. Table 3-1 Temperature parameters Parameter Description Setting Temperature Enable to measure temperature. [Default value] Measurement Issue V1.0（2022-12-09）...
  • Page 31 Bi-spectrum network camera User Manual Configuring Thermal Parameter Description Setting Temperature Unit Celsius and Fahrenheit [Setting method] temperature units are available. Select a value from the drop-down list box. [Default value] Celsius Meters and feet length units are Length Units [Setting method] available.
  • Page 32 Bi-spectrum network camera Configuring Thermal User Manual Parameter Description Setting Area Temperature The display position of [Setting method] Display Mode temperature information on the Select a value from the live-video image. drop-down list box. [Default value] Low left Font Border Enable to bold the font [Setting method] Enable or disable...
  • Page 33 Bi-spectrum network camera User Manual Configuring Thermal Parameter Description Setting Temperature It depends on the device. [Setting method] range Different devices have different Select a value from the modes, there are two ranges, drop-down list box. such as -20 ℃ -150℃，-40 ℃- 150℃, the thermal imaging box network camera is -40 ℃- 150℃.
  • Page 34 Bi-spectrum network camera Configuring Thermal User Manual Figure 3-2 Advanced interface Table 3-2 Advance parameters Parameter Description Setting Dimming Mode There are auto and manual [Setting method] modes. It will show on Select a value from the temperature item. drop-down list box. [Default value] Auto Greater Prominent...

  • Page 35: Ambient Temperature

    Bi-spectrum network camera User Manual Configuring Thermal Parameter Description Setting Raw Data Upload Interval of Uploading the raw [Setting method] Interval(F/S) data. Select a value from the drop-down list box. [Default value] This function is used for Mix Stream Mode [Default value] thermal and visible image to Close...

  • Page 36: Temperature Alarm

    Bi-spectrum network camera Configuring Thermal User Manual ----End 3.3 Temperature Alarm Operation Procedure Step 1 Choose Configuration > Thermal > Temperature Alarm. The Temperature Alarm page is displayed, as shown in Figure 3-4. Issue V1.0（2022-12-09）...
  • Page 37 Bi-spectrum network camera User Manual Configuring Thermal Figure 3-4 Temperature alarm configuration Step 2 Set the parameters according to Table 3-4. Table 3-4 Temperature alarm configuration Parameter Description Setting Channel 1 is visible light Channel [Setting method] channel. Select a value from the Channel 2 is thermal channel.
  • Page 38 Bi-spectrum network camera Configuring Thermal User Manual Parameter Description Setting Measure Mode Set at temperature parameter interface. Enable Tick the ID to enable the area [Setting method] measuring. Tick Name Area name of temperature area. [Setting method] Enter a value manually. Type Type of temperature area.
  • Page 39 Bi-spectrum network camera User Manual Configuring Thermal Parameter Description Setting Emission Rate The emission rate is the [Setting method] capability of an object to emit Enter a value manually. or absorb energy. [Default value] The emission rate should be set 0.95 only when the target is special material.
  • Page 40 Bi-spectrum network camera Configuring Thermal User Manual Parameter Description Setting Group ID The ID can be chosen into one [Setting method] of six groups, or no group. The Select a value from the group will be alarm following drop-down list box. as the next rules: A=The highest temperature of groups (the highest temperature...
  • Page 41 Bi-spectrum network camera User Manual Configuring Thermal Figure 3-5 Temperature Area Setting Interface 3. Click Apply, the message “Apply success” is displayed, the temperature area is set successfully. NOTE ID 0 is the full screen; the area cannot be changed. : the lowest temperature of the full screen.

  • Page 42: Privacy Zone Masking

    Bi-spectrum network camera Configuring Thermal User Manual Step 4 Click Apply. The message "Apply success" is displayed, the system saves the settings. ----End 3.4 Privacy Zone Masking Privacy zone masking is meaning that the camera will do not detect the temperature of that area.

  • Page 43: Schedule Linkage

    Bi-spectrum network camera User Manual Configuring Thermal Step 5 Click Clear to clear the shield area. ----End 3.5 Schedule Linkage Operation Procedure Step 1 Choose Configuration > Thermal > Schedule Linkage. The Schedule Linkage page is displayed, as shown in Figure 3-7. Figure 3-7 Schedule Linkage Step 2 Tick the output channel.
  • Page 44 Bi-spectrum network camera Configuring Thermal User Manual When you select time by dragging the cursor, the cursor cannot be moved out of the time area. Otherwise, no time can be selected. Method 3：Click in the alarm time page to select the whole day or whole week. Deleting alarm time: Click again or inverse selection to delete the selected alarm time.
  • Page 45 Bi-spectrum network camera User Manual Configuring Thermal Parameter Description Setting Valid Signal The options are as follows: [Setting method] Select a value from Close: An alarm is generated when an the drop-down list external alarm signal is received. box. Open: An alarm is generated when no [Default value] external alarm signal is received.
  • Page 46 Bi-spectrum network camera Configuring Thermal User Manual SMTP: At “ Configuration > Network > SMTP” interface, users should set the parameters of ⚫ SMTP in advance, as shown in Figure 3-9. Figure 3-9 SMTP Table 3-6 SMTP Parameters Parameter Description Setting SMTP Server IP address of the SMTP server.
  • Page 47 Bi-spectrum network camera User Manual Configuring Thermal Parameter Description Setting Recipient_E- (Optional) Email address of mail_Address recipient 2. Recipient_E- (Optional) Email address of mail_Address recipient 3. Recipient_E- (Optional) Email address of mail_Address recipient 4. Recipient_E- (Optional) Email address of mail_Address recipient 5.
  • Page 48 Bi-spectrum network camera Configuring Thermal User Manual FTP Upload: At “ Configuration > Network > FTP” interface, users should set the parameters ⚫ of FTP upload in advance, as shown in Figure 3-10. Figure 3-10 FTP Upload Table 3-7 FTP Upload Parameters Parameter Description Setting...
  • Page 49 Bi-spectrum network camera User Manual Configuring Thermal Parameter Description Setting Media Type The media type of sending to FTP, [Setting method] snapshot or video clip. Select a value from the drop-down list box. [Default value] Snapshot FTP over Transfer the file by encrypting. [Setting method] SSL/TLS Tick to enable.
  • Page 50 Bi-spectrum network camera Configuring Thermal User Manual Audible Alarm output: At “ Configuration > Alarm > Audible Alarm Output” interface, users ⚫ should set the parameters of audible alarm output in advance, as shown in Figure 3-11. Figure 3-11 Audible Alarm Output User can set the audio file manually.

  • Page 51: Thermal Mapping

    Bi-spectrum network camera User Manual Configuring Thermal Figure 3-12 Upload Audio File ----End 3.6 Thermal Mapping Thermal mapping is used to map accurately the location of detecting area to the visual channel. The mapping has three points, user can choose the right locations to map, the three points should not be too close.
  • Page 52 Bi-spectrum network camera Configuring Thermal User Manual Figure 3-13 Thermal mapping interface Step 2 Settings please refer to Table 3-8. Table 3-8 Parameter of thermal mapping Parameter Description Setting Horizontal Shift(%) Adjust horizontal position of area [Setting method] which is on visual image. Input value Vertical Shift(%) Adjust vertical position of area which is...

  • Page 53: Defect Pixel Correction

    Bi-spectrum network camera User Manual Configuring Thermal Step 3 Click Apply. The message "Apply success" is displayed, the system saves the settings. ----End 3.7 Defect Pixel Correction Operation Procedure Step 1 Choose Configuration > Thermal > Defect Pixel Correction. The Defect Pixel Correction page is displayed, as shown in Figure 3-14. If the image has a white dot as shown in figure, user can test the function to recover the defect pixel.
  • Page 54 Bi-spectrum network camera Configuring Thermal User Manual Step 2 Click the white point at image, click Refresh to recover the defect pixel, as shown in Figure 3-15. Figure 3-15 Recover defect pixel Step 3 Click Apply. The message "Apply success" is displayed, the system saves the settings.

  • Page 55: Visible Image Settings

    Bi-spectrum network camera User Manual Visible Image Settings 4 Visible Image Settings 4.1 Accessing the Image Settings Interface Procedure Step 1 On the web, move the cursor to the real-time video page and right-click on the page. A shortcut menu is displayed, as shown in Figure 4-1. Figure 4-1 Sensor setting interface Or at “Configuration >...

  • Page 56: Mode

    Bi-spectrum network camera Visible Image Settings User Manual Figure 4-2 Image settings Step 2 Choose Sensor and the Image Settings dialog box appears. ⚫ All image configure can be modified at debug mode. Click in the lower left corner of Sensor Setting, and choose Debug Mode. ----End 4.2 Mode Step 1 Click...

  • Page 57: Image

    Bi-spectrum network camera User Manual Visible Image Settings Figure 4-3 Mode Step 2 Choose the switch mode from the drop-down list. Step 3 Time mode: Set the Start Time, set the End Time. Step 4 Click Save, the message "Save succeed" is displayed, the system saves the settings. ----End 4.3 Image Figure 4-4 shows the Image Adjust tab page.
  • Page 58 Bi-spectrum network camera Visible Image Settings User Manual Figure 4-4 Image Table 4-1 describes the parameters on the Image tab page. Table 4-1 Parameters of Image Parameter Description Configuration Method Brightness It indicates the total brightness of an image. As [Setting method] the value increases, the image becomes Drag the slider.

  • Page 59: Scene

    Bi-spectrum network camera User Manual Visible Image Settings Saturation It indicates the color saturation of an image. As [Setting method] the value increases, the image becomes more Drag the slider. colorful. [Default value] Contrast It indicates the measurement of different [Setting method] brightness levels between the brightest white Drag the slider.

  • Page 60: Exposure

    Bi-spectrum network camera Visible Image Settings User Manual Table 4-2 Parameters of scene Parameter Description Configuration Method Scene Indoor or outdoor. [Setting method] Select a value from the drop-down list. [Default value] Indoor Mirror It is used to select the pixel location of [Setting method] an image.
  • Page 61 Bi-spectrum network camera User Manual Visible Image Settings Figure 4-6 Exposure Table 4-3 describes the parameters on the Exposure setting tab page. Table 4-3 Parameters of exposure setting Parameter Description Configuration Method Exposure Mode The exposure modes include: [Setting method] Select a value from ⚫...
  • Page 62 Bi-spectrum network camera Visible Image Settings User Manual Metering mode Choose the mode to meter, there are full [Setting method] metering, spot metering, and partial Select a value from metering. the drop-down list. [Default value] Full Metering Max Shutter It is valid in mode.
  • Page 63 Bi-spectrum network camera User Manual Visible Image Settings Figure 4-7 WB Table 4-4 describes the parameters on the WB tab page. Table 4-4 Parameters of WB Parameter Description Configuration Method Mode It is used to display the real color of a [Setting method] monitoring scenario when the color temperature Select a value...

  • Page 64: Daynight

    Bi-spectrum network camera Visible Image Settings User Manual ----End 4.7 DayNight Figure 4-8 shows the day-night tab page. Figure 4-8 Day-night Table 4-5 describes the parameters on the Special Function tab page. Issue V1.0（2022-12-09）...
  • Page 65 Bi-spectrum network camera User Manual Visible Image Settings Table 4-5 Parameters of day night Parameter Description Configuration Method DayNight It can be set to Auto, Day Mode, Night Mode [Setting method] Mode and Timing. Select a value from the drop-down list. ⚫...

  • Page 66: Noise Reduction

    Bi-spectrum network camera Visible Image Settings User Manual Near When the IR LED is manual mode, users can [Setting method] adjust the strength of IR LEDs which are Drag the slider. operating on near distance. [Default value] When the IR LED is manual mode, users can [Setting method] adjust the strength of IR LEDs which are Drag the slider.

  • Page 67: Enhance Image

    Bi-spectrum network camera User Manual Visible Image Settings Table 4-6 Parameters of noise reduction Parameter Description Configuration Method 2D NR Auto /manual, default value is auto. [Setting method] By comparing and screening the images of the Drag the slider two frames before and after, the noise point strength.
  • Page 68 Bi-spectrum network camera Visible Image Settings User Manual Figure 4-10 Enhance image Table 4-7 describes the parameters on the enhance image setting tab page. Table 4-7 Parameters of enhance image Parameter Description Configuration Method It is intended to provide clear image [Setting method] performance in strong backlight areas such as Drag the slider.

  • Page 69: Zoom Focus

    Bi-spectrum network camera User Manual Visible Image Settings It indicates Back Light Compensation (BLC) [Setting method] automatically brings more detail to darker Drag the slider. areas of an image when bright light shining [Default value] from behind obscures it and provides perfect exposure for an object in front of very strong back light.
  • Page 70 Bi-spectrum network camera Visible Image Settings User Manual Figure 4-11 Zoom focus Table 4-8 Parameters of zoom focus Parameter Meaning Configuration Method It is used to trigger auto focus when day to [Setting method] D/N Auto Focus night or night to day. Tick the Auto focus.

  • Page 71: Thermal Image Settings

    Bi-spectrum network camera User Manual Thermal Image Settings 5 Thermal Image Settings 5.1 Accessing the Image Interface Operation Procedure Step 1 On the web interface, choose thermal channel and right-click the surveillance image to the set, as shown in Figure 5-1. Figure 5-1 The image configuration Or at “Configuration >...

  • Page 72: Mode

    Bi-spectrum network camera Thermal Image Settings User Manual Figure 5-2 Thermal channel image setting Step 2 Choose Sensor. The Image Settings dialog box is displayed, as shown in Figure 5- ----End 5.2 Mode Figure 5-3 shows the Mode interface. Issue V1.0（2022-12-09）...

  • Page 73: Images

    Bi-spectrum network camera User Manual Thermal Image Settings Figure 5-3 Mode interface Operation Procedure Step 1 Click in the lower left corner of Sensor Setting, and choose Debug Mode. Step 2 Choose switch mode from the drop-down list Step 3 Time mode: Set the Start Time, set the End Time. Step 4 Click Save, the message "...
  • Page 74 Bi-spectrum network camera Thermal Image Settings User Manual Figure 5-4 Image setting interface Step 1 Click in the lower left corner of Sensor Setting, and choose Debug Mode. Step 2 Drag the slider to adjust parameter of image. Step 3 Click Save, the message "Save succeed" is displayed, the system saves the settings. ⚫...

  • Page 75: Scene

    Bi-spectrum network camera User Manual Thermal Image Settings 5.4 Scene Figure 5-5 shows the Scene setting interface. Figure 5-5 Scene setting interface Step 1 Click in the lower left corner of Sensor Setting, and choose scene Step 2 Choose mirror mode from drop-list. Step 3 Click Save, the message "Save succeed"...

  • Page 76: Set Pseudocolor

    Bi-spectrum network camera Thermal Image Settings User Manual 5.5 Set Pseudocolor Figure 5-6 shows the Set pseudocolor setting interface. Figure 5-6 Set pseudocolor setting interface Step 1 Click in the lower left corner of Sensor Setting, and choose set pseudo color. Step 2 Choose pseudo-colors mode from drop-list.

  • Page 77: Ffc Control

    Bi-spectrum network camera User Manual Thermal Image Settings ⚫ The temperatures of the temperature fields detected by the thermal imaging camera are separately mapped to values ranging from 0 to 255 by the algorithm. In the black/white display mode, this range is converted to the gray scale tones. For example, 0 indicates completely black, and 255 indicates completely white.
  • Page 78 Bi-spectrum network camera Thermal Image Settings User Manual Figure 5-7 FFC control interface Table 5-1 lists the parameters on the FFC control interface. Table 5-1 Parameters on the FFC control interface Parameter Description Setting The internal of the thermal imaging camera may comprise the mechanical action correction mechanism that can periodically improve the image quality.
  • Page 79 Bi-spectrum network camera User Manual Thermal Image Settings Parameter Description Setting Repeated FFC operations can prevent the grainy and image degradation problems. The FFC is especially important when the temperature of the camera changes. For example, after the camera is powered on or the ambient temperature is changed, you should immediately perform the FFC.

  • Page 80: Noise Reduction

    Bi-spectrum network camera Thermal Image Settings User Manual Parameter Description Setting CORRECTION Background Click the icon and camera perform the action. Manually CORRECTION ----End 5.7 Noise Reduction Figure 5-8 shows the Noise reduction interface. Figure 5-8 Noise reduction interface Table 5-2 lists the Noise reduction parameters. Table 5-2 Parameters on the Noise reduction interface Parameter Description...
  • Page 81 Bi-spectrum network camera User Manual Thermal Image Settings Parameter Description Setting noise. Select from the drop-down list box. [Default value] Close [How to set] Select from the drop-down list box. Decrease the image 3DNR noise. [Default value] Close ----End Issue V1.0（2022-12-09）...

  • Page 82: Intelligent Analysis

    Bi-spectrum network camera Intelligent Analysis User Manual 6 Intelligent Analysis 6.1 Intrusion Description The Intrusion function refers to that an alarm is generated when the targets of specified types (such as person, car, and both person and car) enter the deployment area. Procedure Step 1 Select Configuration >...
  • Page 83 Bi-spectrum network camera User Manual Intelligent Analysis Table 6-1 Intrusion Parameter Description Parameter Description Setting Channel Channel 1: visible. Choose one channel to set. Channel 2: thermal. Enable Enable the button to enable the alarm. [How to set] Click Enable to enable. [Default value] Sensitivity The sensitivity of detecting smoker,...
  • Page 84 Bi-spectrum network camera Intelligent Analysis User Manual Parameter Description Setting Video Stream Enable the button, the draw line will [How to set] Draw Line show at live video when the stream is Click to enable FTP stream 2. Upload. [Default value] Step 3 Set a deployment area.

  • Page 85: Single Line Crossing

    Bi-spectrum network camera User Manual Intelligent Analysis Figure 6-2 Deployment Time Setting Interface ----End 6.2 Single Line Crossing Description A Single Line Crossing is a line that is set at a concerned position within the monitored field of view and specifies the forbidden travel direction; An alarm is generated when the targets of specified types (such as person or car) cross this line.
  • Page 86 Bi-spectrum network camera Intelligent Analysis User Manual Figure 6-3 Single Line Crossing Setting Interface Step 2 Set all parameters for the Single Line Crossing. Table 6-2 describes the specific parameters. Table 6-2 Parameters of Single Line Crossing Parameter Description Setting Channel Channel 1: visible.
  • Page 87 Bi-spectrum network camera User Manual Intelligent Analysis Parameter Description Setting Limit Type Effective alarms are set [How to set] based on target type, with Click to enable Limit options of Person or Car, Target Type. person, car. When the [Default value] device is used indoors, because of small space and large targets, alarms are...

  • Page 88: Double Line Crossing

    Bi-spectrum network camera Intelligent Analysis User Manual Step 3 Set a deployment area: Draw a line: move the cursor to the drawing interface, hold down the left mouse button, and move the cursor to draw a line. When you release the left mouse button, a Single Line Crossing is generated.
  • Page 89 Bi-spectrum network camera User Manual Intelligent Analysis Figure 6-4 Double Line Crossing Setting Interface Step 2 Set all parameters for the Double Line Crossing. Table 6-3 describes the specific parameters. Table 6-3 Description of Parameters for Double Line Crossing Parameter Description Setting Enable...
  • Page 90 Bi-spectrum network camera Intelligent Analysis User Manual Parameter Description Setting Output Channel If you check to set the Output Channel and the [How to set] device is connected to an external alarm indicator, Click to select an the alarm indicator signals when an alarm is triggered.

  • Page 91: People Counting

    Bi-spectrum network camera User Manual Intelligent Analysis ⚫ The two lines are in sequential order. An alarm is generated only when a target crosses virtual fence 1 and then virtual fence 2 within the set maximum passing time. ⚫ The Double Line Crossing are not within any deployment area, therefore, when an alarm is generated, the trace always exists.
  • Page 92 Bi-spectrum network camera Intelligent Analysis User Manual Figure 6-5 People counting Step 2 Set all parameters for illegal parking. Table 6-4 describes the specific parameters. Issue V1.0（2022-12-09）...
  • Page 93 Bi-spectrum network camera User Manual Intelligent Analysis Table 6-4 Parameters of people counting Parameter Description Setting Channel Channel 1: visible. [How to set] Channel 2: thermal. Choose one channel to set. Enable Enable the button to enable the alarm. [How to set] Click Enable to enable.
  • Page 94 Bi-spectrum network camera Intelligent Analysis User Manual Parameter Description Setting Output Channel If you check to set the Output Channel [How to set] and the device is connected to an external Click to select an ID. alarm indicator, the alarm indicator signals when an alarm is triggered.

  • Page 95: Advanced Intelligent Analysis

    Bi-spectrum network camera User Manual Advanced Intelligent Analysis 7 Advanced Intelligent Analysis At advanced intelligent analysis interface, users can set the parameters of smoker detection, smoke and flame detection, fire spot detection. Enable the linkage actions, the alarm information can be sent to user by the linkage. The advanced intelligent analysis can be used for detecting the smoking, if someone smoke in the indoor where is forbidden smoking.
  • Page 96 Bi-spectrum network camera Advanced Intelligent Analysis User Manual Figure 7-1 Smoker detection interface Step 2 Set all parameters for Intrusion. Table 7-1 describes the specific parameters. Table 7-1 Parameters of smoker detection Parameter Description Setting Enable At thermal channel, Enable the button to [How to set] enable the alarm.
  • Page 97 Bi-spectrum network camera User Manual Advanced Intelligent Analysis Parameter Description Setting Audible alarm Enable, when happen the alarm, it will [How to set] be play audio to alarm. Click to enable Audible Choose the sound alarm file (set at the alarm “Configuration >...

  • Page 98: Smoke And Flame Detection

    Bi-spectrum network camera Advanced Intelligent Analysis User Manual Method 1：Click left mouse button to select any time point within 0:00-24:00 from Monday to Sunday. Method 2：Hold down the left mouse button, drag and release mouse to select the deployment time within 0:00-24:00 from Monday to Sunday. Method 3：Click in the deployment time page to select the whole day or whole week.
  • Page 99 Bi-spectrum network camera User Manual Advanced Intelligent Analysis Figure 7-3 Smoke and flame detection interface Step 2 Set all parameters for Intrusion. Table 7-2 describes the specific parameters. Table 7-2 Smoke flame detection description Parameter Description Setting Enable At thermal channel, Enable the button to [How to set] enable the alarm.
  • Page 100 Bi-spectrum network camera Advanced Intelligent Analysis User Manual Parameter Description Setting Audible alarm Enable, when happen the alarm, it will [How to set] be play audio to alarm. Click to enable Audible Choose the sound alarm file (set at the alarm “Configuration >...

  • Page 101: Fire Spot Detection

    Bi-spectrum network camera User Manual Advanced Intelligent Analysis Method 1：Click left mouse button to select any time point within 0:00-24:00 from Monday to Sunday. Method 2：Hold down the left mouse button, drag and release mouse to select the deployment time within 0:00-24:00 from Monday to Sunday. Method 3：Click in the deployment time page to select the whole day or whole week.
  • Page 102 Bi-spectrum network camera Advanced Intelligent Analysis User Manual Figure 7-5 Fire spot detection interface Step 2 Set all parameters for Intrusion. Table 7-3 describes the specific parameters. Table 7-3 Fire spot detection description Parameter Description Setting Enable At thermal channel, Enable the button to [How to set] enable the alarm.
  • Page 103 Bi-spectrum network camera User Manual Advanced Intelligent Analysis Parameter Description Setting Audible alarm Enable, when happen the alarm, it will [How to set] be play audio to alarm. Click to enable Audible Choose the sound alarm file (set at the alarm “Configuration >...
  • Page 104 Bi-spectrum network camera Advanced Intelligent Analysis User Manual Figure 7-6 Set deployment area NOTE ⚫ A drawn line cannot cross another one, or the line drawing fails. ⚫ Any shape with 32 sides at most can be drawn. ⚫ The quantity quantity of deployment areas is up to 8. Step 4 Set deployment time.
  • Page 105 Bi-spectrum network camera User Manual Advanced Intelligent Analysis Figure 7-7 Deployment time setting interface ---End Issue V1.0（2022-12-09）...

  • Page 106: Other Web Configurations

    Bi-spectrum network camera Other Web Configurations User Manual 8 Other Web Configurations 8.1 Device Information You can view the information about device, as shown in Figure 8-1. Figure 8-1 Device information interface ---End Issue V1.0（2022-12-09）...

  • Page 107: Stream

    Bi-spectrum network camera User Manual Other Web Configurations 8.2 Stream 8.2.1 Base Stream Step 1 Choose Configuration >Stream >Base Stream, as shown in Figure 8-2. Figure 8-2 Base stream interface Step 2 Choose channel, stream ID, video encode type, video encode level, audio encode type, resolution, frame rate, frame interval, bit rate type and bit rate from all drop list.
  • Page 108 Bi-spectrum network camera Other Web Configurations User Manual Figure 8-3 ROI interface Step 2 Click Apply. The message "Apply success" is displayed, the system saves the settings. ----End Issue V1.0（2022-12-09）...

  • Page 109: Snapshot

    Bi-spectrum network camera User Manual Other Web Configurations 8.2.3 Snapshot Step 1 Choose Configuration >Stream >Snapshot, as shown in Figure 8-4. Figure 8-4 Snapshot interface Step 2 Choose snapshot resolution and snapshot quality from drop list. Step 3 Click Apply. The message "Apply success" is displayed, the system saves the settings.

  • Page 110: External Device

    Bi-spectrum network camera Other Web Configurations User Manual Figure 8-5 Device interface ---End 8.4 External Device Choose Configuration > External Device, enable PTZ, set parameters as shown in Figure 8-6. Figure 8-6 External device interface ---End Issue V1.0（2022-12-09）...

  • Page 111: Privacy Masking

    Bi-spectrum network camera User Manual Other Web Configurations 8.5 Privacy Masking Choose Configuration > Privacy masking. You can set privacy masking if some area needs keep secret, drag mouse to select the area to cover, double click will delete the setting, as shown in Figure 8-7.

  • Page 112: Privacy Manager

    Bi-spectrum network camera Other Web Configurations User Manual 8.7 Privacy Manager Add user account, manage the users’ permission. As shown in Figure 8-8. Figure 8-8 Privacy manager interface 8.8 Protocol Choose Configuration > Protocol. You can set protocol information, security, CMS configuration and multicast parameter.

  • Page 113: Maintenance

    Bi-spectrum network camera User Manual Other Web Configurations Figure 8-10 Device log interface 8.10 Maintenance Choose configuration > maintenance. You can restart, update, reserve IP setting and restore to factory default, as shown in Figure 8-11. Figure 8-11 Maintenance interface 8.11 Local Config Choose configuration >...

  • Page 114: Qos

    Bi-spectrum network camera Other Web Configurations User Manual Figure 8-12 Local config interface 8.12 QOS Description If the device is connected to a router or switch with a QOS function, and the priority rule of the corresponding mark is configured on the network device, the network device will preferentially pass the data packet of the corresponding mark.
  • Page 115 Bi-spectrum network camera User Manual Other Web Configurations Figure 8-13 QOS page Step 2 Input the value range from 0 to 63( audio/video dscp, alarm dscp and command dscp). Step 3 Click Apply. The message "Apply success!" is displayed, and the system saves the settings. ----End Issue V1.0（2022-12-09）...

  • Page 116: A Troubleshooting

    Bi-spectrum network camera A Troubleshooting User Manual Troubleshooting Common Trouble Possible Cause Solution Unable to access Network is not Connect the network cable of the camera to the the web connected. PC to check whether the network cable is in good contact.
  • Page 117 Bi-spectrum network camera User Manual A Troubleshooting Common Trouble Possible Cause Solution 1. Make sure ‘thermal mapping’ and ‘thermal calibration is configured The temperature correctly’ by checking if face square in thermal image is covering the is too high. face and the cross is in the middle of target’s forehead. 2.
