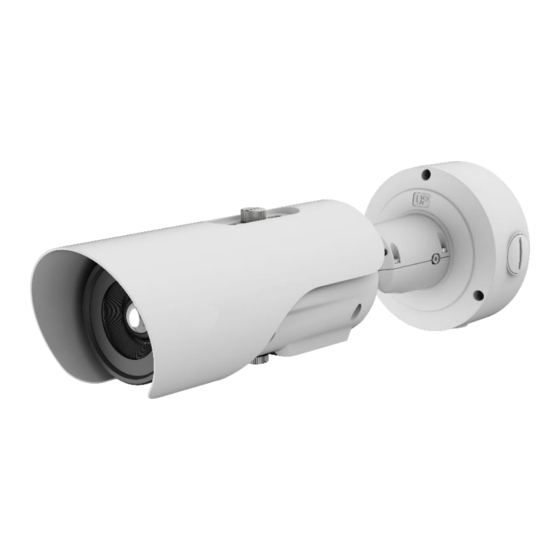

Thermal Imaging Integrated Network Camera User Manual Precautions Precautions Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, put a sign "You have entered the area of electronic surveillance" in an eye-catching place. Failure to correctly use electrical products may cause fire and severe injuries.
Page 4
Thermal Imaging Integrated Network Camera Precautions User Manual Strictly conform to local electrical safety standards and use power adapters which ⚫ are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged. Use accessories delivered with this device. The voltage must meet input voltage ⚫...
Page 5
Thermal Imaging Integrated Network Camera User Manual Precautions Clean the device body with a soft and dry cloth. In case that the dirt is hard to ⚫ remove, use a dry cloth dipped in a small amount of mild detergent and gently wipe the device, and then dry it again.
Thermal Imaging Integrated Network Camera User Manual Product Overview Product Overview 1.1 Thermal Imaging Principles and Advantages For any object, as long as its temperature is above the absolute zero (-273.15°C), although the object does not give out light, it can radiate infrared. The infrared is also known as thermal radiation.
Page 10
Thermal Imaging Integrated Network Camera Product Overview User Manual Appearance and interfaces of the thermal imaging integrated network camera Interfaces Physical Interface Connection Reset button The configuration resumes to the factory settings (RESET) after pressing the reset button for 3s. The default value is 192.168.0.121.
Thermal Imaging Integrated Network Camera User Manual Product Overview 1.3 Out Wire Connection There are two ways to connect the thermal imaging integrated network camera, the multi-connector cables and the integrated cable management bracket. Users can choose the corresponding method and installation method according to their bracket. 1.3.1 The Multi-connector Cable Figure 1-2 the multi-connector cable of the thermal imaging integrated network camera.
Page 12
Thermal Imaging Integrated Network Camera Product Overview User Manual Core of Cable Functions Connection pan & tilt. White RS485RS- Audio input port (cable Inputs the audio signal and input) receives the analog audio signals from the sound pick-up device. Network interface Connects to the standard Ethernet cable.
Thermal Imaging Integrated Network Camera User Manual Product Overview 1.3.2 Integrated Cable Management Bracket Integrated Cable Management bracket Port Integrated Cable Management Bracket Port Port Name Description Remark COM OUT 1 Alarm out com 1 ALARM OUT1 Alarm out 1 COM IN 1 Alarm in 1 com ALARM IN1...
Thermal Imaging Integrated Network Camera Product Overview User Manual ALARM OUT2 Alarm out 2 COM IN2 Alarm OUT com 2 ALARM IN2 Alarm in 2 RS485+ RS485+ Applied for connecting to RS485- RS485- external PTZ DC IN/AC24 DC 12 V + Support AC DC GND/AC24 DC 12V -...
Thermal Imaging Integrated Network Camera User Manual Product Overview With 3-axis rotary adjustment structure, easy to install and adjust ⚫ DC 12 V/AC 24V/ POE ⚫ Support 10 languages: English, Chinese, Spanish, Portuguese, Polish, Italian, ⚫ Russian, French, Czech, Hungarian. (The default language is English) 1.5 Packing List Unpack and check the appearance of product for no obvious damage, and confirm the item list for Table 1-4 is consistent.
Thermal Imaging Integrated Network Camera Device Dimensions User Manual Device Dimensions The different brackets of device are having different dimensions, please refer to actual product. The A Bracket Dimensions (unit: mm) Issue V1.2(2022-05-28)...
Page 17
Thermal Imaging Integrated Network Camera User Manual Device Dimensions The B Bracket with Junction box Dimensions (unit: mm) The B Bracket Dimensions (unit: mm) Issue V1.2(2022-05-28)...
Page 18
Thermal Imaging Integrated Network Camera Device Dimensions User Manual Issue V1.2(2022-05-28)...
Thermal Imaging Integrated Network Camera Installation User Manual 3.2 Installation Mode The thermal imaging integrated camera can be installed on the ceiling or the wall. You can select the appropriate installation according to your requirements. If the camera needs to be installed on the cement wall, you need to install the expansion screws (the mounting holes of the screws must be consistent with that of the support), and then install the support.
Page 21
Thermal Imaging Integrated Network Camera User Manual Installation According to the location hole positions shown in the installation location label, punch four location holes with diameter 5 mm on the ceiling or the wall. Fix the installation base on the wall, as shown in Figure 3-9. Fixing base Hang the integrated camera into the base along the guide slots and rotate it to a certain angle for facilitate cable connection, as shown in Figure 3-3.
Page 22
Thermal Imaging Integrated Network Camera Installation User Manual Align with the base Fix the integrated camera to the installation base, as shown in Figure 3-13. Fix the integrated camera to the installation base Put the screws into the holes and focus by manual as shown in Figure 3-10. Issue V1.2(2022-05-28)...
Page 23
Thermal Imaging Integrated Network Camera User Manual Installation Focus with focusing screw Focusing screw x2 Adjust the surveillance angle, as shown in Figure 3-11, and then fix the screws. Adjust the surveillance angle Screws 3 Screws 2 Screws 1 1. Loosen the screws 1, and adjust the part 1 along the arrow direction. The adjustment angle is 360 degrees.
Thermal Imaging Integrated Network Camera Installation User Manual 3.2.2 Installing B Bracket Without Junction Box Take out the installation location label from the package, stick it on the ceiling or the wall. According to the location hole positions shown in the installation location label, punch three location holes on the ceiling or the wall.
Page 25
Thermal Imaging Integrated Network Camera User Manual Installation Fixing Camera Connect the multi connector cable. Loosen the screw 1 and screw 2, adjust the surveillance angle, as shown in Figure 3-11 Insert the focusing screw into the screw hole and focus along the direction of arrows as shown in Figure 3-10.
Thermal Imaging Integrated Network Camera Installation User Manual Adjust the surveillance angle ----End 3.2.3 Installing B Bracket With Junction Box Take out the installation location label from the package, stick it on the ceiling or the wall. According to the location hole positions shown in the installation location label, punch four location holes on the ceiling or the wall.
Page 27
Thermal Imaging Integrated Network Camera User Manual Installation Fixing the junction box Wiring of junction box. Align the holes in bracket with the box and fix the camera to the box with self-tapping screws, as shown in Figure 3-13. Fix the camera to the junction box Issue V1.2(2022-05-28)...
Page 28
Thermal Imaging Integrated Network Camera Installation User Manual Connect the multi connector cable. Loosen screw 1 and screw 2, adjust the surveillance angle, as shown in Figure 3-14. Adjust the surveillance angle As for focusing the lens, please refer to Figure 3-10. After adjusting angle, fix screw 2 and screw 1 in turn to finish installation.
Thermal Imaging Integrated Network Camera User Manual Quick Configuration Quick Configuration 4.1 Login and Logout To access the web interface through Internet Explorer 8 or later versions, otherwise, some functions may be unavailable. Login system Open the Internet Explorer, enter the IP address of IP camera (default value: 192.168.0.121) in the address box, and press Enter.
Thermal Imaging Integrated Network Camera Quick Configuration User Manual Logout To logout of system, click in the upper right corner of the main page, the login page is displayed after you log out of the system. 4.2 Main Page Layout On the main page, you can view Live video, playback and configuration.
Page 31
Thermal Imaging Integrated Network Camera User Manual Quick Configuration Function Description shown in Figure 4-4. Device You can choose a menu to set device parameters, configuration including the device information, audio and video streams, alarm setting, and privacy mask function. Change password You can click...
Page 32
Thermal Imaging Integrated Network Camera Quick Configuration User Manual The icon : The lowest temperature of the full screen. : The highest temperature of the full screen. : The lowest temperature of the area. : The highest temperature of the area. Issue V1.2(2022-05-28)...
Thermal Imaging Integrated Network Camera User Manual Quick Configuration Personnel count interface User can choose the querying mode (year, month, day). The data can be viewed directly, or downloaded them. The statistic can be showed by line chart, histogram, list. ----End 4.3 Changing the Password Description...
Thermal Imaging Integrated Network Camera Quick Configuration User Manual Modify Password dialog box The change password page will be displayed if you don’t change the default password when you login the system for the first time. Enter the old password, new password, and confirm password. Click OK.
Page 35
Thermal Imaging Integrated Network Camera User Manual Quick Configuration Adding a trusted site In the Internet Explorer, choose Tool > Internet Options > Security > Customer level, and and set “Download unsigned ActiveX control” and “initialize and script ActiveX controls” not marked as safe for scripting under “ActiveX controls and plug-ins” to “Enable", as shown in Figure 4-7.
Thermal Imaging Integrated Network Camera Quick Configuration User Manual The login page is displayed when the control is loaded. 4.4.1 Install Plugins You will be prompted with a message “Download and install the new plugin” will show as in Figure 4-8, when you login to the web management system for the first time. Install plugin Procedure Click the message, download and install the plugin following the prompts.
Page 37
Thermal Imaging Integrated Network Camera User Manual Quick Configuration Device information Set the parameters according to Table 4-2. Local network parameters Parameter Description Setting IP Protocol IPv4 is the Internet Protocol [Setting method] which adopts a 32-bit address. Select a value from the drop-down list box.
Page 38
Thermal Imaging Integrated Network Camera Quick Configuration User Manual Parameter Description Setting IP Address Device IP address that can be [Setting method] set as required. Enter a value manually. [Default value] 192.168.0.121 Subnet Mask Subnet mask of the network [Setting method] adapter.
Page 39
Thermal Imaging Integrated Network Camera User Manual Quick Configuration ⚫ If you set only the Subnet Mask, Default Gateway, Preferred DNS Server, and Alternate DNS Server parameters, you do not need to log in to the system again. ⚫ You can click Reset to set the parameters again if required. ----End Issue V1.2(2022-05-28)...
Thermal Imaging Integrated Network Camera Thermal Setting User Manual Thermal Setting 5.1 Temperature Parameters Temperature parameters include: temperature unit, ambient temperature, cavity temperature, correctional coefficient area temperature display mode, and so on. Operation Procedure Choose Configuration >Thermal >Temperature Parameters. The Temperature Parameters page is displayed, as shown in Figure 5-1. Issue V1.2(2022-05-28)...
Page 41
Thermal Imaging Integrated Network Camera User Manual Thermal Setting Temperature Parameters interface Set the parameters according to Table 5-1. Temperature parameters Parameter Description Setting Open Enable to open temperature [Setting method] Temperature measure. Enable Measure Issue V1.2(2022-05-28)...
Page 42
Thermal Imaging Integrated Network Camera Thermal Setting User Manual Parameter Description Setting Temperature Unit Celsius and Fahrenheit [Setting method] temperature units are available. Select a value from the drop-down list box. [Default value] Celsius Length Units Meters and Feet [Setting method] Select a value from the drop-down list box.
Page 43
Thermal Imaging Integrated Network Camera User Manual Thermal Setting Parameter Description Setting Font Border Enable to bold the font [Setting method] Enable or disable [Default value] Disable Font Size Custom font size. There are [Setting method] three sizes can be chosen. Select a value from the drop-down list box.
Page 44
Thermal Imaging Integrated Network Camera Thermal Setting User Manual Parameter Description Setting Temper Prevent over heat’ mode is auto, [Setting method] Duration(5-60 S) the control cover will block for Enter a value manually duration time automatically if ranges from 5 to 60. over heat.
Thermal Imaging Integrated Network Camera User Manual Thermal Setting Parameter Description Setting Greater Prominent Enable that, the image will show [Setting method] the setting color if the temperature Enter a value manually. is higher than set value. Choose one color to show.
Thermal Imaging Integrated Network Camera Thermal Setting User Manual Ambient temperature parameter of ambient temperature Parameter Description Setting Ambient Environment temperature of [Setting method] Temperature camera. Enter the temperature of ambient. [Default value] Adaptation Set the ambient temperature, click “Apply”, click “Refresh” ,the environment temperature camera will get the value...
Page 47
Thermal Imaging Integrated Network Camera User Manual Thermal Setting Temperature area and alarm configuration Set the parameters according to Table 5-4 Temperature area and alarm configuration Parameter Description Setting Channel [Setting method] Select a value from the drop-down list box. [Default value] Measure Mode Set at temperature parameter...
Page 48
Thermal Imaging Integrated Network Camera Thermal Setting User Manual Parameter Description Setting Name Area name of temperature area. [Setting method] Enter a value manually. Type Type of temperature area. [Setting method] ID 0 is default rectangle area, Select a value from the which is full screen.
Page 49
Thermal Imaging Integrated Network Camera User Manual Thermal Setting Parameter Description Setting The emission rate is the Emission Rate [Setting method] capability of an object to emit Enter a value manually. or absorb energy. [Default value] The emission rate should be set 0.95 only when the target is special material.
Page 50
Thermal Imaging Integrated Network Camera Thermal Setting User Manual Parameter Description Setting Group ID The ID can be chosen into one [Setting method] of six groups, or no group. The Select a value from the group will be alarm following drop-down list box.
Thermal Imaging Integrated Network Camera User Manual Thermal Setting Temperature Area Setting Interface Click Apply, the message “Apply success” pops up, the temperature area is set successfully. Delete a temperature area: Select an area ID Click the temperature area and right-click. Click Apply, the message “Apply success”...
Thermal Imaging Integrated Network Camera Thermal Setting User Manual Shield Area Enable the shield area. Enable Show Shield Area, then the setting shield will show on live video. Left click to select polygon area, right click to save. Click Clear to clear the shield area. ----End 5.5 Schedule Linkage Operation Procedure...
Page 53
Thermal Imaging Integrated Network Camera User Manual Thermal Setting Schedule Linkage Tick the output channel. Enable “Alarm Record”, “SMTP”,”FTP” , “Audio Detect Alarm” button. Set schedule linkage. Method 1:Left click to select any time point within 0:00-24:00 from Monday to Sunday as shown in Figure 5-7.
Thermal Imaging Integrated Network Camera Thermal Setting User Manual ----End 5.6 Bad Point Check Description The points that can’t move when the environment or scenario change is bad point. You can delete the bad point by bad point check function. Procedure Choose Configuration >Thermal >...
Page 55
Thermal Imaging Integrated Network Camera User Manual Thermal Setting Recover bad point Click Reset to return the previous settings. Click Apply. The message "Apply success" is displayed, the system saves the settings. ----End Issue V1.2(2022-05-28)...
Thermal Imaging Integrated Network Camera AI Multiobject User Manual AI Multiobject 6.1 Parameters of AI Multiobject AI Multiobject Parameters of AI multiobject Parameter Description How to set Full body The camera will snap the whole body when Enable detection someone appears in live video. Vehicle The camera will snap the vehicle when the Enable...
Page 57
Thermal Imaging Integrated Network Camera User Manual AI Multiobject Parameter Description How to set Show detection Enable to set a detection area, and the frame will Enable area show at live video Snapshot mode There are three mode can be chosen, such as Choose from drop timing, and optimal.
Thermal Imaging Integrated Network Camera Intelligent Analysis User Manual Intelligent Analysis 7.1 Perimeter The perimeter function refers to that an alarm is generated when the targets of specified types (such as person, car, and both person and car) enter the deployment area. Procedure Select Intelligent Analysis >...
Page 59
Thermal Imaging Integrated Network Camera User Manual Intelligent Analysis Perimeter Parameter Description Parameter Description Setting Enable Enable the button to enable the alarm. [How to set] Click Enable to enable. [Default value] Sensitivity The sensitivity of detecting the target, when [How to set] the value is high, the target can be detected Choose from the...
Page 60
Thermal Imaging Integrated Network Camera Intelligent Analysis User Manual Parameter Description Setting FTP Upload Enable the button to enable File Transfer [How to set] Protocol. Click to enable FTP The parameters of FTP can be set at Upload. Configuration > Network Service > FTP [Default value] interface.
Thermal Imaging Integrated Network Camera User Manual Intelligent Analysis Deployment Time Setting Interface ----End 7.2 Single Virtual Fence A single virtual fence is a line that is set at a concerned position within the monitored field of view and specifies the forbidden travel direction, an alarm is generated when the targets of specified types (such as person or car) cross this line.
Page 62
Thermal Imaging Integrated Network Camera Intelligent Analysis User Manual Single Virtual Fence Setting Interface Set all parameters for the single virtual fence. Table 7-2 describes the specific parameters. Description of Parameters for Single Virtual Fence Issue V1.2(2022-05-28)...
Page 63
Thermal Imaging Integrated Network Camera User Manual Intelligent Analysis Parameter Description Setting Enable Enable the button to enable the alarm. [How to set] Click Enable to enable . [Default value] Limit Target Effective alarms are set based on target type, [How to set] Type with options of Person or Car, person, car.
Thermal Imaging Integrated Network Camera Intelligent Analysis User Manual Set a deployment area Drawing a line: move the cursor to the drawing interface, hold down the left mouse button, and move the cursor to draw a line. When you release the left mouse button, a single virtual fence is generated.
Page 65
Thermal Imaging Integrated Network Camera User Manual Intelligent Analysis Double Virtual Fences Setting Interface Set all parameters for the double virtual fences. Table 7-3 describes the specific parameters. Description of Parameters for Double Virtual Fence Parameter Description Setting Enable Enable the button to enable the alarm. [How to set] Click to enable.
Page 66
Thermal Imaging Integrated Network Camera Intelligent Analysis User Manual Parameter Description Setting Output If you check to set the Output Channel and the [How to set] Channel device is connected to an external alarm Click to select an indicator, the alarm indicator signals when an alarm is triggered.
Thermal Imaging Integrated Network Camera User Manual Intelligent Analysis NOTE ⚫ The two virtual fences are in sequential order. An alarm is generated only when a target crosses virtual fence 1 and then virtual fence 2 within the set maximum passing time. ⚫...
Page 68
Thermal Imaging Integrated Network Camera Intelligent Analysis User Manual Multi Loiter Setting Interface Set all parameters for multiple loitering. Table 7-4 describes the specific parameters. Multiple Loitering Parameter Description Parameter Description Setting Enable Enable the button to enable the alarm. [How to set] Click Enable to enable.
Page 69
Thermal Imaging Integrated Network Camera User Manual Intelligent Analysis Parameter Description Setting Limit Numbers When Limit Numbers is set to OFF, an alarm [How to set] is generated no matter how many people Click to enable loiter. When Limit Numbers is set to ON, if Limit Numbers.
Thermal Imaging Integrated Network Camera Intelligent Analysis User Manual Move the cursor to the drawing interface and click to generate a point, move the cursor to draw a line, and then click to generate another point. This is how a line is generated. In this way, continue to draw lines to form any shape, and right-click to finish line drawing.
Page 71
Thermal Imaging Integrated Network Camera User Manual Intelligent Analysis Converse Setting Interface Set all parameters for converse. Table 7-5 describes the specific parameters. Converse Parameter Description Parameter Description Setting Enable Enable the button to enable the alarm. [How to set] Click Enable to enable.
Page 72
Thermal Imaging Integrated Network Camera Intelligent Analysis User Manual Parameter Description Setting Output If you check to set the Output Channel and the [How to set] Channel device is connected to an external alarm Click to select an indicator, the alarm indicator signals when an alarm is triggered.
Thermal Imaging Integrated Network Camera User Manual Intelligent Analysis ----End 7.6 Personnel count Draw a line in the designated area to count, you can count the number of people passing through the area, set the corresponding alarm linkage. 0 Procedure Select Intelligent Analysis >...
Page 74
Thermal Imaging Integrated Network Camera Intelligent Analysis User Manual Set all parameters for illegal parking. Table 7-6 describes the specific parameters. Description of Parameters for Personnel Count Parameter Description Setting Enable Enable the button to enable the alarm. [How to set] Click Enable to enable.
Page 75
Thermal Imaging Integrated Network Camera User Manual Intelligent Analysis Parameter Description Setting Over People Enable, When the counting number reaches the [How to set] Number threshold value, an alarm is triggered. Click Enable to Alarm enable. [Default value] Alarm The threshold of enable alarm. [How to set] Threshold Enable /Input a...
Thermal Imaging Integrated Network Camera Intelligent Analysis User Manual 7.7 Enter Area Set the area, when the targets enter the area, it will alarm. Procedure Select Intelligent Analysis > Enter Area to access the Enter Area setting interface, as shown in Figure 7-8. Enter area Set all parameters for illegal parking.
Page 77
Thermal Imaging Integrated Network Camera User Manual Intelligent Analysis Description of Parameters for enter area Parameter Description Setting Enable Enable the button to enable the enter area alarm. [How to set] Click Enable to enable. [Default value] Sensitivity The sensitivity of detecting the target, when the [How to set] value is high, the target can be detected easily, but Choose from the...
Thermal Imaging Integrated Network Camera Intelligent Analysis User Manual Parameter Description Setting Enable the button to enable File Transfer Protocol. [How to set] Upload The parameters of FTP can be set at Click to enable FTP Configuration > Network Service > FTP Upload.
Page 79
Thermal Imaging Integrated Network Camera User Manual Intelligent Analysis Leave area Set all parameters for illegal parking. Table 7-8 describes the specific parameters. Description of Parameters for leave area Parameter Description Setting Enable Enable the button to enable the enter area alarm. [How to set] Click Enable to enable.
Page 80
Thermal Imaging Integrated Network Camera Intelligent Analysis User Manual Parameter Description Setting Limit Effective alarms are set based on target type, with [How to set] Target options of Person or Car, person, car. When the Click to enable Type device is used indoors, because of small space and Limit Target Type.
Page 81
Thermal Imaging Integrated Network Camera User Manual Intelligent Analysis ----End Issue V1.2(2022-05-28)...
Thermal Imaging Integrated Network Camera Parameter Setting User Manual Parameter Setting 8.1 Sensor Configuration Interface Operation Procedure On the Internet Explorer interface or the client software interface, select and right-click the surveillance image to set, as shown in Figure 8-1. Sensor configuration Parameters of right click parameters...
Thermal Imaging Integrated Network Camera Parameter Setting User Manual Mode interface Operation Procedure Click in the lower left corner of Sensor Setting, and choose Debug Mode. Choose switch mode form drop-down list. Set the Start Time Set the End Time Click Save, the message "Save succeed"...
Page 85
Thermal Imaging Integrated Network Camera User Manual Parameter Setting Image interface Click in the lower left corner of Sensor Setting, and choose Debug Mode. Drag the slider to adjust parameter of image. Brightness:It indicates the total brightness of an image. As the value increases, the image becomes brighter.
Thermal Imaging Integrated Network Camera Parameter Setting User Manual 8.4 Scene Figure 8-5 shows the Scene interface Scene interface Click in the lower left corner of Sensor Setting, and choose scene Choose mirror mode from drop-list. Click Save, the message "Save succeed" is displayed, the system saves the settings. NOTE Mirror providing the selection of image pixel locations.
Thermal Imaging Integrated Network Camera User Manual Parameter Setting Vertical: the image is flipped up and down. ----End 8.5 Set Pseudocolor Figure 8-6 shows the Set Pseudocolor interface Set pseudocolor interface Click in the lower left corner of Sensor Setting, and choose set pseudo color Choose polarity/LUT mode from drop-list.
Thermal Imaging Integrated Network Camera Parameter Setting User Manual Enable or disable the temperature strip switch Click Save, the message "Save succeed" is displayed, the system saves the settings. NOTE The temperatures of the temperature fields detected by the thermal imaging camera are separately mapped to values ranging from 0 to 255 by the algorithm.
Page 89
Thermal Imaging Integrated Network Camera User Manual Parameter Setting FFC control interface Table 8-2 lists the parameters on the FFC control interface. Parameters on the FFC control interface Parameter Description Setting The internal of the thermal imaging camera may comprise the mechanical action correction mechanism that can periodically improve the [How to set]...
Page 90
Thermal Imaging Integrated Network Camera Parameter Setting User Manual Parameter Description Setting frame image is displayed. After the FFC is complete, the image is automatically recovered. Repeated FFC operations can prevent the grainy and image degradation problems. The FFC is especially important when the temperature of the camera changes.
Thermal Imaging Integrated Network Camera Parameter Setting User Manual Parameter Description Setting noise. Select from the drop-down list box. [Default value] Close [How to set] Select from the drop-down list box. Decrease the image 3DNR noise. [Default value] Close ----End 8.8 Lens Control NOTE The lens control is only used for motor lens.
Page 93
Thermal Imaging Integrated Network Camera User Manual Parameter Setting Click “Lens initialization” to initialize the lens. Click Save, the message "Save succeed" pops up, the system saves the settings. ----End Issue V1.2(2022-05-28)...
Thermal Imaging Integrated Network Camera A Troubleshooting User Manual Troubleshooting Common Possible Cause Solution Trouble Unable to Network is not Connect the network cable of the camera to ⚫ access the connected. the PC to check whether the network cable is in good contact.
Page 95
Thermal Imaging Integrated Network Camera A Troubleshooting User Manual Common Possible Cause Solution Trouble An error The data in the Delete the cache of the Internet Explorer. The occurs in cache of browser is steps are as follows (taking IE9 as an example): accessing not updated in time.
Thermal Imaging Integrated Network Camera B Common Emission Rate User Manual Common Emission Rate The emission rate is the capability of an object to emit or absorb energy. An ideal transmitter provides an emission rate of emitting 100% of intake energy. An object with an emission rate of 0.8 can absorb 80% of intake energy, and reflect the remaining 20%.
Page 97
Thermal Imaging Integrated Network Camera B Common Emission Rate User Manual Cobalt 599/111 0.19 199/390 0.52 Steel 599/1110 0.57 Tinned iron sheet (Light) 28/82 0.23 Brass (High-polish) 247/476 0.03 Brass (Tough rolled, polished 21/70 0.04 metal wire) Tinned Iron (Light) 0.13 Iron plate (Rust eaten) 20/68...
Page 98
Thermal Imaging Integrated Network Camera B Common Emission Rate User Manual Concrete 0.94 Glass (Glossy) 22/72 0.94 Granite (Surfaced) 21/70 0.85 0/32 0.97 Marble (I Polished, grey) 22/72 0.93 Asbestos board 23/74 0.96 38/100 0.93 Asbestos paper 371/700 0.95 Asphalt (Paving the road) 4/39 0.97 Paper (Black tar)
