Sunell SN-TPC4201AT/F (III) User Manual

Thermal imaging box network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

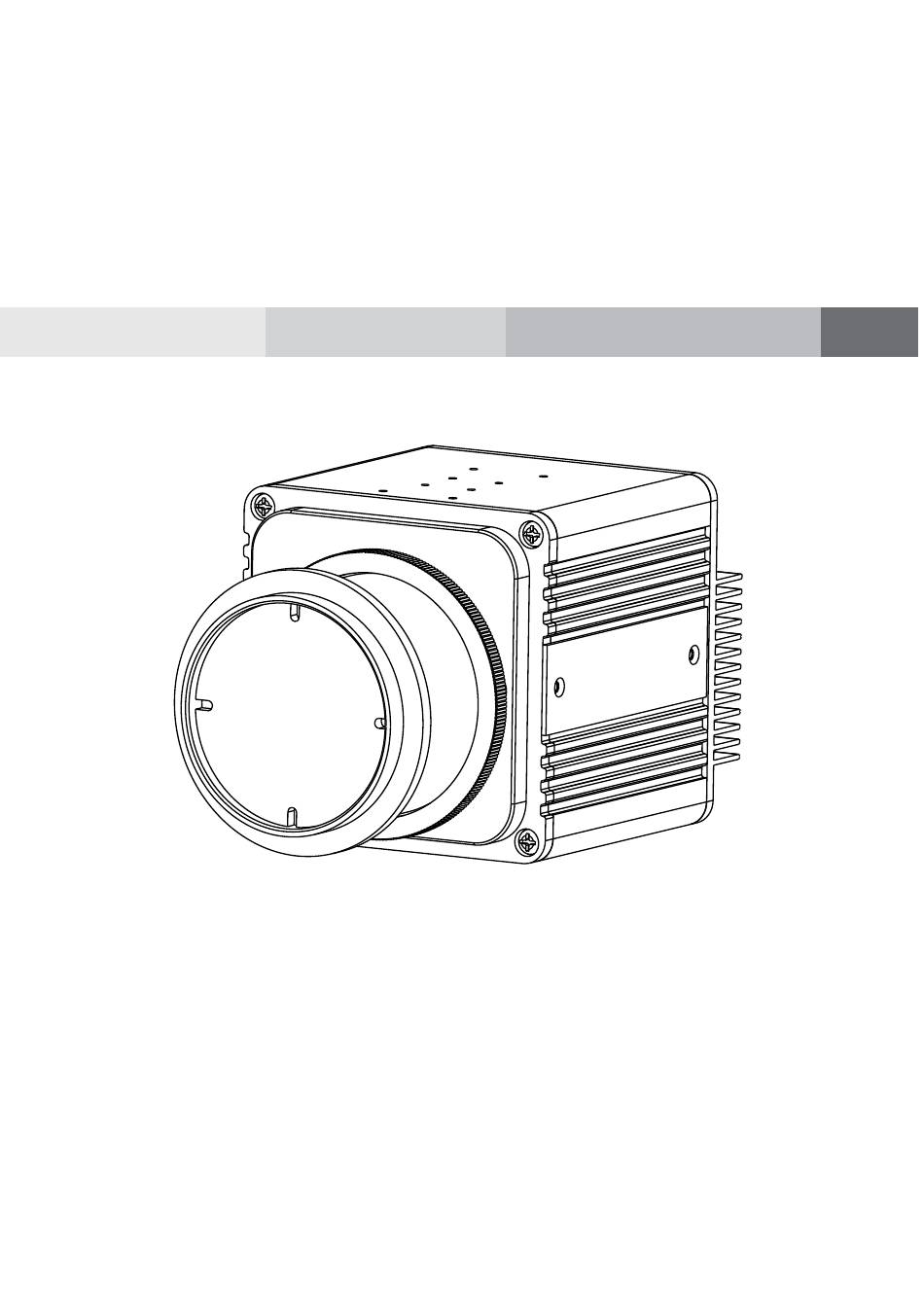

Thermal Imaging Box Network Camera
User Manual
Issue
V1.0
Date
2019-01-08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SN-TPC4201AT/F (III) and is the answer not in the manual?

Questions and answers

Related Manuals for Sunell SN-TPC4201AT/F (III)

Summary of Contents for Sunell SN-TPC4201AT/F (III)

  • Page 1 Thermal Imaging Box Network Camera User Manual Issue V1.0 Date 2019-01-08...
  • Page 3 Thermal Imaging Box Network Camera User Manual Precautions Precautions Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance" in an eye- catching place.
  • Page 4 Thermal Imaging Box Network Camera Precautions User Manual  Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged.  Use accessories delivered with this device.

  • Page 5: Special Announcement

    Thermal Imaging Box Network Camera User Manual Precautions  Use a soft and dry cloth to clean the device body. In case that the dirt is hard to remove, use a dry cloth dipped in a small amount of mild detergent and gently wipe the device, and then dry it again.

  • Page 6: Table Of Contents

    Thermal Imaging Box Network Camera Contents User Manual Contents 1 Product Overview ....................1 1.1 Thermal Imaging Principles and Advantages ..............1 1.2 Device Structure ......................1 1.3 Cable Connection ......................2 1.4 Functions and Features ....................4 2 Device Dimensions ....................5 3 Installation ........................
  • Page 7 Thermal Imaging Box Network Camera User Manual Contents 6.7 Noise Reduction ......................34 6.8 Enhance Image ......................35 7 Technical Specifications ..................36 A Troubleshooting....................41 B Common Emission Rate ..................43 Issue V1.0 (2019-01-08）...

  • Page 9: Product Overview

    Thermal Imaging Box Network Camera Product Overview User Manual Product Overview 1.1 Thermal Imaging Principles and Advantages For any object, as long as its temperature is above the absolute zero (-273.15°C), although the object does not give out light, it can radiate infrared. The infrared is also known as thermal radiation.

  • Page 10: Cable Connection

    Thermal Imaging Box Network Camera Product Overview User Manual Figure 1-1 Appearance and interfaces of device Table 1-1 Interfaces Physical Interface Connection Power indicator Indicates the power status Connector Connector of multi-connector combination cable Reset button The configuration resumes to the factory settings (RESET) after you press the reset button for 3s.
  • Page 11 Thermal Imaging Box Network Camera Product Overview User Manual Figure 1-2 Multi-connector combination cable Table 1-2 Multi-connector combination cable Functions Connection Alarm out Connects to the external alarm out device, such as alarm light. Alarm in Inputs the alarm signal, such as doorbell. Audio input Inputs the audio signal and receives the analog audio signals from the sound pick-up device.

  • Page 12: Functions And Features

    Thermal Imaging Box Network Camera Product Overview User Manual Functions Connection Analog video interface Sends analog video signals. User can connect the camera to a TV monitor through this port to view analog videos. RS 485/12 V Connects to the external pan & tilt/ Connects to a fan.

  • Page 13: Device Dimensions

    Thermal Imaging Box Network Camera Device Dimensions User Manual Device Dimensions Figure 2-1 shows the dimensions of the thermal imaging box network camera. Figure 2-1 Dimensions of 25 mm prime lens (unit: mm) Issue V1.0 (2019-01-08）...

  • Page 14: Installation

    Thermal Imaging Box Network Camera Installation User Manual Installation 3.1 Preparations User need the tools and accessories shown in Table 3-1 during the installation (you need to prepare the tools by yourself, and the accessories are in the package of the camera).
  • Page 15 Thermal Imaging Box Network Camera Installation User Manual Figure 3-1 Fix the installation block Installation block Step 2 Fix the installation block and mounting bracket, as shown in Figure 3-2. Figure 3-2 Fixing installation block and mounting bracket Step 3 Fix the mounting bracket on the wall, as shown in Figure 3-3.
  • Page 16 Thermal Imaging Box Network Camera Installation User Manual Figure 3-3 Fix the mounting bracket Step 4 Focusing. (1) Focusing with focusing fixture Grasp the handle portion of the fixture, and focus along the direction of arrows, as shown in Figure 3-4. Issue V1.0(2019-01-08)
  • Page 17 Thermal Imaging Box Network Camera Installation User Manual Figure 3-4 Focusing with focusing fixture (2) Focusing with focusing screw Insert the focusing screw into the screw hole and focus along the direction of arrows as shown in Figure 3-5. Figure 3-5 Focusing with focusing screw ----End Issue V1.0 (2019-01-08）...

  • Page 18: Quick Configuration

    Thermal Imaging Box Network Camera Quick Configuration User Manual Quick Configuration 4.1 Login and Logout You must use Internet Explorer 8 or a later version to access the web management system; otherwise, some functions may be unavailable. Login system Step 1 Open the Internet Explorer, enter the IP address of IP camera (default value: 192.168.0.121) in the address box, and press Enter.

  • Page 19: Main

    Thermal Imaging Box Network Camera Quick Configuration User Manual ----End logout To logout of system, click in the upper right corner of the main page, the login page is display after you log out of the system. 4.2 Main Page layout On the main page, you can view real-time video, set parameter, Video parameter, Video control, and logout of the system.

  • Page 20: Change The Password

    Thermal Imaging Box Network Camera Quick Configuration User Manual Element Description Playback You can query the playback videos in this area. NOTE Only when the SD card or NAS have videos that user can query the playback videos. Device You can choose a menu to set device parameters, configuration including the device information, audio and video streams, alarm setting, and privacy mask function.

  • Page 21: Browse Video

    Thermal Imaging Box Network Camera Quick Configuration User Manual Procedure Step 1 Click in the upper right corner of the main page. The Change Password dialog box is displayed, as shown in Figure 4-3. Figure 4-3 Modify Password dialog box The change password page will be displayed if you don’t change the default password when you login the system for the first time.
  • Page 22 Thermal Imaging Box Network Camera Quick Configuration User Manual Preparation To ensure the real-time video can be play properly, you must perform the following operation when you login to the web for the first time: Step 1 Open the Internet Explorer. Choose Tools > Internet options > Security > Trusted sites >...

  • Page 23: Install Plugins

    Thermal Imaging Box Network Camera Quick Configuration User Manual Figure 4-5 Configuring ActiveX control and plug-ins Step 3 Download and install the player control as prompted. The login page is display when the control is loaded. 4.4.1 Install Plugins You will be prompted with a message “Download and install the new plugin” will show as in Figure 4-6, when you login to the web management system for the first time.

  • Page 24: Setting Local Network Parameters

    Thermal Imaging Box Network Camera Quick Configuration User Manual 4.5 Setting Local Network Parameters Description Local network parameters include:  IP protocol  IP address  Subnet mask  Default gateway  Dynamic Host Configuration Protocol (DHCP)  Preferred Domain Name System (DNS) server ...
  • Page 25 Thermal Imaging Box Network Camera Quick Configuration User Manual Table 4-2 Local network parameters Parameter Description Setting IP Protocol IPv 4 is the IP protocol that uses [Setting method] an address length of 32 bits. Select a value from the IPv 6 is the IP protocol that uses drop-down list box.
  • Page 26 Thermal Imaging Box Network Camera Quick Configuration User Manual Parameter Description Setting Set the maximum value of [Setting method] network transmission data Enter a value manually. packets. NOTE The MTU value is range from 800 to 1500, the default value is 1500, Please do not change it arbitrarily.

  • Page 27: Thermal Setting

    Thermal Imaging Box Network Camera Thermal Setting User Manual Thermal Setting 5.1 Temperature Parameters Temperature parameters include temperature unit, ambient type, ambient temperature, cavity temperature, correctional coefficient, area temperature display mode, area temperature type, measure mode, and area alarm interval. Operation Procedure Step 1 Choose Configuration >Thermal >Temperature Parameters.
  • Page 28 Thermal Imaging Box Network Camera Thermal Setting User Manual Table 5-1 Temperature parameters Parameter Description Setting Temperature Unit Celsius and Fahrenheit [Setting method] temperature units are available. Select a value from the drop-down list box. [Default value] Celsius Ambient Type The ambient of camera.

  • Page 29: Temperature Area

    Thermal Imaging Box Network Camera Thermal Setting User Manual Parameter Description Setting Measure Mode There are two types measure [Setting method] modes. Select a value from the drop-down list box. [Default value] General Display Alarm [Setting method] Area Enable or disable [Default value] disable Area Alarm...
  • Page 30 Thermal Imaging Box Network Camera Thermal Setting User Manual Figure 5-2 Temperature area and alarm configuration Step 2 Set the parameters according to Table 5-2. Table 5-2 Temperature area and alarm configuration Parameter Description Setting Channel [Setting method] Select a value from the drop-down list box.
  • Page 31 Thermal Imaging Box Network Camera Thermal Setting User Manual Parameter Description Setting Type Type of temperature area. [Setting method] ID 0 is default rectangle area, Select a value from the which is full screen. drop-down list box. [Default value] Rectangle/Point Alarm Type Threshold alarm and [Setting method]...
  • Page 32 Thermal Imaging Box Network Camera Thermal Setting User Manual Step 3 area. temperature Step 1. Tick an area ID. Step 2. Press and hold the left mouse button, and drag in the video area to draw a temperature area, as shown in Figure 5-3. Right-click to finish the area selected. Figure 5-3 Temperature Area Setting Interface Step 3.

  • Page 33: Schedule Linkage

    Thermal Imaging Box Network Camera Thermal Setting User Manual Step 4 Click Apply. The message "Apply success" is displayed, the system saves the settings. ----End 5.3 Schedule Linkage Operation Procedure Step 1 Choose Configuration >Thermal > Schedule Linkage. The Schedule Linkage page is displayed, as shown in Figure 5-4。There are two channels alarm output.

  • Page 34: Bad Point Check

    Thermal Imaging Box Network Camera Thermal Setting User Manual Deleting alarm time: Click again or inverse selection to delete the selected alarm time. Step 4 Click Apply. The message "Apply success" is displayed, the system saves the settings. Step 5 There are four types schedule linkage to set, like threshold alarm, threshold warning, temperature difference alarm and temperature difference warming.

  • Page 35: Version Information

    Thermal Imaging Box Network Camera Thermal Setting User Manual Figure 5-6 Recover bad point Step 3 Click Apply. The message "Apply success" is displayed, the system saves the settings. ----End 5.5 Version Information Choose Configuration >Thermal > Version Information. User can view the version information as shown in Figure 5-7.

  • Page 36: Parameter Setting

    Thermal Imaging Box Network Camera Parameter Setting User Manual Parameter Setting 6.1 Sensor Setting Interface Operation Procedure Step 1 On the Internet Explorer interface or the client software interface, select and right-click the surveillance image to the set, as shown in Figure 6-1. Figure 6-1 Sensor Setting Table 6-1 Right-click setting parameters Parameter...

  • Page 37: Time Segment

    Thermal Imaging Box Network Camera Parameter Setting User Manual Step 2 Choose Sensor. The Sensor Configuration dialog box is displayed, as shown in Figure 6-2. ----End 6.2 Time Segment Figure 6-2 shows the time segment interface. Figure 6-2 Time segment interface Operation Procedure Step 1 Click...

  • Page 38: Scene

    Thermal Imaging Box Network Camera Parameter Setting User Manual Figure 6-3 Image interface Table 6-2 lists the image setting parameters. Table 6-2 Image setting parameters Parameter Description Setting Brightness It indicates the total brightness of an image. As [Setting the value increases, the image becomes brighter. method] Drag the slider.

  • Page 39: Set Pseudocolor

    Thermal Imaging Box Network Camera Parameter Setting User Manual Figure 6-4 Scene interface Provide the selection of image pixel locations. Normal: the image is not flipped. Horizontal: the image is flipped left and right. Vertical: the image is flipped up and down. Horizontal + Vertical: the image upside-down and reversal.

  • Page 40: Ffc Control

    Thermal Imaging Box Network Camera Parameter Setting User Manual The temperature field of the scene is converted to images by using the grayscale ranging from 0 to 255. Different polarity modes can be converted to different display images. The most common setting is white hot (a hotter object is displayed brighter than a colder object) or black hot (a hotter object is displayed darker than a colder object).
  • Page 41 Thermal Imaging Box Network Camera Parameter Setting User Manual Parameter Description Setting [Default value] FFC shields the sensor array, so that each portion of the sensor can collect uniform temperature Auto fields (flat field). By means of FFC, the camera can update the correction coefficients to output more uniform images.

  • Page 42: Noise Reduction

    Thermal Imaging Box Network Camera Parameter Setting User Manual Parameter Description Setting Adjust Click the icon and cover the camera with Background something to adjust image. Remove the thing to Adjust finish adjustment. ----End 6.7 Noise Reduction Figure 6-7 shows the Noise reduction interface. Figure 6-7 Noise reduction interface Table 6-4 lists the Noise reduction parameters.

  • Page 43: Enhance Image

    Thermal Imaging Box Network Camera Parameter Setting User Manual Parameter Description Setting Auto ----End 6.8 Enhance Image Figure 6-8 shows the Enhance Image interface. Figure 6-8 Enhance image interface Tick defog, and drag the slider to adjust. The default value is 50. ----End Issue V1.0 (2019-01-08）...

  • Page 44: Technical Specifications

    Thermal Imaging Box Network Camera Technical Specifications User Manual Technical Specifications Table 7-1 lists the specifications of the thermal imaging box camera. Table 7-1 Technical specifications Type Parameter Description Detector type Uncooled infrared focal plane sensor Sensing mode Micro bolometer Pixel 400x300 Detector...
  • Page 45 Thermal Imaging Box Network Camera Technical Specifications User Manual Type Parameter Description Black hot / white hot / rainbow / iron Polarity LUT bow (up to 17define optional) Auto/manual 2D/3D Imaging Contrast Support features Horizontal, Vertical, Horizontal + Mirror Vertical Outdoor, Indoor, Sky/Earth, Sea/Sky, Screen interface mode Linear, Common, Custom...
  • Page 46 Thermal Imaging Box Network Camera Technical Specifications User Manual Type Parameter Description temperature, etc.） Multiple temperature area Support. Temperature response Less than 30 millisecond time Effective range of working -20℃～+60℃ temperature Temperature range -40℃～+150℃ If the object’s temperature is more than 5℃，it will be shown absolute temperature.
  • Page 47 Thermal Imaging Box Network Camera Technical Specifications User Manual Type Parameter Description Support the international standard Integration Onvif and the third-party protocol. Maximum user access Simultaneous access of 10 users to amount the maximum. Network interface RJ-45 and 10/100Base-T 1-channel audio input and 1-channel Audio interface audio output, supporting bidirectional voice talkback.
  • Page 48 Thermal Imaging Box Network Camera Technical Specifications User Manual Type Parameter Description Two class, administrator and general user authority users. The administrator can assign various permissions to general users Support SDK development Linux C /windows C & C++ SDK Support 6 languages, English, Language Chinese, Spanish, Portuguese, Polish, Italian...

  • Page 49: A Troubleshooting

    Thermal Imaging Box Network Camera A Troubleshooting User Manual Troubleshooting Common Possible Cause Solution Trouble  Unable to Network is not Connect the network cable of the camera to access the connected. the PC to check whether the network cable is in good contact.
  • Page 50 Thermal Imaging Box Network Camera A Troubleshooting User Manual Common Possible Cause Solution Trouble An error The data in the Delete the cache of the Internet Explorer. The occurs in cache of browser is steps are as follows (taking IE9 as an example): not updated in time.

  • Page 51: B Common Emission Rate

    Thermal Imaging Box Network Camera B Common Emission Rate User Manual Common Emission Rate Emission Rate The emission rate is the capability of an object to emit or absorb energy. An ideal transmitter provides an emission rate of emitting 100% of intake energy. An object with an emission rate of 0.8 can absorb 80% of intake energy, and reflect the remaining 20%.
  • Page 52 Thermal Imaging Box Network Camera B Common Emission Rate User Manual Lead (99.9% purity, No 127/260 0.06 oxidized) Copper 0.18 Cobalt 599/111 0.19 199/390 0.52 Steel 599/1110 0.57 Tinned iron sheet (Light) 28/82 0.23 Brass(High-polish) 247/476 0.03 Brass (Tough rolled, polished 21/70 0.04 metal wire)
  • Page 53 Thermal Imaging Box Network Camera B Common Emission Rate User Manual Brick (Red, rough) 21/70 0.93 Brick (Unglazed, rough) 1000/1832 Carbon (T - carbon 0.9% ash) 127/260 0.81 Concrete 0.94 Glass (Glossy) 22/72 0.94 Granite (Surfaced) 21/70 0.85 0/32 0.97 Marble (I Polished, grey) 22/72 0.93...
