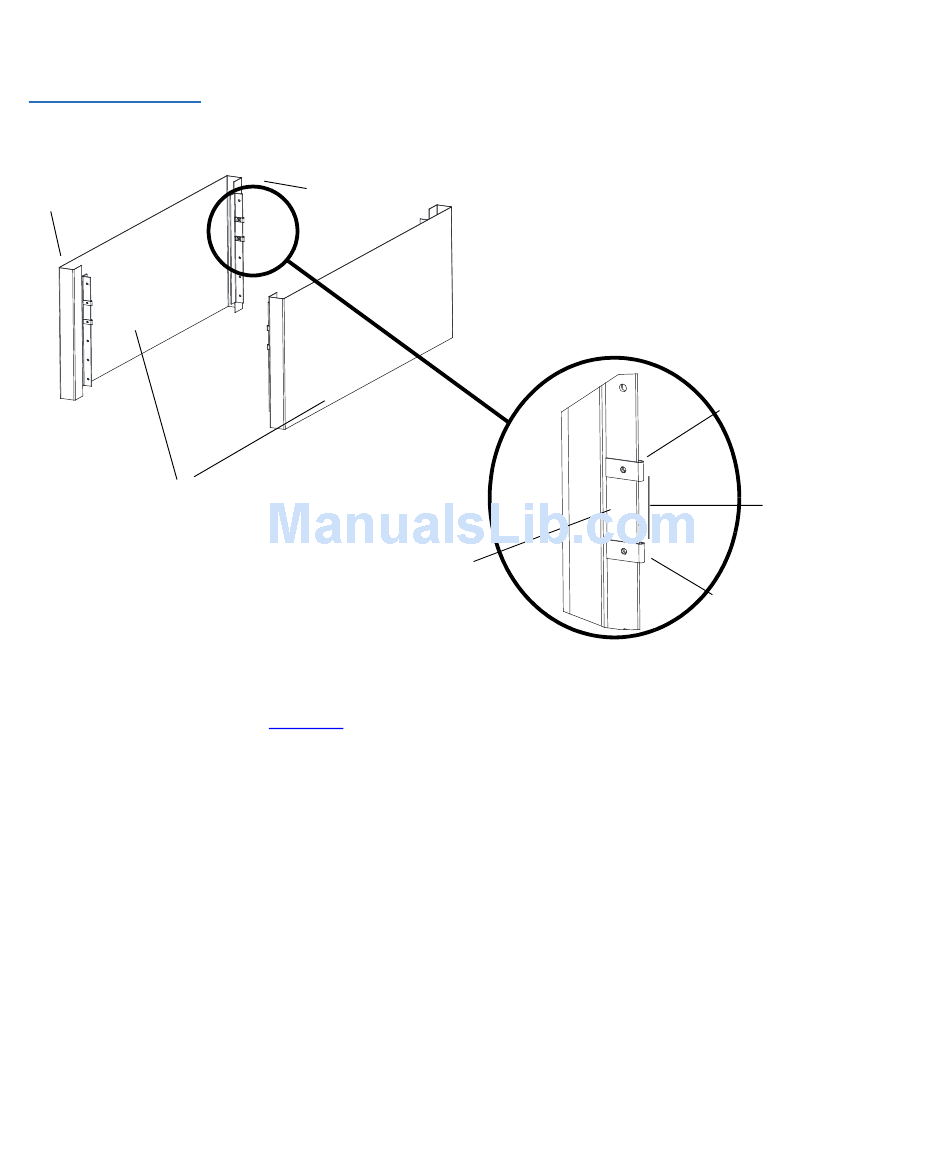

Figure 12 Installing Two Clip Nuts - Freecom SUPERLOADER3 LTO2-HH Manual

Chapter 7 Customer Replaceable Units (CRUs)
Rack Mounting the Autoloader
Figure 12 Installing
Two Clip Nuts
Rail
Outer covers
of the rack
90
Rail
3 Select the long or short autoloader brackets (depending on the depth
of the rack), and then attach them to the rear of the autoloader (see
figure 13).
SuperLoader 3 Autoloader User's Guide
Rail
Clip nut
1.75 in
(44.45 mm)
Clip nut
