FiberTwist
XGS2120B
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FiberTwist XGS2120B and is the answer not in the manual?

Questions and answers

Summary of Contents for Genexis FiberTwist XGS2120B

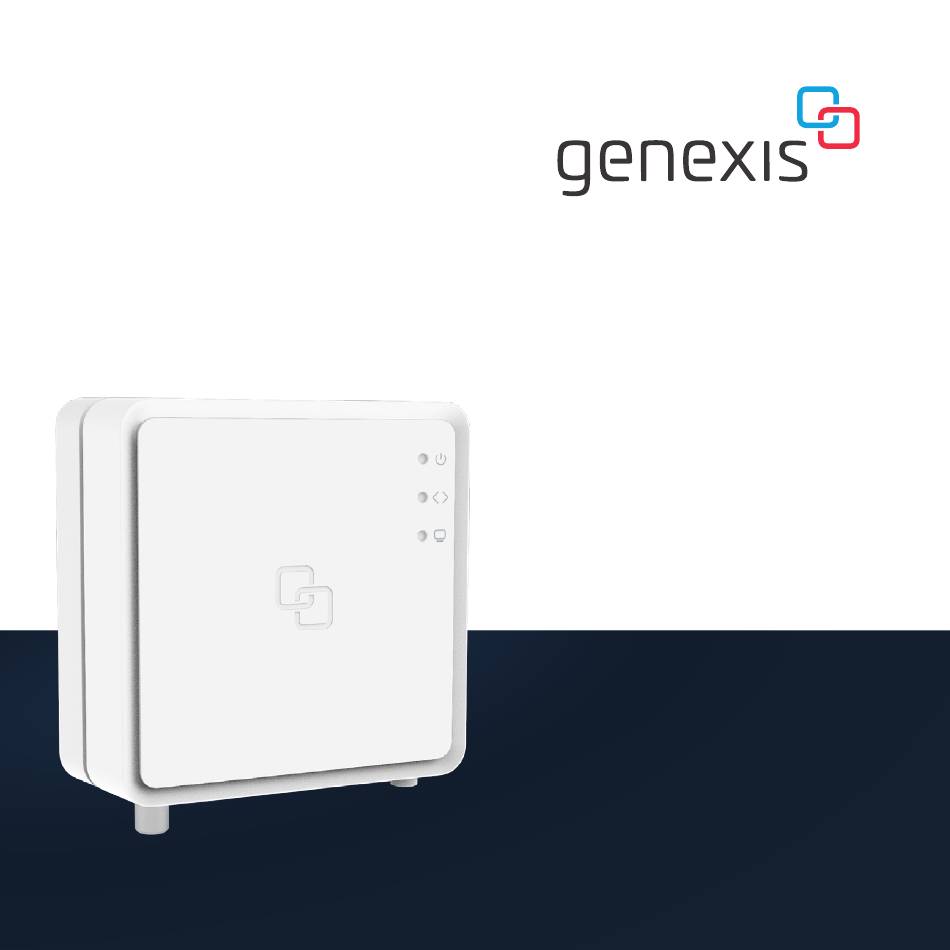

  • Page 1 FiberTwist XGS2120B Installation Guide...
  • Page 2: Button Overview

    Button overview Unlock button Remove FiberTwist or Blind Cover – press and hold while twisting counterclockwise Reset button (recessed) Reset - press and release Factory reset - press and hold the button until EN PLEASE READ THIS PRODUCT GUIDE AND SAFETY INSTRUCTIONS BEFORE System and Uplink LED start to blink INSTALLING OR USE OF THE PRODUCT.
  • Page 3: Port Overview

    Port overview LED overview Power port System Green – system ok ON/OFF TV port LAN port Green (blinking) – booting button Red - system or boot failure Red (blinking) - insufficient PON signal Off – power off Uplink Green – link ok Green (blinking) –...
  • Page 4 Remove Blind Cover (if present) 1. Press and hold the unlock button (see button overview). Box contents 2. Rotate the Blind Cover counterclockwise till it blocks. • Genexis FiberTwist (active Important: 3. Remove the Blind Cover from the baseplate (FTU) by pulling device) EN Instructions need it towards yourself.
  • Page 5 Remove dust cap Twist! 1. Take the FiberTwist out of the box. 1. Place the FiberTwist on the FTU as shown in the picture below, 2. The dust cap is connected to the red string in a 30–degree angle. located on the rear of the FiberTwist. 2.
  • Page 6 Connecting the FiberTwist Warning: 1. If required, connect your television / set-top box to the TV port with a EN Do not cover the device, this will interfere with the ventilation. coax cable. Ambient Operating Temperature: 32°F ~ 104°F 2. Connect your gateway to the LAN (10GE) port via an RJ45 network FR Ne couvrez pas l’appareil, cela entravera la ventilation.
  • Page 7: Safety Guidelines

    Safety guidelines can expose you to electrical shock. Genexis recommends that only a trained technician services components inside these compartments. Use the following safety guidelines to ensure your own personal safety and to • Do not install or use the product during a lightning- or thunderstorm. There is a help protect your product from potential damage.
  • Page 8: Directives De Sécurité

    à votre produit, qui pourraient ne pas être couverts par la outlet and contact your service provider. Any liquid could have damaged interior garantie Genexis. components causing a shortcut in the product. • Do not use liquid, aerosol cleaners or any harsh chemicals to clean the product.
  • Page 9 • Ne pas ouvrir ou tenter d’ouvrir le produit. L’ouverture ou le retrait des couvercles › Le câble réseau est endommagé. peut vous exposer à un choc électrique. Genexis recommande qu’un technicien › Un objet est tombé sur le produit.
  • Page 10: Supplier's Declaration Of Conformity

    Supplier’s Declaration of Conformity 47 CF $ 2.1077 Compliance Information Responsible Party – U.S. Contact Information Genexis Broadband, LLC, 228 E 45th St, Ste 9E, New York, NY 10017 Info.na@genexis-broadband.com FCC Compliance Statement The FiberTwist-XGS2120B-US-1 has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 11 Revision 1.0 - December 2024 - Copyright © 2024 Genexis Netherlands B.V. All rights reserved. Multiple languages of this document and additional product information are available on https://genexis.eu/product/fibertwist-xgs2120b/#downloads Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves the...
