Summary of Contents for Genexis FiberTwist XGS2414

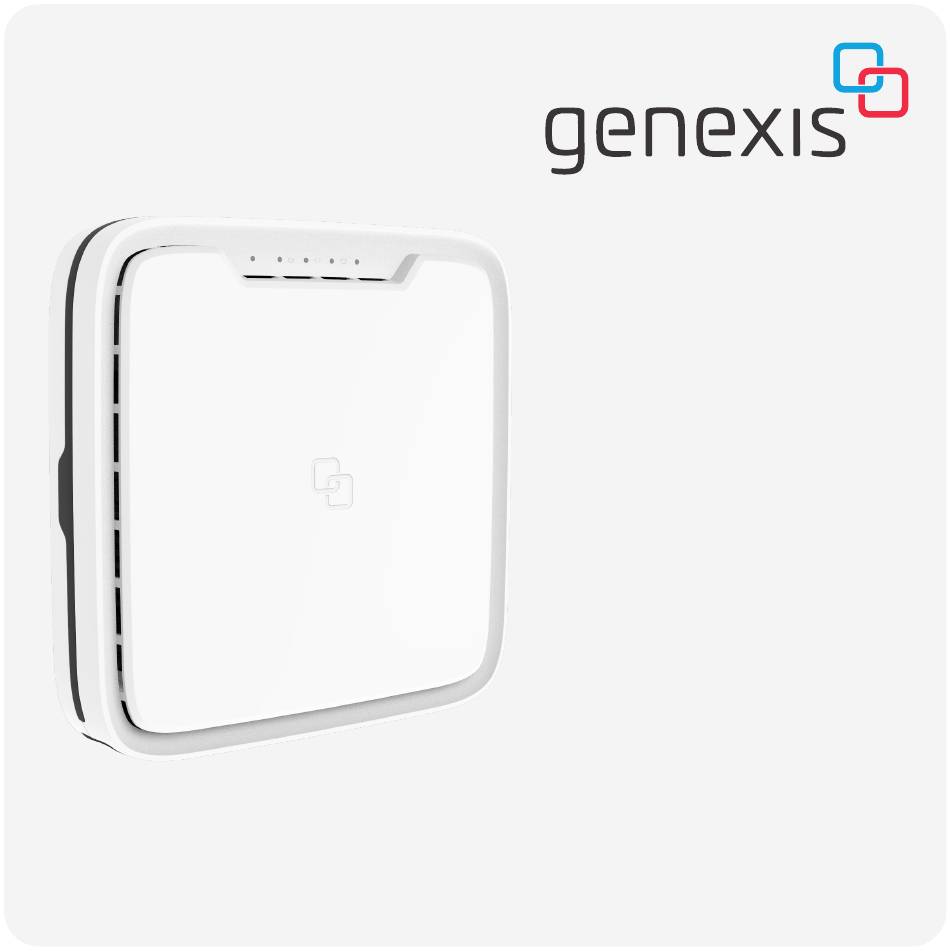

- Page 1 XGS2414 FiberTwist Series Installation Guide...
- Page 2 LED overview Power Green – system ok Green (blinking) – booting / firmware download – power off Uplink Green – link ok Green (blinking) – link establishing – no link Telephone Green – voice service registered and ok Green (blinking) –...
- Page 3 ON/OFF switch Reset Power port LAN ports TEL port button Unlock button Remove FiberTwist XGS2414 – press and hold while twisting counterclockwise LED dim button Dim LEDs – press and release repeatedly to dim LEDs Reset button (recessed) ON/OFF switch Reboot –...
- Page 4 Installation guide Remove Blind Cover or active device (if present) FiberTwist XGS2414 is installed on an FTU/Bracket 1. Press and hold the unlock button (on the right side of the Blind Cover or active device). Various translations of this document (if available) and additional product information can be 2.
- Page 5 1. Place the FiberTwist XGS2414 on the FTU/Bracket as shown in the picture below. 2. The dust cap is connected to the red string located on the rear of the FiberTwist XGS2414. 2. Rotate clockwise until it clicks into place.
- Page 6 1. If required, connect your telephone to the phone port via an RJ11 network cable. Hereby, Genexis Netherlands B. V . declares that the radio equipment type FiberTwist XGS2414 is 2. If required, connect your personal devices to the LAN ports via an RJ45 network cable.
- Page 7 Revision 1.0 - November 2021 - Copyright © 2021 Genexis Netherlands B. V . All rights reserved. Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
