AFi FR-BRC-ST Assembly Instructions Manual

please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
PARTS LIST
1 LEFT LEG
2 RIGHT LEG
3 TOP/BOTTOM RAIL
4 FB PANEL
5 SIDE RAIL
6 SLAT KIT
7 SUPPORT RAIL
8 SUPPORT LEG
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.

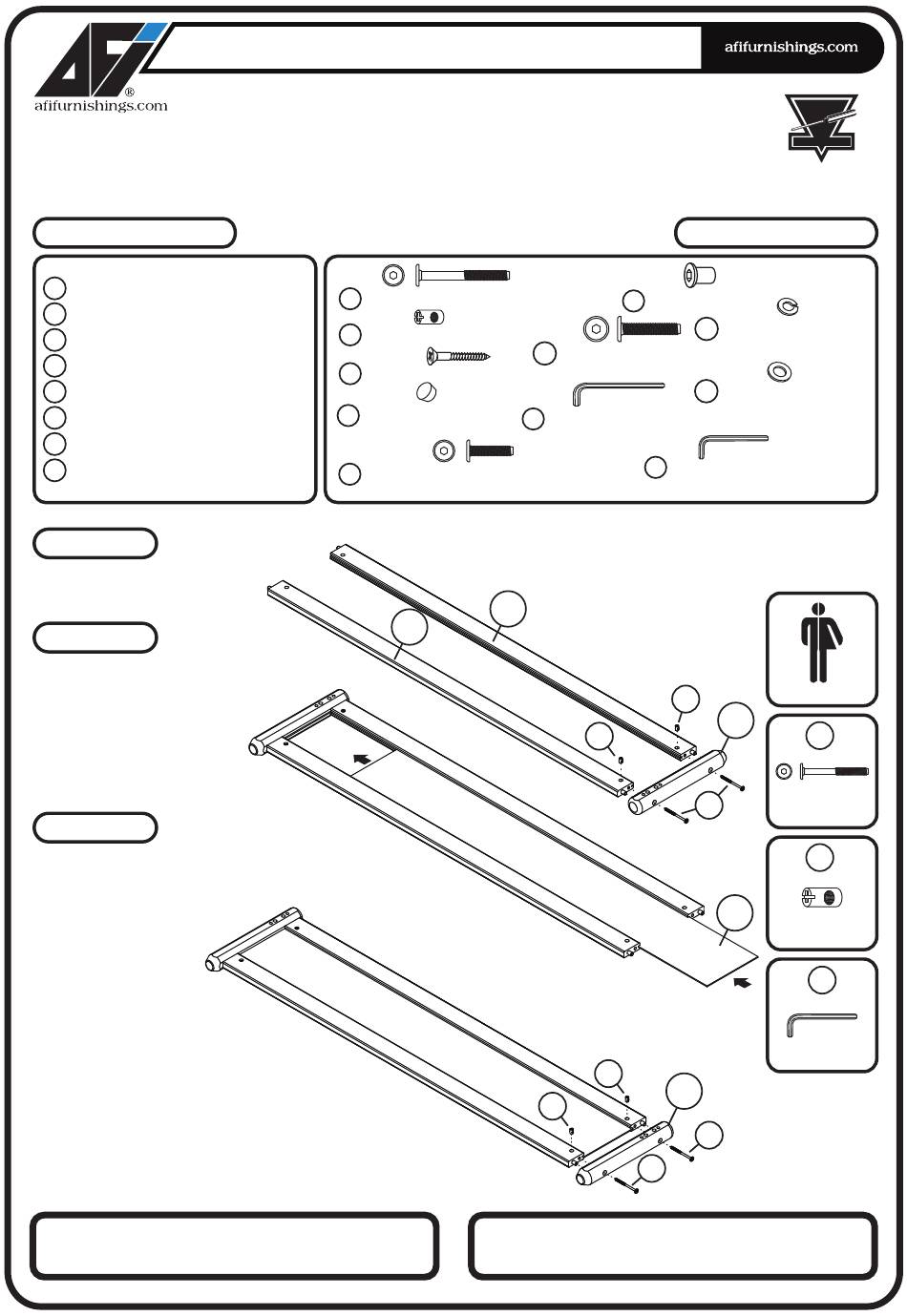

Attach right leg (2) to top/bottom rail (3), using JCB (A) and barrel nut (B). Tighten with the
Step 1
Allen wrench M4(K).
Step 2
Guide the FB panel (4) in carefully so that
it won't jump out of its grooves.
Be sure it fits fully into its groove
at the leg before fitting the
left leg (1).
Step 3
Attach left leg (1) to the footboard assemblies
as shown bellow. Using JCB (A) and barrel nut (B).
Tighten with allen wrench M4(K).
Repeat the other.
PO:
2FB PANEL BED FRAME
ASSEMBLY INSTRUCTIONS
Before assembling your bed frame, please read through these
instructions carefully and familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
2 PCS
A
JCB M6 X 80mm (3 1/8") - 16 pcs
2 PCS
B
Barrel nut - 16 pcs
4 PCS
2 PCS
C
Wood screw(1 1/4") - 12 pcs
2 PCS
D
Wood button - 16 pcs
2 SET
2 PCS
4 PCS
E
JCB M6 X 30mm (1 1/4") - 6 pcs
QUEEN, KING
Spare - 1 pc
G
Spare - 1 pc
J
Allen wrench M5 - 1pc
Spare - 1 pc
Spare - 1 pc
3
3
B
FR-BRC-ST
HARDWARE
F
Cap nut - 6 pcs
H
Split washer - 4 pcs
JCB M8 X 40mm - 4 pcs
I
Flat washer - 4 pcs
K
Allen wrench M4 - 1pc
B
B
A
B
1
A
A
CODE ITEM
R-20134X
READY
TO
ASSEMBLE
Spare - 1 pc
Spare - 1 pc
Spare - 1pc
Adult assembly
2
A
JCB M6 X 80mm
B
4
Barrel nut
K
Allen wrench M4
R-20135X
