- Page 1 BLUE CANNON 46700108 INSTALLATION, USE AND MAINTENANCE...
-
Page 2: Table Of Contents
LEGEND OF SYMBOLS LEGEND OF SYMBOLS • = Generic danger = Warning CONTENTS Risks and protections ....................................3 Product description ....................................... 3 Intended use ........................................3 Precautions ........................................3 Package content ......................................4 Installation ........................................4 Size (mm) and positioning ..................................4 Wiring connections ....................................... -
Page 3: Risks And Protections
INTRODUCTION • MANUAL USE MODES The section of this manual dedicated to the installation contains information for installers. For this reason we have used technical terms without providing explanations which would be necessary for end users only. THE INSTALLATION MUST BE CARRIED OUT BY AUTHORIZED AND SKILLED PERSONNEL ONLY. ARAG IS NOT RESPONSIBLE FOR ANY OPERATION SPECIFIED IN THIS MANUAL CARRIED OUT BY UNAUTHORIZED OR UNSKILLED PERSONNEL. -
Page 4: Package Content

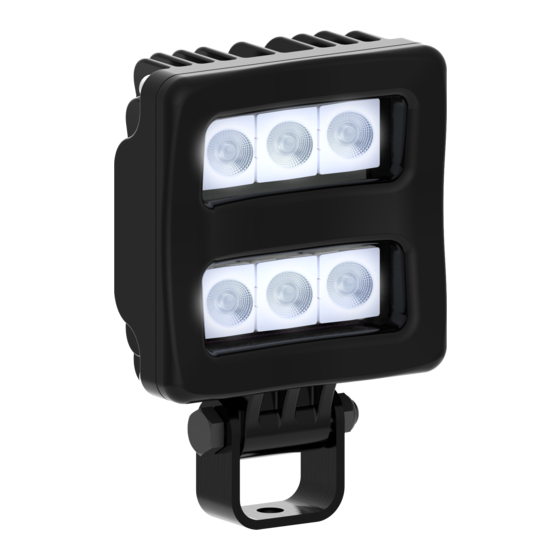

INSTALLATION PACKAGE CONTENT Blue Cannon complete with adjustable bracket. To be ordered separately: • power cable • fixing components: bolt, washer, nut (M8). Fig. 1 INSTALLATION Size (mm) and positioning 68 mm 102 mm 48 mm Fig. 3 Fig. 2 The fixing bracket is pre-assembled to the body of the spotlight: fix the device by means of an M8 bolt, an M8 toothed washer and an M8 self- locking nut, if required. -
Page 5: Wiring Connections
INSTALLATION WIRING CONNECTIONS • Use original ARAG harnesses only. • Take care not to break, pull, tear or cut the cables. • Use of unsuitable cables not provided by ARAG automatically voids the warranty. • ARAG is not liable for any damage to the equipment, persons or animals caused by failure to observe the above instructions. General precautions for a correct harness position •... -
Page 6: Use
Turn on the spotlight when the light conditions do not allow a proper view of the liquid cone produced by the nozzles. Always turn off the spotlight during the daytime or when it is not useful for increasing vision. MAINTENANCE / DIAGNOSTICS / REPAIRS •... -
Page 7: Technical Data
TECHNICAL DATA TECHNICAL DATA 10.1 Electrical features Supply voltage ............... 9÷36 Vdc For use on 24-Vdc powered vehicles: protect the system from load dump pulse ISO 16750-2:2012 with clamp at max. 58 V. Maximum absorption at 12 Vdc ..........1.5 A Maximum absorption at 24 Vdc .......... -
Page 8: End-Of-Life Disposal
END - OF - LIFE DISPOSAL INFORMATION TO USERS OF PROFESSIONAL EQUIPMENT Pursuant to Art. 24 of Italian Legislative Decree of March 14, 2014, no. 49 “Implementation of Directive 2012/19/EU on waste electrical and electronic equipment (WEEE).” The crossed-out wheeled bin symbol on the equipment or on its packaging indicates that the product must be collected separately from other waste to allow proper treatment and recycling at the end of its useful life. - Page 10 Only use genuine ARAG accessories or spare parts to make sure manufacturer guaranteed safety conditions are maintained in time. Always refer to the Internet address www.aragnet.com 42048 RUBIERA (Reggio Emilia) - ITALY Via Palladio, 5/A Tel. +39 0522 622011 Fax +39 0522 628944 http://www.aragnet.com info@aragnet.com...
