American Standard AquaWash 8033A65G.020 Manual

Names of parts

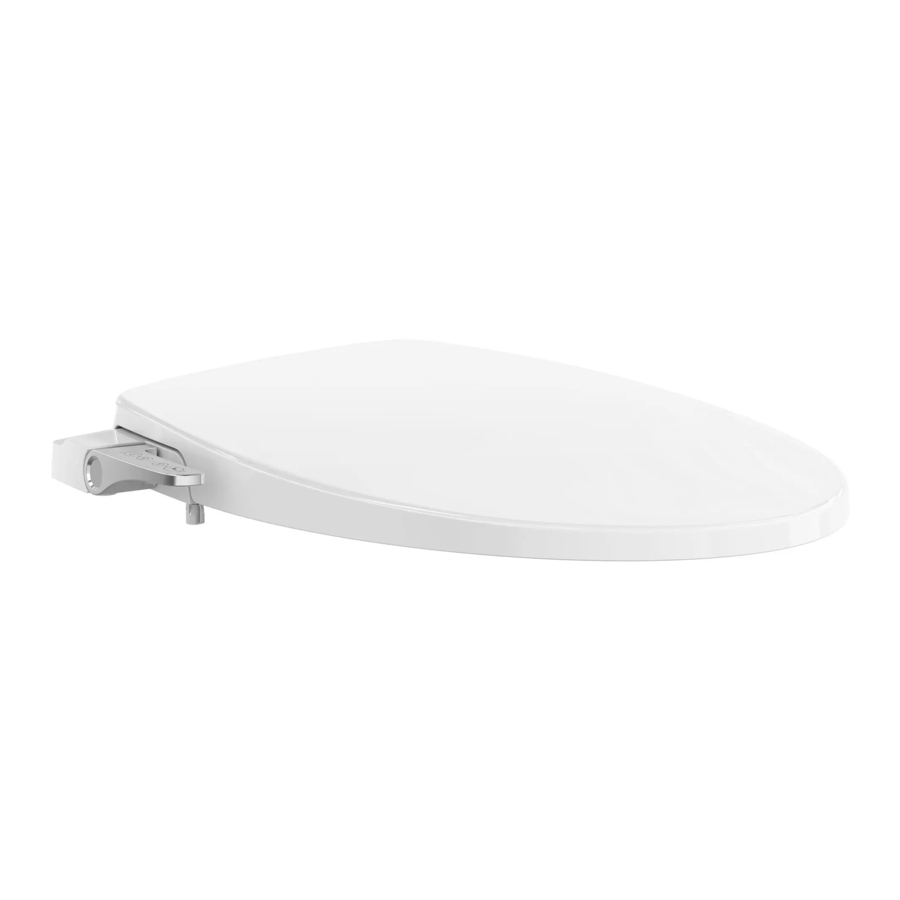

Product

Components

Installation

Please make sure you read the instructions carefully and install it properly.

1. The water pressure limit is from 0.07 to 0.6 MPa(10-87PSI). Please use as instructed.
2. The water shut-off valve should be near to where the product can be installed and dismantled.

Product Installation Procedures
Pre-installation

Installation Procedure

1. Install the nuts into the holes in the toilet bowl.


2. Place the Mounting plate with bolts and sliding plates onto the toilet bowl. Align the bolts and sliding plate with the seat post hole.


3. Screw the bolts into the nuts. Do not fully tighten.


4. After mounting the mounting plate, slide the bidet seat fully into position until it clicks into place.


5. Adjust the bidet seat evenly over the toilet bowl.


6. Press the quick release button to release the seat.


7. Fully tighten the bolts once the bidet seat is in correct position.


8. Reinstall the bidet seat until it fully clicks into position.


Connecting water hose

1. Close the water supply shut off valve to shut off water into the tank. Remove as much water from the tank as is possible so it doesn't spill out when removing the supply line hose and remove the hose to the tank. Connect the T-Shaped adapter to the inlet valve of the tank.

2. Reconnect water supply hose to T-Adapter and fully tighten.


Prohibited

1. Do not lift the product with seat cover and seat open.
2. Cannot use with hot water where temperature is higher than 104˚F. This may cause operational issues.

Operation

4 separate positions

20º upwards or 20º downwards: for nozzle self-cleaning.

45˚ upwards - Back Cleansing
45˚ downwards - Front Cleansing

0º - OFF

Care and Cleaning

1. Cleaning Seat and Lid. Use a smooth sponge/cloth with a mild cleanser to clean the product. Do not use the following: hydrogen chloride detergent, paint thinner, benzene, abrasive paper, polishing agent, fragrances and insecticide, etc.

2. Clean the nozzle. Pull out the nozzle softly and use smooth cloth/sponge or toothbrush with a mild cleanser to clean the nozzle.

3. Seat & Cover release. Open the seat and cover to 90˚ and lift the seat & cover upwards to release. After cleaning, insert the seat & cover into the holes perpendicularly to install the seat.


4. To release the whole Bidet Seat. Press the button, pull the seat forward.


Product maintenance

1. Lever replacement. As per figure A, remove the old lever along the axis direction. As per figure B, insert the new lever rib into the corresponding control valve slot. The installation is completed with a "click" sound.


2. Nozzle tip replacement As per figure A, pull out the nozzle and remove the nozzle tip along the axis direction as per figure B, insert the new nozzle tip into the nozzle along the corresponding slot.


3. Water hose leakage If water leakage is detected from the water hose, re-tighten the hose connection.


Self Diagnosis and Specifications

Self Diagnosis and Trouble shooting

Do not disassemble, repair or modify the unit.

Specifications
