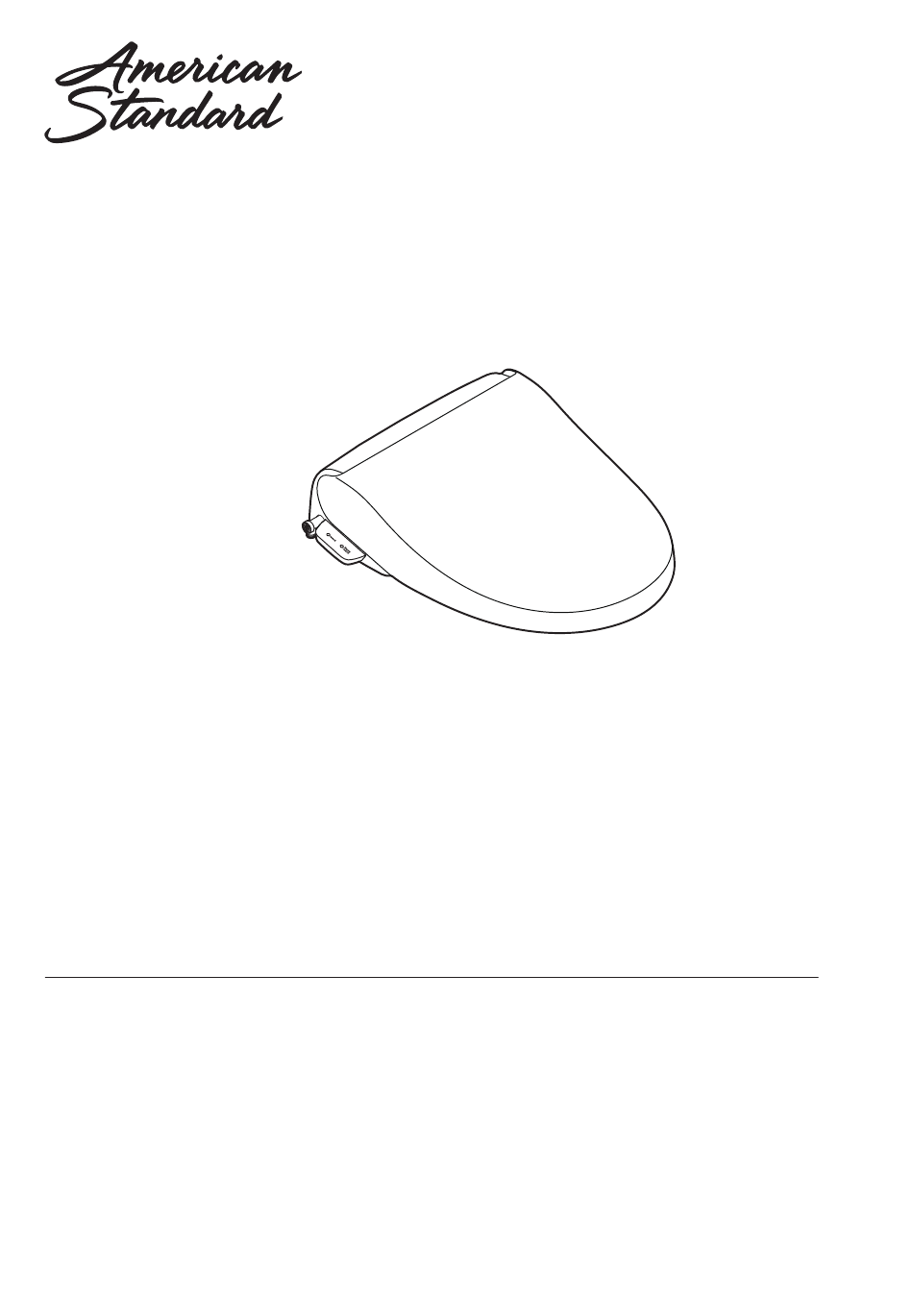

INSTALLATION & USER MANUAL
Advanced Clean 2.5
®
SpaLet
Thank you for purchasing this product.
After reading this manual, please keep it in a place where you can refer to it easily.
BE SURE TO FOLLOW THE SAFETY PRECAUTIONS.
Failure to follow the safety precautions may result in serious accidents in some circumstances.
Each of these items are extremely important for safety, and should be strictly observed.
In the event that an accident occurs as a result of improper usage, American Standard
will assume no responsibility for damages.
©2017 AS America Inc.
SPALET is a trademark of AS America, Inc.
760295-100 EN
Advertisement
Chapters
Table of Contents
Related Manuals for American Standard SpaLet Advanced Clean 2.5
Summary of Contents for American Standard SpaLet Advanced Clean 2.5
- Page 1 Failure to follow the safety precautions may result in serious accidents in some circumstances. Each of these items are extremely important for safety, and should be strictly observed. In the event that an accident occurs as a result of improper usage, American Standard will assume no responsibility for damages.
-
Page 2: Table Of Contents
INSTALLATION TABLE OF CONTENTS 1. Important Safeguards ............2. Product Description ............. 3. Installing This Product ............Installation Requirements ..............6 Contents ......................6 Ground Fault Circuit Breaker ................7 Power Supply ....................7 Grounding ....................... 7 Installation Location ..................7 Water Supply .................... -
Page 3: Important Safeguards
1. IMPORTANT SAFEGUARDS When using electrical products, especially when children are present, the basic safety precautions should always be observed. READ ALL THE INSTRUCTIONS BEFORE USING THIS PRODUCT The following safety terms are used in this manual to warn against different hazardous situations: DANGER–... - Page 4 6. Never block the air openings of the product. If lint or hair, etc. is stuck in the air openings, remove it immediately. 7. Never use while sleeping or feeling drowsy. 8. Never drop or insert any object into any opening or hose. 9.
-
Page 5: Product Description
2. Product Description This product incorporates a set of features to improve personal toilet hygiene and comfort. These features include back cleansing, front cleansing and a seat heater as well as the required controls for these features. This product includes a seat unit (with heated toilet seat, toilet seat lid, and power cord), hardware for installing the seat unit on a toilet and connecting it to the water supply and this installation and user manual. -
Page 6: Installing This Product
3. Installing This Product Installation Requirements Before installing this product, ensure that each of the following installation requirements are met. Contents Remove the parts from the box and make sure all the parts in the parts list (below) are present. Inspect the parts carefully to make sure they are in good condition. -
Page 7: Ground Fault Circuit Breaker
GROUNDING INSTRUCTIONS This product should be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. -
Page 8: Measure The Size Of The Toilet
Conditions for using Water Supply Hose 1. Measure the size of the toilet. 5-1/8" to 8-1/2" Depending on the size of the toilet, it may not be (130 to 215 mm) possible to mount this product on it. Make sure the toilet's dimensions are as shown in the fi gure on the right. -
Page 9: Illustrated Parts Breakdown
Illustrated Parts Breakdown Overview Lid Bumper Toilet Tank Seat Sensor (built-in) Power Plug Nozzle Shutter Seat T-Junction Nozzle Water Hose (Back cleansing) (with T-Junction) Bowl Water shut off valve Nozzle (Front Cleansing) Strainer Strainer * The strainer removes impurities and debris from the tap water. 9 - EN -... -
Page 10: Remote
Remote SPRAY NOZZLE STOP CLEANSING POWER STRENGTH POSITION Stops cleansing Use for Back Power saving Controls POWER functions Cleansing. There are 5 modes to the seat Adjusts Front and for nozzle position Back spray strength adjustment SEAT NIGHT LIGHT WATER BIDET MASSAGE TEMPERATURE... -
Page 11: Installation
Installation 1. Required tools Have the following tools for installing this product: adjustable end wrench, Phillips head screwdriver, flat-blade screwdriver. 2. Install the junction fitting Bowl Cock Side Box Nut Tank Water 1) Close the water shutoff valve fully. Supply Hose 2) Flush the toilet and empty all the water from the tank. - Page 12 3. Installation of water supply hose to the SpaLet ® seat 1) Connect the water supply hose Installation for the SpaLet seat to the water ® Figure supply connection socket. WATER SUPPLY Water supply joint CONNECTION SOCKET Plastic Clip Clip Water supply hose Water...
- Page 13 4. Installation of the SpaLet ® seat (1) Remove the existing seat. Installation Figure 1) Remove the nuts from the seat Body mounting mounting bolts, the slip washers, bolt and rounded packing. Bracket 2) Raise the seat and remove it by lifting the seat mounting bolts.
- Page 14 5. Install the remote control unit (1) Open the back cover of the remote control unit and insert the 2 size AA batteries. CAUTION • Insert each battery so its positive pole touches a positive connector in the battery compartment and its negative pole touches a negative connector.
- Page 15 If mounted either in plywood paneling 0.20 in. (5 mm) or less in thickness or in gypsum board: Plywood paneling : 0.24 in. (6 mm)-dia. Gypsum board : 0.20 in. (5 mm)-dia. 1) In plywood paneling, drill holes with a Plastic Anchor diameter of 0.24 in.
-
Page 16: Operational Check
Operational Check Follow the procedure below after the installation work has been completed. 1. Insert the power plug into the outlet. Confirm that the LED on the seat unit is lit. Power plug 2.Check the Back and Front nozzle spray. (1) Check the cleansing operation. -
Page 17: Operation Manual / Table Of Contents
OPERATIONAL MANUAL TABLE OF CONTENTS Additional Important Information..................18 Product Functions .................19 Remote Control.......................19 Preparations Before Use ....................20 How to Use the Basic Functions ..................21 Warm air dryer........................23 How to Use the Convenient Functions ................24 Other convenient functions ....................25 If freezing weather or long term absence is anticipated, drain the water.......26 Maintaining This Product ..............28 Cleaning the Seat Unit....................28 Cleaning the Nozzles..................... -
Page 18: Additional Important Information
Additional Important Information This product is equipped with a seat sensor that Before and after cleansing and when the water prevents the water from spraying if nobody is temperature adjustment button is pressed, etc., sitting on the toilet seat. This prevents activation water is sprayed from the nozzle. -
Page 19: Product Functions
Product Functions Remote CLEANSING POWER For back cleansing only. Power On/Off Press twice for oscillating function. BIDET STOP For front cleansing. Stop function Press twice for oscillating function. Press three times for super oscillating function. NOZZLE POSITION SPRAY STRENGTH Nozzle position adjustment Adjusts spray strength for for optimal cleansing. -
Page 20: Preparations Before Use
Preparations Before Use Performing the following operations before using the product allows you to use the SpaLet comfortably. ® STOP (Turning the power on/off) Press the STOP button to turn the power ON or OFF. * If the power is ON, the power LED on the indicator panel will light up. be on. -
Page 21: How To Use The Basic Functions
How to Use the Basic Functions Cleansing Bidet Water is sprayed from the front cleansing Water is sprayed from the back cleansing nozzle. nozzle. Press the Cleansing button. Press the Bidet button. Press the [+] or [-] Spray Strength button to adjust the nozzel spray. There are 6 levels of spray strength. - Page 22 Massage Cleansing Water pressure alternates between high and low during back cleansing, providing a pulsating effect. Press the Massage button during back cleansing. To stop the massage spray, press the “Massage” button again. 22 - EN -...
-
Page 23: Warm Air Dryer
Warm air dryer 2. Press “Dryer” button again to 1. Press “Dryer” button. switch dry temperature. The indicator will be switched each time the Warm air is blown out to dry the wet parts due button is pressed, achieving appropriate tem- to cleansing. -
Page 24: How To Use The Convenient Functions
How to Use the Convenient Functions ECO button One-Touch Power Save: Reduces power consumption by turning off the water and seat heater for 8 hours. n i t i t a y l l One-touch power save (8 hours) Press the “ECO” button. The power save ECO LED lights up on the SpaLet seat next to the power LED. -
Page 25: Other Convenient Functions
Other convenient functions Night light ® SpaLet seat is equipped with night light, which can be enabled when necessary. 1. To turn on night light, press [Night Light] button on the remote Control. 2. To turn off night light, press [Night Light] button on the remote Control. [Night Light] ... -
Page 26: If Freezing Weather Or Long Term Absence Is Anticipated, Drain The Water
If freezing weather or long term absence is anticipated, drain the water. If freezing in winter ® The water in the SpaLet seat may freeze and cause damage during winter or other times when the wa- ter temperature is signifi cantly low. Perform the following procedure to prevent freezing and related damage. - Page 27 Draining the Water to Prevent Freezing Use the following procedure to drain the water and disconnect the power if the following circumstances are applicable. ® ● The SpaLet seat will not be used for an extended period of time due to travel. Long-term disuse may cause water to become contaminated.
-
Page 28: Maintaining This Product
Maintaining This Product Cleaning the Seat Unit Cleaning the Nozzles a) SpaLet seat must be powered ON to clean ® Periodically, wipe off the seat unit with nozzle tip. a soft cloth dampened with water. b) Raise the toilet lid and toilet seat c) Under non-seated situation to clean nozzles manually, press "Nozzle Cleaning"... -
Page 29: Cleaning & Maintenance Of The Deodorizing Filter
Cleaning & Maintenance of the Deodorizing Filter Cleaning the Deodorizing Filter 1. Disconnect the power plug from the outlet 5. Install the filter back into the base plate of and shut off the water supply at the valve. the toilet seat. 2. -
Page 30: Cleaning The Inlet Strainer
Cleaning the Inlet Strainer If the water pressure weakens over time, clean the strainer using the following procedure. Cleaning the Inlet Strainer 1. Close the water shutoff valve to cut off 3. Remove the dirt adhering the water supply. to the inside of the strainer by rinsing it with water. -
Page 31: Cleaning Areas Covered By The Toilet Seat Lid & Unit
Cleaning Areas Covered by the Toilet Seat Lid & Unit CAUTION When cleaning this product, be sure to unplug the power plug from the wall outlet. The lid can be easily removed, so that the lid and the blocked parts can be cleaned. Remove lid Lift the lid and move it to the left and then Hold the lid with both hands and pull the... -
Page 32: Change Batteries For The Remote Control
Change Batteries for the Remote Control When batteries are about to run out, the battery indicator LED display begins to flash. The indicator only flashes when batteries are low. The batteries included were used in testing of product and may not have the normal lifecycle. The lighting in the room area may make it difficult to see the low battery LED flashing. -
Page 33: Troubleshooting
Troubleshooting You can easily correct some of the problems with this product. Before requesting repairs, please check the following items. If you are unable to correct the problem using the troubleshooting procedures shown below, please contact your local customer service representative. All functions Symptom Cause... - Page 34 Dryer Symptom Cause Remedy The seat sensor does not detect a Change your sitting posture; for example, user. sit further back on the seat. The dryer does not work. Seat sensor not being activated. Adjust sitting position, posture etc. The warm air temperature is set Press the Dryer button and adjust the The air is not warm.
-
Page 35: Specifications
Specifications Product Type Remote Control Product code 8012A60GRC-020 Rated Voltage AC120V 60Hz Rated Power 1300W Min. 9 psi (0.06MPa) Flow pressure Inlet Water Pressure Range Max. 108 psi (0.75MPa) Hydrostatic pressure Ambient Temperature Range 32°F~104°F (0°C~40°C) L 21-1/8" x W 17-3/16" x H 5-1/2" Product Dimension (L 536mm*W 432mm*H 140mm) Water Inlet Type... -
Page 36: Warranty Information & After-Sales Support
American Standard will repair or, at its option, exchange the product for the same or a similar model. This limited warranty applies only to the original non-commercial purchaser and installation of the products. In the event of a limited warranty claim, proof of purchase will be required—save sales receipts.
