ASSEMBLY INSTRUCTIONS FOR 7E501 MULTI-SPORT BACKSTOP
1. Unpack all parts and check for damage that may have occurred during shipping. If damage has occurred,
notify Kwik Goal immediately. Lay out all parts. Remove all cardboard and packaging immediately. Wet or
damp packaging may damage contents.
2. Read through entire instruction before beginning assembly and installation.
NOTE: Components may be packaged in one or more additional boxes.
Assembled uprights weigh 107 lbs. each. Proper equipment operated by experienced
WARNING
professionals is required for installation.

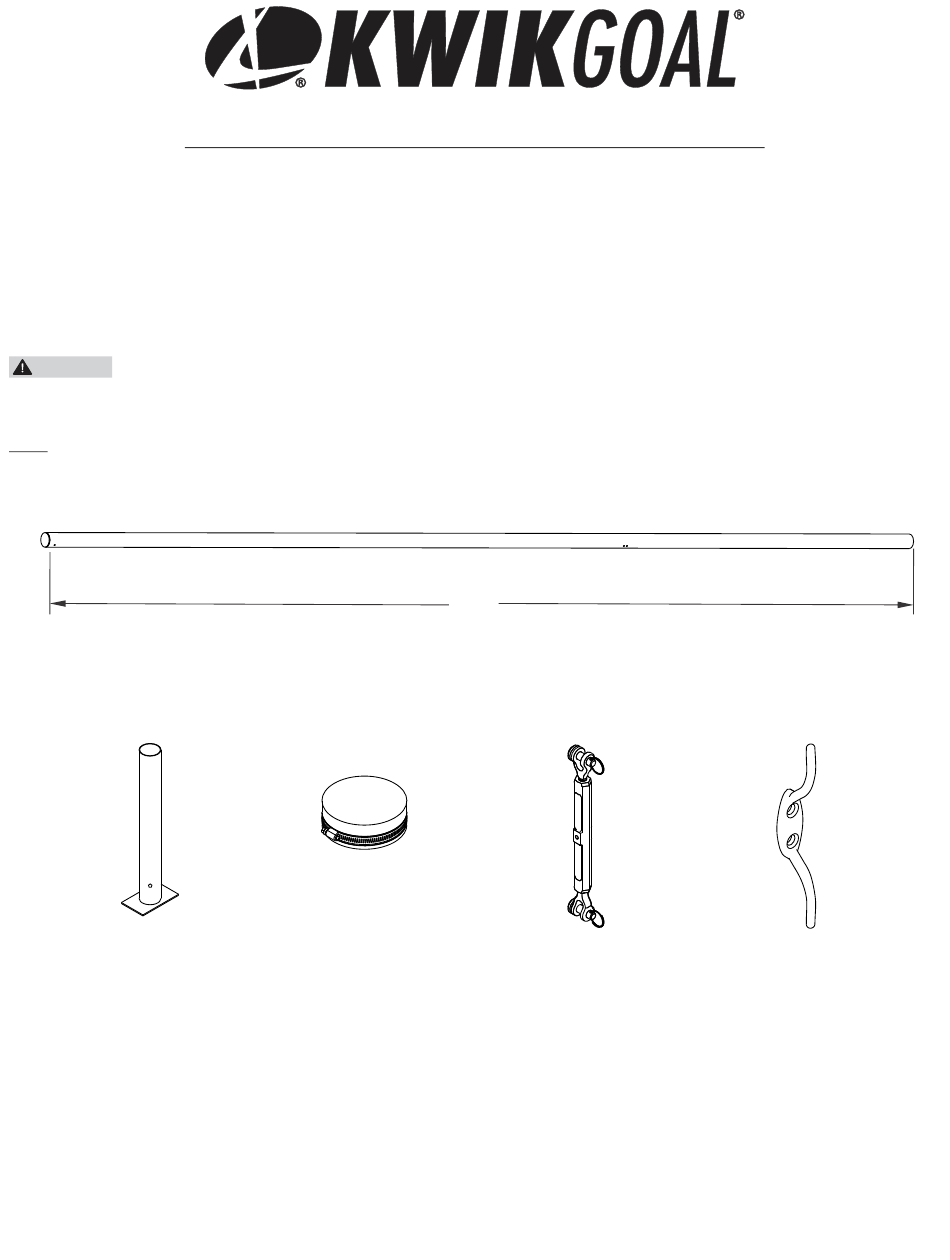

Parts
Ground Sleeve (5)
(Part#UZ1578)
All sports equipment must be anchored at all times. Sports equipment not in use must be disassembled and
stored in a safe, secure place. Assembled sports equipment should not be left unattended. Do not use this
equipment during the threat of high winds. Sports equipment should be checked for safety on a regular basis.
Any modifications to this or any Kwik Goal product will void any and all warranties.
Upright (5)
(Part# UZ1581)
288"
Cap (5)
(Part# VZ810)
***CAUTION***
140 Pacific Drive Quakertown, PA 18951
800-531-4252 Kwikgoal.com
©
2017, Rev. 2020 Kwik Goal Ltd.
Turnbuckle (3)
(Part# TZ392)
Rope Cleat (5)
(Part# VZ174)
NZ419 Rev. 07/22/20
Advertisement
Related Manuals for KwikGoal 7E501
Summary of Contents for KwikGoal 7E501
- Page 1 ASSEMBLY INSTRUCTIONS FOR 7E501 MULTI-SPORT BACKSTOP 1. Unpack all parts and check for damage that may have occurred during shipping. If damage has occurred, notify Kwik Goal immediately. Lay out all parts. Remove all cardboard and packaging immediately. Wet or damp packaging may damage contents.
- Page 2 Pulley (5) Upright Clamp (7) Net (1) (Part#VZ80) (Part# UZ1600) (Part# 3E501) Hardware Note: Hardware may be packaged separately in one or more boxes. Open all packages 9/32” Snap Link (19) before beginning assembly. (Part# VZ809) 1/4“ x 4-1/2” Hex Bolt (12) (Part# TZ388 1/4”...
- Page 3 3. Refer to layout below for typical use as a sports goal backstop. Upright 1 End Upright 20’ spacing all uprights Rope cleats this side of uprights 35’ Net on this side of Centerline uprights of field Field of play 4.
- Page 4 5. Assemble ground sleeves as shown. Install nut until bolt and nut are snug against sleeve. Do not distort ground sleeve by overtightening. Ground Sleeve Ground Sleeve 1/2” x 5” Hex Bolt 1/2” Lock Nut 6. Dig a hole for each ground sleeve as shown below. Partially backfill and tamp each hole with 3/4” clean stone until hole depth is 49-1/4”...
- Page 5 9. After concrete has cured, begin upright assembly. Upright 1 5/16” Lock Nut Upright Top 5/16” Flat Washer Upright Clamp Upright Clamp Upright 1/4” Lock Nut 2” 5/16” x 4-1/2” 5/16”Lock Nut Eye Bolt 5/16” Flat Washer 9/32” 9/32” Snap Link Snap Link Swivel 5/16”...
- Page 6 12. Continue assembling middle uprights Uprights 2,3 & 4 5/16” Lock Nut Upright 5/16” Flat Washer 5/16” x 4-1/2” Eye Bolt Swivel Pulley 9/32” Snap Link Rope 9/32” Snap Link 1/4” Flat Washer 1/4” Lock Nut 1/4”x 4-1/2” Hex Bolt Rope Cleat Upright 5/16”...
- Page 7 16. Using proper equipment and experienced rigging professionals, insert each upright into ground sleeve. WARNING Assembled uprights weigh 107 lbs. each. Proper equipment operated by experienced professionals is required for installation. Upright 1 Corner tag End Upright Top edge of net Corner tag 17.
- Page 8 13. Complete upright assembly with end upright End Upright Upright Top 5/16” Lock Nut 5/16” Flat Washer Upright Clamp Upright Clamp Upright 1/4” Lock Nut 5/16” x 4-1/2” 2” 5/16”Lock Nut Eye Bolt 5/16” Flat Washer 9/32” 9/32” Snap Link Snap Link Swivel 1/4”x 4-1/2”...
- Page 9 19. Starting at upright 1, hoist net half way up and secure to rope cleat. While hoisting net, place a 1/4” snap link every 10 mesh on net and to cable as shown. 20. Raise net halfway up on all middle uprights. Secure each hoist rope on rope cleats. 21.
- Page 10 After reassembly be sure to reseal the seam between upright and ground sleeve to prevent debris from entering. Go to kwikgoal.com for additional product information. ***CAUTION*** All sports equipment must be anchored at all times. Sports equipment not in use must be disassembled and stored in a safe, secure place.
