ASSEMBLY INSTRUCTIONS FOR 7A601 KWIK FLEX BACKSTOP
1. Unpack all parts and check for damage that may have occurred during shipping. If damage has occurred,
notify trucking company immediately.

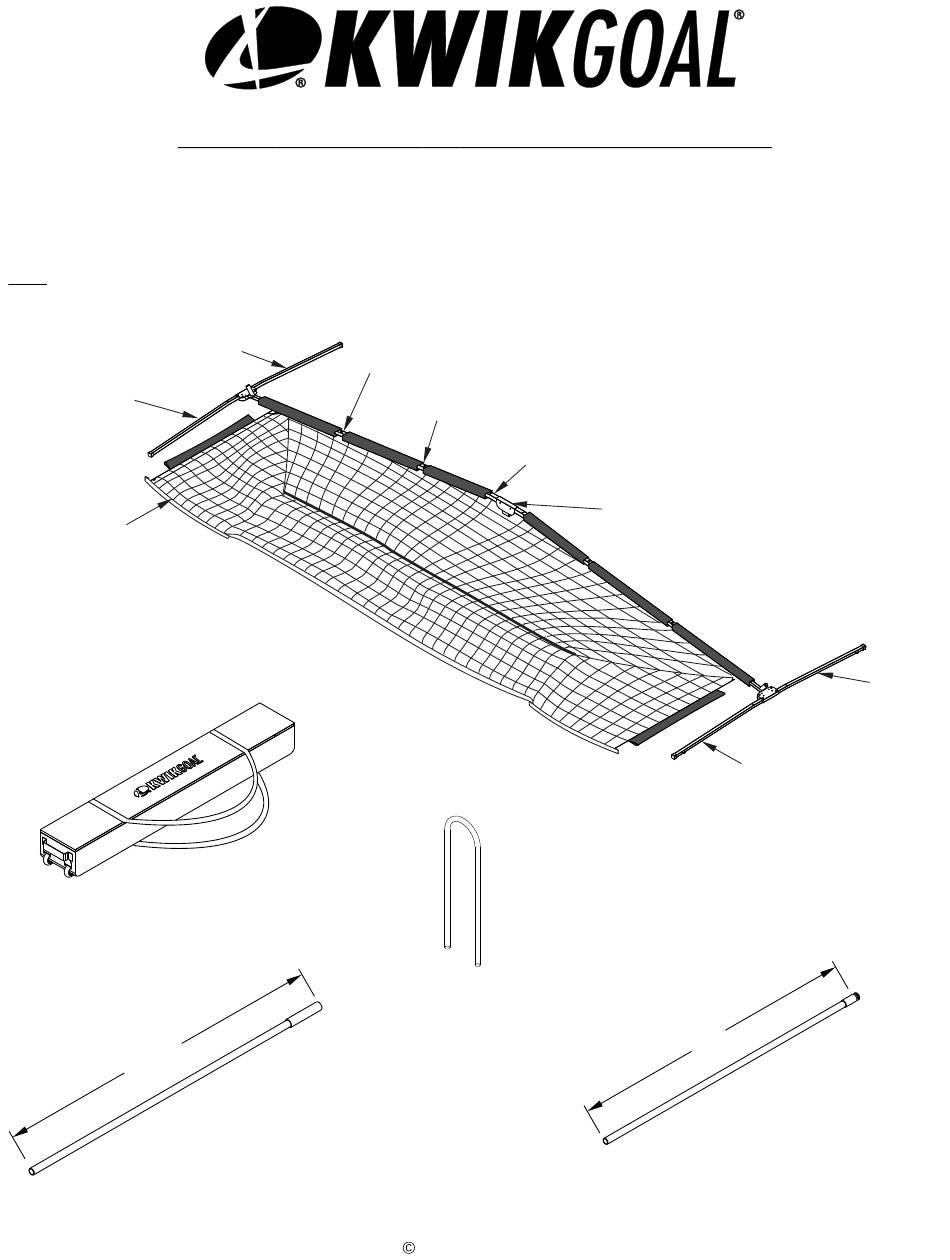

Parts
Right Base
(Part# VZ800)
Left Base
(Part# VZ796)
Net (1)
(Part# VZ801)
Carry Bag (1)
(Part# VZ791)
Tension Rod w/ Coupler (4)
(Part# VZ792)
48-3/8"
Rail w/ Connector (2)
140 Pacific Drive Quakertown, PA 18951
(P) 215-536-2200 / (P) 800-531-4252 / (F) 215-536-4309 / (F) 800-778-8869
Visit our website @ kwikgoal.com
(Part# VZ795)
Middle Rail (2)
(Part# VZ798)
Angled Rail (2)
(Part# VZ797)
Ground Anchor (4)
(Part# 10B1201 Pack of 4)
2017 Kwik Goal Ltd.
Center Connector (1)
(Part# VZ794)
Right Base
(Part# VZ800)
Tension Rod w/ Net Attachment (2)
(Part# VZ793)
46-7/8"
Left Base
(Part# VZ796)
NZ417 Rev. 03/22/17
