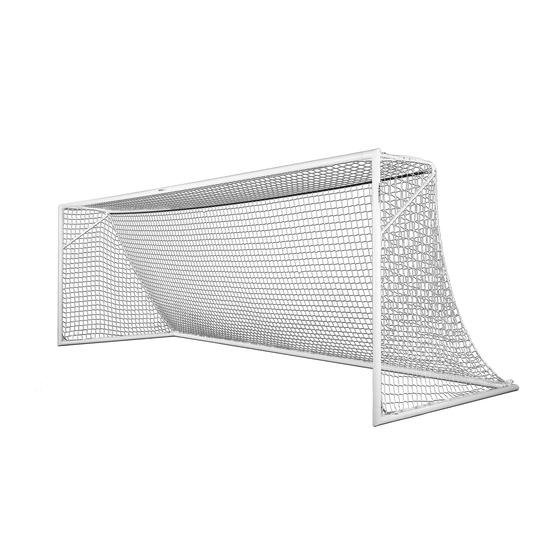

ASSEMBLY INSTRUCTIONS FOR 2B3006, 2B3006W, & 2B3006SW DELUXE EUROPEAN CLUB GOAL
1. Unpack all parts and check for damage that may have occurred during shipping. If damage has occurred,
notify trucking company immediately. Lay out all parts. Remove all cardboard or packaging immediately;
Wet or damp packaging may damage contents.
2. Read through entire instruction before beginning assembly and installation.
NOTE: Components may be packaged in one or more additional boxes.
Part#
UZ760
UZ1475
Left Post (1)
(Part# UZ1516)
This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES
and shall be secured against overturning. Do not climb on the net or goal framework at any time! All fastenings
must be checked to insure they are fully tightened before and after each use of this product. Goal posts not in use
must be disassembled and properly stored in a safe, secure area (See included Guidelines for Moveable Soccer Goal
Safety.). Assembled goal posts should not be left unattended. Remove nets when goals are not in use. Do not use
this equipment during the threat of high winds. Goal posts should be checked for safety before and after each use.
All warning and safety labels included with this product must be visible at all times.
Any modifications to this or any Kwik Goal product will void any and all warranties.
(P) 215-536-2200 / (P) 800-531-4252 / (F) 215-536-4309 / (F) 800-778-8869
Base (2)
Goal Model Number
2B3006 2B3006W
2B3006SW -
87-3/4"
84-3/4"
ID STICKER
140 Pacific Drive Quakertown, PA 18951
Visit our website @ kwikgoal.com
2005, Rev 2017 Kwik Goal Ltd.
Crossbar (2)
(Part# UZ1088)
279-3/4"
Post Corner (2)
(Part# UZ811)
***CAUTION***
Crossbar Corner (4)
(Part# UZ810)
Right Post (1)
(Part# UZ1517)
84-3/4"
NZ297 Rev. 07/17/17
