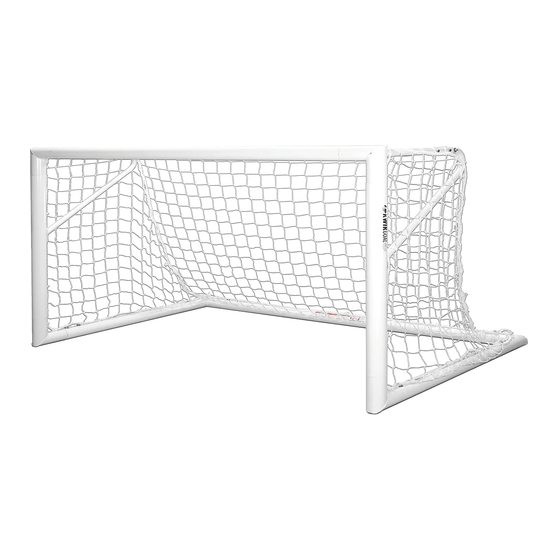

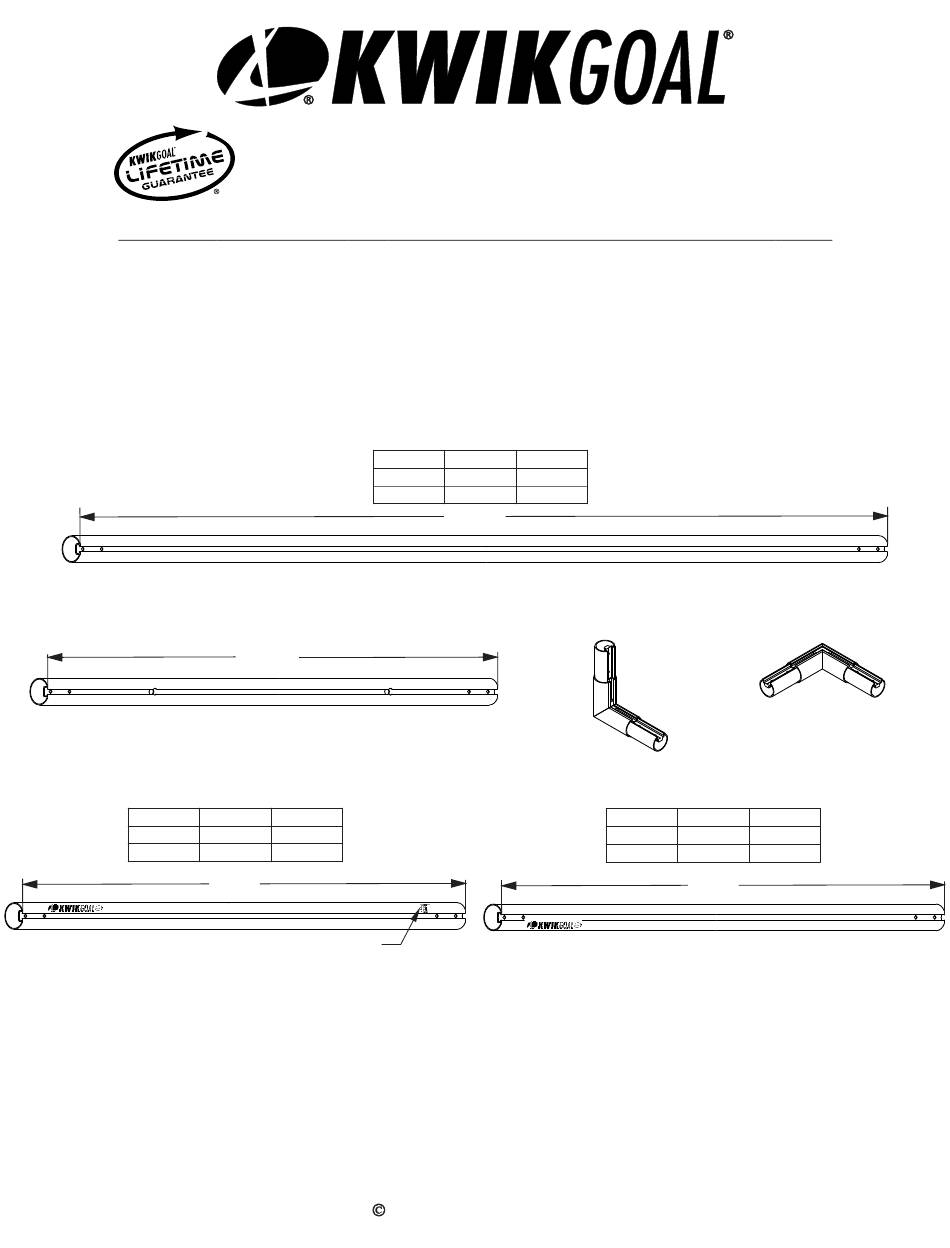

ASSEMBLY INSTRUCTIONS FOR 2B3002 & 25B14 DELUXE EUROPEAN CLUB GOAL
1. Unpack all parts and check for damage that may have occurred during shipping. If damage has occurred,
notify trucking company immediately. Lay out all parts. Remove all cardboard and packaging immediately.
Wet or damp packaging may damage contents.
2. Read through entire instruction before beginning assembly and installation.
NOTE: Components may be packaged in one or more additional boxes.
Left Post(1)
Model#
2B3002
25B14
This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES
and shall be secured against overturning. Do not climb on the net or goal framework at any time! All fastenings
must be checked to insure they are fully tightened before and after each use of this product. Goal posts not in use
must be disassembled and properly stored in a safe, secure area (See included Guidelines for Moveable Soccer Goal
Safety.). Assembled goal posts should not be left unattended. Remove nets when goals are not in use. Do not use
this equipment during the threat of high winds. Goal posts should be checked for safety before and after each use.
All warning and safety labels included with this product must be visible at all times.
Any modifications to this or any Kwik Goal product will void any and all warranties.
(P) 215-536-2200 / (P) 800-531-4252 / (F) 215-536-4309 / (F) 800-778-8869
Most Kwik Goal products carry a Lifetime Guarantee. For details or claims,
visit kwikgoal.com or contact customer service at
Model#
2B3002
25B14
Base (2)
(Part# UZ1079)
45-3/4"
Part#
Length
UZ1510
42-3/4"
UZ1482
49"
(Length)
ID STICKER
140 Pacific Drive Quakertown, PA 18951
Visit our website @ kwikgoal.com
Crossbar (2)
Part#
Length
UZ1078
99-3/4"
UZ1372
87-3/4"
(Length)
Post Corner (2)
***CAUTION***
2005, Rev 2015 Kwik Goal Ltd.
.
1-800-531-4252
Crossbar Corner (4)
(Part# UZ811)
Right Post(1)
Model#
Part#
2B3002
UZ1511
42-3/4"
25B14
UZ1483
(Length)
(Part# UZ810)
Length
49"
NZ301 Rev. 06/10/2015
Advertisement
Related Manuals for KwikGoal 2B3002
Summary of Contents for KwikGoal 2B3002
- Page 1 1-800-531-4252 ASSEMBLY INSTRUCTIONS FOR 2B3002 & 25B14 DELUXE EUROPEAN CLUB GOAL 1. Unpack all parts and check for damage that may have occurred during shipping. If damage has occurred, notify trucking company immediately. Lay out all parts. Remove all cardboard and packaging immediately.
- Page 2 10. Fully disassemble goals for seasonal storage. 140 Pacific Drive Quakertown, PA 18951 (P) 215-536-2200 / (P) 800-531-4252 / (F) 215-536-4309 / (F) 800-778-8869 Visit our website @ kwikgoal.com 1998 rev 2009 Kwik Goal Ltd. NZ301 Rev. 06/10/2015...
- Page 3 Net Strap (1) Channel Spacer (12) Backstay Brace (2) Net Clip (40) (Part# VZ328P2) (Part# 10B4402 Pk of 2) (Part# UZ812) (Part# 10B3201 Pack of 50) Backstay (2) Anchor Peg (4) Net (1) (Part# 3B6822) (Part# VZ329P1) (Part# 10B1404 Pack of 4) Assembly Tools Hardware Note: Hardware may be packaged separately...
- Page 4 Post Corner 3/8” Flat Washer Left Post Square Nut Channel Spacer Square Nut Crossbar Corner Warning sticker KWIKGOAL sticker Left Post Post Corner Crossbar Corner 3/8” X 1 3/4” Hex Bolt 3/8” Lock Washer 3/8” Flat Washer Channel Spacer Post ***CAUTION*** This goal has been designed to be used for the game of soccer only.
- Page 5 3/8” Flat Washer Right Post Crossbar Square Nut Channel Spacer Right Post Base Warning sticker KWIKGOAL sticker Crossbar Corner 3/8” X 1 3/4” Hex Bolt Crossbar Corner 3/8” Lock Washer Crossbar 3/8” Flat Washer Crossbar 3/8” X 1 3/4” Hex Bolt 3/8”...
- Page 6 NOTE: If installing optional wheels (Part# 10B407), insert a threaded channel spacer from wheel option package in each base. To prevent threaded channel spacer from falling out during assembly, temporarily insert a 3/8” hex bolt into the threaded channel spacer and finger tighten. Lift assembled bases and insert into assembled posts.
- Page 7 Remove 3/8” hex bolts used to temporarily secure channel spacers in bases. Attach backstays and backstay braces to square nuts as shown. 5/16” Lock Nut 3/8” X 1 3/4” 5/16” X 1 1/2” Eyebolt 5/16” Flat Washer Hex Bolt 3/8” Lock Nut 3/8”...
- Page 8 Set assembled goal upright onto bases, set in desired area, and anchor with pegs. Anchor Pegs Side View Anchor Pegs Anchor Pegs ***CAUTION*** This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES and shall be secured against overturning.
- Page 9 8. Attach net strap to the eyebolts in the backstays as shown. Pull net strap tight as shown. (NOTE: Do not over tighten net strap. Over tightening may damage goal.) Excess strap can be trimmed to length. Leave 12” to 18”...
- Page 10 Net Clip Net Clip To view videos on Kwik Goal product instructions, drills and demos please visit kwikgoal.com/videos. ***CAUTION*** This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES and shall be secured against overturning.
