1. Unpack all parts and check for damage that may have occurred during shipping. If damage has occurred,
notify trucking company immediately. Lay out all parts. Remove all cardboard and packaging immediately.
Wet or damp packaging may damage contents.
2. Read through entire instruction before beginning assembly and installation.
All sports equipment must be anchored at all times. Sports equipment not in use must be
disassembled and stored in a safe, secure place. Assembled sports equipment should not be left
unattended. Do not use this equipment during the threat of high winds. Sports equipment should
be checked for safety on a regular basis. Any modifications to this or any Kwik Goal product will
(P) 215- 536-2200 / (P) 800-531-4252 / (F) 215-536-4309 / (F) 800-778-8869

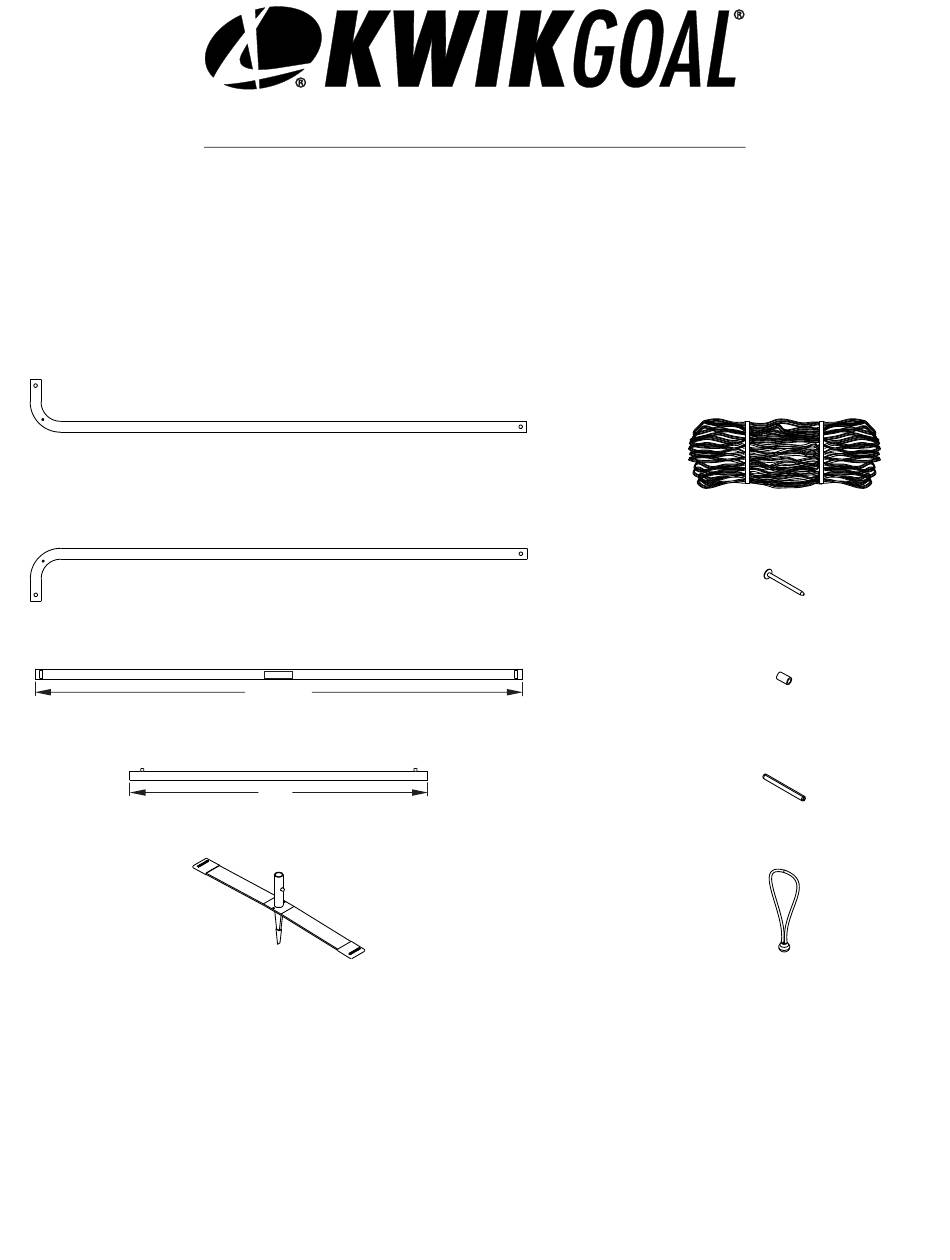

ASSEMBLY INSTRUCTIONS FOR 2B1603 AFR-1 REBOUNDER
Right Post (1)
(Part#UZ569)
Left Post (1)
(Part#UZ570)
Middle Bar (1)
(Part#UZ571)
78-1/2"
Side Bar (2)
(Part#UZ572)
48"
Ground Shoe (2)
(Part#UZ573)
void any and all warranties.
140 Pacific Drive Quakertown, PA 18951
Visit our website @ kwikgoal.com
© 1998, Rev 2017 Kwik Goal Ltd.
***CAUTION***
®
Net (1)
(Part# 3B804)
Ground Anchor Peg (1)
(Part# UZ847)
Caplug (4)
(Part# VZ235)
Roll Pin (2)
(Part# TZ200)
Bungee (30)
(Part# 10B3501 pack of 30)
NZ117 Rev. 07/17/17
