ASSEMBLY INSTRUCTIONS FOR 2B9007 EVOLUTION PRIME GOAL
1. Unpack all parts and check for damage that may have occurred during shipping. If damage has occurred,
notify Kwik Goal immediately. Lay out all parts. Remove all cardboard and packaging immediately. Wet or
damp packaging may damage contents.
2. Read through entire instruction before beginning assembly and installation.
NOTE: Components may be packaged in one or more additional boxes.

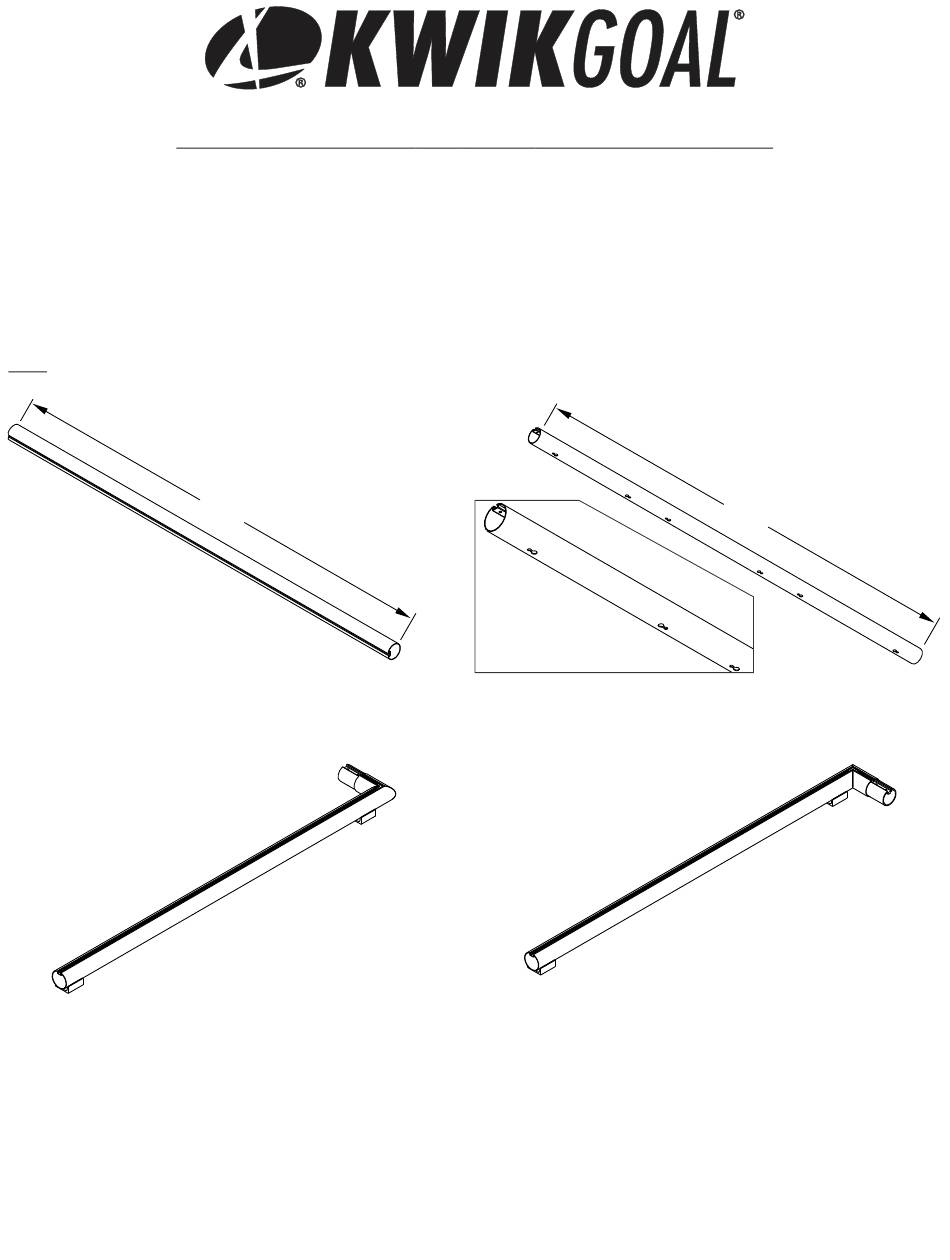

Parts
This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES
and shall be secured against overturning. Do not climb on the net or goal framework at any time! All fastenings
must be checked to insure they are fully tightened before and after each use of this product. Goal posts not in use
must be disassembled and properly stored in a safe, secure area (See included Guidelines for Movable Soccer Goal
Safety.). Assembled goal posts should not be left unattended. Remove nets when goals are not in use. Do not use
this equipment during the threat of high winds. Goal posts should be checked for safety before and after each use.
All warning and safety labels included with this product must be visible at all times.
Any modifications to this or any Kwik Goal product will void any and all warranties.
Crossbar (1)
(Part# UZ393)
280"
Right Base (1)
(Part# UZ1687)
140 Pacific Drive Quakertown, PA 18951
800-531-4252 Kwikgoal.com
***CAUTION***
©
2020 Kwik Goal Ltd.
Bottom Bar (1)
(Part# UZ1692)
280"
Left Base (1)
(Part# UZ1686)
NZ464 Rev. 11/11/20
Advertisement
Related Manuals for KwikGoal 2B9007
Summary of Contents for KwikGoal 2B9007
- Page 1 ASSEMBLY INSTRUCTIONS FOR 2B9007 EVOLUTION PRIME GOAL 1. Unpack all parts and check for damage that may have occurred during shipping. If damage has occurred, notify Kwik Goal immediately. Lay out all parts. Remove all cardboard and packaging immediately. Wet or damp packaging may damage contents.
- Page 2 If this is not practical, store movable soccer goals in a place where children cannot have access to them. 10. Fully disassemble goals for seasonal storage. 140 Pacific Drive Quakertown, PA 18951 800-531-4252 Kwikgoal.com © 2019 Kwik Goal Ltd. NZ464 Rev. 11/11/20...
- Page 3 Parts Continued Right Post (1) Left Post (1) Right Backdrop (1) (Part# UZ1685) (Part# UZ1684) (Part# UZ1689) Left Backdrop (1) (Part# UZ1688) Base Bumper Tube (2) Bottom Bar (Part# UZ1690) Bumper Tube (3) (Part# UZ1691) 75” Post Brace (2) 92” Backdrop Brace (2) (Part# UZ737) (Part# UZ953)
- Page 4 Parts - Continued Channel Spacer (6) Ground Anchor (4) Chain (4) Chain (4) (Part# UZ812) (Part# 10B103 Pack of 4) (Part# VZ564-18) w/ Snap Link & Anchor Plate (Part# UZ846 ) 18-1/2” Note: Hardware is packed separately in one or more boxes. Open all boxes and layout all sealed hardware packs before beginning assembly.
- Page 5 3. Hardware for this step is in Wheel Hdw pack. Attach swivel wheels w/ brakes and swivel wheels to right & left base corners as shown. Swivel Wheel Swivel Wheel w/ Brake 5/16” X 1” Hex Bolt 5/16” Lock Washer Swivel Wheel 5/16”...
- Page 6 Hardware for steps 4 through 12 is in Goal Hdw pack. Attach left post and right post to crossbar using channel spacers and 3/8” hardware. Note direction of decals on crossbar before fastening. Place a 3/8” square nut in each side of the crossbar and both posts before inserting channel spacer.
- Page 7 6. Attach left base and right base to bottom bar using channel spacers and 3/8” hardware. Note direction of decals on bottom bar before fastening. Be sure connections are pressed firmly together before tightening hex bolts. 7. Insert four 3/8” square nuts into the left base and four into the right base. Secure square nuts in bases by threading a 3/8”...
- Page 8 8. Lift and insert assembled bases into assembled posts. Fasten using channel spacers, front post braces, 3/8” hardware and 3/8” square nuts as shown. Be sure connections are pressed firmly together before tightening hex bolts. Lift Left Post Left Base Lift Bottom Bar Right Post...
- Page 9 9. Using the 3/8” square nuts, attach each backdrop to goal frame with 3/8” hardware shown, then attach backdrop brace with hardware shown. Fasten 5/16” X 1” eye bolts with 5/16” washer to backdrops at location shown. Right Backdrop Bottom Bar 5/16"...
- Page 10 10. Turn goal onto its bases and secure backdrop to bases using the two 3/8” square nuts closest to the corner with 3/8” hardware as shown. Remove 3/8 X 1” hex bolt used to temporarily secure square nuts to base. Left Post Bottom Bar Left Base...
- Page 11 11. Replace the chain on the “chain w/ snap link & anchor plate” with the 18-1/2” long chain. Chain w/ Snap Link & Anchor Plate Chain 18-1/2” Replace with 12. With the two 3/8” square nuts in the left and right bases, attach chain leashes with 3/8” hardware at locations shown.
- Page 12 13. Mark ground anchor hole locations. Prepare holes, install ground anchors and pour concrete. 312" 156" 34" Ground Anchor Locations Centerline of Goal Line 60" Goal Line 60° Approx. Field Surface 12-3/4" Concrete Concrete 20" Ground Anchor Stone 24" MIN Anchor Hole Detail (4 places per goal) ***CAUTION***...
- Page 13 14. After concrete has fully cured, attach chain leashes to ground anchors. Be sure to apply a liberal amount of anti-seize on bolt threads before installing into anchors. With goal leashed to all four anchors, test in accordance with step 16. Assembled 1/2"...
- Page 14 15. The ground anchor and chain leash system supplied is the recommended and the safest method of anchoring your goal. However, counterbalance weight may be used as a temporary anchoring system. A minimum of 240 lbs. must be placed on the back bottom bar for the goal to be stabilized. Test anchoring in accordance with step 16.
- Page 15 16. After installing, test as described below to verify effectiveness of anchor system. If applicable, allow concrete to fully cure before testing. ANCHOR TEST 1. Clear all persons from a minimum 50 foot radius surrounding the goal. 2. Verify goal is attached to anchors according to instruction. 3.
- Page 16 17. Hardware for steps 17 and 18 is in Bumper Hdw pack. Insert bumper weights into bumper tubes. Using a rubber mallet insert bumper caps in each end as shown. Base Bumper Assembly Bumper Cap 75” Base Bumper Tube 69” Base Bumper Weight Bumper Cap Bottom Bar Bumper Assembly...
- Page 17 Attach bumpers to goal frame using bumper cable assemblies and insert hole caps as shown. Bottom View Left Base Hole Cap Bumper Cable Assembly Left Base Base Bumper Bottom Bar Right Base Bottom Bar 92” Bumpers Base Bumper Bumper Cable Assembly Left Base Hole Cap 75”...
- Page 18 19. Attach net using net clips. Net Clip Net Clip Net Clip Push Straight In and Rotate 90 Degrees to Lock into position Net Clip Net Clip ***CAUTION*** This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES and shall be secured against overturning.
- Page 19 Eyebolt Clip Net Strap Go to kwikgoal.com for additional product information. ***CAUTION*** This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES and shall be secured against overturning. Do not climb on the net or goal framework at any time! All fastenings must be checked to insure they are fully tightened before and after each use of this product.
