Summary of Contents for Hisense HAP0824TWD

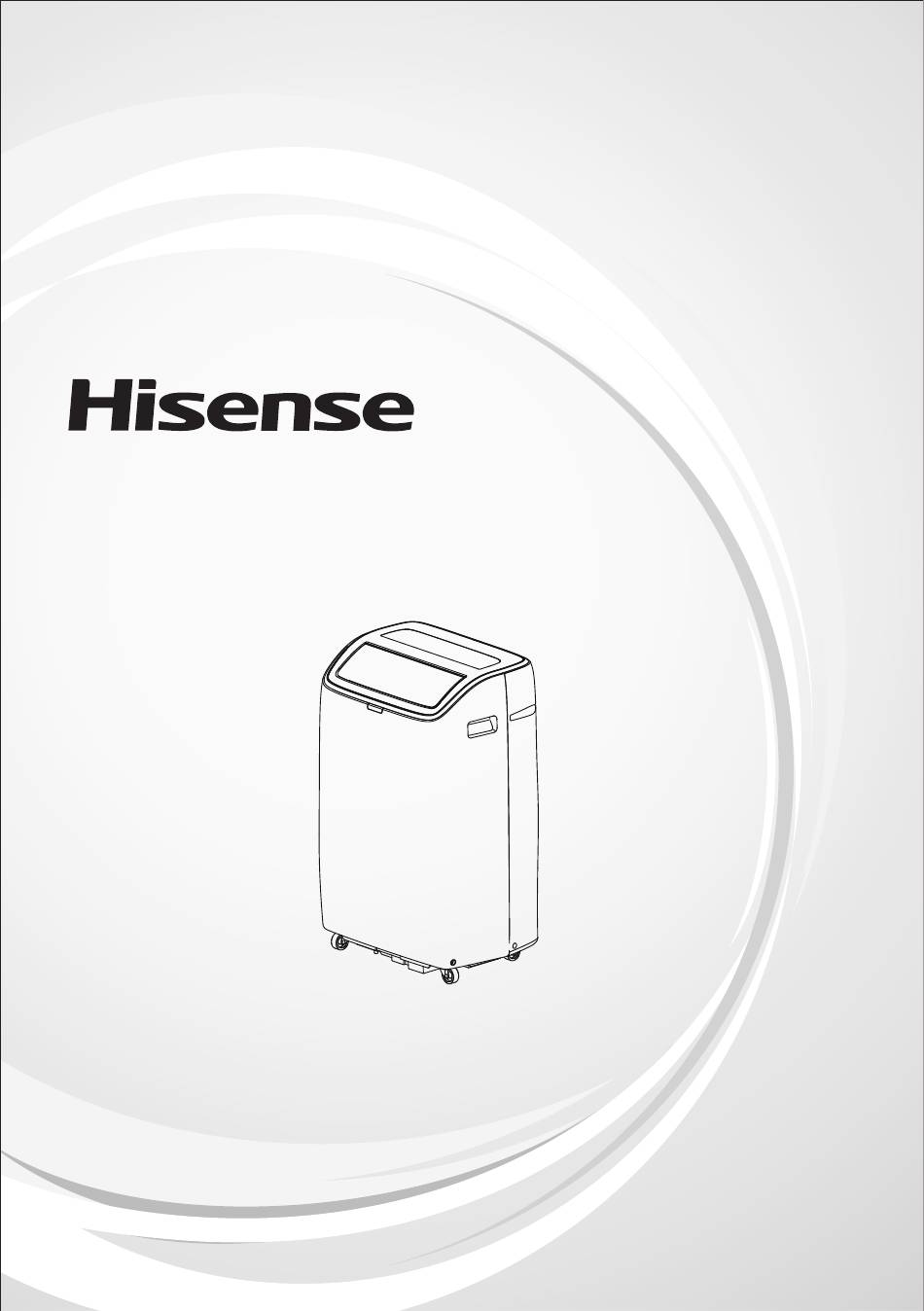

- Page 1 ITM. / ART. 2691084 USE AND INSTALLATION MANUAL Model: HAP0824TWD For questions about features, operation/ performance, parts or service, call: 1-877-465-3566 Operating hours (EST): Monday-Friday from 9 a.m. to 9 p.m. Saturday-Sunday from 9 a.m. to 6 p.m. Language: English and Spanish...
-
Page 2: Table Of Contents
Table of Contents Safety Information ........2 Location Requirements . - Page 3 Safety Information (continued) □ Precautions for using R32 refrigerant Ventilated area: Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or The basic installation work procedures are the same as the conducting any hot work.
- Page 4 Safety Information (continued) □ Replacement parts shall be in accordance with the manufacturer's practice be followed, since flammability is a consideration. specifications. The following procedure shall be adhered to: a) safely remove refrigerant following local and national NOTE: The use of silicon sealant may inhibit the effectiveness regulations;...
- Page 5 Safety Information (continued) □ for handling refrigerant cylinders; Consult manufacturer if in doubt. □ –All personal protective equipment is available and being used Opening of the refrigeration systems shall not be done by correctly; brazing. □ –The recovery process is supervised at all times by a competent The recovered refrigerant shall be returned to the refrigerant person;...
-
Page 6: Pre-Installation
Pre-Installation PLANNING INSTALLATION Gather the required tools and parts before starting installation. Check that all parts are included in parts package. Read and follow the instructions provided with any tools listed here. TOOLS REQUIRED Phillips Cordless Scissors Pencil 1/8 in. Drill bit screwdriver drill HARDWARE INCLUDED... -
Page 7: Package Contents
Pre-Installation (continued) BATTERY NOTES: □ Battery type: mercury free super heavy duty R03 UM-4 size AAA 1.5V. □ Best used before date code (month-year) on the battery. □ Caution for ingestion: the battery may cause suffocation if swallowed by children. □... -
Page 8: Electrical Requirements
Pre-Installation (continued) ELECTRICAL REQUIREMENTS WARNING: □ Plug into a grounded 3-prong outlet. □ Do not remove ground prong. □ Do not use an adapter. □ Do not use an extension cord. The appliance shall be installed in accordance with national wiring regulations. □... -
Page 9: Location Requirements
Pre-Installation (continued) LOCATION REQUIREMENTS The flexible exhaust hose allows placement of the air conditioner at least 20 in. from window or door. Confirm you are using the correct size air conditioner for the space to be cooled, per sizing recommendations, below: Area to be cooled DOE Capacity needed (BTUs) Up to 10 ft x 15 ft room... -
Page 10: Unpack The Air Conditioner
Pre-Installation (continued) UNPACK THE AIR CONDITIONER WARNING: Use two or more people to move and install air conditioner. Failure to do so can result in back or other injury. Remove Packaging Materials □ Remove and recycle packaging materials. □ Remove tape and glue residue from surfaces before turning on the air conditioner. Rub a small amount of liquid dish soap over the adhesive with your fingers. -
Page 11: Installation
Installation Attaching Exhaust Hose and Adapter to Air Conditioner □ Roll the air conditioner to selected location. See “Location Requirements” on page 9. □ Press the coupling (BB) into the flexible exhaust hose (CC). The hose has integral clips that snap onto the coupling. □... - Page 12 Installation (continued) Installing in Vertical Sliding Window NOTE: The window installation kit can be used with vertical sliding windows between 18 in. and 50 in. wide. □ Cut the foam seal (LL) (adhesive type-long) to the proper length, and attach it to the window sash and frame. □...
- Page 13 Installation (continued) Installing in Horizontal Sliding Window □ Cut the foam seal (LL) (adhesive type-long) to the proper length, and attach it to the window sash and frame. □ Insert the vent panel assembly, including extension panels, if needed, into the window opening. Extend the extension panels, if used.
-
Page 14: Operation
Operation Operating your portable air conditioner properly helps you to obtain the best possible results. This section explains air conditioner operation. □ Keep upright at least 2 hours before use to prevent damaging the compressor. IMPORTANT: □ For better performance, operate COOL or DRY mode within the following recommended range: Outdoor temperature 62.6- 109.9°F (17-43.3°C) with relative humidity ≤90%;... -
Page 15: Fan Speed
Operation (continued) □ Wi-Fi control is available for connected models with this logo on the control panel. Please see "Using the ConnectLife APP" for Wi-Fi connection introduce on page 19. FAN SPEED □ Press and release FAN to choose the desired fan speed. /VENT. -
Page 16: How To Use
Operation (continued) Holder Using the Remote Control (continued) STORAGE TIP □ The holder on the back of the unit can be used to store the remote control. HOW TO USE □ To operate the room air conditioner, aim the remote control at the signal receptor (1). - Page 17 Operation (continued) Using the Remote Control (continued) DIMMER □ Press the DIMMER button to turn off the control panel display. NOTE: When in Dimmer mode, new control inputs will return display to normal. SLEEP □ Sleep mode can only be set in Cooling, Heating or Drying modes. When in Sleep mode the unit will utilize lower, quieter fan speeds and automatic temperature adjustments offering 8 hours of optimal sleeping conditions before shutting off.
-
Page 18: Normal Sounds
Operation (continued) Using the Remote Control (continued) TIMER □ Use the TIMER function to turn the air conditioner ON/OFF automatically. Setting the Air Conditioner to Turn On: □ Plug in the air conditioner and use the remote to power it ON. □... - Page 19 Operation (continued) Using the ConnectLife APP The ConnectLife APP by Hisense provides the below features for your convenience: □ Remote control & status: Turn ON/OFF, change the mode, set & monitor the temperature, and quick action buttons. □ Scheduler: define when your AC can automatically turn ON/OFF to defined temperatures and modes.
-
Page 20: Care And Cleaning
Care and Cleaning Draining the Air Conditioner Below are situations in which you should drain the air conditioner: □ When Relocating: When you need to move the air conditioner, it's important to drain it to prevent water from overflowing onto the floor or carpet due to tilting during transportation.. -
Page 21: Cleaning The Air Filter
Care and Cleaning (continued) Cleaning the Air Filter □ Unplug the air conditioner or disconnect power. □ Open the filter panel door (1) on the back of the air conditioner and remove. □ Use a vacuum cleaner to clean the filter. If the filter is very dirty, wash the filter in warm water with a mild detergent. -
Page 22: Troubleshooting
Troubleshooting Before calling for service, please try the suggestion below. Problem Solution Air conditioner will not operate DANGER: ELECTRICAL SHOCK HAZARD □ Plug into a grounded 3-prong outlet. □ Do not remove ground prong. □ Do not use an adapter. □... - Page 23 Troubleshooting (continued) Problem Solution □ A door or window is open. Keep doors and windows closed. Air Conditioner seems to run too much □ The current air conditioner replaced an older model. The use of more efficient components may cause the air conditioner to run longer than an older model, but the total energy consumption will be less.
