Summary of Contents for Hisense HAWC12D

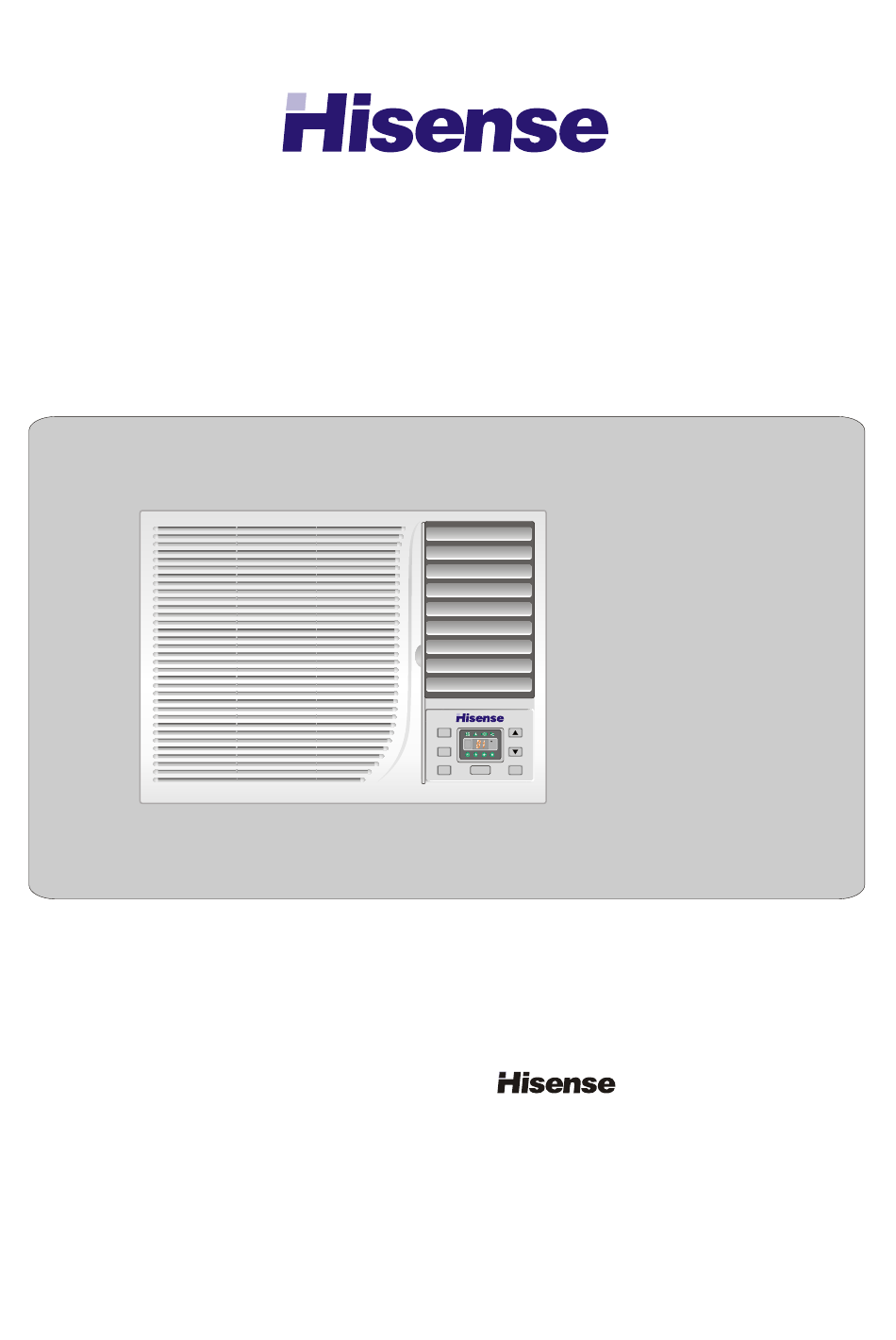

- Page 1 Window (Room) Air Conditioner User Manual HAWC12D SWING SWING SPEED TIMER MODE Thank you very much for purchasing a air conditioner, please read this User and Care Manual carefully before installing and using this appliance, keep this manual for future reference.
-
Page 2: Table Of Contents
CONTENTS Safety precautions Part names Operating instructions Maintenance Operation tips Electrical specifications Troubleshooting Installation instructions PDF created with pdfFactory Pro trial version www.pdffactory.com... -
Page 3: Safety Precautions
Safety Precautions Symbols in this User's Manual are interpreted as shown below: Be sure not to do. Be sure to follow the instruction. The feature of the appliance, Grounding is necessary. instead of a fault. Warning: Incorrect handling could Pay attention to such a situation. cause a serious hazard, such as death, serious injury,etc. -
Page 4: Part Names
Parts Names Front view For remote control model Exterior Air Inlet Vertical Air Vane Air Outlet Horizontal Air Vane Exterior Air Inlet SWING SPEED TIMER MODE Power Cord Interior Fresh air lever Control Panel Remote Controller Air Inlet Grille Fig. 1 Note: The figure in this manual are based on the external view of a standard model. - Page 5 Parts Name 1.Accessories Back view Outside Air Outlet Drainage Tip Exterior Air Inlet Fresh air lever Air Filter handle SWING SPEED TIMER MODE Fresh air lever Fresh air lever Shut the fresh air door to achieve the best cooling effect and open it to introduce fresh air into the room if the air is foul inside .
-
Page 6: Operating Instructions
Operating Instructions You can easily operate this air conditioner by pressing the relevant button on the control panel as well as the remote controller. ON/OFF Button Control Panel The air conditioner will start operation or will stop operation when this button is pressed. MODE Button SWING Each time the MODE button is pressed, the operation... - Page 7 Operating Instructions Remote Controller The remote controller transmits signals to the system. POWER Button The air conditioner will start operation or will stop operation when this button is pressed. Power Timer MODE Button Used to select the mode. Swing Mode Power Saver Buttons Auto...
- Page 8 Operating Instructions Remote Control How to Insert the Batteries Remove the battery cover according to the arrow direction. Insert new batteries making sure that the (+) and (-) of the battery are matched correctly. Re attach the cover by sliding it back into position. Note: Use 2 LR6 AA(1.5volt) batteries.
-
Page 9: Maintenance
Care and Maintenance Front panel maintenance Air filter maintenance Unplug from power source Stop operation and take out air filter. Take out air filter as shown Unplug from power source after switch off the air conditioner. SWING SPEED TIMER MODE Wipe with a soft and dry cloth Use lukewarm water (below 40 C) to clean... -
Page 10: Operation Tips
Operation Tips Operating condition Noise pollution The protective device maybe trip and stop The noise level of air conditioner sounds the appliance in the cases listed below. higher at night than in the daytime. Outdoor air temperature is over *43 c COOLING Room temperature is below 21 c Please set (LOW FAN SPEED) or... -
Page 11: Electrical Specifications
Electrical specifications 1. All wiring must comply with local and national electrical codes and must be installed by a qualified electrician. If you have any questions regarding the following instructions, contact a qualified electrician. Electric Shock Hazard 2. Check available power supply and resolve any wiring problems BEFORE installing and operating The air conditioner has a serial plate rating, this unit. -
Page 12: Troubleshooting
Trouble Shooting 1.Accessories The following cases may not always be a malfunction, please check it before asking for service. Analysis Trouble If the protector trip or fuse is blown. Does not run Please wait for 3 minutes and start again, protector device may be preventing unit to work. -
Page 13: Installation Instructions
Installation instructions 1.Accessories Installation accessories 10K MODELS 1. buffer 2.leveling pad 3. seal foam pad 4. decorating strip Note: All above accessories are prepared or purchased by user. 12K-16K MODELS 3. seal foam pad 1. buffer 2.leveling pad 4. decorating strip Note: All above accessories are prepared or purchased by user. - Page 14 Installation instructions 2. Installation requirements 1.Accessories Installation requirements Leave a space more than 100 cm at the rear of the appliance and ensure the outdoor air intake not be blocked. A wooden frame as shown in fig.1 is advisable if the appliance is installed through a window. The installation bracket as shown in fig.2 should not be welded with the window sash.
- Page 15 Installation instructions 1.Accessories Installation requirements thickness of wall Fig.2 Fig.4 18-24K MODELS 90x20x710 wooden strip Space for outdoor air intake Fig.3 Fig.1 thickness of wall Fig.2 Fig.4...
- Page 16 Installation instructions 1.Accessories Installation steps Test the appliance by plugging the power supply cord in a correct outlet of power source before installation. A clearance of 20 mm is advisable between the appliance cabinet and the wall. Fix the indoor air intake panel with the cabinet by employing two screws which packed in the packing bag as shown in Fig.5.
- Page 17 Version No. 81904 4076-01...
- Page 18 10. Replacement items are “Like for like” and is not “new for old” and does not indicate in any way that a faulty product will be replaced b. Hisense and/or its Agents will decide if there are any defects in the with a new part or unit.
- Page 19 Please retain this portion for your records 60 MONTHS IN HOME REPAIR WARRANTY Hisense Australia will provide its nearest service centre for repairs under warranty. You will need to ensure that you have already called Hisense Warranty Centre and received a JOB NUMBER.
