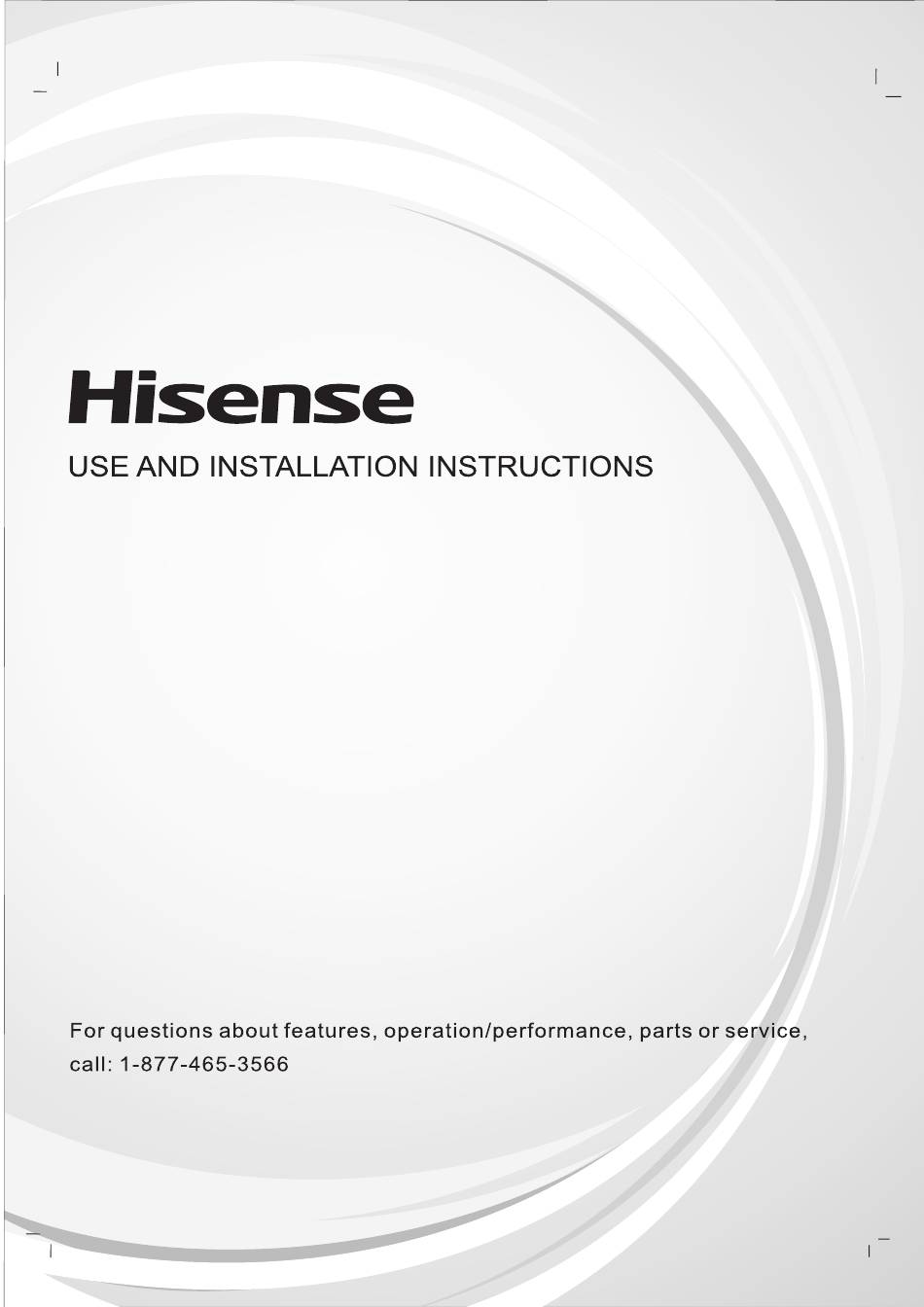

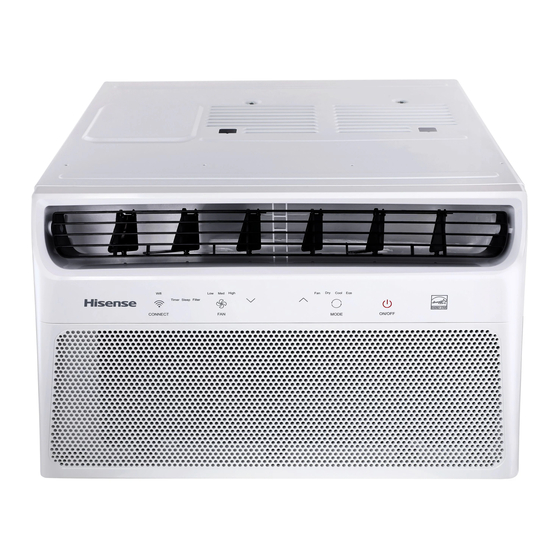

- Page 1 ITM. / ART. 1498404 Model: HAW0821CW1W...
-
Page 2: Table Of Contents
TABLE OF CONTENTS AIR CONDITIONER SAFETY INSTALLATION REQUIREMENTS Electrical Requirements Tools and Parts Unpack the Air Conditioner Location Requirements INSTALLATION INSTRUCTIONS Prepare Air Conditioner for Installation Window Air Conditioner Installation Complete Installation AIR CONDITIONER USE Starting Your Air Conditioner Using the Remote Control Changing Air Direction Exhaust Air Vent Normal Sounds... -
Page 3: Air Conditioner Safety
AIR CONDITIONER SAFETY You safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol . This symbol alerts you to potential hazards that can kill or hurt you and others . -
Page 4: Installation Requirements
INSTALLATION REQUIREMENTS Electrical Requirements WARNING Wiring requirement 115 V (103.5 V min. to 126.5 V max.) 10 A time-delay fuse or circuit breaker for 6K cooling only 13 A time-delay fuse or circuit breaker for 8K cooling Electrical Shock Hazard only Plug into a grounded 3 prong outlet. -
Page 5: Tools And Parts
Tools and Parts Gather the required tools and parts before starting installation. Parts supplied Read and follow the instructions provided with any tools listed Check that all parts are included in parts package. here. T ools needed Phillips screwdriver Tape measure ■... -
Page 6: Location Requirements
Location Requirements Window Installation Before You Begin Read these instructions completely and carefully. Window opening measurements: ■ IMPORTANT: Save these instructions for local inspector’s use. These instructions are for a standard double hung ■ IMPORTANT: Observe all governing codes and ordinances. window You will need to modify them for other types of windows . -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Prepare Air Conditioner for Installation 2. Insert top and then bottom of right-hand curtain housing in Attach Top Rail top and bottom curtain rails on air conditioner. 1. Locate the bag of screws provided. Back View 2. Place the top rail on top of the air conditioner cabinet, lining up the 4 holes in the top rail with the 4 holes on top of the air conditioner cabinet. - Page 8 Window Air Conditioner Installation Continued 1. Center air conditioner in window. Lower the window sash behind the top rail to hold cabinet in place. Attach Side Curtains to Window Keep a firm grip on the air conditioner, carefully place the unit into the window opening so the bottom of the air 1.
-
Page 9: Complete Installation
Remove the backing from the EVA Foam. Remark a line on the EVA Foam according to Attach one EVA Foam on the Curtain housing , the side less 1/8 in than the measured width in, then with adhesive should facing the Curtain housing cut the EVA Foam along the line. -
Page 10: Starting Your Air Conditioner
Starting Your Air Conditioner High High Cool Cool ■ Timer Sleep Filter Timer Sleep Filter ON/OFF CONNECT CONNECT MODE MODE ON / OFF T emperature ∧ 1. Press the power button to turn on the air conditioner. Press the plus UP ( ) button to raise the temperature. - Page 11 Timer Sleep Filt r e 1. The LED light on control panel for Timer、Sleep、Filter. Timer Sleep Filter Timer Sleep Filter The function introduction See “using the remote control”. WIFI WIFI control is available for connected models with this logo on control panel. CONNECT 1.
-
Page 12: Using The Remote Control
Using the Remote Control NOTE: Remote control may differ in appearance. Power Press POWER to turn on / off air conditioner. Fan Speed Press FAN to select High, Med, Low. NOTE: ■ In Dry mode Fan speed cannot be set. Mo e NOTE: When the first use,please remove the insulated... -
Page 13: Changing Air Direction
Timer DIMMER Press the DIMMER button to turn off the control panel display. To set timer for a 1 – 24 hour delay on – off operation: 1. Press TIMER on remote control, LED display on the air conditioner control panel will flash. NOTE: When in DIMMER mode, new control inputs will return display ■... -
Page 14: Exhaust Air Vent
Exhaust Air Vent Pull out the exhaust air vent control to Open the exhaust air ■ vent and draw stale or smoky air from the room. Push in the exhaust air vent control to close the exhaust air ■ vent for maximum continuous cooling. NOTE: The exhaust air vent control is not available for 6K / 8K cooling only . -
Page 15: Troubleshooting
TROU L B E SHOOTING Before calling for service, try the suggestions below to see whether you can solve your problem without outside help. Air conditioner will not operate Air conditioner power supply cord trips Reset button pops out) Disturbances in your electrical current can trip (Reset ■... - Page 16 The temperature of the room you are trying to cool is ■ Water drips from cabinet into your house extremely hot. Allow extra time for the air conditioner to cool off a very hot room. The air conditioner is not properly leveled. The air ■...
