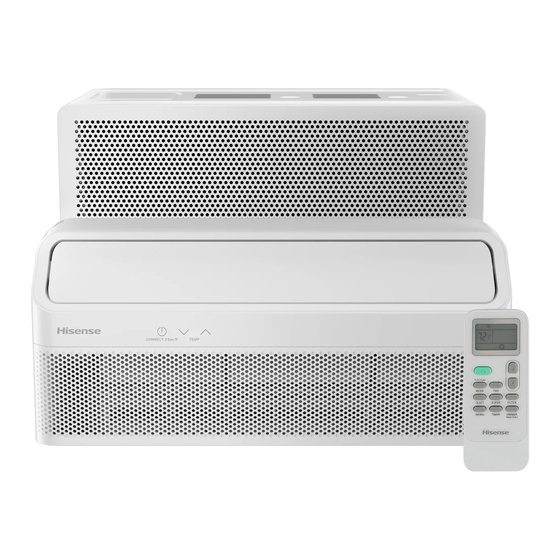

USE AND INSTALLATION MANUAL
MANUEL D'UTILISATION ET D'INSTALLATION
For questions about features, operation/ performance, parts or service,
call: 1-855-344-7367
Pour toutes questions sur les fonctionnalités, le fonctionnement / les
performances, les pièces ou la maintenance, veuillez contacter le :
1-855-344-7367

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWL1225TW1W and is the answer not in the manual?

Questions and answers

Related Manuals for Hisense AWL1225TW1W

Summary of Contents for Hisense AWL1225TW1W

  • Page 1 USE AND INSTALLATION MANUAL MANUEL D'UTILISATION ET D'INSTALLATION For questions about features, operation/ performance, parts or service, call: 1-855-344-7367 Pour toutes questions sur les fonctionnalités, le fonctionnement / les performances, les pièces ou la maintenance, veuillez contacter le : 1-855-344-7367...

  • Page 2: Table Of Contents

    Table of Contents Safety Information ........Pre-Installation .

  • Page 3: Safety Information

    Safety Information We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. DANGER: This symbol alerts you to a potential hazard, that if not avoided, will result in death or serious injury. WARNING: This symbol alerts you to a potential hazard, that if not avoided, could result in death or serious Injury.

  • Page 4: Important Safety Instructions

    Safety Information (continued) IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of re, electrical shock or injury when using your air conditioner, follow these basic precautions: 1. Plug into a grounded 3-prong outlet. 2. Do not remove ground prong. 3. Do not use an adapter. 4.
  • Page 5 Safety Information (continued) 6. Information on servicing Where electrical components are being changed, they shall be t for the purpose and to the correct speci cation. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt, consult the manufacturer’s technical department for assistance.

  • Page 6: Leak Detection Methods

    Safety Information (continued) 11. Leak detection methods The following leak detection methods are deemed acceptable for all refrigerant systems. Electronic leak detectors may be used to detect refrigerant leaks but, in the case of FLAMMABLE REFRIGERANTS, the sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used.
  • Page 7 Safety Information (continued) 14. Decommissioning Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of recovered refrigerant.

  • Page 8: Pre-Installation

    Pre-Installation ELECTRICAL REQUIREMENTS DANGER: ELECTRICAL SHOCK HAZARD 1. Plug into a grounded 3-prong outlet. 2. Do not remove ground prong. 3. Do not use an adapter. 4. Do not use an extension cord. 5. Failure to follow these instructions can result in death, re, or electrical shock. RECOMMENDED GROUNDING METHOD This air conditioner must be grounded.
  • Page 9 Pre-Installation (continued) POWER SUPPLY CORD NOTE: Your air conditioner’s device may differ from the one shown. This room air conditioner is equipped with a power supply cord required by UL. This power supply cord contains state-of-the-art electronics that sense leakage current. If the cord is crushed, the electronics detect leakage current and power will be disconnected in a fraction of a second.
  • Page 10 Pre-Installation (continued) HARDWARE INCLUDED Part Description Quantity Sketch Map Part Description Quantity Sketch Map Adhesive seal (gray) Main bracket Adhesive seal (black-long) Extension arm (short) Adhesive seal (black-short) Extension arm (long) Foam seal (gray) Sash lock (for air conditioner) Screw bolt Sash lock (for window) 1/2″screw Eva foam (white)

  • Page 11: Remove Packaging Materials

    Pre-Installation (continued) UNPACK THE AIR CONDITIONER WARNING Excessive Weight Hazard 1. Use two or more people to move and install air conditioner. Failure to do so can result in back or other injury. 2. You must use the supplied parts and use proper installation procedures as described in these instructions when installing the air conditioner.

  • Page 12: Location Requirements

    Pre-Installation (continued) LOCATION REQUIREMENTS Before You Begin Read these instructions completely and carefully. IMPORTANT: Save these instructions for local inspector’s use. Observe all governing codes and ordinances. NOTE: Installer, be sure to leave these instructions with the Consumer. Consumer, keep these instructions for future reference. 1.
  • Page 13 Pre-Installation (continued) WINDOW OPENING MEASUREMENTS 1. These instructions are for a standard double-hung window. You will need to modify them for other types of windows. 2. The air conditioner can be installed without the side curtain panels if needed to t in a narrow window. See the window opening dimensions.

  • Page 14: Installation

    Installation Prepare Support Bracket Remove main bracket and Measure the width of the window Insert the extension arm (H2 or H3) The support legs slide hardware from the carton, to choose between two long into left and right ends respectively. forward and backward along set on the at surface.
  • Page 15 Installation (continued) Placing Air Conditioner in Window Keeping a rm grip on the air conditioner, carefully place the unit into the window Carefully close the window down into the top opening so the bottom of the air conditioner frame is against the support bracket of the air conditioner help align the air and make sure the unit is staying center of the support bracket.

  • Page 16: Completing Installation

    Installation (continued) Put one EVA foam (JJ) on the curtain housing. Remark a line on the EVA foam (JJ) Install the EVA foam (JJ) into the Side In order to minimize air leaks and ensure optimal according to he measured width, then curtains (left/right).

  • Page 17: Operation

    Operation AIR CONDITIONER USE IMPORTANT: 1. If you turn off the air conditioner, wait at least 3 minutes before turning it back on. This prevents the air conditioner from blowing a fuse or tripping a circuit breaker. 2. In the event of a power failure, your air conditioner will operate at the previous settings when the power is restored. Air conditioner in the Cool mode operation the better limits: Indoor: 62.6-89.6 °F (17-32 °C), ≤...

  • Page 18: Using The Remote Control

    Operation (continued) Using the Remote Control INSERT THE BATTERIES Remove the battery cover 2. Insert new batteries making sure that the Re-attach the cover by along the arrow direction. (+) and (-) of battery are matched correctly. sliding it back into position. NOTE: 1.
  • Page 19 Operation (continued) BUTTON AND FUNCTION NOTE: Remote control may differ in appearance. Heating indicator is not available on this models. NOTE: Press and hold the MODE button on the remote for 5 seconds to switch the temperature display from degrees Fahrenheit (°F) to degrees Celsius (°C).
  • Page 20 Operation (continued) QUIET QUIET 1. Press the Quiet button to set or cancel the Quiet Mode operation. NOTE: 1. It takes about 2 to 3 minutes to fully enter the quiet mode. 2. Sometimes it cannot enter the quiet mode because of some protection. 3.

  • Page 21: Changing Air Direction

    Operation (continued) TIMER TIMER Use the TIMER function to turn the air conditioner ON/OFF automatically. Setting the Air Conditioner to Turn On: 1. Plug in the air conditioner and use the remote to power it ON. 2. Use the remote to set the desired mode, temperature, fan speed, etc. 3 .Use the remote to power OFF the air conditioner.

  • Page 22: Care And Cleaning

    Care and Cleaning Your new air conditioner is designed to give you many years of dependable service. This section tells you how to clean and care for your air conditioner properly. Call your local authorized dealer for an annual checkup. Remember the cost of this service call is your responsibility. CLEANING THE AIR FILTER The air lter is removable for easy cleaning.

  • Page 23: Troubleshooting

    Troubleshooting Problem Solution Air conditioner will not operate DANGER: ELECTRICAL SHOCK HAZARD 1. Plug into a grounded 3-prong outlet. 2. Do not remove ground prong. 3. Do not use an adapter. 4. Do not use an extension cord. 5. Failure to follow these instructions can result in death, re, or electrical shock.
  • Page 24 Troubleshooting Problem Solution Air conditioner seems to run too much 1. The current air conditioner replaced an older model. The use of more ef cient components may cause the air conditioner to run longer than an older model, but the total energy consumption will be less. Newer air conditioners do not emit the “blast”...
  • Page 25 Table des matières Informations sur la sécurité............Pré-installation................. Installation................Opération................. Entretien et nettoyage............... Dépannage................

  • Page 26: Informations Sur La Sécurité

    Informations sur la sécurité Nous avons fourni de nombreux messages de sécurité importants dans ce manuel et sur votre appareil. Lisez et respectez toujours tous les messages de sécurité. DANGER : Ce symbole vous avertit d'un danger potentiel qui, s'il n'est pas évité, entraînera la mort ou des graves blessures.
  • Page 27 Informations sur la sécurité (suite) INSTRUCTIONS DE SÉCURITÉ IMPORTANTES Pour réduire le risque d'incendie, de choc électrique ou de blessure lors de l'utilisation du climatiseur, suivre ces précautions de base : 1. Branchez l'appareil sur une prise de courant à 3 broches mise à la terre. 2.

  • Page 28: Informations Sur La Maintenance

    Informations sur la sécurité (suite) 5. Stockage des équipements emballés (invendus) La protection de l'emballage de stockage doit être construite de manière à ce que les dommages mécaniques de l'équipement à l'intérieur de l'emballage ne provoquent pas de fuite de la charge de réfrigérant. Le nombre maximum d'équipements autorisés à...
  • Page 29 Informations sur la sécurité (suite) 9. Câblage Véri ez que le câblage sera sujet à l'usure, à la corrosion, à une pression excessive, aux vibrations, aux arêtes vives ou à tout autre effet environnemental négatif. Le contrôle doit également prendre en compte les effets du vieillissement ou des vibrations continues provenant de sources telles que les compresseurs ou les ventilateurs.
  • Page 30 Informations sur la sécurité (suite) 14. Démantèlement Avant d'effectuer cette procédure, il est essentiel que le technicien connaisse parfaitement l'équipement et tous ses détails. Des bonnes pratiques pour la récupération de tous les réfrigérants en toute sécurité sont recommandées. Avant d'effectuer la tâche, un échantillon d'huile et de réfrigérant doit être prélevé...

  • Page 31: Pré-Installation

    Pré-installation EXIGENCES ÉLECTRIQUES DANGER : RISQUE DE CHOC ÉLECTRIQUE 1. Branchez l'appareil sur une prise de courant à 3 broches mise à la terre. 2. Ne retirez pas la broche de terre. 3. N'utilisez pas d'adaptateur. 4. N'utilisez pas de rallonge. 5.

  • Page 32: Cordon D'alimentation

    Pré-installation (suite) CORDON D'ALIMENTATION REMARQUE : Votre climatiseur peut différer de celui illustré. Ce climatiseur de pièce est équipé d'un cordon d'alimentation électrique requis par UL. Ce cordon d'alimentation contient un élément électronique de pointe qui détecte le courant de fuite. Si le cordon est écrasé, l'élément électronique détecte le courant de fuite et l'alimentation sera coupée en une fraction de seconde.
  • Page 33 Dispositif de fermeture (pour climatiseur) Support principal...

  • Page 37: Installation

    (H4) 3/8" 1/2" 1/2" 1/2" 1/2"...

  • Page 40: Opération

    TEMP POWER CONNECT 3 Sec TEMP TEMP CONNECT 3 Sec TEMP...
  • Page 42 F / C [ 5 sec ] MODE QUIET SUPER FILTER SWING TIMER DIMMER Sleep [ 5 sec ] NUIT NUIT...
  • Page 43 QUIET SUPER FILTER DIMMER sleep [ 5 sec ] NUIT DIMMER NUIT. sleep [ 5 sec ]...
  • Page 44 TIMER...

  • Page 45: Entretien Et Nettoyage

    Entretien et nettoyage Votre nouveau climatiseur est conçu pour vous servir de manière faible pendant de nombreuses années. Cette section vous explique comment nettoyer et entretenir correctement votre climatiseur. Appelez votre revendeur agréé local pour un contrôle annuel. N'oubliez pas que le coût de cet appel de service est à...

  • Page 46: Dépannage

    Dépannage Problème Solution Le climatiseur ne fonctionnera pas DANGER : RISQUE DE CHOC ÉLECTRIQUE 1. Branchez l'appareil sur une prise de courant à 3 broches mise à la terre. 2. Ne retirez pas la broche de terre. 3. N'utilisez pas d'adaptateur. 4.
  • Page 47 Dépannage Problème Solution Le climatiseur semble fonctionner trop longtemps 1. Le climatiseur courant a été remplacé par un modèle plus ancien. L'utilisation de composants plus efficaces peut entraîner un fonctionnement du climatiseur plus long qu'un modèle plus ancien, mais la consommation d'énergie totale est moindre. Les climatiseurs plus récents n'émettent pas le «...
  • Page 48 4366453-01...
