1
Cam Tower Stand w Counterbalance
(P-CTST-01)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.

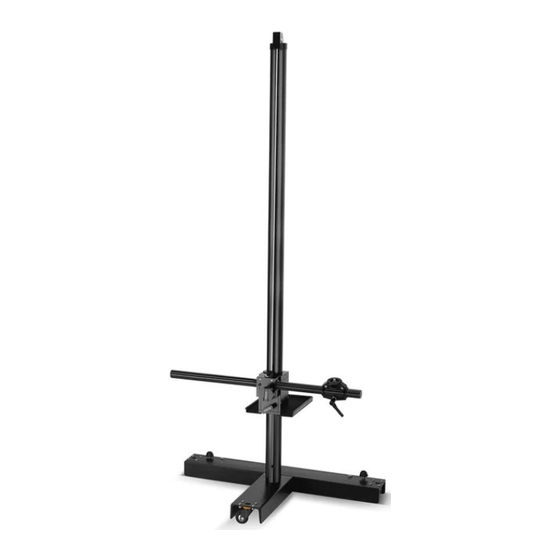

Cam Tower Stand w/ Counterbalance
Platform Section -1 with
Accessory Tray
Locking Pivot Wheel
Camera Support Platform
Platform Section-2 with Locking Pivot Wheels
2x Allen Keys T-Type
1x Spanner (Size:-17mm)
(Size:-3/16"& 4mm)
2 x Screws
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
