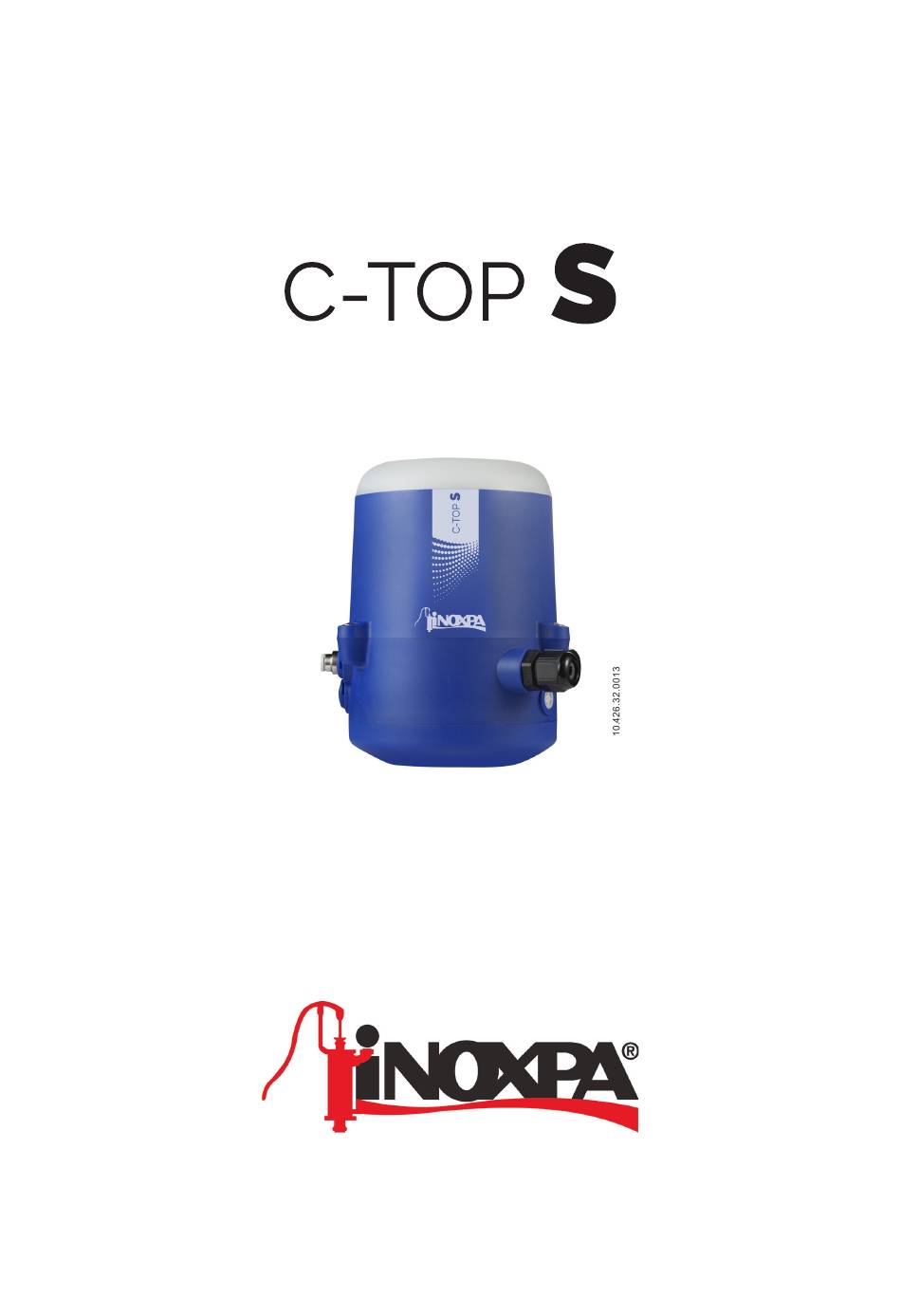

- Page 1 INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS CONTROL HEAD Original Instructions 10.426.30.03EN (A) 2025/05...
-
Page 2: Control Head
C-TOP S 24V DC 0E, C-TOP S 24V DC 1E, Type: C-TOP S 24V DC 2E, C-TOP S 24V DC 3E, C-TOP S AS-I 1E, C-TOP S AS-I 2E, C-TOP S AS-I 3E, C-TOP S IO-Link 0E, C-TOP S IO-Link 1E, C-TOP S IO-Link 2E, C-TOP S IO-Link 3E... - Page 3 C-TOP S 24V DC 0E, C-TOP S 24V DC 1E, Type: C-TOP S 24V DC 2E, C-TOP S 24V DC 3E, C-TOP S AS-I 1E, C-TOP S AS-I 2E, C-TOP S AS-I 3E, C-TOP S IO-Link 0E, C-TOP S IO-Link 1E, C-TOP S IO-Link 2E, C-TOP S IO-Link 3E...
-
Page 4: Table Of Contents
8. Operating problems 9. Technical Specifications 9.1. Materials ................................21 9.2. Environment ..............................21 9.3. Control head ..............................21 9.4. Power consumption ............................21 9.5. Comunication ..............................22 9.6. Dimensions of the C-TOP S ......................... 22 9.7. Exploded drawing and parts list ........................23... -
Page 5: Generalities
The information published in the instruction manual is based on updated data. INOXPA reserves the right to modify this instruction manual without prior notice. 2.2. COMPLIANCE WITH THE INSTRUCTIONS Not following the instructions may impose a risk for the operators, the environment and the machine, and may cause the loss of the right to claim damages. -
Page 6: Security
60204-1. Installation errors can damage the electronics or cause malfunctions. The C-TOP S contains electrostatically sensitive components. Electrostatic discharge caused by improper handling or incorrect earthing can damage the internal electronics. Disconnect the PLC power supply before handling the control head, as it is part of the PLC input/output system. - Page 7 Do not touch the inside of the control head when it is in operation. All the electrical work should be carried out by specialised personnel. The C-TOP S contains electrostatically sensitive components. Electrostatic discharge caused by improper handling or incorrect earthing can damage the internal electronics.
-
Page 8: General Information
4. General Information 4.1. DESCRIPTION The C-TOP S is a control head that adapts to all of the INOXPA actuators to automate pneumatic drive process valves. To automate the process valves, the control head can have up to three solenoid valves. -
Page 9: Installation
5. Installation 5.1. RECEPTION OF THE CONTROL HEAD INOXPA is not liable for any deterioration of the material caused by its transport or unpacking. When receipt the control head, check to see whether all the parts listed on the delivery slip are present: - control head, - quick installation guide with access to the complete instructions manual. - Page 10 Installation To mount the control head on the actuator of the valve follow the next process: 1. If necessary, fit the shaft adapter on the actuator shaft. 2. Place the target (10) on the shaft adapter. 3. Remove the cover screws (01). 4. Position the C-TOP S on the actuator. 5. Tighten the base screws (04) which join the head with the actuator. 6. Place the cover (02) and tighten the cover screws (01). INOXPA S.A.U. 10.426.30.03EN · (A) 2025/05...
-
Page 11: Pneumatic Installation Of The Control Head
Cut the air connections with a suitable cutter to avoid damage to them. Use the air supply’s connections with sufficient length to avoid tensions on them and to avoid its disassemble if separate the control head of the valve is needed. INOXPA S.A.U. 10.426.30.03EN · (A) 2025/05... -
Page 12: Electrical Installation Of The Control Head
The C-TOP contains electrostatically sensitive components. The electrostatic discharge caused by improper handling or incorrect earthing can damage the internal electronics. The control head C-TOP S is available in three versions of the electronic module with three systems of communication: 1. - Page 13 Installation 5.7.2. Electrical installation with AS-interface communication The C-TOP S with AS-interface communication includes a cable with a multipole connector so it is not needed to perform any internal wiring. Wiring diagram AS-interface communication: Printing Description 0V (GND) external sensor 24V DC external sensor input external sensor - AS-i (M12, pin 3)
-
Page 14: Setup
The control head leaves the factory without configuration. Perform a previous setting that consists of memorizing different positions of the shaft of the valve actuator is needed to be able to use it. Once it is installed and is switched on for the first time, the C-TOP S flashes with a white and pink light to indicate that it has not any position memorized. The control head C-TOP S has two setting modes: - manualtune for control heads without solenoid valves and double effect actuators, or for situ- ations where you want to activate more than one solenoid valve simultaneously, - autotune for all other cases. -
Page 15: Manualtune
3. The control head’s light is closed during the change of the solenoid valve. 4. To indicate the end of the test mode the control head will be illuminated by a white flashing light for 2 seconds. During the performance of the test mode, you can pass from checking one solenoid valve to another by doing a short or long press on the “I” button. Do a short or long press on the “II” button to cancel the test mode. INOXPA S.A.U. 10.426.30.03EN · (A) 2025/05... -
Page 16: Reset
The control head is illuminated by different colours to inform the status of the valve and the control head. There are some default colours and other ones that be chosen to configure the different positions of the valve. The default colours to operate the C-TOP S are: - White: to get in and out of the different operating modes. If no change has occurred at the exit of the setting mode, the light of the control head will be flashing. Instead, if any changes have occurred, the light of the control head will be continuous. -
Page 17: C-Top S Io-Link Configuration
Once the module positions have been programmed, an IO-Link protocol interface can be used to choose whether two solenoid valves can be activated at the same time. To check the parameters for this device, see document 10.426.30.09EN (IO-Link Interface Description). A software file (IODD) from the INOXPA website (https://www.inoxpa.com/downloads/documents/ valves-and-fittings/valve-automation) is required and must be uploaded to the control unit before its start-up and configuration. Which software is needed will depend on how many solenoid valves the ... -
Page 18: Manualtune
- press the “I” button for a short time (for 100 ms < t < 2 s) to activate solenoid valve 1. - press the “II” button for a short time (for 100 ms < t < 2 s) to activate solenoid valve 2. - press the “I” and “II” buttons simultaneously for a short time (for 100 ms < t < 2 s) to activate solenoid valve 3. Every time a solenoid valve activates, its position should be recorded by pressing and holding the “I” button (for 2 - 5 s). A light will flash quickly while pressing and a steady light will indicate when the valve position recording is complete. 3. Press and hold the “II” button for a long time (2 - 5 s) to exit the manualtune programming mode. INOXPA S.A.U. 10.426.30.03EN · (A) 2025/05... -
Page 19: Push-Button Operation Overview
C-TOP S IO-Link Configuration 7.3. PUSH-BUTTON OPERATION OVERVIEW Below is an overview in the form of a block diagram, which shows the different operating modes available for this C-TOP S variant. Full factory reset and reboot SBx: short button x - 100 ms < t < 2s VLB1 LBx: long button x - 2s < t < 5s VLB2 VLBx: very long button x - t > 5s... -
Page 20: Operating Problems
WHITE and PINK light Check that each pneumatic hose Wrong operation of the process The pneumatic connections are is connected to the corresponding valves not correctly connected output of the control head INOXPA S.A.U. 10.426.30.03EN · (A) 2025/05... -
Page 21: Technical Specifications
3/2 way, normally closed with manual locking 9.4. POWER CONSUMPTION C- TOP S Power [W] 0 solenoid valves 1 solenoid valves 2 solenoid valves 3 solenoid valves 1 solenoid valves 2 solenoid valves 3 solenoid valves INOXPA S.A.U. 10.426.30.03EN · (A) 2025/05... -
Page 22: Comunication
IO-Link: M12 4-pole male connector M16 x 1,5 plug External sensor input M16 x 1,5 plug v 3.0 (A/B addressing and up to 62 Version nodes) Slave profile 7A77 IO-Link: device update via the IO-Link Additional functionality protocol 9.5. DIMENSIONS OF THE C-TOP S INOXPA S.A.U. 10.426.30.03EN · (A) 2025/05... -
Page 23: Exploded Drawing And Parts List
Technical Specifications 9.7. EXPLODED DRAWING AND PARTS LIST Position Description cover screws cover cover seal base screws solenoid valves electronic module pneumatic ports cable gland base target base seal INOXPA S.A.U. 10.426.30.03EN · (A) 2025/05... - Page 24 How to contact INOXPA S.A.U.: Contact details for all countries are continually updated on our website Please visit www.inoxpa.com to acces the information. INOXPA S.A.U. Telers, 60 - 17820 - Banyoles - España...
