ANNEX FOR CE ATEX REGISTERED EQUIPMENT UNDER

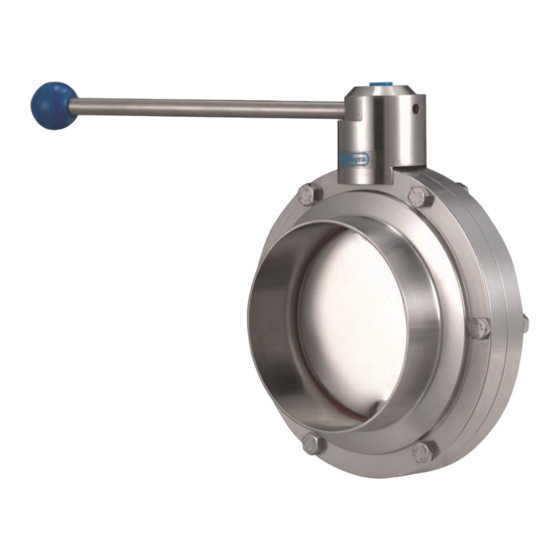

Ex BUTTERFLY VALVES
The contents of this Annex complements the information included in the
instruction manual. The instructions of this Annex must also be observed
whenever equipment registered under Directive 2014/34/EU is used.
If applicable, this Annex is complemented with the manuals of ATEX
registered components which form part of the assembly (e.g., actuators,
inductive sensors, etc.).
INSTALLATION, SERVICE AND
MAINTENANCE INSTRUCTIONS
DIRECTIVE 2014/34/EU:
1
Original Manual
10.001.30.01EN
(A) 2022/11
Advertisement
Table of Contents
Related Manuals for INOXPA BUTTERFLY
Summary of Contents for INOXPA BUTTERFLY
- Page 1 MAINTENANCE INSTRUCTIONS ANNEX FOR CE ATEX REGISTERED EQUIPMENT UNDER DIRECTIVE 2014/34/EU: Ex BUTTERFLY VALVES The contents of this Annex complements the information included in the instruction manual. The instructions of this Annex must also be observed whenever equipment registered under Directive 2014/34/EU is used.
- Page 2 10.001.30.10EN (0) 2022/11 EU Declaration of Conformity ATEX 2014/34/EU INOXPA, S.A.U. Telers, 60 17820 – Banyoles (Girona) Hereby declare under our sole responsibility that the machine VALVE Model BUTTERFLY From serial number IXXXXXXXXX IXXXXXXXXX Fulfills all the relevant provisions of Safety and Health from ATEX 2014/34/EU Directive and...
-
Page 3: Instruction Manual
The valve was selected according to the working conditions specified by the user, for which INOXPA will not be liable for damages which may be caused from using the valve under different conditions to those indicated in the order, according to the ATEX (F-O-PED-01) form. -
Page 4: Guarantee
1.5. GUARANTEE Any guarantee will be cancelled immediately and as a matter of law, in addition to any claim made by third parties for civil liability being payable to us (in addition to the conditions already indicated in the manual) in case: - The material is used incorrectly or is not used according to the working conditions in the classified area, operating in a different classified area, temperature or pressure conditions and/or using a different substance. -
Page 5: Table Of Contents
2. Table of Contents Sections in italics include changes with respect to the manual. The indications of these sections should be observed in addition to those of the valve manual. 1. Safety 1.1. Instruction Manual ...……………………………… ...………………….….………...…………...… 3 1.2. Instructions for start-up ………………………………………………………………...………….… 3 1.3. -
Page 6: Receipt And Installation
_____________________________________________________________________________________ 3. Receipt and installation 3.1. CHECK SHIPMENT It should be checked that the valve received adheres to the working conditions in the classified area and the conditions of the order. 3.2. DELIVERY AND UNPACKING 3.2.1. Delivery 3.2.2. Unpacking 3.3. IDENTIFICATION In case of ATEX valves, the following identification will be used on a complementary basis: II 2G Ex h IIB T6…T3 Gb II 2D Ex h IIIB T85... -
Page 7: Welding
3.8. ACTUATOR AIR CONNECTION RESPONSIBILITY FOR ATEX CERTIFICATION In case that INOXPA, S.A. supplies a valve without actuator, control head or proximity detectors, the certification mark of protection against explosion is only relative to the valve. All the equipment mounted should have separate certification, furnished by the equipment manufacturer and, as a minimum, with the same or a grade higher of protection than the valve. -
Page 8: Start-Up
This valve was selected for a given set of working conditions in potentially explosive atmospheres when the order was placed in accordance with the ATEX (F-O-PED- 01) Form. INOXPA will not be liable for any damage resulting from the incompleteness or inaccuracy of the information provided by the buyer (type of liquid, viscosity, classification of the potentially explosive area, gas generated by the potentially explosive atmosphere, etc.). -
Page 9: Maintenance
ATEX area, as well as the characteristics of this area. In case this is not carried out, INOXPA will not be held responsible for the operation of the valve with parts inappropriate for the classified area where it is installed. -
Page 10: Assembly And Disassembly
7.3. DISASSEMBLY/ASSEMBLY OF VALVE WITH PNEUMATIC ACTUATOR 7.4. ASSEMBLY OF JOINT 7.5. ASSEMBLY OPTIONS OF THE ACTUATOR In case that the actuator is supplied by INOXPA, it should comply with the specifications of ATEX Directive 2014/34/EU and the supplier's specifications should be observed at all times. -
Page 11: Technical Specifications
_____________________________________________________________________________________ 8. Technical Specifications Temperature range. See section 3.3. 8.1. TECHNICAL SPECIFICATIONS PNEUMATIC ACTUATOR GENERAL DATA To prevent a considerable temperature rise, under no circumstances can the pneumatic actuator exceed 12 cycles per minute. Under all circumstances, it is not recommended to exceed 2/3 cycles per minute to ensure a reasonable useful life of the joints.
