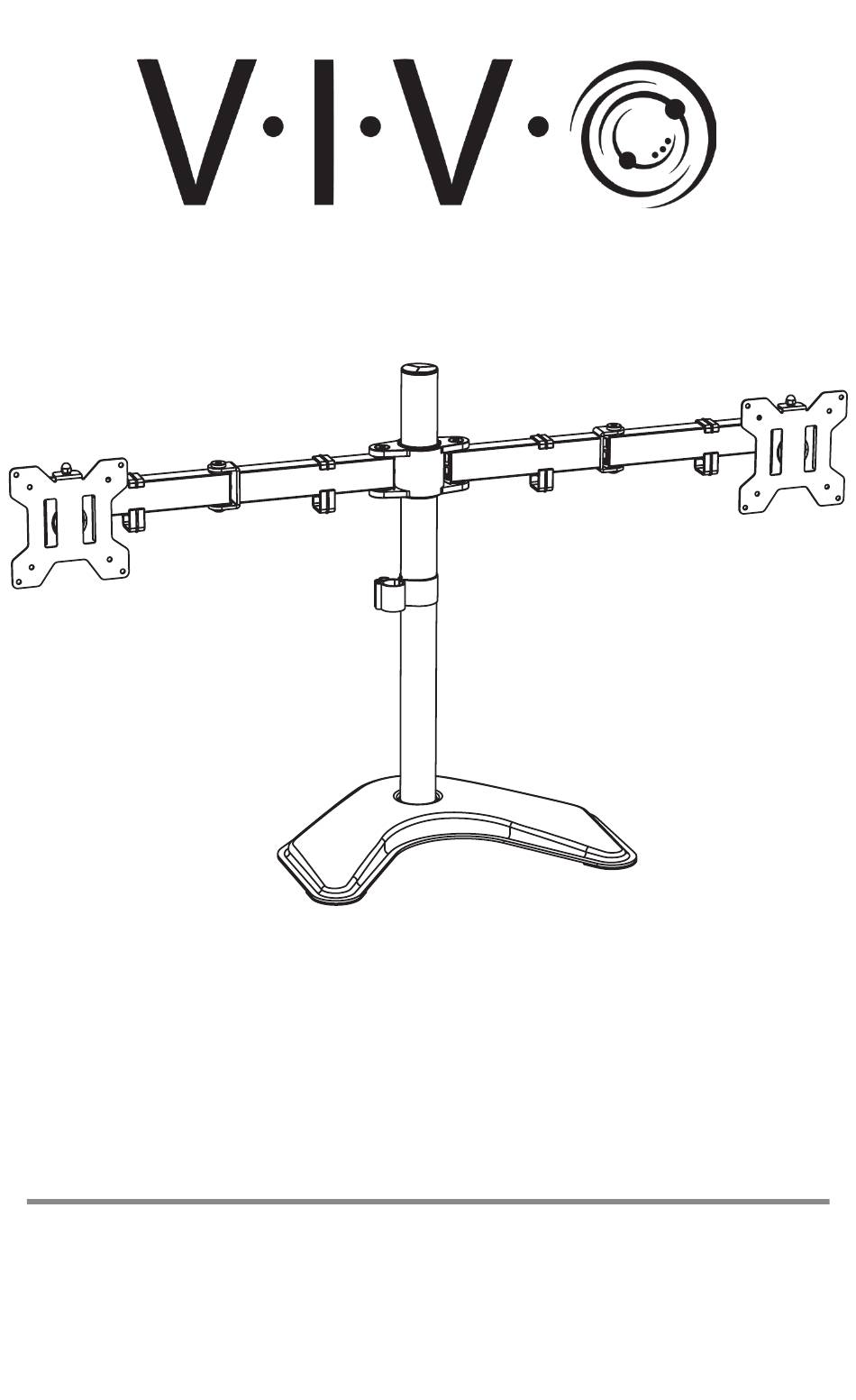

  • Page 1 Dual Monitor Desk Stand STAND-V002F Series Assembly Manual Individual Product SKUs STAND-V002F STAND-V002FW...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
  • Page 3: Package Contents

    Package Contents A (x1) B (x1) C (x1) D (x2) Pole Base Swivel Arm VESA Plate E (x1) F (x4) G (x1) Pole Cap Arm Cable Clip Pole Cable Clip Included Hardware & Tools S-A (x3) S-B (x2) M-A (x8) M-B (x8) M6x16mm M4x12mm...
  • Page 4: Assembly Steps

    Assembly Steps STEP 1 Attach the Pole (A) to the Base (B) using M6x16 Screws (S-A). Tighten using 3mm Allen Wrench (T-A).
  • Page 5 STEP 2 Slide the Pole Cable Clip (G) and Swivel Arm (C) onto the Pole (A) and tighten the screw with the 5mm Allen Wrench (T-B). Insert the Pole Cap (E) into the top of the Pole. Attach Arm Cable Clips (F) to Swivel Arm.
  • Page 6 STEP 3 Flat Back Monitors Attach the VESA Plates (D) to the monitors using the M4x12mm Thumbscrews (M-A). Curved Back Monitors Attach the VESA Plates (D) to the monitors using the M6 Spacers (M-C) and M4x30mm Screws (M-B). Tighten the Screws with a Phillips Screwdriver.
  • Page 7 STEP 4 Grab a friend and slide the monitors onto the heads of the Swivel Arms (C). Install the Security Nuts (S-B). 2 Person Mounting Recommended...
  • Page 8 STEP 5 Use the Cable Clips (F, G) to route and manage the cables. The Allen Wrenches (T-A, T-B) can be stored in the Pole Cable Clip.
  • Page 9: Tilt Adjustment

    Adjustments Tilt Adjustment Secure the tilt angle by tightening the bolt on the side of the Tilt Joint with the 5mm Allen Wrench (T-B). Leveling Adjustment To level the monitors, remove the Security Nut (S-B) and adjust the bolt using the 3mm Allen Wrench (T-A) to raise or lower the monitor.
  • Page 10 Adjustments - Cont’ d Swivel & Rotation Swivel and rotation can be adjusted freely by hand. ** WARNING ** For stability, avoid extending the Arms beyond the marked arrow range.
  • Page 11 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
  • Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
