Vivo STAND-V002FG Series Assembly Manual
Dual monitor desk stand
Hide thumbs
Also See for STAND-V002FG Series:
- Assembly (32 pages) ,
- Instruction manual (9 pages) ,
- Instruction manual (8 pages)
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V002FG Series
Summary of Contents for Vivo STAND-V002FG Series

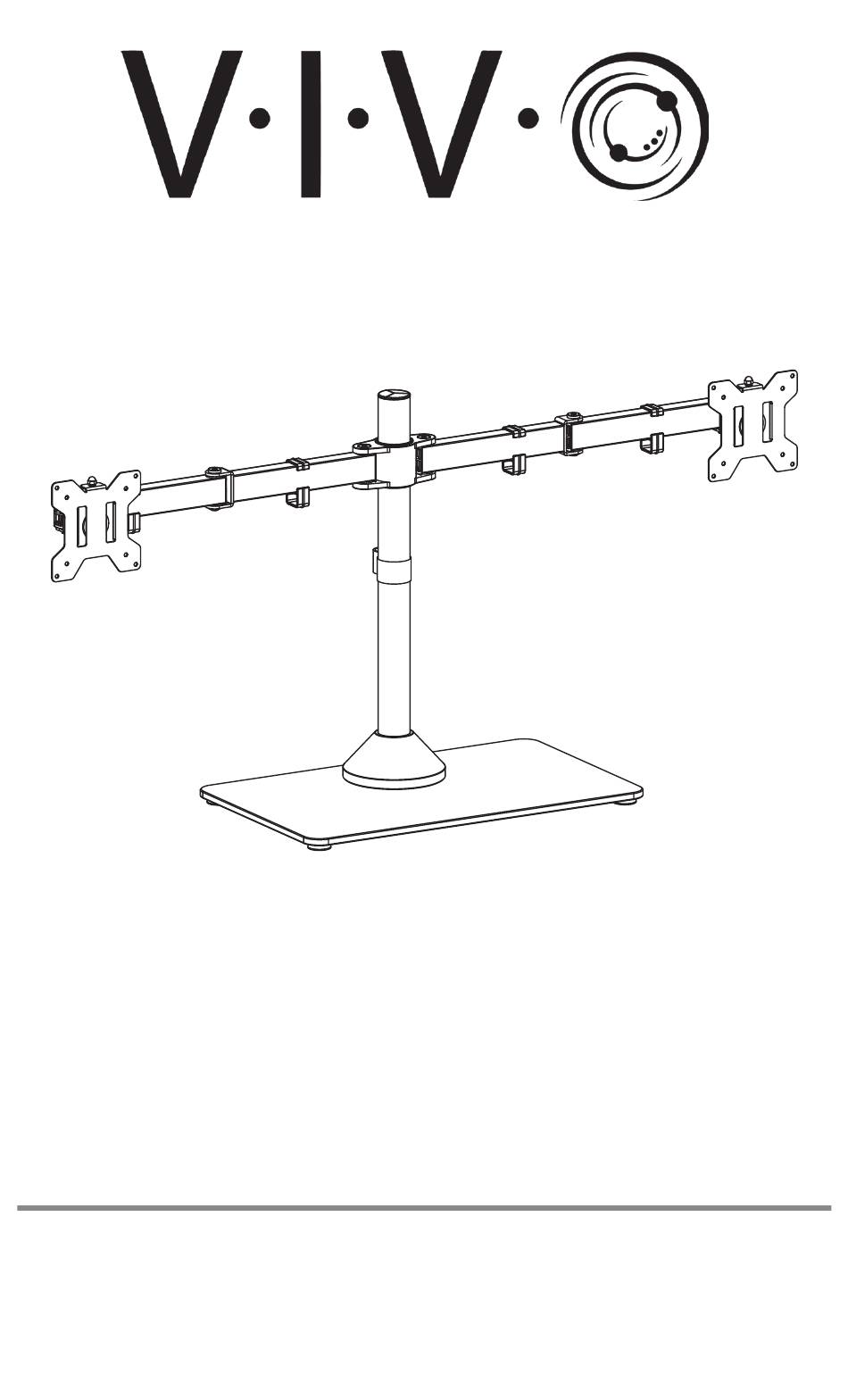

- Page 1 Dual Monitor Desk Stand STAND-V002FG Series Assembly Manual Individual Product SKUs STAND-V002FG STAND-V002FGW...
- Page 2 Better Products for a Better Workspace Experience We are dedicated to creating high-end ergonomic solutions for the office with top of the industry support. Explore Endless Workspace Solutions www.vivo-us.com...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 4: Package Contents
Package Contents A (x1) B (x1) C (x1) Pole Glass Base Grommet Plate D (x1) E (x1) F (x2) G (x4) Pole Cover VESA Plate Foot H (x1) I (x1) J (x4) K (x4) L (x1) Grommet Soft Pole Cable Clip Arm Cable Clip Soft Pad Pole Cap... -
Page 5: Assembly Steps
Assembly Steps STEP 1 Remove adhesive backing from Grommet Soft Pad (H) and apply it to the bottom of Grommet Plate (C). Assemble Grommet Plate (C) to the underside of Pole (A) using M6x16mm Screws (S-A) and 4mm Allen Wrench (T-B). - Page 6 STEP 2 Secure Grommet Plate (C) to Glass Base (B) using M6x10mm Screws (S-B) with M6 Washers (S-C) and 4mm Allen Wrench (T-B). Remove adhesive backing from Feet (G) and apply them to the bottom of Glass Base (B). Remove adhesive backing from Soft Pads (K) and apply them to Feet.
- Page 7 STEP 3 Slide Pole Cover (E), Pole Cable Clip (I), and Arm (D) onto Pole (A). Secure Arm in place using 5mm Allen Wrench (T-C). Insert Pole Cap (L) into the top of Pole. *Pole Cover (E) is optional Attach Arm Cable Clips (J) to Arm (D).
- Page 8 STEP 4 Attach VESA Plates (F) to the back of monitors using appropriate Screws (M-A or M-B). Spacers (M-C) can be used if needed. Ensure Lip is on top. Slide VESA Plates (F) with monitors onto Arm (D) and secure using Security Nuts (S-D).
- Page 9 STEP 5 Route cables through Pole Cable Clip (I) and Arm Cable Clips (J). Level the monitors by removing Security Nuts (S-D) and adjust using 3mm Allen Wrench (T-A). Reinstall Security Nuts.
- Page 10 Adjustments Adjust the tilt of the monitors using 5mm Allen Wrench (T-C). Adjust as desired.
- Page 11 **WARNING - RISK OF TIPPING** Serious or fatal crushing injuries can occur from tipover. DO NOT move arms past the back or front of Glass Base (B) to avoid tipping.
- Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
