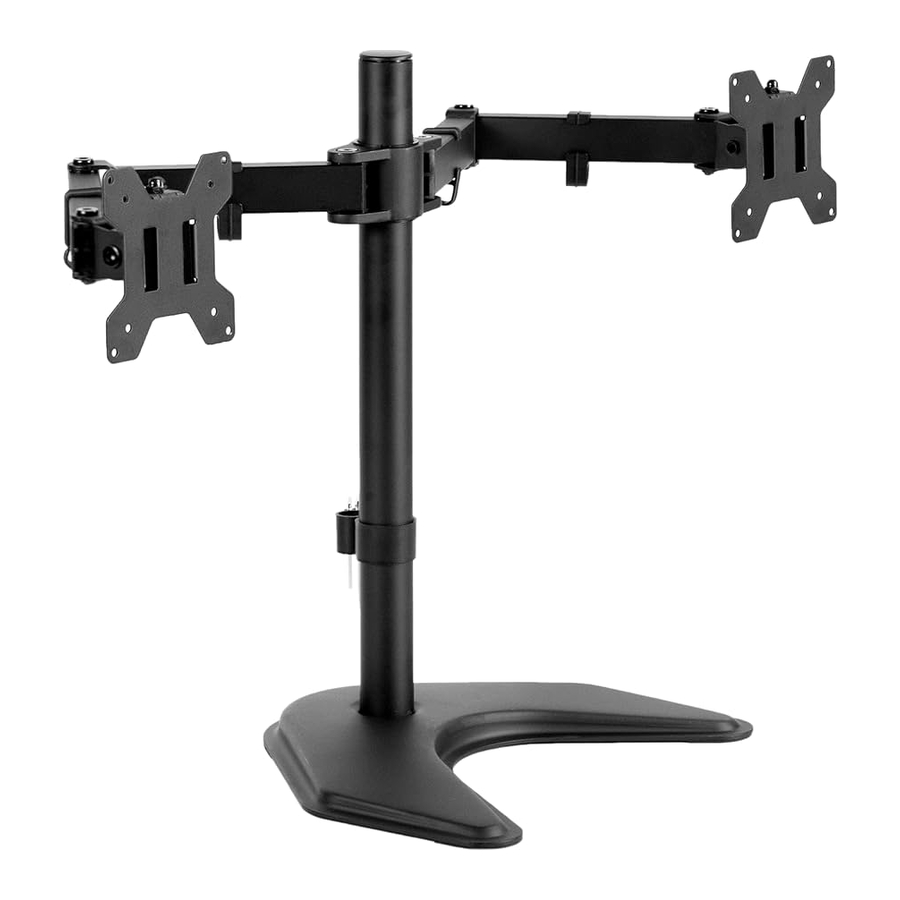

Vivo STAND-V002F Manual

SAFETY INFORMATION


If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use.


TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

  • NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.
  • USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.


CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

PACKAGE CONTENTS

warning NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

TOOLS NEEDED

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

ASSEMBLY STEPS

STEP 1

Option A: Desk Clamp Install
Install the pole (A) to the weighted base (B) using 3 M5x14 bolts (E).
See Figure 1.

OPTIONAL: For more secure mounting, you can drill a 10mm diameter hole in your desk and secure using the support plate (H), M10 washer (I), spring washer (J) and M10 bolt (G). Fasten the M10 bolt with provided wrench (N), see Figure 2.

Option B: Grommet Base Install with Existing Hole If you prefer grommet base installation, but no grommet hole is present, drill a 3/8 (10mm) hole through the mounting surface and proceed with Option B.

  1. Install grommet base plate (K) to the pole (A) using 3 M5x14 bolts (E). See Figure 3.
  2. Attach soft pad (R) to the grommet base plate (K), see Figure 4.
  3. Position pole (A) on the mounting surface and secure using the support plate (H), M10 washer (I), spring washer (J) and M10 bolt (G). Fasten M10 bolt using provided wrench (N). See Figure 5.
    ASSEMBLY - Step 1

Option C: Grommet Base with Self-Drilled Hole

  1. Position the Pole (A) on the mounting surface and mark the center hole. Drill a 3/8" (10mm) diameter hole at the marked position through the mounting surface.
  2. Install the Grommet Base Plate (K) to the Pole (A) using M5x14 Bolts (E), and tighten using the Allen Wrench (M), see Figure 6.
  3. Attach Soft Pad (R) to the Grommet Base Plate (K), see Figure 7.
  4. Position the Pole (A) on the mounting surface and secure using Support Plate (H), M10 Washer (I), Spring Washer (J), and M10 Bolt (G). Fasten the M10 Bolt using provided Wrench (N), see Figure 8.
    ASSEMBLY - Step 2

STEP 2
Install swivel arm (C) to the pole (A). Fasten the bolt with supplied allen wrench (M). Attach the wire clips (L1, L2) to the pole (A) and swivel arm (C).
ASSEMBLY - Step 3

STEP 3

OPTION A: Flat Back Monitor

Attach the VESA plate (D) to the monitor using M4x12 thumb bolts (O).
ASSEMBLY - Step 4

warning NOTE: Hand tighten screws to avoid over tightening.

OPTION B: Curved Back Monitor

Attach the VESA plate (D) to the monitor using M4 spacers (Q) and M4x30 bolts (P).
ASSEMBLY - Step 5

warning NOTE: Hand tighten screws to avoid over tightening.

STEP 4
Slide the monitor onto the head of swivel arm (C). Install the security nut (F). Make sure the security nut is installed before you rotate the monitor.
ASSEMBLY - Step 6

STEP 5
Tighten the bolt with the supplied allen wrench (M) to fix the tilt angle.
ASSEMBLY - Step 7

To level the monitors, remove the nut (F) and turn the bolt with the allen wrench (M) to raise or lower the monitor. Replace nut (F) after the adjustment.
ASSEMBLY - Step 8

STEP 6
Use the supplied allen wrench (M) to make any necessary adjustments. Manage cables and store the allen wrenches (M) in wire clip (L1) for future use.
ASSEMBLY - Step 9

STEP 7


To prevent tipping, please be careful not to extend the arms too far forward or backward.
ASSEMBLY - Step 10
