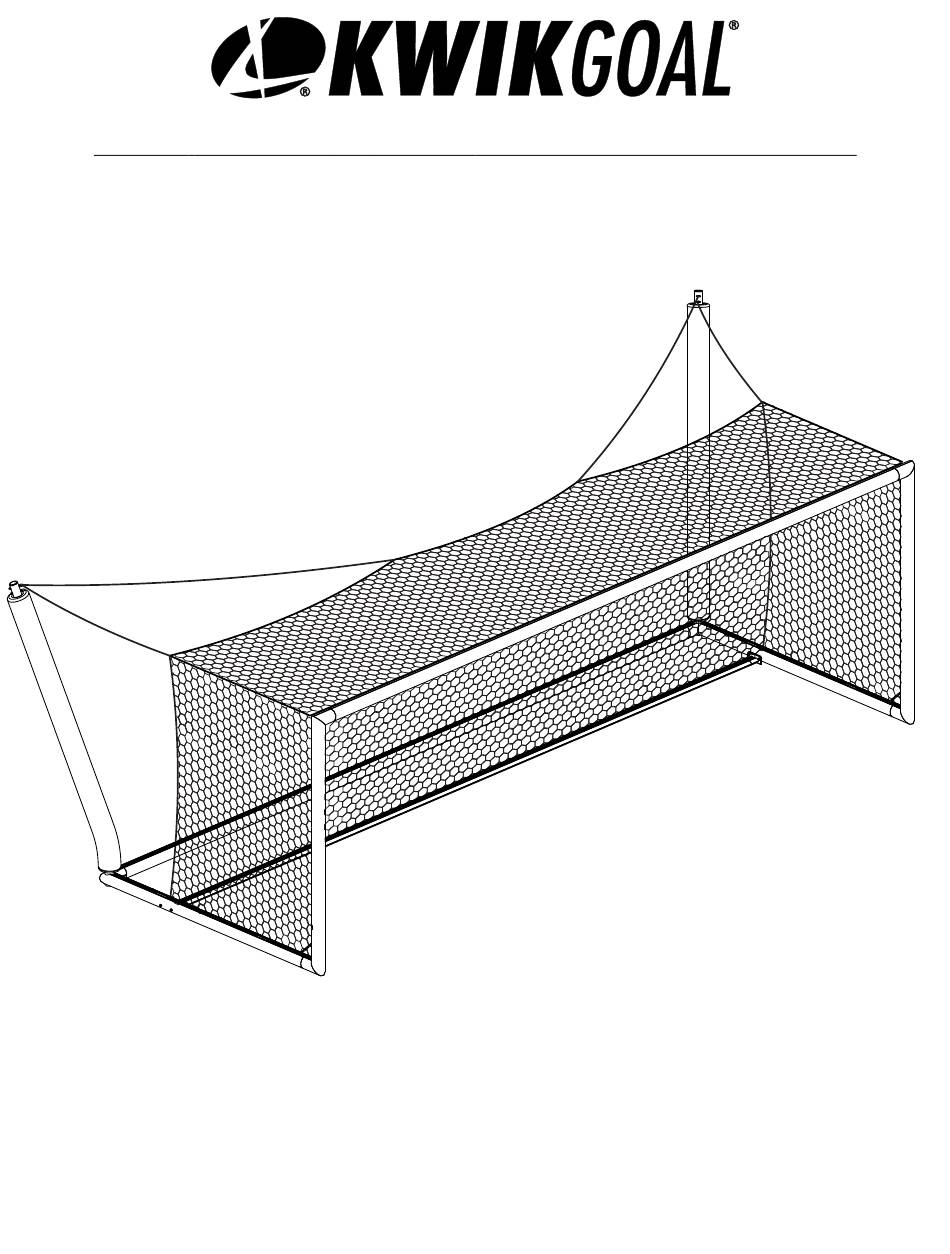

ASSEMBLY INSTRUCTIONS FOR 2B2406SW INTERNATIONAL PORTABLE MATCH GOAL
1. Unpack all parts and check for damage that may have occurred during shipping. If damage has
occurred, notify Kwik Goal immediately. Lay out all parts. Remove all cardboard and packaging
immediately. Wet or damp packaging may damage contents.
2. Read through entire instruction before beginning assembly and installation.
NOTE: Components may be packaged in one or more additional boxes.
This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES
and shall be secured against overturning. Do not climb on the net or goal framework at any time! All fastenings
must be checked to insure they are fully tightened before and after each use of this product. Goal posts not in use
must be disassembled and properly stored in a safe, secure area (See included Guidelines for Movable Soccer Goal
Safety.). Assembled goal posts should not be left unattended. Remove nets when goals are not in use. Do not use
this equipment during the threat of high winds. Goal posts should be checked for safety before and after each use.
All warning and safety labels included with this product must be visible at all times.
Any modifications to this or any Kwik Goal product will void any and all warranties.
***CAUTION***
140 Pacific Drive Quakertown, PA 18951
800-531-4252 Kwikgoal.com
©
2025 Kwik Goal Ltd.
NZ489 Rev. 04/11/25
Advertisement
Related Manuals for KwikGoal 2B2406SW
Summary of Contents for KwikGoal 2B2406SW
- Page 1 ASSEMBLY INSTRUCTIONS FOR 2B2406SW INTERNATIONAL PORTABLE MATCH GOAL 1. Unpack all parts and check for damage that may have occurred during shipping. If damage has occurred, notify Kwik Goal immediately. Lay out all parts. Remove all cardboard and packaging immediately. Wet or damp packaging may damage contents.
- Page 2 If this is not practical, store movable soccer goals in a place where children cannot have access to them. • Fully disassemble goals for seasonal storage. 140 Pacific Drive Quakertown, PA 18951 800-531-4252 Kwikgoal.com NZ489 Rev. 04/11/25 © 2025 Kwik Goal Ltd.
- Page 3 4.72” Parts Parts [120 mm] 4.72” Crossbar (1) [120 mm] (Part# UZ1724) 280” Left Post (1) Right Post (1) (Part# UZ1733) (Part# UZ1734) 100-3/4” 100-3/4” Left Base (1) (Part# UZ1735) Right Base (1) (Part# UZ1736) 100” 100” 4.38” Back Bottom Bar (1) (Part# UZ966) 1.92”...
- Page 4 Left Back Right Back Parts continued: Pole Pad (1) Pole Pad (1) Back Pole (2) (Part# VZ942-01) (Part# VZ942-02) (Part# UZ1737) 111” 111” 122” 46” 46” Labeled on inside Labeled on inside of access hatch of access hatch Back Bottom Bar Net Clip (80) Channel Spacer (8) Post Brace (2)
- Page 5 Net Tension Winch (4) Back Corner Net Rope (2) Net Rope (2) (Part# VZ232) (Part# VZ783-01) (Part# VZ783-05) (Replacement pack # VZ958) (Replacement pack # JZ301-01) (Replacement pack # JZ301-01) 96” 286” Assembly Tools Hardware Note: Hardware may be packaged separately Ratchet with 7/16”, 1/2”, 5/8”, in one or more boxes.
- Page 6 3. Attach the left and right posts and bases to the crossbars using channel spacers and 3/8” hex bolts. Note the direction of the decals before fastening. Be sure connections are pressed firmly together before tightening the hex bolts. Base 3/8”...
- Page 7 4. Attach a tie down ring to each post and base, orienting them as shown 1/4” X 1” Hex Bolt below before fastening. 1/4” Lock Washer 1/4” Flat Washer Tie Down Ring 1/4” x 1” Flat Washer Base Left Base Left Post Crossbar Crossbar...
- Page 8 5. With a minimum of two people, lift the assembled bases up and lower them onto the assembled posts. Ensure each base has a channel spacer inserted in Lift the channel before hand. Left Base Crossbar Left Post 6. Install all hardware as shown below, including the 5/16”...
- Page 9 7. Attach each back bottom bar connector to the back bottom bar. Back Bottom Bar 3/8” Flat Washer 3/8” Lock Washer 3/8” X 1-3/4” Hex Bolt Channel Spacer Back Bottom Bar Connector 8. Attach the back bottom bar to the assembled goal frame.
- Page 10 9. Assemble the right and left backpoles as shown below. Take note that the net tension winches are positioned differently on each pole. Left Back Pole Back Pole 3/8” Lock Nut 3/8” Eye Bolt 3/8” Flat Washer 5/16” Lock Nut 5/16”...
- Page 11 10. Assemble the net straps onto each backpole, passing them through the net tension winches and eye bolts as shown below. Side Net Tension Winch Strap Snap Link Eye Bolt Front Net Tension Winch Strap Net Tension Winch & Strap Assembly Net Tension Winch &...
- Page 12 11. Lift the assembled backpoles and insert them into the assembled bases. Ensure that the net tension winches on the sides of the poles are oriented inwards on the goal. Winches on sides of poles oriented inwards Top view Net Straps 1/2”...
- Page 13 12. To attach chain leashes, insert two square nuts into each base. Attach chain leash at locations shown. 3/8” Square Nuts Base Spacer Plate 3/8" x 1-1/8" Hex Bolt 3/8" Lock Washer 3/8" Flat Washer 34" 50" Chain Leash 3/8” Square Nut ***CAUTION*** This goal has been designed to be used for the game of soccer only.
- Page 14 13. Mark ground anchor hole locations. Prepare holes, install ground anchors and pour concrete. 314” 157” 34" Ground Anchor locations Centerline of Goal Line 50" Goal Line Anchor Hole Detail (4 places per goal) 3/4” 15° Top of Anchor Approx Field Surface 13-1/2"...
- Page 15 14. After the concrete has fully cured, attach the chain leashes to the ground anchors. Be sure to apply a liberal amount of anti-seize to bolt threads before installing into anchors. With the goal leashed to all four anchors, test in accordance with step 16. 1/2"...
- Page 16 15. The ground anchor and chain leash system supplied is the recommended and the safest method of anchoring your goal. However, counterbalance weight may be used as a temporary anchoring system. A minimum of 240 lbs. must be placed on the back bottom crossbar for the goal to be stabilized. Test anchoring in accordance with step 16.
- Page 17 16. After installing anchors, test as described below to verify effectiveness of the anchoring system. If applicable, allow concrete to fully cure before testing. ANCHOR TEST 1. Clear all persons from a minimum 50 foot radius surrounding the goal. 2. Verify goal is attached to anchors according to instruction. 3.
- Page 18 17. To attach the net to the goal, place the base of each net clip over the perimeter rope of the net and into the channel, turning 90 degrees to lock it into place. Start with the top post corners, denoted by a yellow net tag. Use a step ladder if needed to reach the crossbar.
- Page 19 18. Install the 1st net rope (286” long) onto the goal by weaving it around the top, rear perimeter rope of the net. Take the backpole net straps corresponding to the net tension winches on the front of the backpoles and connect the snap link to the perimeter rope at the corner of the net and the 286”...
- Page 20 19. Install the 2nd net rope (286” long) onto the goal by weaving it around the top, rear perimeter rope of the net & net rope installed in the previous step, starting 17 meshes in from either side of the goal. Partially raising the net using the net tension winches and straps connected in the previous step may provide easier access.
- Page 21 20. Install the back corner net ropes (96” long) onto the goal by looping one end to the tie down ring on each base, and securing the other end using the snap links already attached Back Corner to the corners of the net. Do not weave these ropes through 96”...
- Page 22 21. Secure the top corners of the net perimeter rope to the goal frame by passing cable ties through the previously installed tie down rings. Reducing tension on the net by loosening the net tension winches may help manipulate the mesh more easily. Once secure, cut off excess using scissors. Cable Tie Tie Down Ring...
- Page 23 Right Backpole Pad from the bottom to the access hatch (VZ942-02 RT) Go to kwikgoal.com for additional product information. ***CAUTION*** This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES and shall be secured against overturning.
