ASSEMBLY INSTRUCTIONS FOR
1. Unpack all parts and check for damage that may have occurred during shipping. If damage has
occurred, notify Kwik Goal immediately. Lay out all parts. Remove all cardboard and packaging
immediately. Wet or damp packaging may damage contents.
2. Read through entire instruction before beginning assembly and installation.
NOTE: Components may be packaged in one or more additional boxes.

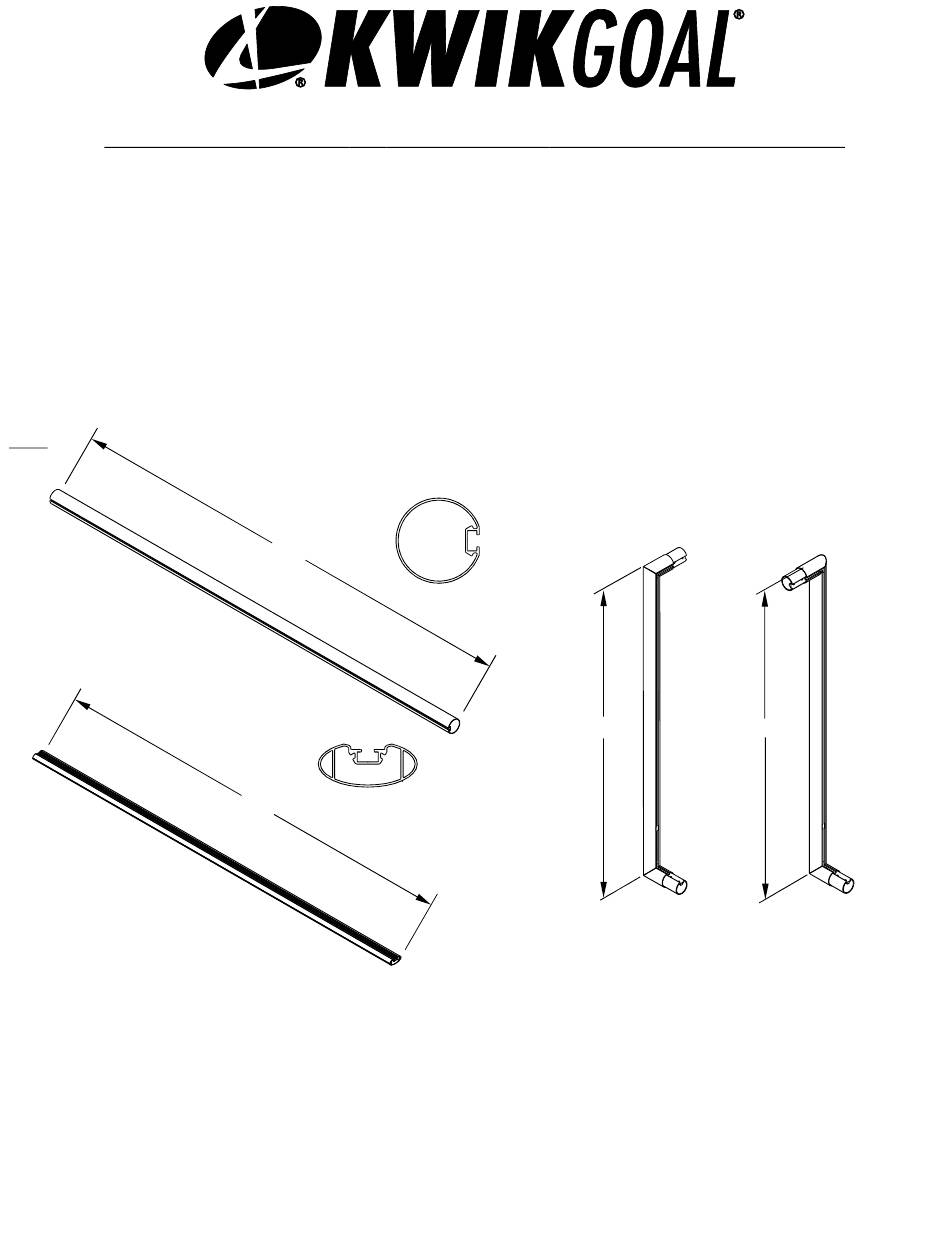

Parts
Back Bottom Bar (1)
This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES
and shall be secured against overturning. Do not climb on the net or goal framework at any time! All fastenings
must be checked to insure they are fully tightened before and after each use of this product. Goal posts not in use
must be disassembled and properly stored in a safe, secure area (See included Guidelines for Movable Soccer Goal
Safety.). Assembled goal posts should not be left unattended. Remove nets when goals are not in use. Do not use
this equipment during the threat of high winds. Goal posts should be checked for safety before and after each use.
All warning and safety labels included with this product must be visible at all times.
Any modifications to this or any Kwik Goal product will void any and all warranties.
Crossbar (2)
(Part#
UZ
1534)
214"
(Part#
UZ
1537)
214"
140 Pacific Drive Quakertown,
800-531-4252 Kwikgoal.com
2B9004 & 2B900
4SW PRO PREMIER COPA GOAL
82-3/8"
***CAUTION***
PA
18951
©
2019 Kwik Goal Ltd.
®
Right Post (1)
(Part#
UZ
1536)
82-3/8"
Left Post (1)
(Part#
UZ
1535)
NZ396 Rev. 09/29/22
Advertisement
Related Manuals for KwikGoal 2B9004
Summary of Contents for KwikGoal 2B9004
- Page 1 ® ASSEMBLY INSTRUCTIONS FOR 2B9004 & 2B900 4SW PRO PREMIER COPA GOAL 1. Unpack all parts and check for damage that may have occurred during shipping. If damage has occurred, notify Kwik Goal immediately. Lay out all parts. Remove all cardboard and packaging immediately.
- Page 2 If this is not practical, store movable soccer goals in a place where children cannot have access to them. 10. Fully disassemble goals for seasonal storage. 140 Pacific Drive Quakertown, 18951 800-531-4252 Kwikgoal.com © 2019 Kwik Goal Ltd. NZ396 Rev. 09/29/22...
- Page 3 Left Base (1) Right Base (1) Back Pole (2) (Part# 1532) (Part# 1533) (Part# 1538) 81-5/8” 81-5/8” Back Bottom Bar Post Brace (2) Back Pole Brace (2) Back Pole Brace (2) Connector (2) (Part# 737) (Part# UZ152 (Part# UZ1526 (Part# 1033) Blue Dot Red Dot...
- Page 4 Knob w/o Threads (2) Net Rope Pole Rope (Part# 687) Assembly (4) Assembly (2) (Part# JZ224 Pack of 4) (Part# JZ219 Pack of 2 w/ Snaplink) 96” 214” Assembly Tools Hardware Note: Hardware may be packaged separately Ratchet with 7/16”, 1/2”, 5/8”, in one or more boxes.
- Page 5 3. Attach left post and right post to crossbar using channel spacers and 3/8” hex bolts. Note direction of decals before fastening. Be sure connections are pressed firmly together before tightening hex bolts. 4. Insert one square nut in each of the assembled posts. 3/8”...
- Page 6 5. Attach base to crossbar and bottom back bar as shown. 3/8” X 1-3/4” Hex Bolt Note direction of decals before fastening. Assemble all 3/8” Lock Washer hardware first, then go back and tighten each bolt. Be sure connections are pressed firmly together before 3/8”...
- Page 7 7. Lift assembled posts and insert into assembled bases. Be sure connections are pressed firmly together before tightening bolts. Be sure to tighten both bolts on each post brace. Base Left Post Crossbar Post Crossbar 3/8” Square Nut Flat Washer Lock Washer Base Right Post...
- Page 8 If using swivel wheels (2B9004SW) - skip to step 10, for all other goals continue to step 9. 9. Insert two 3/8” square nuts into left base and right base. NOTE: If installing optional wheels (Part#10B409), also include two threaded channel spacers from wheel option package in each base. 3/8”...
- Page 9 10. Assemble back poles as shown. Make sure eyebolt is in slot before tightening. Do not overtighten. 3/8” Square Nuts 1/4” X 2” Eyebolt Back Pole Slot 1/4” Flat Washer 1/4” Lock Nut 3/8” Square Nut 3/8” Flat Washer Knob 3/8”...
- Page 10 11. Put loop end of pole ropes (2) through eyebolt and place rope in channel. With rope assemblies placed in channel, insert tamper resistant net clips at locations shown. Pole Ropes Net Clip Driver Tamper Resistant Net Clip Tamper Resistant Net Clip (2 Per Back Pole) 7 FT Knobs...
- Page 11 12. Attach back pole and braces to goal base. Use color dots on braces as a guide for brace location. Assemble all hardware first, then go back and tighten each bolt. Do not over tighten. 5/16” Flat Washer Back Pole 5/16”...
- Page 12 13. To attach chain leashes insert two square nuts into each base. Attach chain leash at locations shown. 3/8” Square Nuts Base 3/8" x 7/8" Hex Bolt 3/8" Lock Washer 34" 3/8" Flat Washer 30" Chain Leash 3/8" Square Nut ***CAUTION*** This goal has been designed to be used for the game of soccer only.
- Page 13 14. Mark ground anchor hole locations. Prepare holes, install ground anchors and pour concrete. 246" 123" 34" Ground Anchor locations Centerline of Goal Line 30" Goal Line 60° Approx. Field Surface 12-3/4" Concrete Concrete 20" Ground Anchor Stone 24" MIN Anchor Hole Detail (4 places per goal) ***CAUTION***...
- Page 14 15. After concrete has fully cured, attach chain leashes to ground anchors. Be sure to apply a liberal amount of anti-seize on bolt threads before installing into anchors. With goal leashed to all four anchors, test in accordance with step 16. Assembled 1/2"...
- Page 15 16. The ground anchor and chain leash system supplied is the recommended and the safest method of anchoring your goal. However, counterbalance weight may be used as a temporary anchoring system. A minimum of 240 lbs. must be placed on the back bottom bar for the goal to be stabilized. Test anchoring in accordance with step 17.
- Page 16 17. After installing, test as described below to verify effectiveness of anchor system. If applicable, allow concrete to fully cure before testing. ANCHOR TEST 1. Clear all persons from a minimum 50 foot radius surrounding the goal. 2. Verify goal is attached to anchors according to instruction. 3.
- Page 17 18. Attach net to goal frame with tamper resistant net clips using net clip driver as shown. Untie and remove backdrop rope. Replace backdrop rope with ring and rope assembly. CAUTION: DO NOT ATTEMPT TO CLIMB ON GOAL WHILE ATTACHING NET. CAUTION: GOALS MUST BE PROPERLY ANCHORED OR STORED AT ALL TIMES.
- Page 18 20. From underside of net, push end of 2nd net rope assembly through the 10th mesh of the net. Clip net rope assembly to 2nd pole rope assembly. Wrap 2nd net rope assembly around 1st net rope assembly approximately 12 times at center of net. Do NOT weave rope through meshes of nets. Nets must be free to slide on ropes.
- Page 19 2nd Net Rope Assembly Go to kwikgoal.com for additional product information. ***CAUTION*** This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES and shall be secured against overturning.
