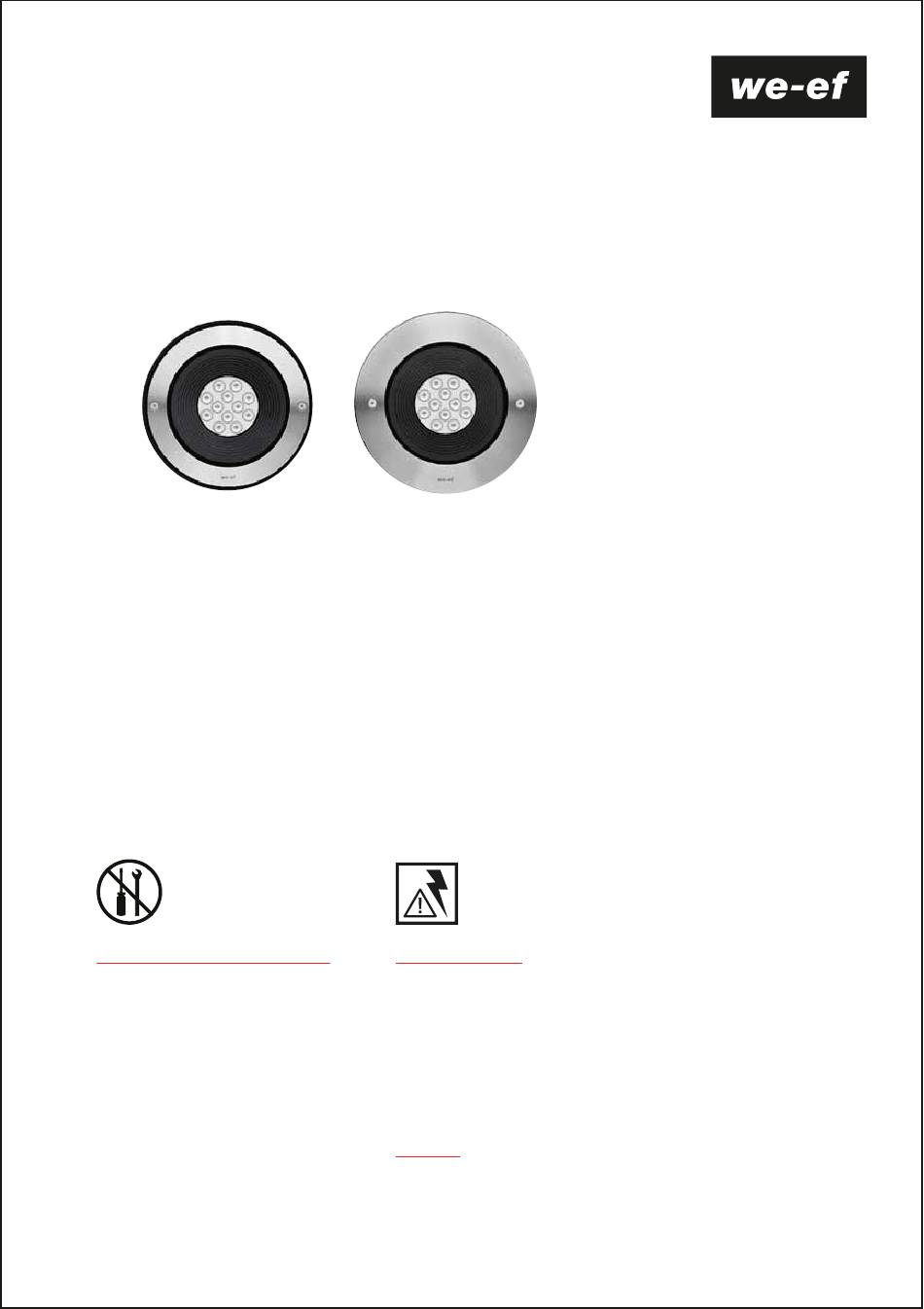

WE-EF LEUCHTEN Installation and Maintenance Instructions Inground Luminaire ETC330-FS EVC330-FS ETC340-FS EVC340-FS ETC330-FS CC EVC330-FS CC ETC340-FS CC EVC340-FS CC ETC330-FS TW EVC330-FS TW ETC340-FS TW EVC340-FS TW Do not open during installation Surge Protection This product is factory-sealed. This product features built-in surge protection circuitry in compliance with Refer to the instructions contained in this applicable standards.
Page 2
Inground Luminaire ETC330-FS EVC330-FS ETC330-FS TW EVC330-FS TW ETC330-FS CC* EVC330-FS CC* ETC340-FS EVC340-FS ETC340-FS CC* EVC340-FS CC* ETC340-FS TW EVC340-FS TW IP69, Class I, ta = 40°C Accessories: DMX Wireless* for ETC/EVC330-FS CC 0.14 – 2.5 mm 430-0018 ø 5.5 – 12 mm...
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out Warning: Do not open luminaire while mains supply is switched on.
Installation Installation Methods The product must be installed and maintained by a Attention: The luminaire is factory-sealed and does not need to be opened during installation. building/construction and/or electrical regulations and relevant legislation. For proper installation, use the supplied installation blockout.
Page 5
Phase One Blockout Installation Procedure 1) Ensure that proper drainage is provided for 2) Ensure a suitable recess. the shown installation methods: a) In landscape/paved areas, sand or concrete with gravel base (Fig. I). b) With fully concreted installation, drainage piping must be provided (Fig.
Page 6
5) Set mounting ring B/M in position. Arrow R 6) Replace blockout cover Z prior to luminaire on mounting ring M is pointed towards the installation to prevent tripping hazard and object to be illuminated (wall, tree, column). concrete or dirt from getting into blockout. FLUSH 7) Framing should be installed to prevent vegetation from growing over the lens.
Page 7
8) Switch off mains electrical supply. 9) Check that rating shown on luminaire label conforms with mains electrical supply. 03/17 IP67 220-240V/60/Hz, 1-10V ETC330-FS 185-XXXX SOE XXXXXXX LED 4000K 12W item no. XXX (example) 10) Terminate cable E and mains supply cable O in...
Page 8
12) Loosen countersunk screws C (do not turn out). Insert mounting lever L between head of countersunk screws C and cover lens. 13) Set cables and sealable junction box J 14) Place housing A into installation blockout/ inside installation blockout/mounting ring mounting ring assembly B/M while aligning assembly B/M.
Page 9
15) Remove lever L and tighten countersunk screws C 'hand-tight'.
Page 11
WE-EF LEUCHTEN Installation and Maintenance Instructions Wiring instruction for hybrid DMX cable...
Page 12
Installation The product must be installed and maintained by a with latest building/construction and/or electrical regulations and relevant legislation. The installation on site must comply with local and/or national health and safety regulations.
Installation Procedure 1) Scope of supply. (illustrations are exemplary) A: Power supply cable Hybrid B: DMX data cable C: Junction box for DMX data cables D: Junction box for power supply cable + white Luminaire shield — red + white shield —...
Page 14
3) Feed DMX data cables B through terminal block H of junction box D. 4) Connect luminaire’s power supply cable A and mains supply cable O (and second cable F for through wiring) to terminal block H within junction box D: L = Phase, N = Neutral, = Earthing.
Page 15
5) Ensure cables do not cross and that cable sheaths are contained with gel. Click close junction box D and tie case by cable ties K. Click! Click! 6) Connect luminaire’s DMX data cables B and external DMX cables E to terminal block I within junction box C: White = DMX+, Red = DMX–, Shield.
Page 16
7) At the end of each DMX bus: DMX must be terminated by connecting 120 ohm resistor G (placed on each junction box C by adhesive tape) between DMX+ and DMX– on terminal block I in junction box C. 8) Ensure cables do not cross and that cable sheaths are contained with gel. Tighten 4 screws.
