WE-EF LEUCHTEN
Installation and Maintenance
Instructions

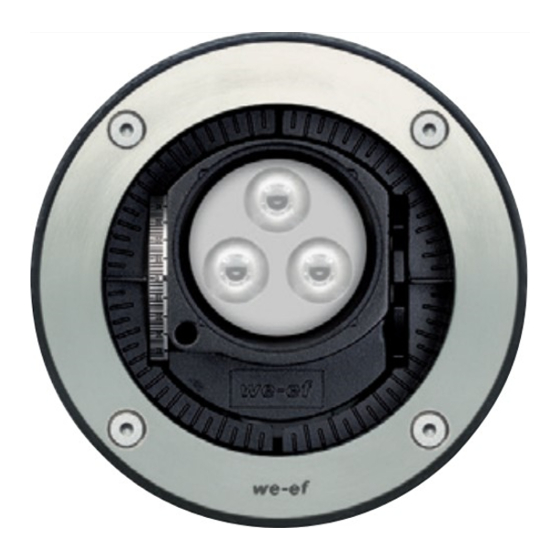

Inground Luminaire
ETC320-GB LED
Surge Protection
This product features built-in surge protection circuitry in compliance
with applicable standards.
For comprehensive protection of a luminaire installation against lightning
and electrical surges, it is essential to cover mains supply and data input
lines at the distribution board level, by using respective primary (Type 1)
and secondary (Type 2) surge arrestors in compliance with EN61643-11/
IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and
activated prior to luminaire installation. Also, disconnect luminaires
before operating high-power devices such as, for example, electrical
arc welders.
Advertisement
Related Manuals for WE-EF ETC320-GB LED
Summary of Contents for WE-EF ETC320-GB LED
- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Inground Luminaire ETC320-GB LED Surge Protection This product features built-in surge protection circuitry in compliance with applicable standards. For comprehensive protection of a luminaire installation against lightning and electrical surges, it is essential to cover mains supply and data input...
- Page 2 Inground Luminaire 355º ø 160 0º-20º ø 350 IP69, Class I, ta = 25°C Fig. I...
-
Page 3: Maintenance
Attention: In case of damage to the lens, the complete lens/gasket assembly must be replaced. 4) In case of damage to the LED, the complete gimbal module X must be returned to WE-EF for factory- maintenance (contact your authorised WE-EF agent for service). To remove the gimbal module proceed as follows (Fig. -
Page 4: Installation Methods
Installation Installation Methods The product must be installed and maintained For proper installation, use the supplied installation blockout. with latest building/construction and/or electrical regulations and relevant legislation. Ensure that proper drainage is provided for the shown installation methods: Warning: In landscape/paved areas, sand or concrete with installing and connecting the luminaire. - Page 5 Phase One Blockout Installation Procedure (during earth or masonry work) 1) Ensure that proper drainage is provided for the shown installation methods. 2) Ensure a suitable recess is provided to accommodate installation blockout/mounting ring assembly L/H. 3) Test drainage (ensure water drains within 30 mins, Warning: warranty void if luminaire installed without appropriate drainage).
- Page 6 Phase Two Aiming of gimbal Luminaire Installation, Electrical Connection, and 14) Insert a standard tool into a slot on locking wheel W. Rotate locking wheel W in the ‘OPEN’ direction Aiming Procedure until gimbal can be moved (Fig. V). 8) Check that rating shown on luminaire label To horizontally aim the gimbal (Rotation 355°) conforms with mains electrical supply.
- Page 7 Fig. IV...
- Page 8 Fig. V Fig. VI Fig. VII...
- Page 9 WE-EF SWITZERLAND WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9191W0823 © WE-EF 2023 subject to change.
