Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions

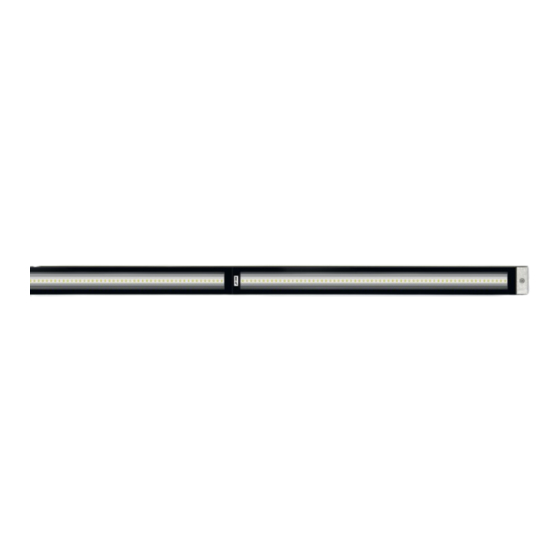

Inground Luminaire
ETV100 LED
Advertisement
Related Manuals for WE-EF ETV100 LED
Summary of Contents for WE-EF ETV100 LED
- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Inground Luminaire ETV100 LED Do not open during installation Surge Protection This product is factory-sealed. This product features built-in surge protection circuitry in compliance with Refer to the instructions contained in this applicable standards.
- Page 2 Inground Luminaire ETV100 Product Dimensions: ETV100 series ETV120 ETV130/ETV130-CC ETV140/ETV140-CC 1227 IP67, IK08. Class I. ta = 25°C Mounting Accessories: Installation blockout Type I Type II B = 160 mm B = 130 mm for 1 x ETV120 186-0306 186-0281 for 2 x ETV120 186-0307 186-0282...
-
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out Warning: Do not open luminaire while mains supply is switched on. -
Page 4: Installation
Installation The product must be installed and maintained by a building/construction and/or electrical regulations and relevant legislation. Warning: Switch off mains electrical supply prior to installing and connecting the luminaire. Notice: than the original manufacturer, then the warranty will no longer be valid and shall become the full respon- sibility of the modifying person/organisation. - Page 5 Blockout Installation Procedure (during earth or masonry work) 1) Ensure that proper drainage is provided for 2) Ensure a suitable recess. the shown installation methods: a) In landscape/paved areas, sand or concrete with gravel base (Fig. I). b) With fully concreted installation, drainage piping must be provided (Fig.
- Page 6 5) Feed mains supply cable C (and second cable 6) Replace blockout cover prior to luminaire E for through wiring) through holes inside installation to prevent tripping hazard/ blockout. concrete dirt getting into blockout. 7) Blockout needs to get placed on an even, stable 8) Framing should be installed to prevent vegeta- tion from growing over the lens.
- Page 7 Luminaire Installation Procedure 9) Switch off mains electrical supply. 10) Check that rating shown on luminaire label conforms with mains electrical supply. 02/19 IP67 ETV120 220-240V/50-60 Hz 186-XXXX SOE XXXXXXX (example) 11) Luminaire is pre-wired and LED included. 12) Remove installation cover A from blockout B. Opening the luminaire is not necessary.
- Page 8 13) Take sealable junction box G from its bag and open it. Warning: Be careful to not get dirt inside the gel connector when opened and connecting mains cable. Connect leads of luminaire cable D and mains supply cable C (and second cable E for through wiring) to respective terminals in terminal connector F.
- Page 9 14) Place sealable junction box G and luminaire H inside blockout. Make sure no cable is squeezed. Attention: For [LA10] and [A6], ensure correct orientation of the luminaire. Remove label before operation of luminaire. 15) Install spacers I. 16) To remove luminaire unfasten screws K out of spacers I until you can grab their heads.
- Page 10 WE-EF HELVETICA WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9258W0321© WE-EF 2021 subject to change.
- Page 11 WE-EF LEUCHTEN Installation and Maintenance Instructions Wiring instruction for hybrid DMX cable...
- Page 12 Installation The product must be installed and maintained by a building/construction and/or electrical regulations and relevant legislation.
-
Page 13: Installation Procedure
Installation Procedure (illustrations are exemplary) 1) Scope of supply. Hybrid B: DMX data cable C: Junction box for DMX data cables Luminaire + white shield – red + white shield – green Neutral (N) - blue Earthing - green/yellow Phase (L) - brown First luminaire Last luminaire 185-1624... - Page 14 3) Feed DMX data cables B through terminal block H of junction box D. A and mains supply cable O (and second cable F for through D: L = Phase, N = Neutral, = Earthing. Attention:...
- Page 15 junction box D and tie case by cable ties K. Click! Click! 6) Connect luminaire’s DMX data cables B and external DMX cables E to terminal block I box C: White = DMX+, Red = DMX– Attention:...
- Page 16 7) At the end of each DMX bus: DMX must be terminated by connecting 120 ohm resistor G (placed on each junction box C – on terminal block I in junction box C. 9) Test electrical system before burying cables.
- Page 17 Fax +61 3 8587 0499 WE-EF HELVETICA WE-EF LIGHTING United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 TO9256W0420 © WE-EF 2020 subject to change.
